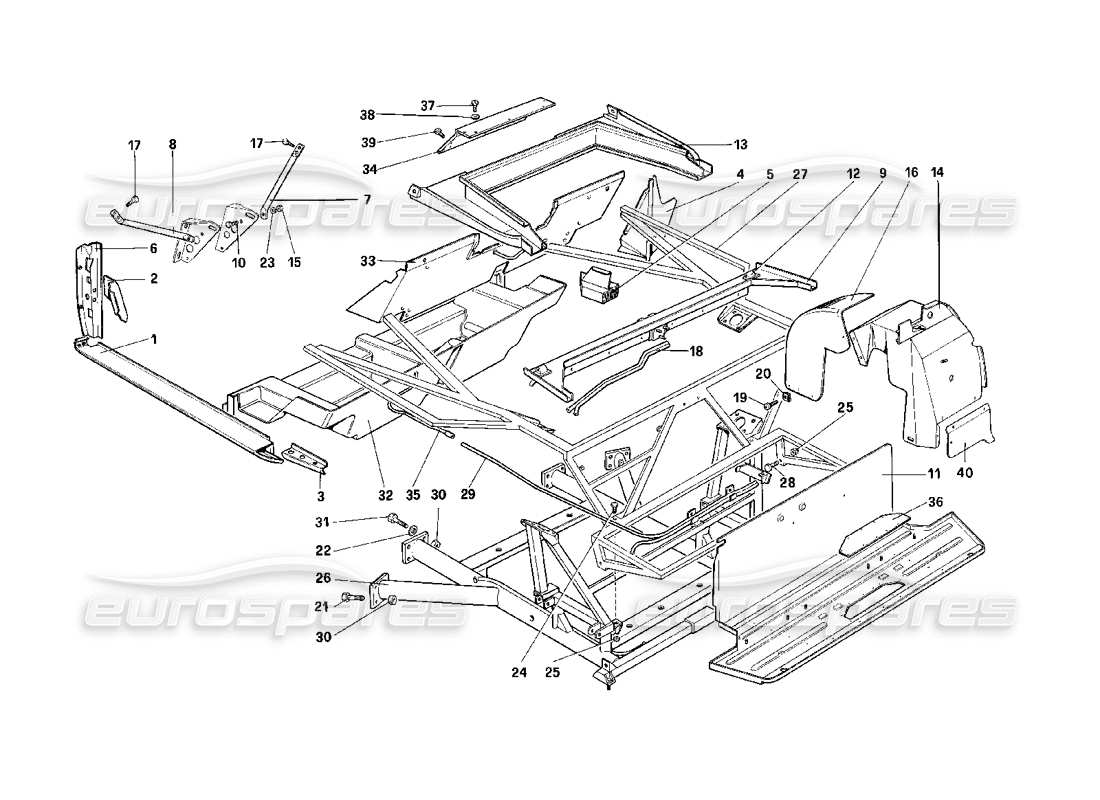

105 - Body Shell - Inner Elements - Cabriolet
Ferrari Mondial 3.2 QV (1987) Body Shell - Inner Elements - Cabriolet Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 61436100
FRAMEWORK RH UNDERDOOR
from £173.70
from £173.70
# 001
MPN: 61436200
FRAMEWORK LH UNDERDOOR
from £214.05
from £214.05
# 002
MPN: 119435
FOOTREST - LHD
from £91.88
from £91.88
# 003
MPN: 116013
SUPPORT FOR RIGHT REAR BODY SIDE
from £5.29
from £5.29
# 003
MPN: 116014
SUPPORT FOR LEFT REAR BODY SIDE
from £5.29
from £5.29

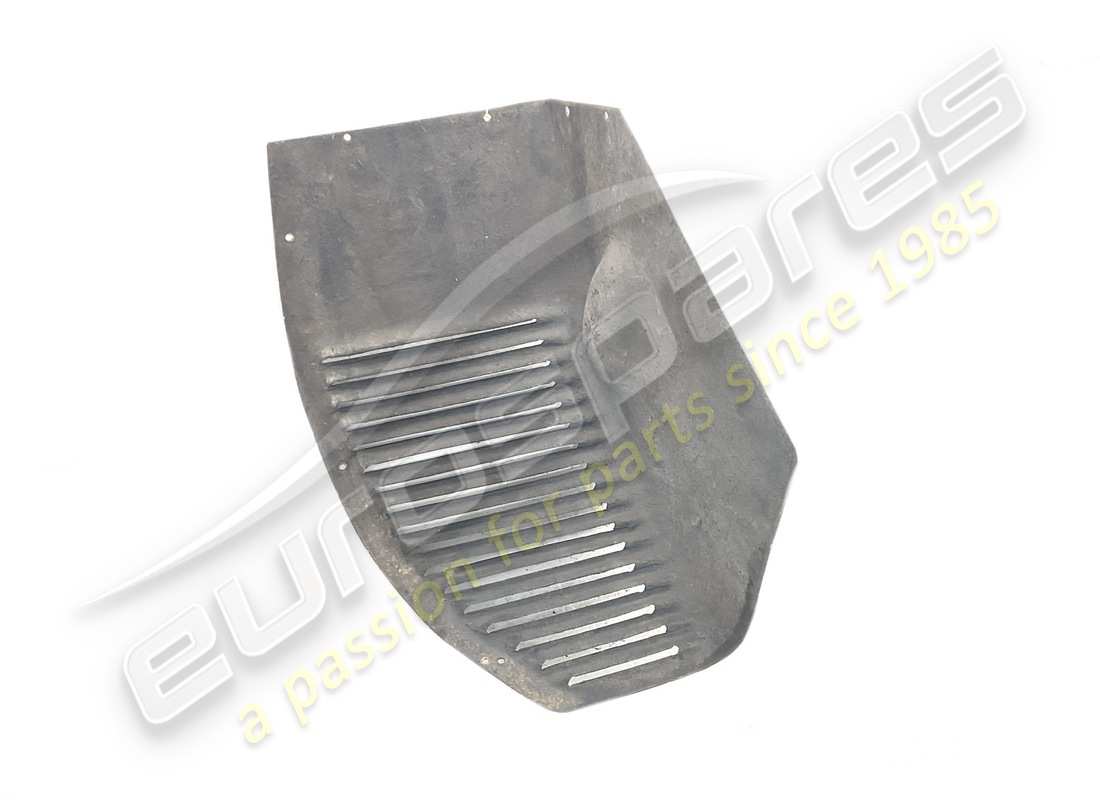

# 004
MPN: 61641400
RIGHT SHIELDPANEL
from £59.28
from £59.28
# 004
MPN: 61641600
LEFT, SHIELDPANEL
from £88.59
from £88.59
# 005
MPN: 61292800
RIGHT WOOD STOPPER
from £34.11
from £34.11
# 005
MPN: 61292900
LEFT WOOD STOPPER
from £34.11
from £34.11
# 006
MPN: 60645400
RH SEAT FOR DOOR HINGE
from £44.68
from £44.68
# 006
MPN: 60645500
LH SEAT FOR DOOR HINGE
Not for US - SA
from £60.60
from £60.60
# 006
MPN: 60903500
LH SEAT FOR DOOR HINGE - US - SA
from £52.04
from £52.04
# 007
MPN: 122014
RH TIE ROD - LHD
from £36.24
from £36.24
# 007
MPN: 123418
RH TIE ROD - RHD
from £45.95
from £45.95
# 008
MPN: 122015
LH TIE ROD - LHD UNTIL CAR NO. 71879
from £37.34
from £37.34
# 008
MPN: 123419
LH TIE ROD - RHD
from £49.75
from £49.75
# 008
MPN: 133059
LH TIE ROD - LHD FROM CAR NO. 71881
from £57.15
from £57.15
# 009
MPN: 61869200
GASKET SUPPORT - US - SA
from £88.32
from £88.32
# 009
MPN: 61922100
GASKET SUPPORT - NOT FOR US - SA
from £176.99
from £176.99
This part replaces part number 61205700
# 010
MPN: 10902221
SCREW
from £0.57
from £0.57
# 011
MPN: 61778900
BOTTOM PLATE FOR TRUNK - US - SA
from £367.16
from £367.16
# 011
MPN: 61839400
BOTTOM PLATE FOR TRUNK
Not for US - C7 - SA
from £359.59
from £359.59
# 011
MPN: 61968800
BOTTOM PLATE FOR TRUNK - C7
from £407.47
from £407.47
# 011
MPN: 62434400
BOTTOM PLATE FOR TRUNK - C8
from £516.14
from £516.14
# 012
MPN: 60523700
FIXED HINGE FOR REAR BONNET
from £30.75
from £30.75
# 013
MPN: 61206400
SEAT FOR TOP
from £980.42
from £980.42
# 014
MPN: 61841000
RIGHT REAR WHEELHOUSE
Not for US - SA
from £302.54
from £302.54
# 015
MPN: 12574211
NUT
from £0.71
from £0.71
# 015
MPN: 61779100
RIGHT REAR WHEELHOUSE - US - SA
from £288.13
from £288.13
# 016
MPN: 61158600
FRONT SECTION FOR RH WHEELHOUSE
Not for C6
from £158.47
from £158.47
This part replaces part number 60705100 which we have in stock - and 1 more. Click to view details
# 016
MPN: 61779200
LEFT REAR WHEELHOUSE
from £158.47
from £158.47
# 017
MPN: 15924806
SCREW
from £0.47
from £0.47
# 017
MPN: 61265600
FRONT SECTION FOR RH WHEELHOUSE - C6
from £143.63
from £143.63
# 018
MPN: 61307200
CABLE FOR ENGINE BONNET
from £60.83
from £60.83
# 018
MPN: 61800600
FRONT SECTION FOR LH WHEELHOUSE
Not for C6
from £332.57
from £332.57
# 019
MPN: 15903802
SCREW
Supersession
Supersession
This part replaces part number 15903802 - and 1 more. Click to view details
# 019
MPN: 61981200
FRONT SECTION FOR LH WHEELHOUSE - C6
from £117.08
from £117.08
# 020
MPN: 60517200
CLIP
from £2.18
from £2.18
# 021
MPN: 15540621
SCREW
from £2.16
from £2.16
This part replaces part number 64224200
# 022
MPN: 12646921
WASHER
from £0.52
from £0.52
This part replaces part number 12646901 which we have in stock
# 023
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 024
MPN: 11255921
SCREW
from £0.58
from £0.58
# 025
MPN: 12575811
NUT
from £1.37
from £1.37
# 026
MPN: 128021
(B) REMOVABLE FRAME - LHD
Not for US - SA - C7
from £1,825.88
from £1,825.88
This part replaces part number 128037
# 027
MPN: 124351
REAR FRAME - LHD
Not for US - SA - C7 - C8
from £1,453.50
from £1,453.50
# 027
MPN: 128024
(B) REMOVABLE FRAME - US - SA - C7
from £3,829.40
from £3,829.40
This part replaces part number 127454
# 028
MPN: 122866
REAR FRAME - US - SA - C7 - C8
from £1,476.24
from £1,476.24
# 028
MPN: 128013
(B) REMOVABLE FRAME - RHD
from £1,724.75
from £1,724.75
# 028
MPN: 15977521
SCREW
from £1.46
from £1.46
# 029
MPN: 135904
(A) REMOVABLE FRAME
Not for C8 - RHD - US
# 029
MPN: 61221100
CABLE DUCT
Not for US - SA
from £58.81
from £58.81
# 030
MPN: 135849
REMOVABLE FRAME - C8
# 030
MPN: 16105011
SELF LOCKING NUT
from £0.47
from £0.47
# 030
MPN: 61436600
CABLE DUCT - US - SA
from £72.11
from £72.11
# 031
MPN: 136473
REMOVABLE FRAME - RHD
from £1,267.67
from £1,267.67
# 031
MPN: 15540521
SCREW
from £0.49
from £0.49
# 032
MPN: 136474
REMOVABLE FRAME - US
# 032
MPN: 61223200
HOUSING FOR REAR SEATS
Supersession
Supersession
# 033
MPN: 61327100
SHIELDPANEL BETWEEN PASSENGER
from £254.38
from £254.38
# 034
MPN: 61242300
COVER
from £189.36
from £189.36
# 035
MPN: 61344700
FRONT CABLE DUCT FOR TRUNK BONNET
from £27.43
from £27.43
# 036
MPN: 60810000
COVER
from £30.76
from £30.76
This part replaces part number 61810000
# 037
MPN: 13277011
SCREW
from £0.71
from £0.71
# 038
MPN: 12643724
WASHER
from £0.51
from £0.51
This part replaces part number 109684 - and 4 more. Click to view details
# 039
MPN: 12377111
SCREW
# 040
MPN: 61816200
RH REAR GRAVEL
from £19.42
from £19.42
# 041
MPN: 61816100
LH REAR GRAVEL
from £19.42
from £19.42
# 043
MPN: 61214800
RH DOOR SEAT
from £460.99
from £460.99
# 043
MPN: 61214900
LH DOOR SEAT - US - SA
from £460.99
from £460.99
# 043
MPN: 61696200
LH DOOR SEAT
Not for US - SA
from £460.99
from £460.99
-part-diagram-106.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE - USA - SA - AUS - CH87 - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE USA - SA - AUS - CH87 - CH88 PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET-USA - SA EXCLUDED PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE COMPARTMENT AND CARPETING PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - CABRIOLET PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI MONDIAL 3.2 QV (1987) BUMPERS, MOULDINGS & LIGHTS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI MONDIAL 3.2 QV (1987) GLASSES PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - CABRIOLET PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PANEL PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI MONDIAL 3.2 QV (1987) HEADLIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI MONDIAL 3.2 QV (1987) WINDSHIELD WIPER AND HORNS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL BOARDS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - FOR CH88 PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI MONDIAL 3.2 QV (1987) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI MONDIAL 3.2 QV (1987) SUN ROOF - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI MONDIAL 3.2 QV (1987) TOP - CABRIOLET PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI MONDIAL 3.2 QV (1987) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR CH VERSION) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI MONDIAL 3.2 QV (1987) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (NOT FOR US AND CH87 VERSION) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR CH87 VERSION) PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (NOT FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI MONDIAL 3.2 QV (1987) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI MONDIAL 3.2 QV (1987) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI MONDIAL 3.2 QV (1987) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI MONDIAL 3.2 QV (1987) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI MONDIAL 3.2 QV (1987) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI MONDIAL 3.2 QV (1987) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI MONDIAL 3.2 QV (1987) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI MONDIAL 3.2 QV (1987) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI MONDIAL 3.2 QV (1987) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI MONDIAL 3.2 QV (1987) HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI MONDIAL 3.2 QV (1987) ANTI SKID SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI MONDIAL 3.2 QV (1987) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI MONDIAL 3.2 QV (1987) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING COLUMM PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI MONDIAL 3.2 QV (1987) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRIC GENERATION SYSTEM PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI MONDIAL 3.2 QV (1987) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI MONDIAL 3.2 QV (1987) TOOL - KIT PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITHOUT ANTISKID PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITH ANTISKID PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
