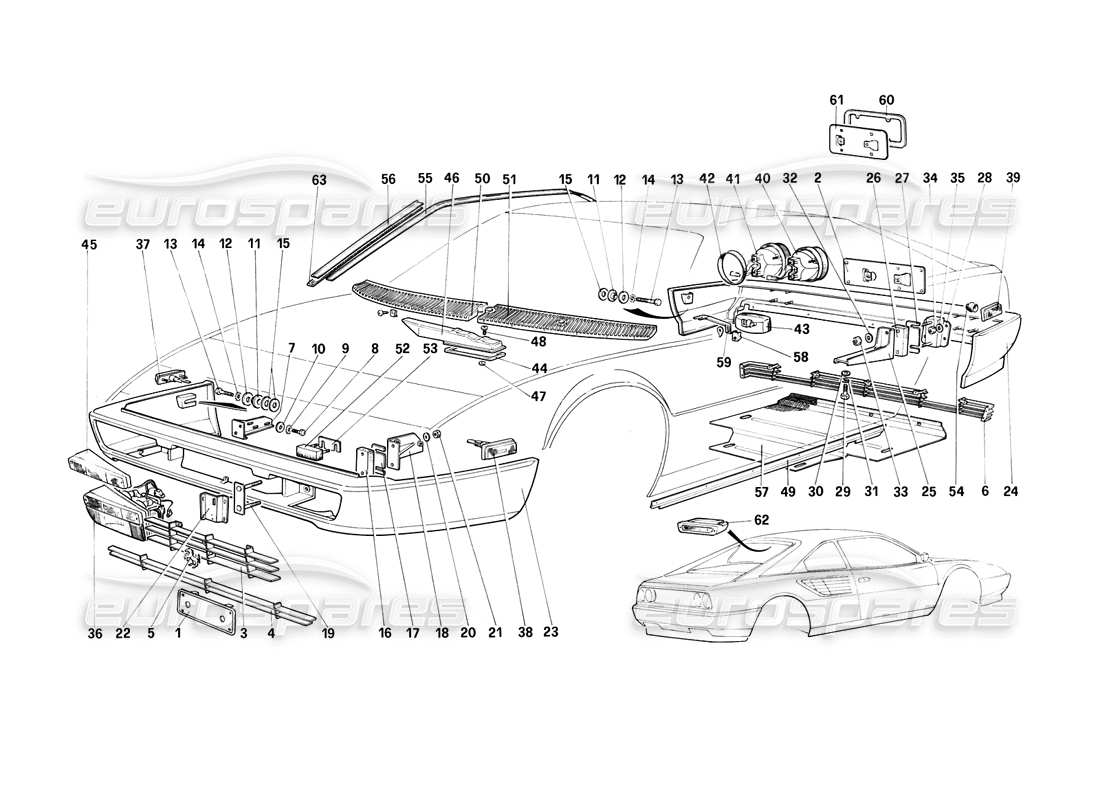

115 - Bumpers, Mouldings & Lights
Ferrari Mondial 3.2 QV (1987) Bumpers, Mouldings & Lights Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

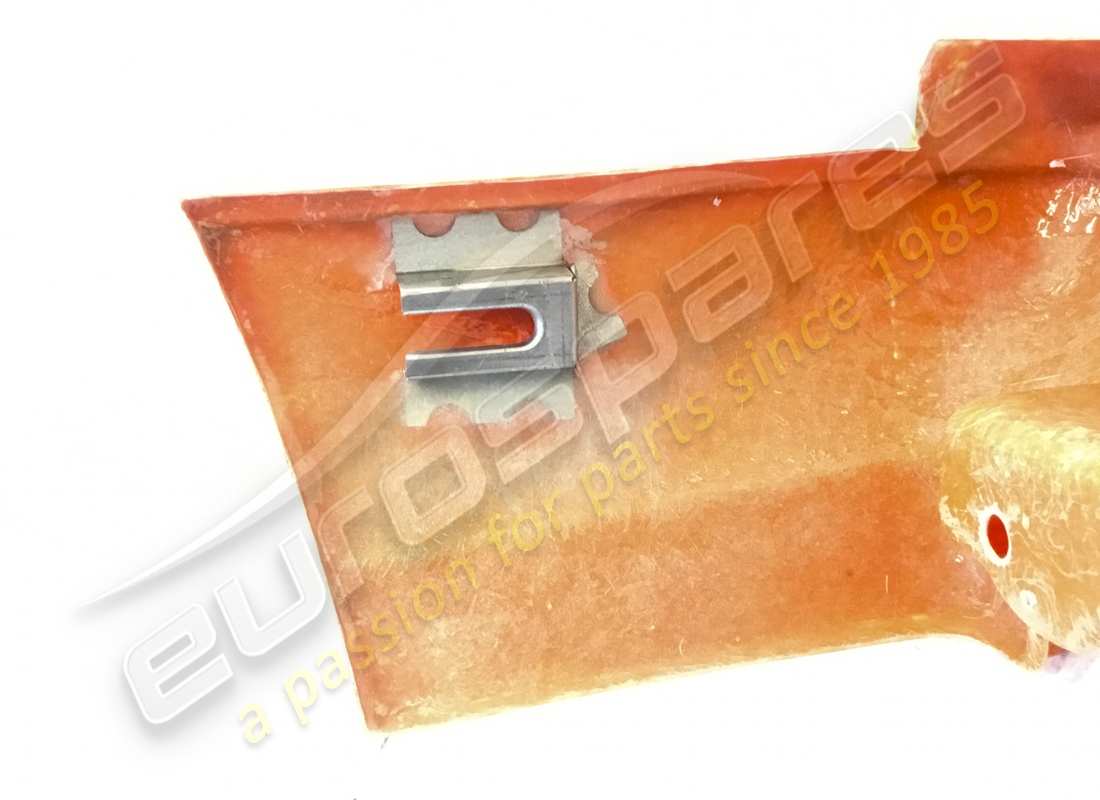

# 001
MPN: 61721400
SUPPORT
Not for US - SA - RHD
from £202.39
from £202.39
# 002
MPN: 60810200
SUPPORT
Not for US - SA - RHD
from £30.02
from £30.02
This part replaces part number 60671500
# 003
MPN: 61722700
GRILL
from £2,211.35
from £2,211.35
# 004
MPN: 61800500
LOWER GRILL
from £586.94
from £586.94
# 005
MPN: 63603800
FRONT HORSE
Supersession
Supersession
This part replaces part number 61739400
# 006
MPN: 61716600
REAR GRILL
Not for US - SA - C7 - AUS - C8
from £709.50
from £709.50
# 006
MPN: 61729300
REAR GRILL - US - SA - AUS
from £831.40
from £831.40
# 006
MPN: 61969400
REAR GRILL - C7 - C8
from £770.65
from £770.65

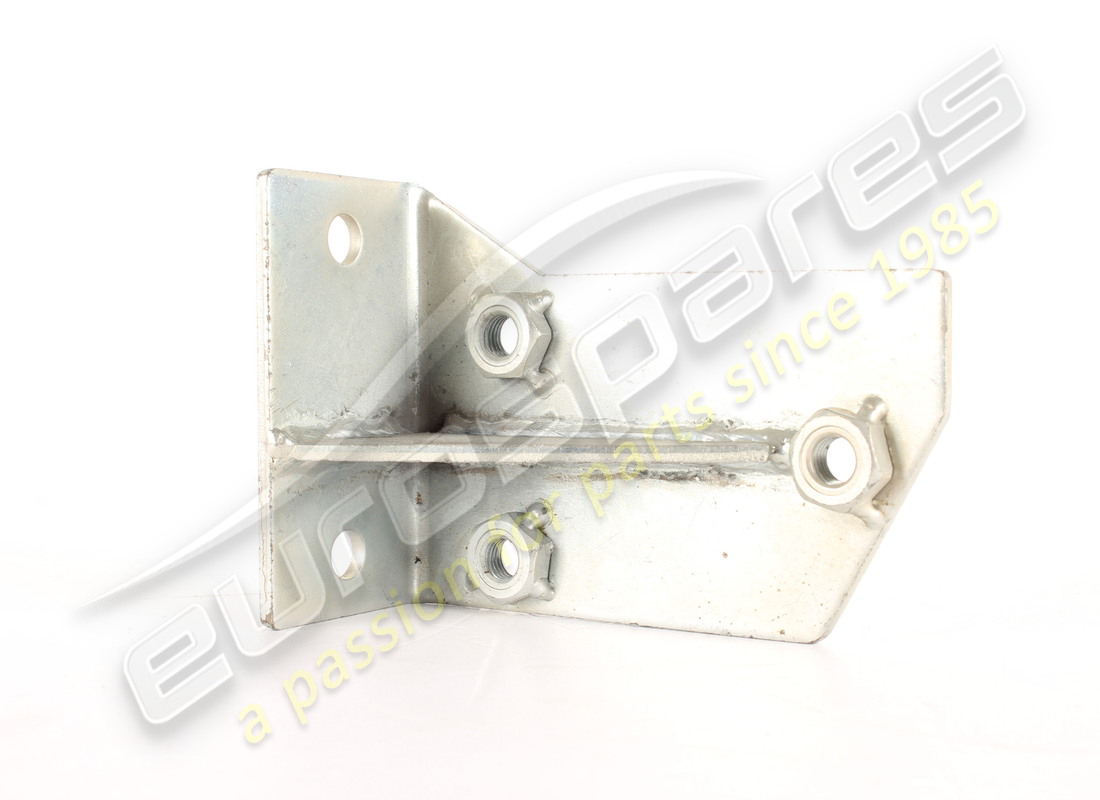

# 007
MPN: 60572400
RH BRACKET
Not for US - SA
from £217.06
from £217.06
# 007
MPN: 60572500
LH BRACKET
Not for US - SA
from £206.72
from £206.72
# 008
MPN: 16043211
SCREW
Not for US - SA
from £0.47
from £0.47
# 009
MPN: 12601374
WASHER
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 010
MPN: 12646701
WASHER
Not for US - SA
from £0.54
from £0.54
# 011
MPN: 61693400
BUSH
After exhaustion use no. 62428800
Supersession
Supersession
# 012
MPN: 12646201
WASHER
from £0.53
from £0.53
# 013
MPN: 16043821
SCREW
from £0.71
from £0.71
# 014
MPN: 10615670
WASHER
from £0.47
from £0.47
# 015
MPN: 61802800
SPACER
from £2.17
from £2.17
# 016
MPN: 61263600
BUFFER
For US - SA (without n. 52 - 53)
from £15.32
from £15.32
# 016
MPN: 61934800
BUFFER
For US - SA (without n. 52 - 53)
from £41.75
from £41.75
# 017
MPN: 60909400
SPACER
For US - SA (without n. 52 - 53)
from £13.34
from £13.34
# 017
MPN: 61934700
SPACER
For US - SA (without n. 52 - 53)
from £4.70
from £4.70

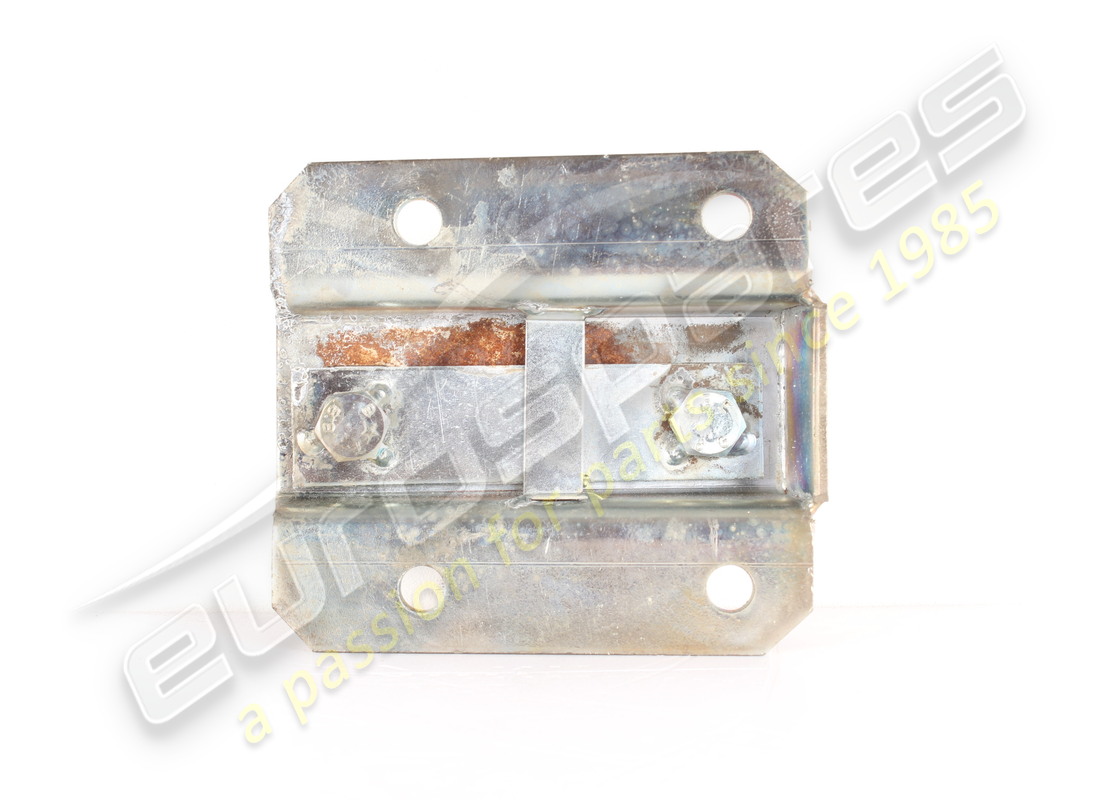

# 018
MPN: 61734700
RH BRACKET
For US - SA (without n. 52 - 53)
from £76.09
from £76.09
# 018
MPN: 61734800
LH BRACKET
For US - SA (without n. 52 - 53)
from £76.09
from £76.09
# 018
MPN: 61934900
RH BRACKET
For US - SA (without n. 52 - 53)
from £32.49
from £32.49
# 018
MPN: 61935000
LH BRACKET
For US - SA (without n. 52 - 53)
from £33.74
from £33.74
# 019
MPN: 61734900
BRACKET - US - SA
from £44.71
from £44.71
# 020
MPN: 14496609
WASHER - US -SA
Supersession
Supersession
# 021
MPN: 12575621
NUT - US - SA
from £1.37
from £1.37
# 022
MPN: 61735200
RH BRACKET - US - SA
from £54.85
from £54.85
# 022
MPN: 61735300
LH BRACKET - US - SA
from £93.99
from £93.99
# 023
MPN: 61704610
FRONT BUMPER
Not for US - SA
from £1,273.67
from £1,273.67
This part replaces part number 61704600
# 023
MPN: 61729510
FRONT BUMPER - US - SA
from £2,634.16
from £2,634.16
This part replaces part number 61729500
# 024
MPN: 61704710
BUMPER
Not for US - SA - AUS - C7- C8
from £1,232.65
from £1,232.65
This part replaces part number 61704700
# 024
MPN: 61729600
BUMPER - US - SA - AUS
Supersession
Supersession
# 024
MPN: 62348700
BUMPER - C7- C8
Supersession
Supersession
# 025
MPN: 61729700
LH BRACKET - US - SA - AUS
from £312.83
from £312.83
# 025
MPN: 61761700
RH BRACKET - US - SA - AUS
from £328.48
from £328.48
# 025
MPN: 61969500
RH BRACKET - C7 - C8
from £400.05
from £400.05
# 025
MPN: 61969600
LH BRACKET - C7 - C8
from £400.05
from £400.05
# 026
MPN: 61952500
BUFFER - US - SA - AUS
from £15.68
from £15.68
# 027
MPN: 61757000
SPACER - US - SA - AUS
from £3.10
from £3.10
# 028
MPN: 61729900
BRACKET - US - SA - AUS
from £40.66
from £40.66
# 028
MPN: 61970200
BRACKET - C7 - C8
from £96.49
from £96.49
# 029
MPN: 13006931
SCREW - C7 - C8
# 029
MPN: 15970931
SCREW - US - SA - AUS
from £5.83
from £5.83
This part replaces part number 106228
# 030
MPN: 12646801
WASHER - C7 - C8
from £0.73
from £0.73
This part replaces part number 12644682
# 030
MPN: 14496601
WASHER - US - SA - AUS
Supersession
Supersession
# 031
MPN: 127497
WASHER
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 032
MPN: 12638601
WASHER - US - SA - AUS - C7
from £0.53
from £0.53
This part replaces part number 20232104
# 033
MPN: 12575611
NUT - US - SA - AUS - C7
Supersession
Supersession
# 034
MPN: 104030
NUT - US - SA - AUS - C7 - C8
from £0.51
from £0.51
This part replaces part number 16104125
# 035
MPN: 10519624
WASHER - US - SA - AUS - C7 - C8
from £0.53
from £0.53
This part replaces part number 10519601 - and 3 more. Click to view details
# 036
MPN: 61732700
RH LIGHT
Not for US - F - RHD - D
from £834.00
from £834.00
# 036
MPN: 61798000
LH LIGHT - US
from £691.49
from £691.49
# 036
MPN: 61879900
RHS LIGHT (VALID FOR GD)
from £940.07
from £940.07
This part replaces part number 61779900
# 037
MPN: 60669900
SIDE REPEATER LIGHT
- Not for USA
from £67.54
from £67.54
# 037
MPN: 61732800
LH LIGHT
Not for US - F- RHD - D
from £1,746.14
from £1,746.14
# 038
MPN: 60669900
SIDE REPEATER LIGHT
- Not for USA
from £67.54
from £67.54
# 038
MPN: 60780300
FRONT SIDE MARKET - US
from £16.58
from £16.58
This part replaces part number 60192705 - and 1 more. Click to view details
# 039
MPN: 60780400
REAR SIDE MARKET - US
from £72.46
from £72.46
This part replaces part number 60192804
# 040
MPN: 60170305
REAR STOP LAMP
from £159.78
from £159.78
This part replaces part number 109644 - and 19 more. Click to view details
# 040
MPN: 60868500
REAR LIGHT POSITION - US
from £128.67
from £128.67
# 041
MPN: 60170206
REAR INDICATOR & REVERSE LAMP
from £154.62
from £154.62
This part replaces part number 109645 - and 2 more. Click to view details
# 041
MPN: 60170404
REAR LIGHT DIRECTION - US
from £364.13
from £364.13
# 042
MPN: 60592100
GASKET
from £29.93
from £29.93
# 042
MPN: 61797900
RH LIGHT - US
from £622.81
from £622.81
# 043
MPN: 60670000
REAR FOG
Not for US - SA - ASU
from £437.55
from £437.55
# 044
MPN: 61088600
GASKET
from £7.55
from £7.55
# 045
MPN: 61942900
RH LENS - WHITE - ORANGE
from £968.87
from £968.87
# 045
MPN: 61943000
LH LENS - WHITE - ORANGE
from £807.14
from £807.14
# 045
MPN: 61943100
RH LENS ORANGE
from £70.35
from £70.35
# 045
MPN: 61943200
LH LENS ORANGE
from £35.76
from £35.76
# 046
MPN: 61088500
AIR CONVEYOR - LHD
from £21.60
from £21.60
# 046
MPN: 61109900
AIR CONVEYOR - RHD
from £118.43
from £118.43
# 047
MPN: 60674600
GASKET
from £1.08
from £1.08
# 048
MPN: 20286209
SCREW
from £5.40
from £5.40
# 049
MPN: 61682200
(2) RH MOULDING
from £211.14
from £211.14
# 049
MPN: 61682300
(2) LH MOULDING
from £211.14
from £211.14
# 050
MPN: 60587500
RH GRILL - LHD
from £64.48
from £64.48
# 050
MPN: 60587700
RH GRILL - RHD
from £55.79
from £55.79
# 051
MPN: 60587600
LH GRILL - LHD
from £64.48
from £64.48
# 051
MPN: 60587800
LH GRILL - RHD
from £55.79
from £55.79
# 052
MPN: 61935100
BUFFER - US - SA
from £41.75
from £41.75
# 053
MPN: 61935200
SPACER - US - SA
from £18.68
from £18.68
# 054
MPN: 108333
(2) PROTECTION - US
from £17.43
from £17.43
This part replaces part number 61605900
# 055
MPN: 60967300
(1) RH ROOF GUTTER
from £99.49
from £99.49
This part replaces part number 60666000
# 055
MPN: 60967400
(1) LH ROOF GUTTER
from £99.49
from £99.49
This part replaces part number 60666100 which we have in stock
# 056
MPN: 61758100
(2) RH ROOF GUTTER
from £214.87
from £214.87
# 056
MPN: 61758200
(2) LH ROOF GUTTER
from £133.98
from £133.98
# 057
MPN: 61880100
PROTECTION - US - C7 - AUS - C8
from £607.50
from £607.50
# 058
MPN: 61722400
BRACKET
Not for US - SA - AUS
from £10.87
from £10.87
# 059
MPN: 60862200
BRACKET
Not for US - SA - AUS - F
from £20.26
from £20.26
# 060
MPN: 60987900
FRONT AND REAR PLATE FRAME - US
from £38.94
from £38.94
# 061
MPN: 60960600
REAR SUPPORT NUMBER PLATE - US
from £25.81
from £25.81
# 062
MPN: 61880300
(1) STOP LAMP - US
from £61.02
from £61.02
# 063
MPN: 61758300
(2) GASKET
from £16.31
from £16.31
-part-diagram-116.webp "FERRARI MONDIAL 3.2 QV (1987) GLASSES PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - CABRIOLET PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PANEL PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI MONDIAL 3.2 QV (1987) HEADLIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI MONDIAL 3.2 QV (1987) WINDSHIELD WIPER AND HORNS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL BOARDS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - FOR CH88 PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI MONDIAL 3.2 QV (1987) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI MONDIAL 3.2 QV (1987) SUN ROOF - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI MONDIAL 3.2 QV (1987) TOP - CABRIOLET PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI MONDIAL 3.2 QV (1987) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR CH VERSION) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI MONDIAL 3.2 QV (1987) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (NOT FOR US AND CH87 VERSION) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR CH87 VERSION) PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (NOT FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI MONDIAL 3.2 QV (1987) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI MONDIAL 3.2 QV (1987) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI MONDIAL 3.2 QV (1987) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI MONDIAL 3.2 QV (1987) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI MONDIAL 3.2 QV (1987) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI MONDIAL 3.2 QV (1987) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI MONDIAL 3.2 QV (1987) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI MONDIAL 3.2 QV (1987) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI MONDIAL 3.2 QV (1987) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI MONDIAL 3.2 QV (1987) HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI MONDIAL 3.2 QV (1987) ANTI SKID SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI MONDIAL 3.2 QV (1987) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI MONDIAL 3.2 QV (1987) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING COLUMM PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI MONDIAL 3.2 QV (1987) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRIC GENERATION SYSTEM PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI MONDIAL 3.2 QV (1987) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI MONDIAL 3.2 QV (1987) TOOL - KIT PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITHOUT ANTISKID PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITH ANTISKID PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE - USA - SA - AUS - CH87 - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE USA - SA - AUS - CH87 - CH88 PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET-USA - SA EXCLUDED PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE COMPARTMENT AND CARPETING PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - CABRIOLET PARTS DIAGRAM")
