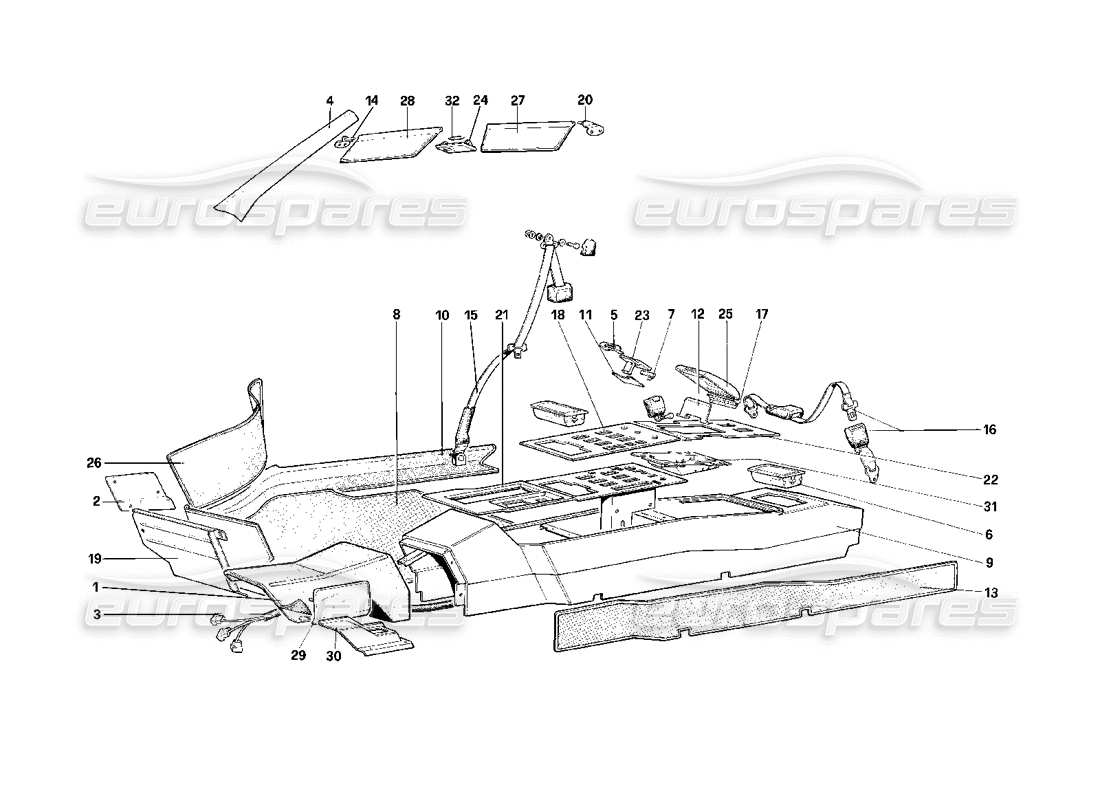

120 - Roof, Tunnel and Safety Belts - Cabriolet
Ferrari Mondial 3.2 QV (1987) Roof, Tunnel and Safety Belts - Cabriolet Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 61116200
FRONT TUNNEL WITH MOQUETTE - LHD
from £390.22
from £390.22
# 001
MPN: 61123800
FRONT TUNNEL WITH MOQUETTE - RHD
from £526.85
from £526.85
# 001
MPN: 61142200
MOQUETTE - LHD
from £114.00
from £114.00
# 001
MPN: 61145100
MOQUETTE - RHD
from £114.00
from £114.00
# 002
MPN: 61168300
INOX PROTECTION - RHD
from £74.44
from £74.44
# 003
MPN: 119425
(B) ELECTRICAL CABLES
from £136.28
from £136.28
# 003
MPN: 133740
(A) ELECTRICAL CABLES
from £299.64
from £299.64
# 004
MPN: 61238300
(B) RH MOULDING
from £108.19
from £108.19
# 004
MPN: 61238600
(B) LH MOULDING
from £108.19
from £108.19
# 004
MPN: 62396700
(A) RH MOULDING
from £100.77
from £100.77
# 004
MPN: 62397000
(A) LH MOULDING
from £100.77
from £100.77
# 005
MPN: 61059900
MOULDING
from £8.06
from £8.06
# 006
MPN: 61058900
ASHTRAY
from £205.80
from £205.80
# 007
MPN: 61059700
SPRING
from £2.90
from £2.90
# 008
MPN: 61228600
FRONT CARPET DRIVER - LHD
from £171.00
from £171.00
# 008
MPN: 61230000
FRONT CARPET PASSENGER - LHD
from £119.65
from £119.65
# 008
MPN: 61440800
FRONT CARPET DRIVER - RHD
from £127.16
from £127.16
# 008
MPN: 61441500
FRONT CARPET PASSENGER - RHD
from £127.16
from £127.16
# 009
MPN: 61243100
COVERING - LHD
from £195.23
from £195.23
# 009
MPN: 61442500
COVERING - RHD
from £305.77
from £305.77
# 009
MPN: 61622600
TUNNEL WITH COVERING - LHD
Not for US - SA
from £1,517.94
from £1,517.94
This part replaces part number 61242900
# 009
MPN: 61622700
TUNNEL WITH COVERING - RHD
from £1,023.88
from £1,023.88
# 009
MPN: 61765000
TUNNEL WITH COVERING - US - SA
from £1,023.88
from £1,023.88
# 010
MPN: 61311900
CARPET RH FRAMEWORK - LHD
from £70.42
from £70.42
# 010
MPN: 61312200
FRONT CARPET LH FRAMEWORK - LHD
from £279.87
from £279.87
# 010
MPN: 61442100
CARPET LH FRAMEWORK - RHD
from £43.13
from £43.13
# 010
MPN: 61443200
FRONT CARPET LH FRAMEWORK - LHD
from £46.41
from £46.41
# 010
MPN: 61662800
FRONT CARPET RH FRAMEWORK - RHD
from £43.13
from £43.13
# 010
MPN: 61663000
REAR CARPET RH FRAMEWORK - RHD
from £43.13
from £43.13
# 011
MPN: 61059800
LID FOR SPRING
from £2.00
from £2.00
# 012
MPN: 61059100
SHIELD PANEL FOR CASSETTE BOX
from £1.59
from £1.59
# 013
MPN: 61243400
LH MOQUETTE FOR TUNNEL - LHD
from £50.96
from £50.96
# 013
MPN: 61243700
RH MOQUETTE FOR TUNNEL - LHD
from £50.96
from £50.96
# 013
MPN: 61442600
LH MOQUETTE FOR TUNNEL - RHD
from £26.98
from £26.98
# 013
MPN: 61442800
RH MOQUETTE FOR TUNNEL - RHD
from £26.98
from £26.98
# 014
MPN: 61603700
RH BRACKET
from £128.44
from £128.44
This part replaces part number 61245000
# 015
MPN: 61438500
FRONT SAFETY BELTS SET.
Not for US - SA
from £316.13
from £316.13
# 015
MPN: 61444700
FRONT SAFETY BELTS SET. - US - SA
# 016
MPN: 61245500
REAR SAFETY BELTS SET. - USA - SA
from £150.54
from £150.54
# 016
MPN: 61343000
REAR SAFETY BELTS SET.
Not for USA - SA
from £147.39
from £147.39
# 017
MPN: 61059200
HINGE FOR LID
from £19.18
from £19.18
# 018
MPN: 61022900
UPPER FRONT PLATE FOR TUNNEL - LHD
from £976.47
from £976.47
# 018
MPN: 61122900
UPPER FRONT PLATE FOR TUNNEL - RHD
from £210.00
from £210.00
# 019
MPN: 61140300
(B) PASSENGER FOOTREST - LHD
from £51.72
from £51.72
# 019
MPN: 61141700
(B) PASSENGER FOOTREST - RHD
from £23.56
from £23.56
# 019
MPN: 62339600
(A) PASSENGER FOOTREST - LHD
from £45.13
from £45.13
# 019
MPN: 62378500
(A) PASSENGER FOOTREST - RHD
from £65.69
from £65.69
# 020
MPN: 61603800
LH BRACKET
from £128.44
from £128.44
This part replaces part number 61245100
# 021
MPN: 61057500
(B) FRONT PLATE WITH COVERING - LHD
from £262.50
from £262.50
# 021
MPN: 61057900
(B) COVERING
from £70.81
from £70.81
# 021
MPN: 61122400
(B) FRONT PLATE WITH COVERING - RHD
from £223.09
from £223.09
# 021
MPN: 62380700
(A) FRONT PLATE WITH COVERING - RHD
from £228.04
from £228.04
# 021
MPN: 62382900
(A) FRONT PLATE WITH COVERING - LHD
from £214.05
from £214.05
# 021
MPN: 62383200
(A) COVERING
from £35.91
from £35.91
# 022
MPN: 61243900
REAR PLATE WITH COVERING - USA - SA
from £203.34
from £203.34
# 022
MPN: 61244200
COVERING
from £46.74
from £46.74
# 022
MPN: 61371200
REAR PLATE WITH COVERING
Not for USA - SA
from £277.41
from £277.41
# 023
MPN: 61059600
KNOB FOR LID
from £2.74
from £2.74
# 024
MPN: 60326709
LAMP
from £80.82
from £80.82
This part replaces part number 60839400
# 025
MPN: 61059400
LID WITH COVERING
from £370.44
from £370.44
This part replaces part number 610594..
# 025
MPN: 61059500
COVERING
from £14.07
from £14.07
This part replaces part number 610595..
# 026
MPN: 62381300
CARPET FOR RH WHEELHOUSE - LHD
from £63.36
from £63.36
# 026
MPN: 62381600
CARPET FOR LH WHEELHOUSE - LHD
from £42.98
from £42.98
# 026
MPN: 62382100
CARPET FOR RH WHEELHOUSE - RHD
from £43.13
from £43.13
# 026
MPN: 62382400
CARPET FOR LH WHEELHOUSE - RHD
from £43.13
from £43.13
# 027
MPN: 61317700
LH SUN VISOR - LHD
from £102.44
from £102.44
# 027
MPN: 61606300
LH SUN VISOR - RHD
from £125.41
from £125.41
# 028
MPN: 61317500
RH SUN VISOR - LHD
from £116.66
from £116.66
# 028
MPN: 61606100
RH SUN VISOR - RHD
from £125.41
from £125.41
# 029
MPN: 61120800
PROTECTION FOR FRONT TUNNEL - LHD
from £4.90
from £4.90
# 029
MPN: 61124100
PROTECTION FOR FRONT TUNNEL - RHD
from £29.28
from £29.28
# 030
MPN: 61066900
ACCELERATOR PEDAL COVER - LHD
from £22.07
from £22.07
# 030
MPN: 61112800
ACCELERATOR PEDAL COVER - RHD
from £84.90
from £84.90
# 031
MPN: 61059000
CASSETTE BOX - LHD
from £11.58
from £11.58
# 031
MPN: 61154100
CASSETTE BOX - RHD
from £16.48
from £16.48
# 032
MPN: 50100205
BULB
from £1.27
from £1.27
-part-diagram-121.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PANEL PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI MONDIAL 3.2 QV (1987) HEADLIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI MONDIAL 3.2 QV (1987) WINDSHIELD WIPER AND HORNS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL BOARDS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - FOR CH88 PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI MONDIAL 3.2 QV (1987) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI MONDIAL 3.2 QV (1987) SUN ROOF - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI MONDIAL 3.2 QV (1987) TOP - CABRIOLET PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI MONDIAL 3.2 QV (1987) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR CH VERSION) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI MONDIAL 3.2 QV (1987) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (NOT FOR US AND CH87 VERSION) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR CH87 VERSION) PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (NOT FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI MONDIAL 3.2 QV (1987) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI MONDIAL 3.2 QV (1987) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI MONDIAL 3.2 QV (1987) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI MONDIAL 3.2 QV (1987) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI MONDIAL 3.2 QV (1987) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI MONDIAL 3.2 QV (1987) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI MONDIAL 3.2 QV (1987) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI MONDIAL 3.2 QV (1987) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI MONDIAL 3.2 QV (1987) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI MONDIAL 3.2 QV (1987) HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI MONDIAL 3.2 QV (1987) ANTI SKID SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI MONDIAL 3.2 QV (1987) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI MONDIAL 3.2 QV (1987) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING COLUMM PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI MONDIAL 3.2 QV (1987) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRIC GENERATION SYSTEM PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI MONDIAL 3.2 QV (1987) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI MONDIAL 3.2 QV (1987) TOOL - KIT PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITHOUT ANTISKID PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITH ANTISKID PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE - USA - SA - AUS - CH87 - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE USA - SA - AUS - CH87 - CH88 PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET-USA - SA EXCLUDED PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE COMPARTMENT AND CARPETING PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - CABRIOLET PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI MONDIAL 3.2 QV (1987) BUMPERS, MOULDINGS & LIGHTS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI MONDIAL 3.2 QV (1987) GLASSES PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - CABRIOLET PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
