ferrari mondial 3.2 qv (1987) headlights lifting device and headlights parts diagram

123 - Headlights Lifting Device and Headlights

Ferrari Mondial 3.2 QV (1987) Headlights Lifting Device and Headlights Parts Diagram

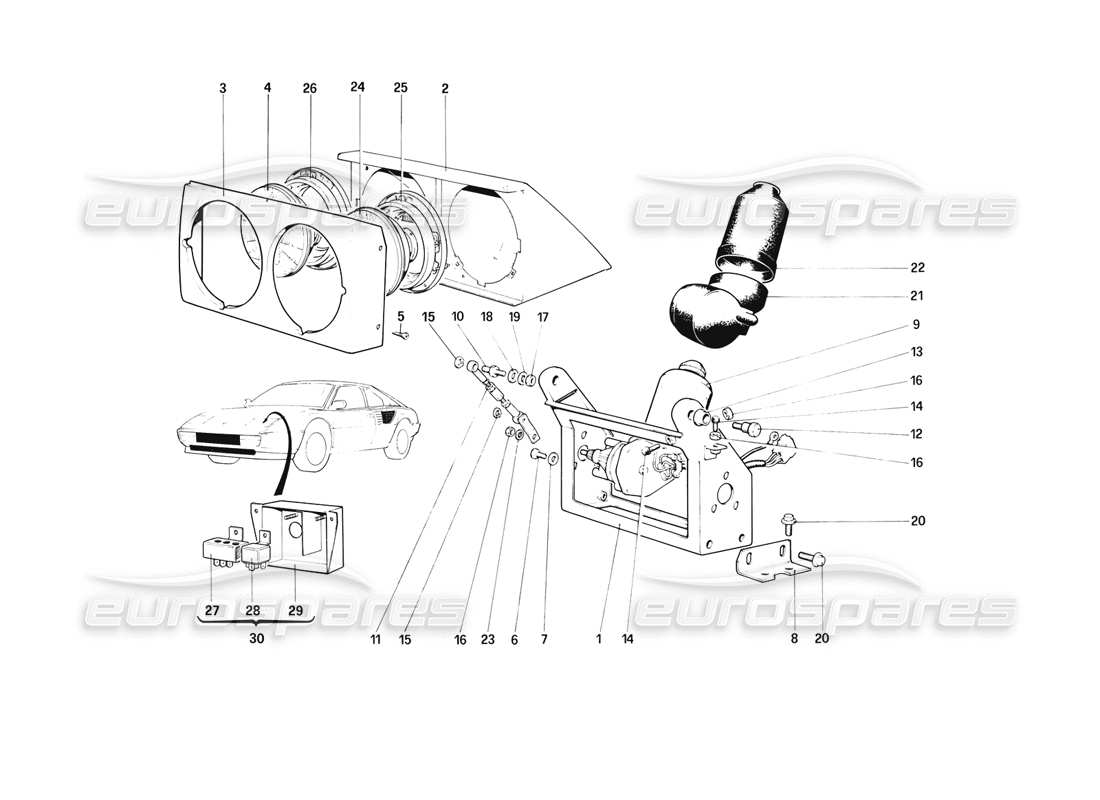

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 60525500
                                                        SUPPORT FRAMEWORK
                                                        (RH only for cars with DIM - DIP)
                                                        from £150.33
                                                        from £150.33
                                                        # 001
                                                        MPN: 62342300
                                                        SUPPORT LH FRAMEWORK - GB
                                                        (Only for cars with DIM - DIP)
                                                        from £117.73
                                                        from £117.73
                                                        # 002
                                                        MPN: 60985600

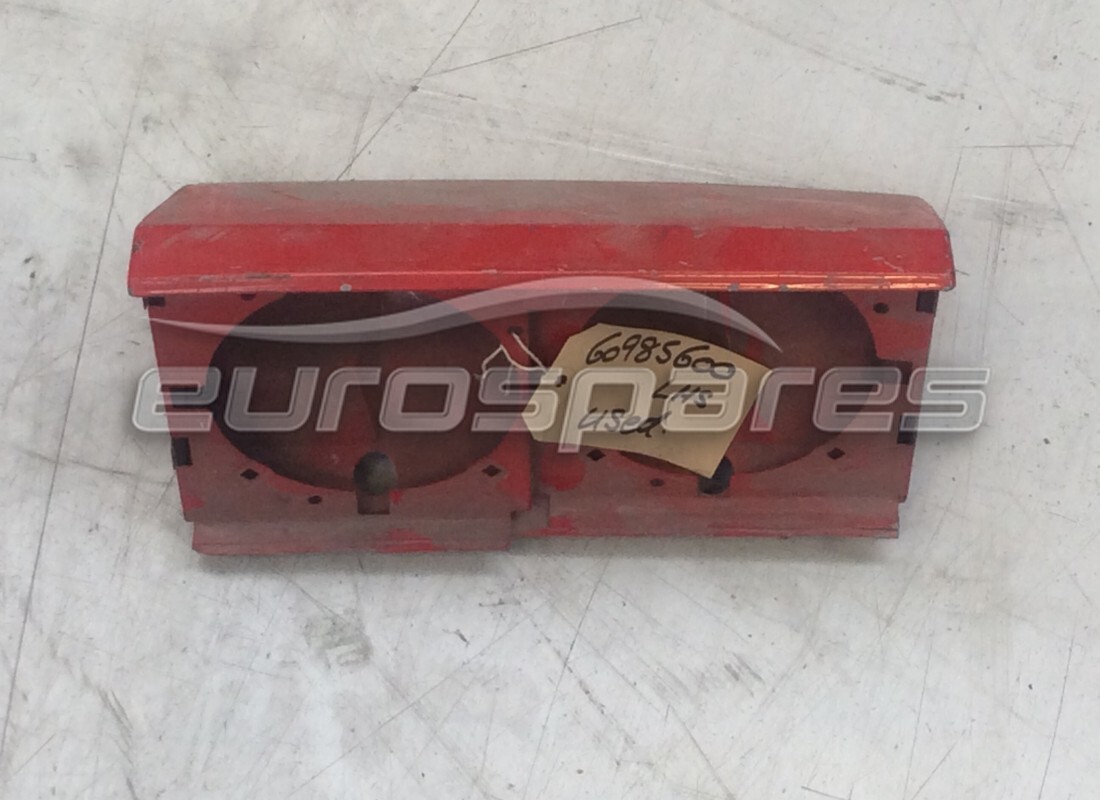

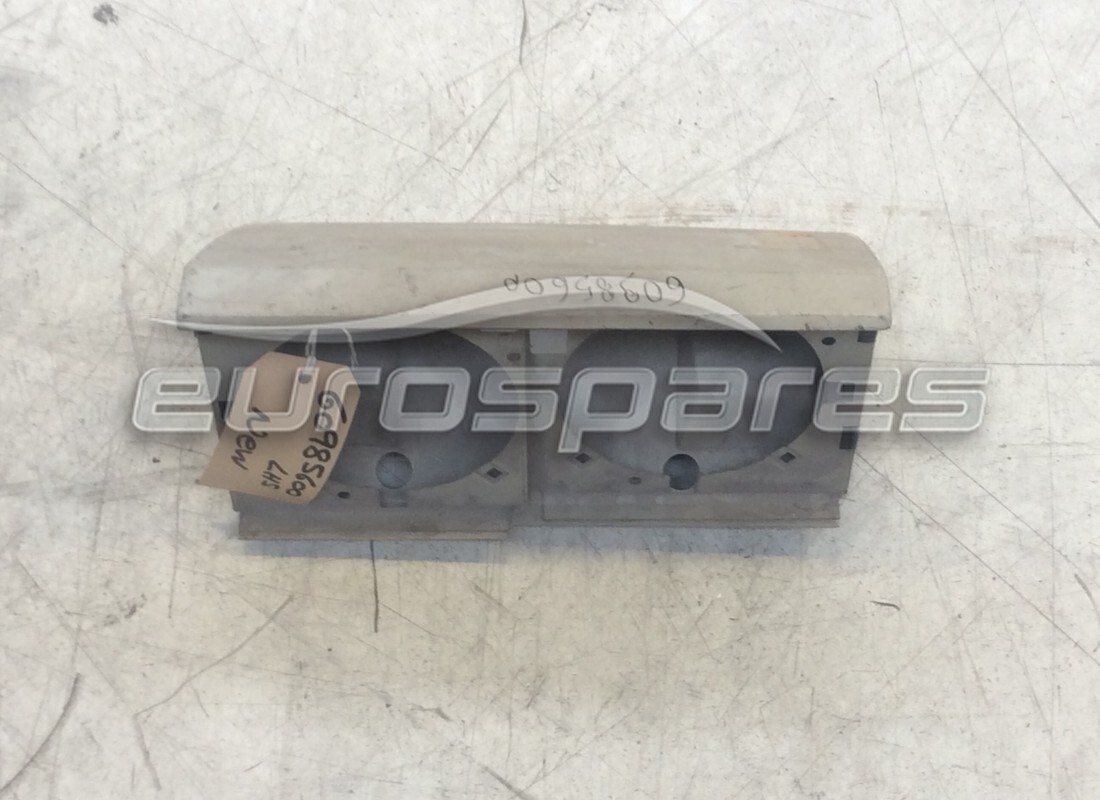

                                                        HOUSING FOR LH HEAD LAMP
                                                        from £211.89
                                                        from £211.89
                                                        This part replaces part number 60526200 - and 4 more. Click to view details
                                                        # 002
                                                        MPN: 60985700

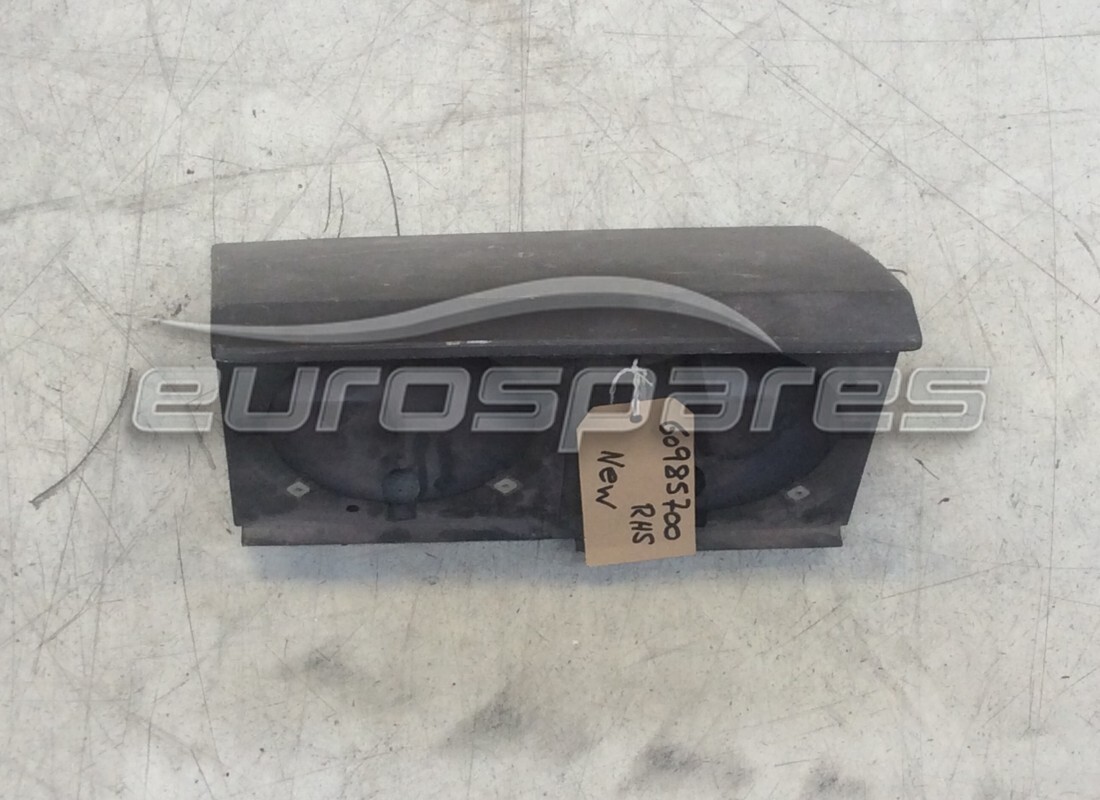

                                                        HOUSING FOR RH HEAD LAMP
                                                        from £211.89
                                                        from £211.89
                                                        This part replaces part number 60526100 which we have in stock - and 3 more. Click to view details
                                                        # 003
                                                        MPN: 60527400
                                                        HEAD LAMP FRAME, RH
                                                        from £16.40
                                                        from £16.40
                                                        # 003
                                                        MPN: 60527500
                                                        HEAD LAMP FRAME, LH
                                                        from £17.22
                                                        from £17.22
                                                        # 004
                                                        MPN: 60907400

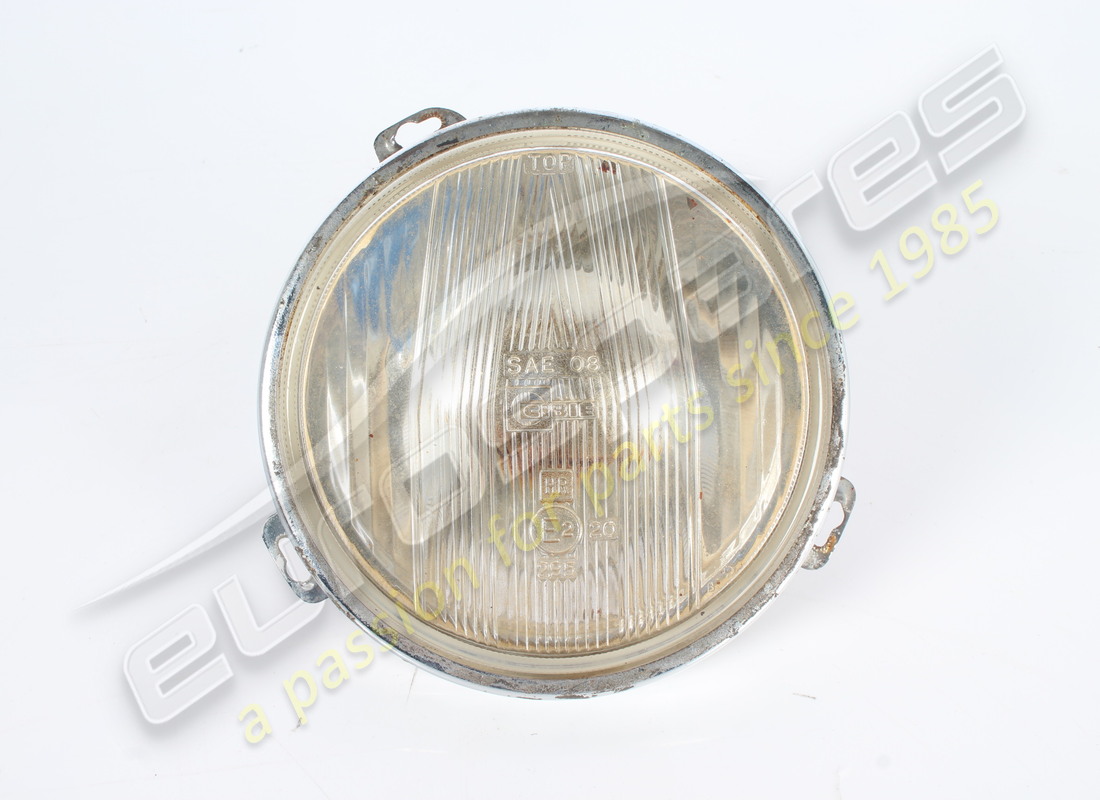

                                                        DIP BEAMS
                                                        Not for US - F - RHD
                                                        from £157.10
                                                        from £157.10
                                                        # 004
                                                        MPN: 60944800
                                                        DIP BEAM/MAIN BEAMS - RHD
                                                        from £146.18
                                                        from £146.18
                                                        This part replaces part number 60944500/U
                                                        # 004
                                                        MPN: 61005600
                                                        DIP BEAM/MAIN BEAMS - F
                                                        # 004
                                                        MPN: 61610600
                                                        SEALED BEAM DIP BEAM/MAIN BEAMS - US
                                                        from £31.41
                                                        from £31.41
                                                        This part replaces part number 60866700
                                                        # 005
                                                        MPN: 15908306
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 006
                                                        MPN: 10902111
                                                        SCREW
                                                        from £1.07
                                                        from £1.07
                                                        # 007
                                                        MPN: 10615471
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        # 008
                                                        MPN: 60527600
                                                        RH ANGLE PIECE
                                                        from £11.38
                                                        from £11.38
                                                        This part replaces part number 62617800
                                                        # 008
                                                        MPN: 60527700
                                                        L.H . ANGLE PIECE
                                                        from £21.74
                                                        from £21.74
                                                        This part replaces part number 62617700 - and 1 more. Click to view details
                                                        # 009
                                                        MPN: 172534
                                                        LIFTING MOTOR FOR RH HEADLAMP
                                                        from £215.31
                                                        from £215.31
                                                        This part replaces part number 149134 which we have in stock - and 4 more. Click to view details
                                                        HEADLIGHT LIFTING MOTOR Genuine Ferrari Part - New (to order)
                                                        PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING
                                                        HEADLIGHT LIFTING MOTOR (172534) Original Equipment - New (to order)
                                                        PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING
                                                        # 009
                                                        MPN: 172535
                                                        LIFTING MOTOR FOR LH HEADLAMP
                                                        from £215.31
                                                        from £215.31
                                                        This part replaces part number 149133 - and 2 more. Click to view details
                                                        HEADLIGHT LIFTING MOTOR Genuine Ferrari Part - New In stock
                                                        PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING.
                                                        HEADLIGHT LIFTING MOTOR (172535) Original Equipment - New In stock
                                                        PLEASE CHECK PHOTOS AGAINST YOUR PART BEFORE ORDERING.
                                                        # 010
                                                        MPN: 60527900
                                                        PIN FOR CONNECTING ROD
                                                        from £12.36
                                                        from £12.36
                                                        # 011
                                                        MPN: 61268600
                                                        CONNECTING ROD
                                                        from £82.07
                                                        from £82.07
                                                        This part replaces part number 50038009 - and 2 more. Click to view details
                                                        # 012
                                                        MPN: 60564700
                                                        PIN
                                                        from £12.38
                                                        from £12.38
                                                        # 013
                                                        MPN: 50070507
                                                        BUSH
                                                        from £5.08
                                                        from £5.08
                                                        # 014
                                                        MPN: 50087709
                                                        PIN
                                                        from £9.37
                                                        from £9.37
                                                        This part replaces part number 62783000
                                                        # 015
                                                        MPN: 16160976
                                                        CIRCLIP
                                                        from £0.51
                                                        from £0.51
                                                        # 016
                                                        MPN: 15896211
                                                        NUT
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 15896210 which we have in stock
                                                        # 017
                                                        MPN: 12164711
                                                        NUT
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 12164712
                                                        # 018
                                                        MPN: 12638621
                                                        WASHER
                                                        from £0.50
                                                        from £0.50
                                                        This part replaces part number 12638620 - and 1 more. Click to view details
                                                        # 019
                                                        MPN: 10615771
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        # 020
                                                        MPN: 13842411
                                                        SCREW
                                                        from £0.51
                                                        from £0.51
                                                        This part replaces part number 13842471 which we have in stock
                                                        # 021
                                                        MPN: 60331204
                                                        LOWER PROTECTION FOR LH MOTOR
                                                        from £63.21
                                                        from £63.21
                                                        # 021
                                                        MPN: 60331303
                                                        LOWER PROTECTION FOR RH MOTOR
                                                        from £63.21
                                                        from £63.21
                                                        # 022
                                                        MPN: 60331402
                                                        UPPER PROTECTION FOR MOTOR
                                                        from £94.80
                                                        from £94.80
                                                        # 023
                                                        MPN: 10516471
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        # 024
                                                        MPN: 60907200
                                                        MAIN BEAMS
                                                        Not for US - F
                                                        from £207.47
                                                        from £207.47
                                                        This part replaces part number 60944400/U - and 2 more. Click to view details
                                                        # 024
                                                        MPN: 61005400
                                                        MAIN BEAMS - F
                                                        from £121.94
                                                        from £121.94
                                                        # 024
                                                        MPN: 61610500
                                                        MAIN BEAMS - US
                                                        from £32.05
                                                        from £32.05
                                                        This part replaces part number 60866600
                                                        # 025
                                                        MPN: 40197907

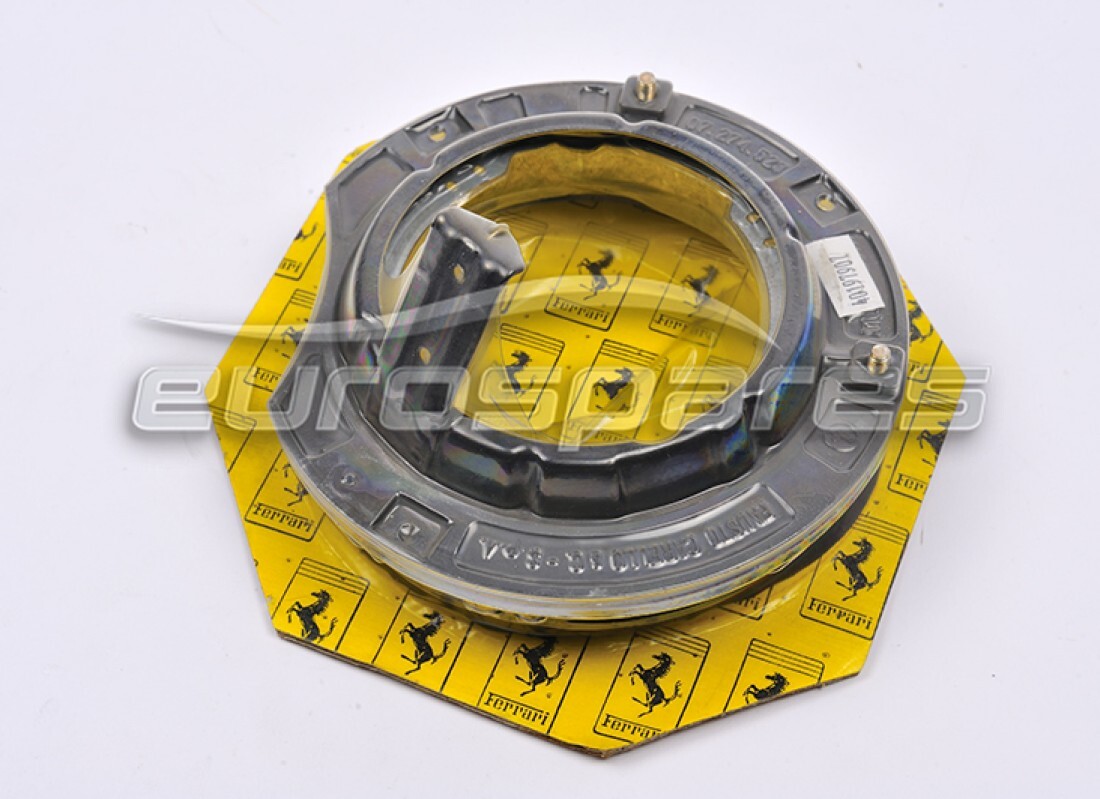

                                                        RH HOUSING FOR MAIN BEAM
                                                        from £45.82
                                                        from £45.82
                                                        This part replaces part number 106454 - and 1 more. Click to view details
                                                        # 025
                                                        MPN: 40198004
                                                        LH HOUSING FOR MAIN BEAM
                                                        from £81.36
                                                        from £81.36
                                                        This part replaces part number 106455
                                                        # 026
                                                        MPN: 50104603
                                                        RH HOUSING FOR DIP BEAM
                                                        from £97.47
                                                        from £97.47
                                                        This part replaces part number 108464
                                                        # 026
                                                        MPN: 50104702
                                                        LH HOUSING FOR DIP BEAM
                                                        from £55.96
                                                        from £55.96
                                                        This part replaces part number 108465 - and 1 more. Click to view details
                                                        # 027
                                                        MPN: 62342000
                                                        RESISTORFORGB
                                                        from £5.92
                                                        from £5.92
                                                        # 028
                                                        MPN: 62342100
                                                        RELAY FOR GB
                                                        from £11.55
                                                        from £11.55
                                                        # 029
                                                        MPN: 62342800
                                                        DIM - DIP BOX FOR GB
                                                        from £19.15
                                                        from £19.15
                                                        # 030
                                                        MPN: 62346400
                                                        DIM - DIP BOX COMPLETE FOR GB
                                                        from £36.00
                                                        from £36.00
