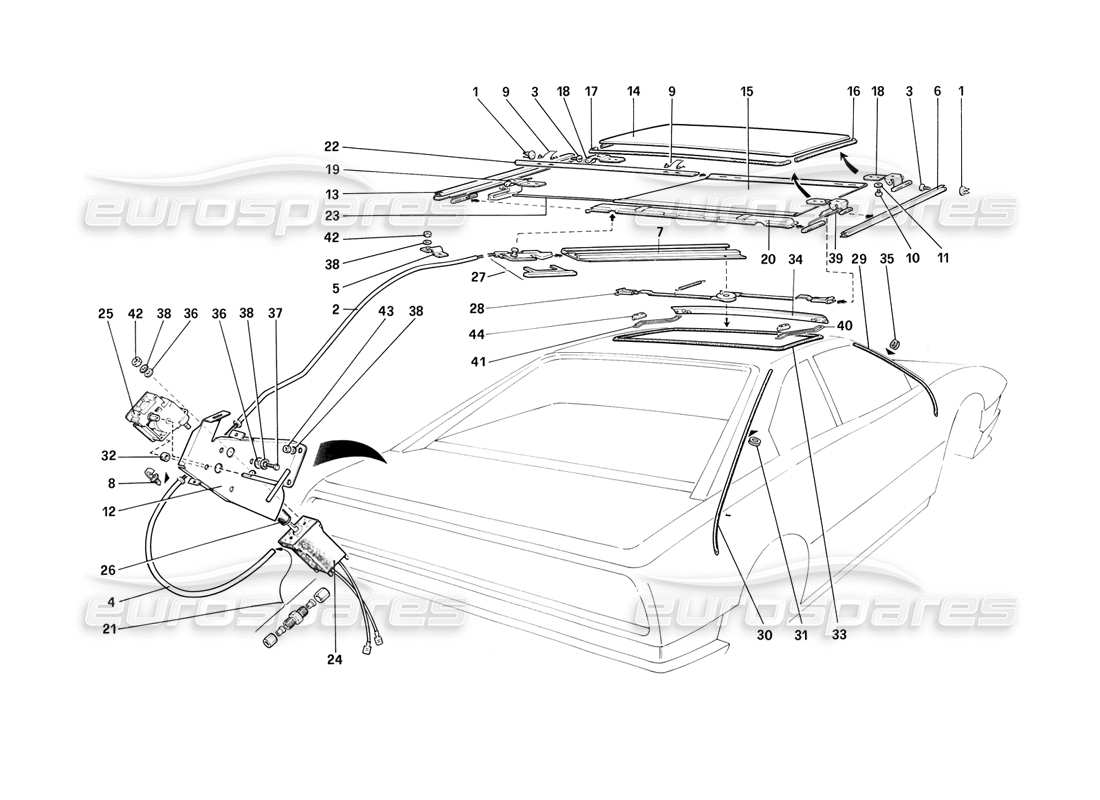

130 - Sun Roof - 3.2 Mondial Coupe
Ferrari Mondial 3.2 QV (1987) Sun Roof - 3.2 Mondial Coupe Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 60911800
NUT SCREW
from £0.47
from £0.47
# 002
MPN: 60911700
TUBE
UNTIL 75038
from £109.77
from £109.77
# 002
MPN: 62447100
TUBE
FROM 75039
from £98.21
from £98.21
# 003
MPN: 60911900
SCREW
from £0.47
from £0.47
# 004
MPN: 60970400
TUBE
UNTIL 75038
from £69.79
from £69.79
This part replaces part number 60916000
# 004
MPN: 62447000
TUBE
FROM 75039
from £159.93
from £159.93
# 005
MPN: 60916100
BRACKET
from £6.58
from £6.58
# 006
MPN: 60964700
RIGHTFRONTGUIDE
from £4.02
from £4.02
# 007
MPN: 61310500
GUIDE
from £12.05
from £12.05
# 008
MPN: 14573480
CLIP
from £0.71
from £0.71
# 009
MPN: 60963800
STOP SPRING
from £74.97
from £74.97
# 010
MPN: 60965100
SCREW FOR FRONT AND REAR PLATE
from £0.47
from £0.47
# 011
MPN: 60965200
SPRING WASHER
from £0.47
from £0.47
# 012
MPN: 60917300
SUPPORT FOR MOTOR
UNTIL 75038
from £70.64
from £70.64
# 012
MPN: 62446600
SUPPORT FOR MOTOR
FROM 75039
from £41.40
from £41.40
# 013
MPN: 60964600
LEFT FRONT GUIDE
from £21.74
from £21.74
# 014
MPN: 60913300
SLIDING ROOF, COMPLETE
from £379.83
from £379.83
# 015
MPN: 61030000
INNER COVERING
from £610.61
from £610.61
# 016
MPN: 60963100
FRONT, SIDE GASKET
from £274.44
from £274.44
# 017
MPN: 60963200
REAR GASKET
from £68.04
from £68.04
# 018
MPN: 60963500
FRONT GUIDE PLATE
from £405.02
from £405.02
# 019
MPN: 60963600
REAR LEFT GUIDE PLATE
from £240.51
from £240.51
# 020
MPN: 60913600
MOBILE TRAVERSE
from £58.11
from £58.11
# 021
MPN: 60964900
CABLE TERMINAL
from £40.84
from £40.84
# 022
MPN: 60963900
GUIDE
from £213.63
from £213.63
This part replaces part number 60653100
# 023
MPN: 60964000
ROD
from £3.72
from £3.72
# 024
MPN: 60964200

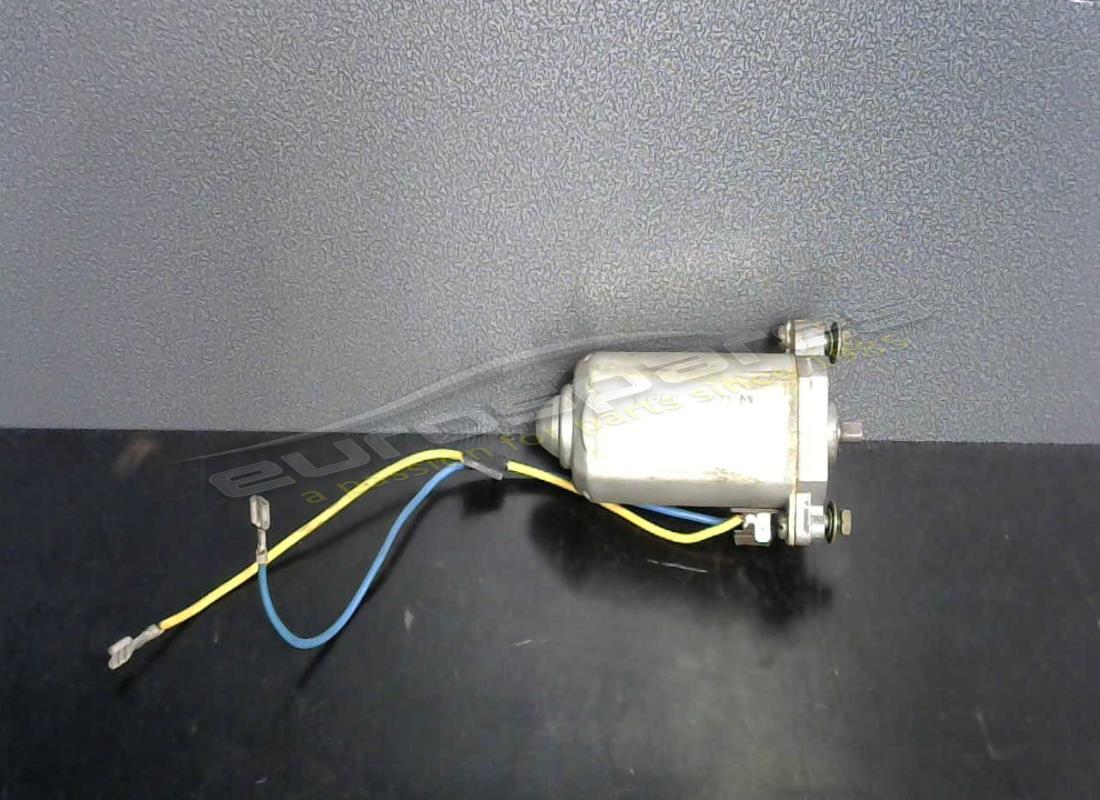

MOTOR
UNTIL 75038
from £372.89
from £372.89
# 024
MPN: 62446800
MOTOR
FROM 75039
from £973.70
from £973.70
This part replaces part number 60964200 which we have in stock - and 1 more. Click to view details
# 025
MPN: 60964300
REDUCTION GEAR
UNTIL 75038
Supersession
Supersession
# 026
MPN: 60964400
FLEXIBLE COUPLING
UNTIL 75038
from £34.27
from £34.27
# 027
MPN: 60970200
CABLE
from £3,590.33
from £3,590.33
This part replaces part number 60964500
# 028
MPN: 60976600
LEVERAGE
from £406.23
from £406.23
# 029
MPN: 60915600
FRONT DRAIN TUBE
from £7.68
from £7.68
# 030
MPN: 60915700
REAR DRAIN TUBE
from £3.85
from £3.85
# 031
MPN: 10396680
INSULATING RING FOR REAR TUBES
from £1.09
from £1.09
# 032
MPN: 60915800
SPACER
UNTIL 75038
from £4.29
from £4.29
# 033
MPN: 60962900
GASKET
from £60.26
from £60.26
# 034
MPN: 61105200
SPOYLER
Supersession
Supersession
# 035
MPN: 10396280
INSULATING RING FOR FRONT TUBES
from £1.73
from £1.73
# 036
MPN: 12638101
WASHER
from £0.71
from £0.71
# 037
MPN: 10978221
SCREW
UNTIL 75038
from £1.14
from £1.14
This part replaces part number 10978224
# 038
MPN: 10615371
WASHER
Supersession
Supersession
# 039
MPN: 60963700
REAR RIGHT GUIDE PLATE
from £221.66
from £221.66
# 040
MPN: 61105400
RH SPRING
from £28.83
from £28.83
# 041
MPN: 61105300
LH SPRING
from £21.32
from £21.32
# 042
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 043
MPN: 12574211
NUT
from £0.71
from £0.71
# 044
MPN: 61105600
BRACKET
