131 - Top - Cabriolet

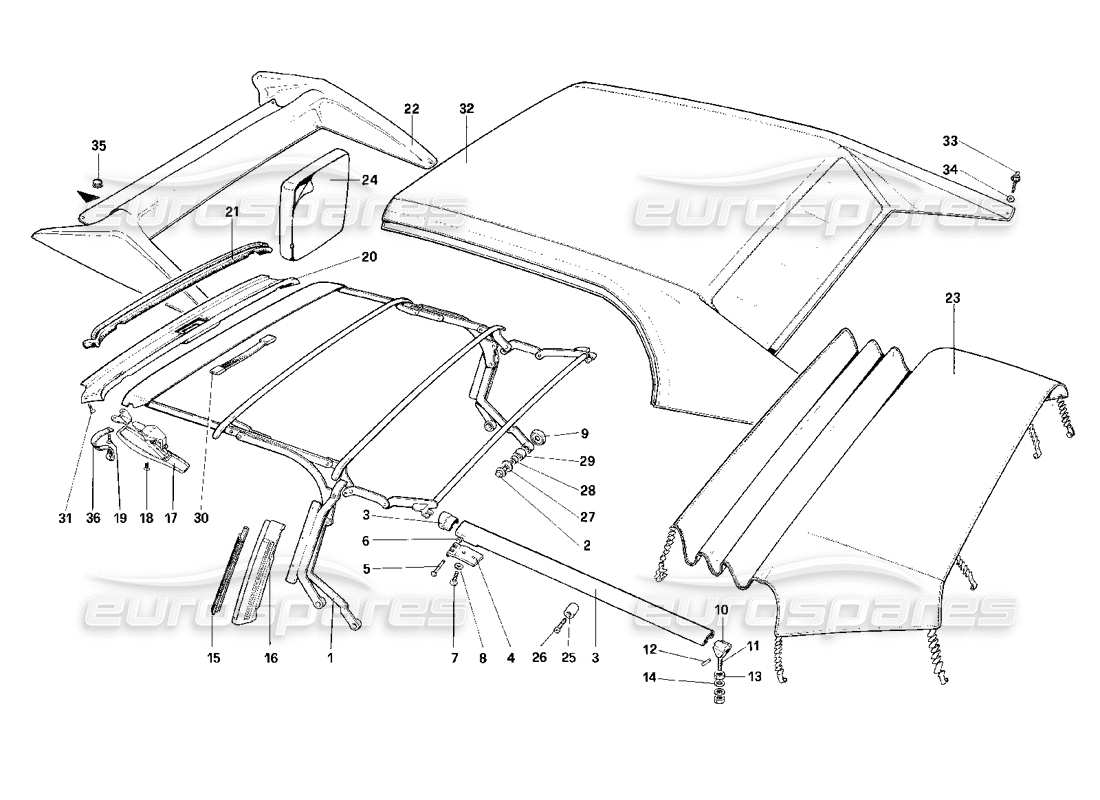

Ferrari Mondial 3.2 QV (1987) Top - Cabriolet Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 61712700
TOP FRAME WITH BLACK CLOTH
For skin top cover
from £8,616.17
from £8,616.17
This part replaces part number 61246900 - and 1 more. Click to view details
# 001
MPN: 61712700/A
ROOF FRAME
FRAME ONLY
# 001
MPN: 61826100
TOP FRAME WITH BLUE CLOTH
For cloth top cover
Supersession
Supersession

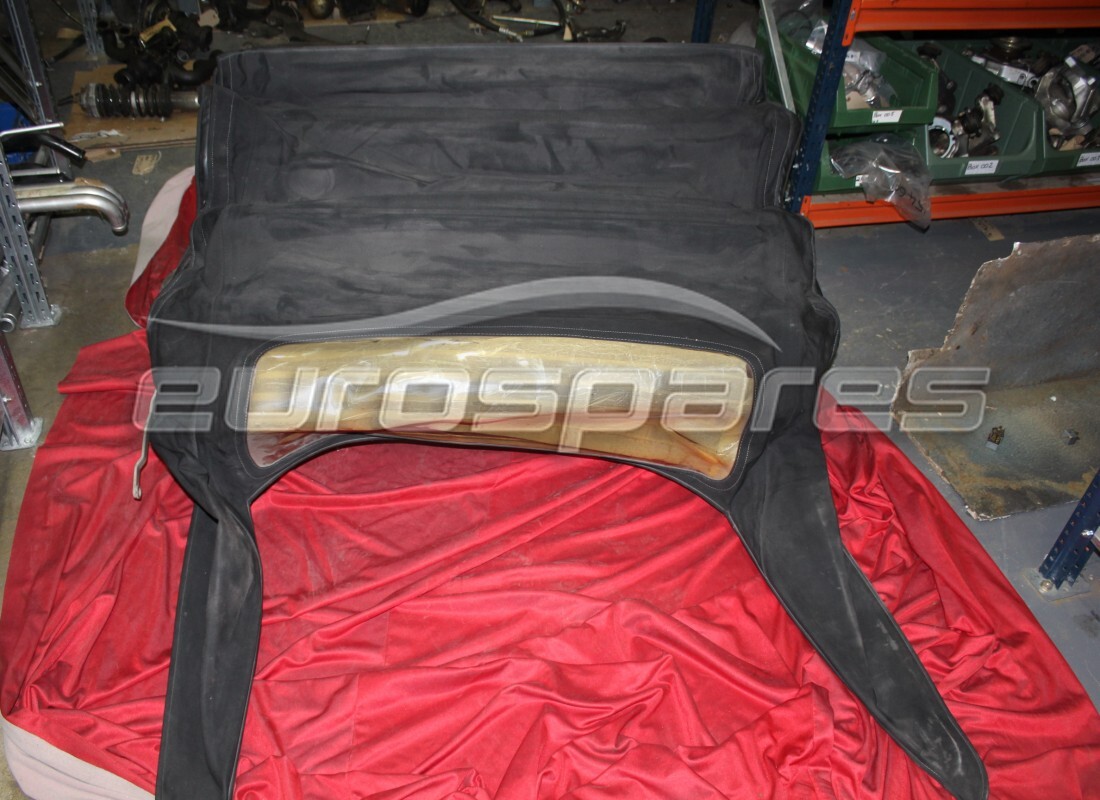

# 001
MPN: 61826700
TOP FRAME WITH BLACK CLOTH
For cloth top cover
from £1,254.75
from £1,254.75

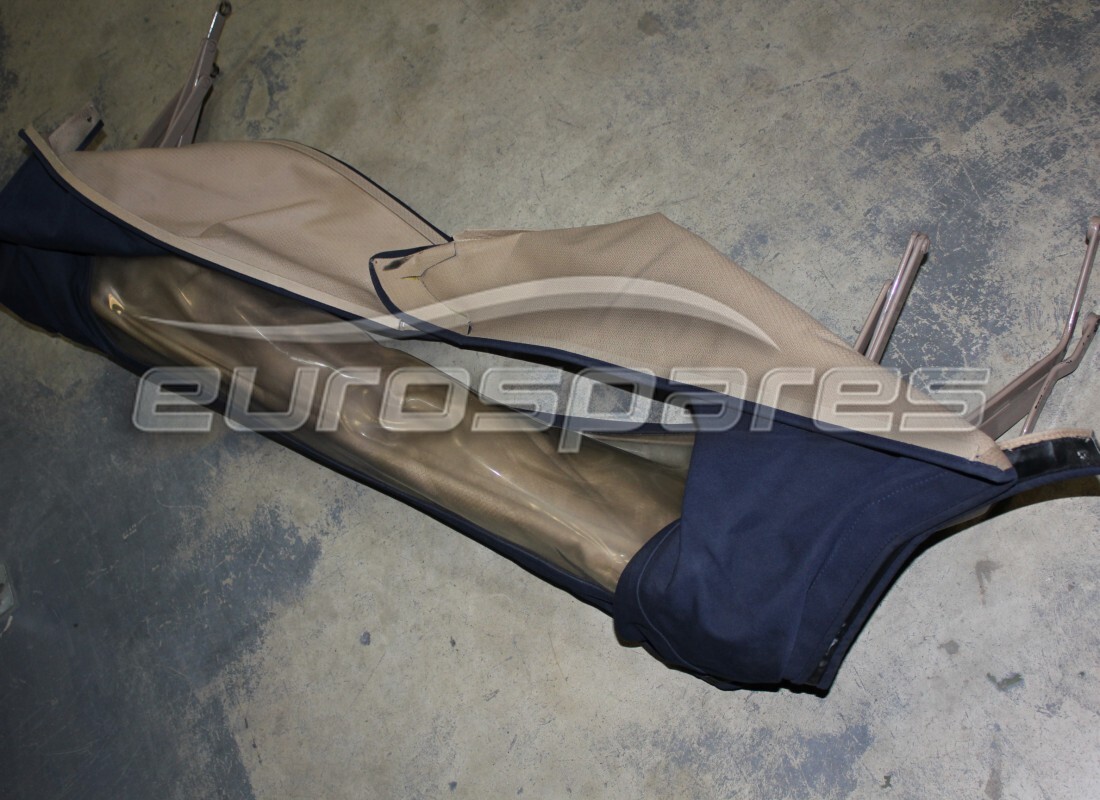

# 001
MPN: 61827200
TOP FRAME WITH BLUE CLOTH
For skin top cover
from £4,011.00
from £4,011.00
This part replaces part number 61826100 - and 1 more. Click to view details
# 002
MPN: 61424100
SCREW
from £1.60
from £1.60
# 003
MPN: 61298100
RIGHT FINS TENSIONER WITH END
from £105.33
from £105.33
# 003
MPN: 61298200
LEFT FINS TENSIONER WITH END
from £127.00
from £127.00
# 004
MPN: 61305800
LEFT HINGE
from £11.86
from £11.86
# 004
MPN: 61333800
RIGHT HINGE
from £11.86
from £11.86
# 005
MPN: 40028904
PIN
from £5.68
from £5.68
# 006
MPN: 11065476
SEEGER RING
Supersession
Supersession
This part replaces part number 11065470
# 007
MPN: 60801600
SCREW
from £0.53
from £0.53
# 008
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 009
MPN: 61425200
GASKET
from £41.14
from £41.14
# 010
MPN: 61306600
SLIDE
from £8.78
from £8.78
# 011
MPN: 61306700
UNIBALL
from £91.99
from £91.99
# 012
MPN: 61306800
PIN
from £7.19
from £7.19

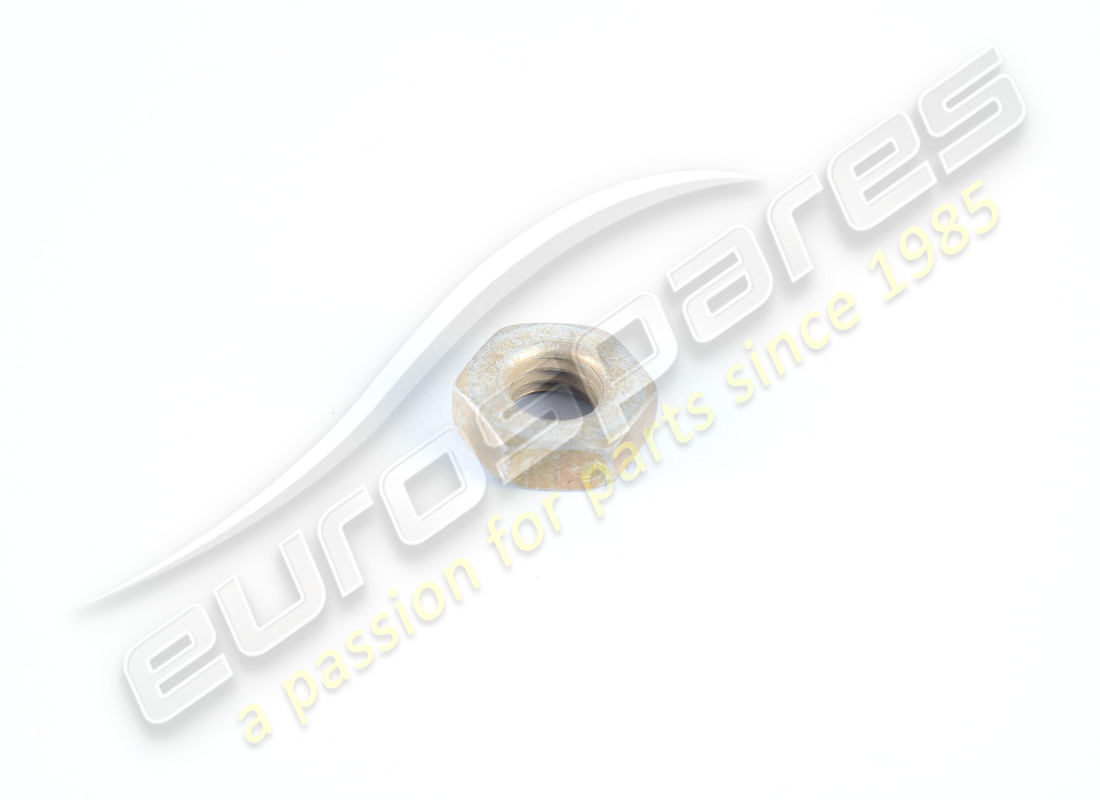

# 013
MPN: 10788511
NUT
from £0.47
from £0.47
# 014
MPN: 12642021
WASHER
Supersession
Supersession
# 015
MPN: 61411300
GASKET
from £430.22
from £430.22
# 016
MPN: 61720300
RH PILLAR
from £316.53
from £316.53
This part replaces part number 61250200 - and 3 more. Click to view details
# 016
MPN: 61720400
LH PILLAR
from £307.57
from £307.57
This part replaces part number 61372200 - and 2 more. Click to view details
# 017
MPN: 61758500
HOOK FOR TOP CLOSING
from £425.19
from £425.19
This part replaces part number 61252000 - and 1 more. Click to view details
# 018
MPN: 13301417
SCREW
from £3.35
from £3.35
# 019
MPN: 13299517
SCREW
from £0.47
from £0.47
# 020
MPN: 61236300
UPPERFRAMEWORK WINDSHIELD
from £438.26
from £438.26
# 021
MPN: 61322600
GASKET
from £413.48
from £413.48
# 022
MPN: 61251200
CLOTH TOP COVER
from £2,292.71
from £2,292.71
# 022
MPN: 61711300
SKIN TOP COVER OPTIONAL
from £2,344.88
from £2,344.88
This part replaces part number 617113..
# 023

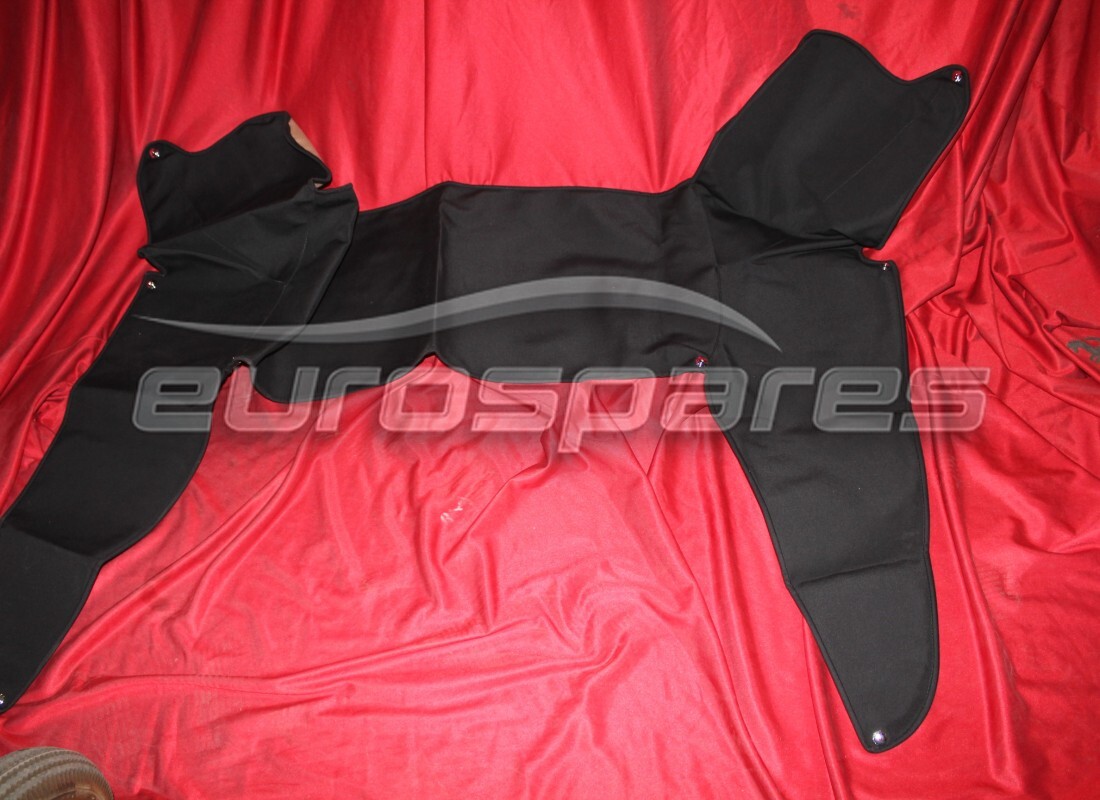

MPN: 61251400
TONNEAU COVER
USA only
from £1,975.00
from £1,975.00
# 024
MPN: 61368600
BAG FOR TOP COVER
from £585.03
from £585.03
This part replaces part number 613686..
# 025
MPN: 61302600
ROLLER
from £14.98
from £14.98
# 026
MPN: 61402100
SCREW
from £1.37
from £1.37
# 027
MPN: 12642006
WASHER
from £0.47
from £0.47
# 028
MPN: 61758900
SPACER
from £1.85
from £1.85
# 029
MPN: 101677
ROLLER BEARING
from £2.02
from £2.02

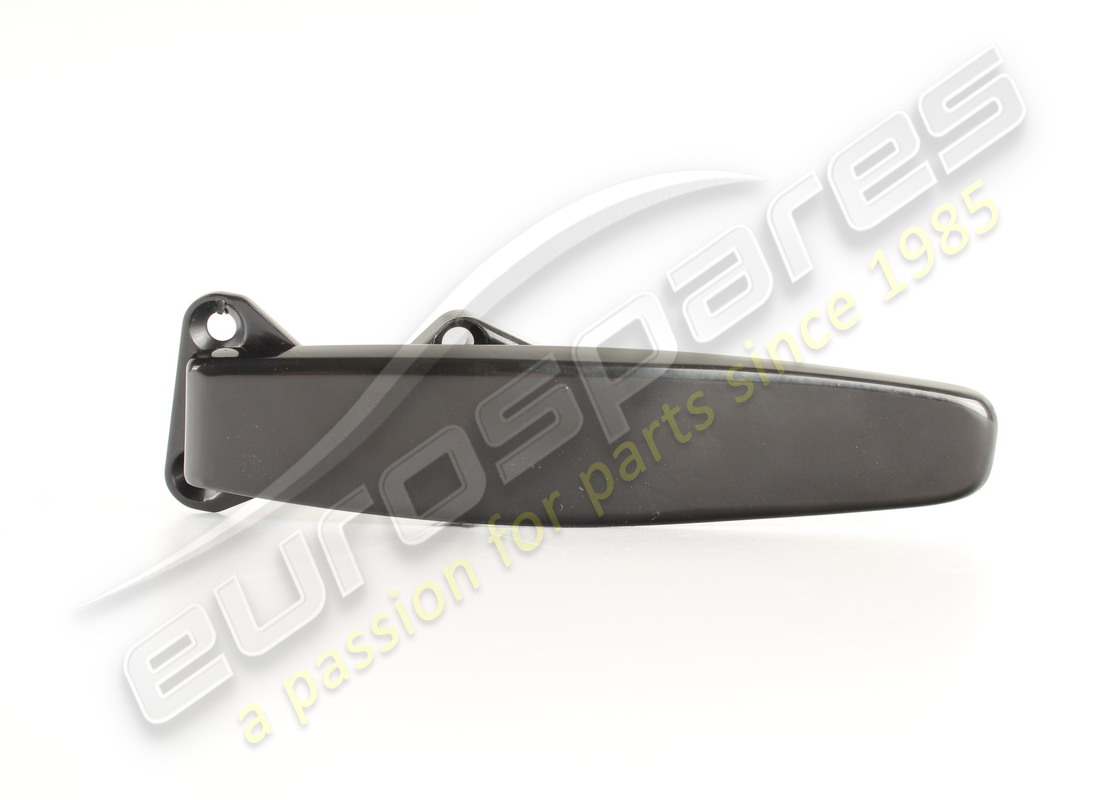

# 030
MPN: 61758400
HANDLE
from £43.65
from £43.65
# 031
MPN: 13310917
SCREW
from £0.47
from £0.47
# 032
MPN: 61250700
BLACK CLOTH FOR CLOTH TOP COVER
Supersession
Supersession
# 032
MPN: 61250701
BLUE CLOTH FOR CLOTH TOP COVER
Supersession
Supersession
# 032
MPN: 61711200
BLACK CLOTH FOR SKIN TOP COVER
from £2,615.90
from £2,615.90
This part replaces part number 61250700
# 032
MPN: 61711201
BLUE CLOTH FOR SKIN TOP COVER
from £3,049.49
from £3,049.49
This part replaces part number 61250701
# 033
MPN: 60271806
PIN
from £10.84
from £10.84
This part replaces part number 61632100
# 034
MPN: 61195300
WASHER
from £0.71
from £0.71
# 035
MPN: 60727200
KNOB FOR COVER
from £19.30
from £19.30
This part replaces part number 60084506
# 036
MPN: 61759000
STRAP
from £64.50
from £64.50
