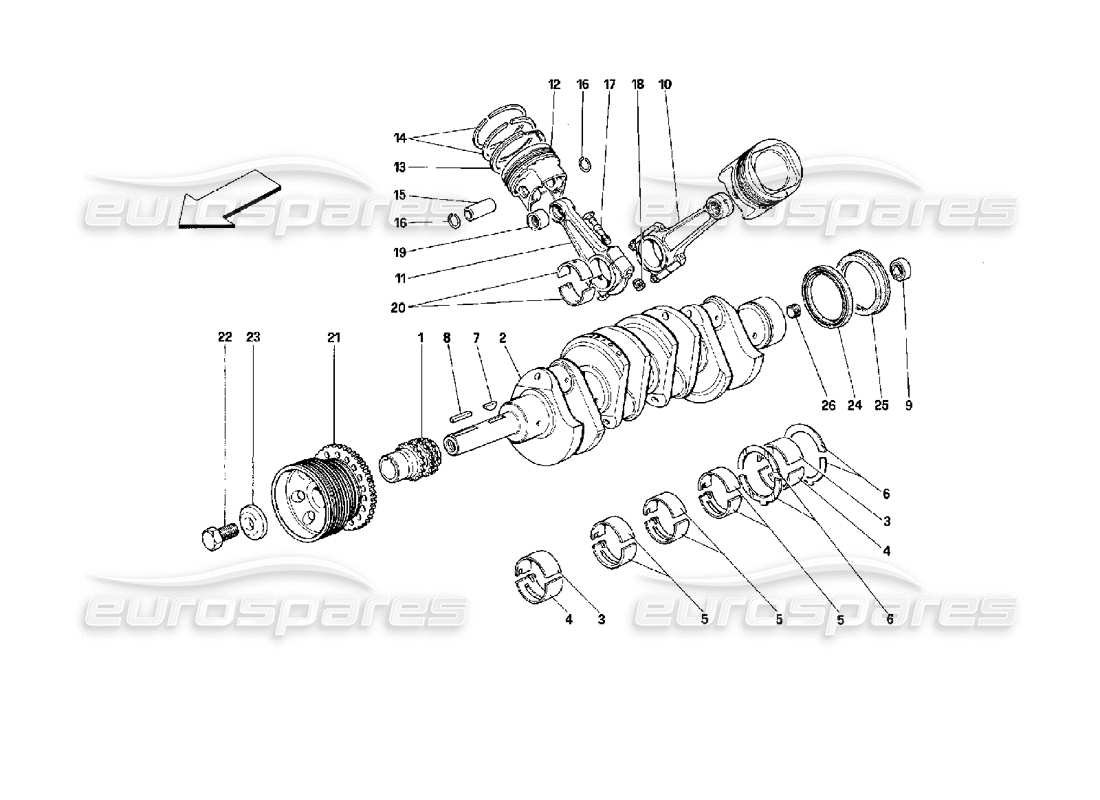

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 132807
                                              DRIVING GEAR
                                              from £60.27
                                              from £60.27
                                              # 002
                                              MPN: 138193
                                              crankshaft
                                              from £832.53
                                              from £832.53
                                              # 003
                                              MPN: 100118
                                              UPPER MAIN HALF BEARING SHELL STANDARD
                                              from £42.25
                                              from £42.25
                                              This part replaces part number 9100035
                                              # 003
                                              MPN: 100119
                                              UPPER MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM
                                              from £75.69
                                              from £75.69
                                              # 003
                                              MPN: 100120
                                              UPPER MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
                                              from £27.27
                                              from £27.27
                                              # 004
                                              MPN: 100122
                                              LOWER MAIN HALF BEARING SHELL STANDARD
                                              from £34.08
                                              from £34.08
                                              This part replaces part number 9100602
                                              # 004
                                              MPN: 100123
                                              LOWER MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM
                                              from £71.71
                                              from £71.71
                                              # 004
                                              MPN: 100124
                                              LOWER MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
                                              from £34.49
                                              from £34.49
                                              # 005
                                              MPN: 104023
                                              MAIN HALF BEARING SHELL STANDARD
                                              from £29.30
                                              from £29.30
                                              This part replaces part number 108876 - and 2 more. Click to view details
                                              # 005
                                              MPN: 104024
                                              MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM
                                              from £33.48
                                              from £33.48
                                              # 005
                                              MPN: 104025
                                              MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
                                              from £32.83
                                              from £32.83
                                              # 006
                                              MPN: 100146
                                              THRUST WASHERS SET
                                              sold in pairs -
                                              from £22.78
                                              from £22.78
                                              This part replaces part number 10345 - and 1 more. Click to view details
                                              # 006
                                              MPN: 100147
                                              THRUST WASHERS (2ND OVERSIZE)
                                              from £14.60
                                              from £14.60
                                              This part replaces part number 4153187/C
                                              # 006
                                              MPN: 113984
                                              1ST OVERSIZE 0,127 MM
                                              from £49.51
                                              from £49.51
                                              # 007
                                              MPN: 10206020
                                              Key
                                              from £1.52
                                              from £1.52
                                              # 008
                                              MPN: 14723320
                                              Key
                                              from £1.43
                                              from £1.43
                                              # 009
                                              MPN: 103877
                                              PILOT BEARING
                                              from £15.20
                                              from £15.20
                                              This part replaces part number 24940440
                                              # 010
                                              MPN: 109738/U
                                              CON ROD
                                              from £230.00
                                              from £230.00
                                              # 011
                                              MPN: 109738/U
                                              CON ROD
                                              from £230.00
                                              from £230.00
                                              # 012
                                              MPN: 132959
                                              PISTONS RINGS SET
                                              from £114.78
                                              from £114.78
                                              This part replaces part number 132773
                                              # 012
                                              MPN: 137980
                                              PISTON WITH PISTON RING
                                              from £595.00
                                              from £595.00
                                              # 013
                                              MPN: 132773
                                              ROF SCRAPER RING WITH SPRING (3TH GROOVE)
                                              - Not as spare part - With complete set No. 132959
                                              Supersession
                                              Supersession
                                              # 014
                                              MPN: 137763
                                              AC TORSIONAL SEAL RING (1ST AND 2ND GROOVE)
                                              - Not as spare part - With complete set No. 132959
                                              # 015
                                              MPN: 119537
                                              GUDGEON PIN
                                              from £34.44
                                              from £34.44
                                              # 016
                                              MPN: 100174
                                              GUDGEON PIN CIRCLIP
                                              from £3.47
                                              from £3.47
                                              This part replaces part number 14594
                                              # 017
                                              MPN: 100156
                                              SCREW
                                              from £16.69
                                              from £16.69
                                              This part replaces part number 140020 - and 1 more. Click to view details
                                              # 018
                                              MPN: 104011
                                              NUT
                                              from £9.62
                                              from £9.62
                                              This part replaces part number 14511 - and 1 more. Click to view details
                                              # 019
                                              MPN: 107100
                                              SMALL END BUSH
                                              from £25.36
                                              from £25.36
                                              This part replaces part number 100155 - and 2 more. Click to view details
                                              # 020
                                              MPN: 100151
                                              CON ROD BEARING +10
                                              (1st Undersize mm 0,254)
                                              from £45.64
                                              from £45.64
                                              This part replaces part number 106184
                                              # 020
                                              MPN: 100152
                                              CON ROD BEARING +20
                                              (2ª Undersize mm 0,508)
                                              from £61.09
                                              from £61.09
                                              This part replaces part number 106185
                                              # 020
                                              MPN: 106183
                                              CON ROD HALF BEARING STANDARD
                                              use 100150/A for complete set
                                              from £19.40
                                              from £19.40
                                              This part replaces part number 100150
                                              # 021
                                              MPN: 137321

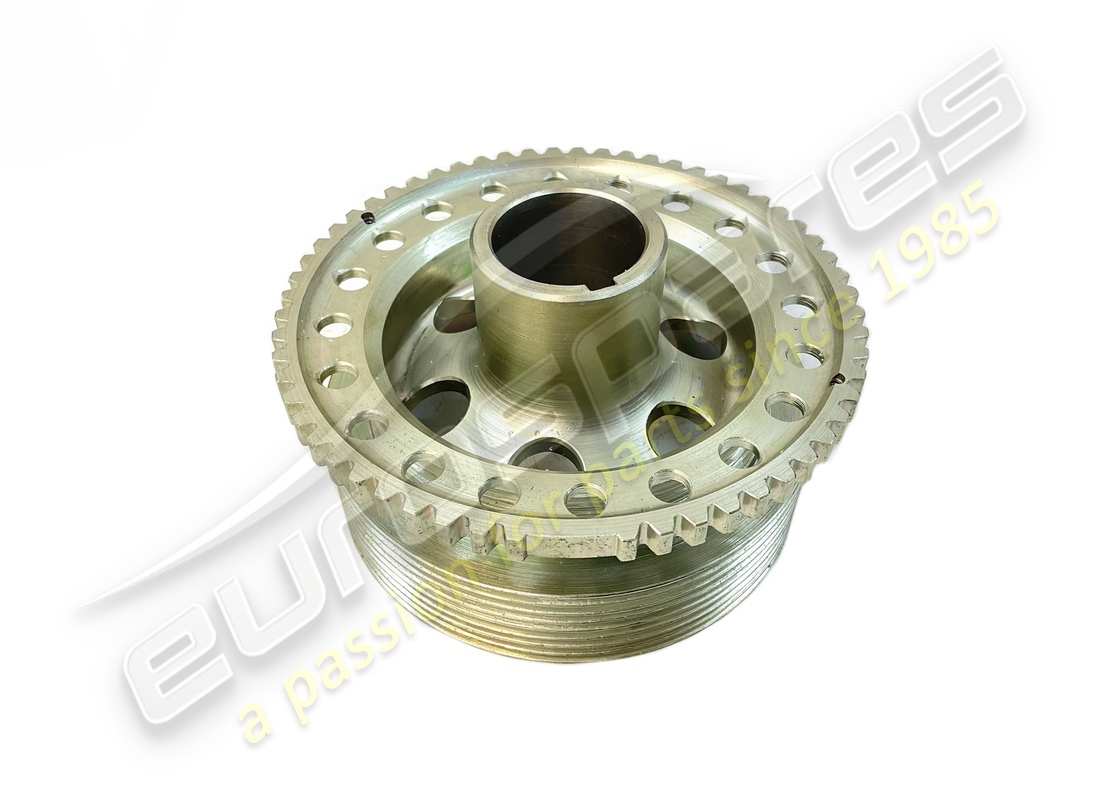

                                              WHEEL
                                              from £438.98
                                              from £438.98
                                              # 022
                                              MPN: 138793
                                              SCREW
                                              from £44.61
                                              from £44.61
                                              This part replaces part number 100476 - and 8 more. Click to view details
                                              # 023
                                              MPN: 138792
                                              WASHER
                                              from £2.81
                                              from £2.81
                                              This part replaces part number 102775 which we have in stock - and 2 more. Click to view details
                                              # 024
                                              MPN: 183581
                                              REAR MAIN OIL SEAL
                                              from £83.14
                                              from £83.14
                                              This part replaces part number 148671 - and 1 more. Click to view details
                                              # 025
                                              MPN: 183581
                                              REAR MAIN OIL SEAL
                                              from £83.14
                                              from £83.14
                                              This part replaces part number 148671 - and 1 more. Click to view details
                                              # 026
                                              MPN: 163528
                                              PLUG
                                              from £2.11
                                              from £2.11
                                              This part replaces part number 10268450 - and 1 more. Click to view details
