ferrari mondial 3.4 t coupe/cabrio tank and fuel breather device - cabriolet - not for cars with catalysts parts diagram

011 - Tank and Fuel Breather Device - Cabriolet - Not for Cars With Catalysts

Ferrari Mondial 3.4 t Coupe/Cabrio Tank and Fuel Breather Device - Cabriolet - Not for Cars With Catalysts Parts Diagram

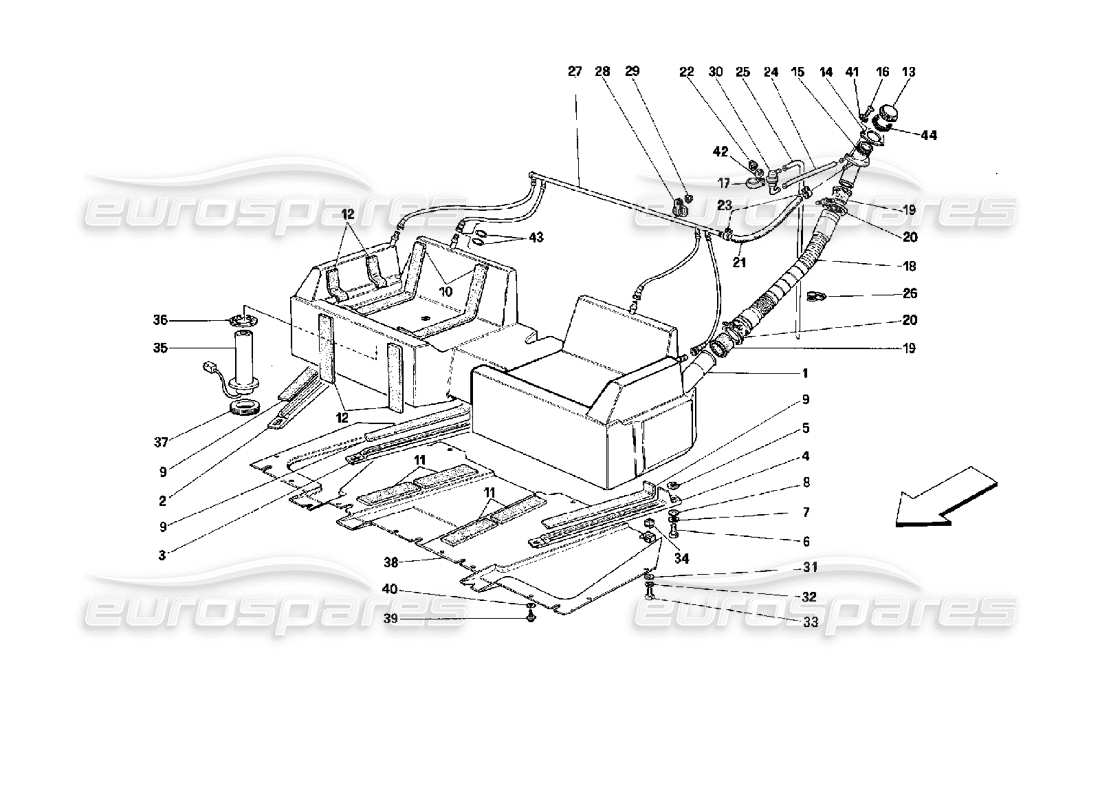

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 133966
                                                                                      FUEL TANK
                                                                                      from £2,763.44
                                                                                      from £2,763.44
                                                                                      # 002
                                                                                      MPN: 139177
                                                                                      RH BRACKET
                                                                                      from £32.73
                                                                                      from £32.73
                                                                                      # 003
                                                                                      MPN: 139178
                                                                                      CENTRAL BRACKET
                                                                                      from £45.84
                                                                                      from £45.84
                                                                                      # 004
                                                                                      MPN: 139179
                                                                                      LH BRACKET
                                                                                      from £32.87
                                                                                      from £32.87
                                                                                      # 005
                                                                                      MPN: 140745
                                                                                      WASHER
                                                                                      - Thick. 2 - For possible assembly
                                                                                      from £0.67
                                                                                      from £0.67
                                                                                      # 005
                                                                                      MPN: 140746
                                                                                      WASHER
                                                                                      - Thick. 3 - For possible assembly
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 005
                                                                                      MPN: 140747
                                                                                      WASHER
                                                                                      - Thick. 4 - For possible assembly
                                                                                      from £25.22
                                                                                      from £25.22
                                                                                      # 006
                                                                                      MPN: 11306921
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 11306934 which we have in stock
                                                                                      # 007
                                                                                      MPN: 127497
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                      # 008
                                                                                      MPN: 14496621
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 009
                                                                                      MPN: 139518
                                                                                      RUBBER SPACER
                                                                                      from £4.83
                                                                                      from £4.83
                                                                                      # 010
                                                                                      MPN: 141256
                                                                                      RUBBER SPACER
                                                                                      from £4.83
                                                                                      from £4.83
                                                                                      # 011
                                                                                      MPN: 115330
                                                                                      RUBBER SPACER
                                                                                      from £8.54
                                                                                      from £8.54
                                                                                      # 012
                                                                                      MPN: 139504
                                                                                      RUBBER SPACER
                                                                                      from £2.61
                                                                                      from £2.61
                                                                                      # 013
                                                                                      MPN: 180320
                                                                                      FUEL CAP
                                                                                      from £95.00
                                                                                      from £95.00
                                                                                      # 014
                                                                                      MPN: 123897
                                                                                      GASKET
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 015
                                                                                      MPN: 140930
                                                                                      FILLER CAP
                                                                                      from £112.13
                                                                                      from £112.13
                                                                                      # 016
                                                                                      MPN: 14064511
                                                                                      SCREW
                                                                                      from £0.80
                                                                                      from £0.80
                                                                                      # 017
                                                                                      MPN: 139980
                                                                                      BRACKET
                                                                                      from £2.10
                                                                                      from £2.10
                                                                                      # 018
                                                                                      MPN: 141032
                                                                                      FILLER CAP - TANK CONNECTION PIPE
                                                                                      # 019
                                                                                      MPN: 141033
                                                                                      GASKET
                                                                                      from £12.13
                                                                                      from £12.13
                                                                                      # 020
                                                                                      MPN: 12182290
                                                                                      CLAMP
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 021
                                                                                      MPN: 140935
                                                                                      PIPE FROM BREATHER TO FILLER CAP
                                                                                      from £3.65
                                                                                      from £3.65
                                                                                      # 023
                                                                                      MPN: 13000290
                                                                                      CLAMPS
                                                                                      from £0.50
                                                                                      from £0.50
                                                                                      # 024
                                                                                      MPN: 141257
                                                                                      BREATHER PIPE FROM FILLER CAP TO VALVE
                                                                                      from £3.72
                                                                                      from £3.72
                                                                                      # 025
                                                                                      MPN: 141258
                                                                                      BREATHER PIPE FROM VALVE
                                                                                      from £9.48
                                                                                      from £9.48
                                                                                      This part replaces part number 113436
                                                                                      # 026
                                                                                      MPN: 10115701
                                                                                      BRACKET WITH SHEATH
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 027
                                                                                      MPN: 133964
                                                                                      BREATHER PIPE
                                                                                      from £166.70
                                                                                      from £166.70
                                                                                      # 028
                                                                                      MPN: 10441290
                                                                                      BRACKET WITH SHEATH
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 030
                                                                                      MPN: 139568
                                                                                      ANTI - TURN OVER VALVE
                                                                                      from £203.46
                                                                                      from £203.46
                                                                                      # 031
                                                                                      MPN: 12643701
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                      # 032
                                                                                      MPN: 127494
                                                                                      WASHER
                                                                                      (minimum order quantity = 20)
                                                                                      from £0.50
                                                                                      from £0.50
                                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                      # 033
                                                                                      MPN: 10902221
                                                                                      SCREW
                                                                                      from £0.52
                                                                                      from £0.52
                                                                                      # 034
                                                                                      MPN: 60659100
                                                                                      NUT WITH CAGE
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                                                      # 035
                                                                                      MPN: 137419
                                                                                      LEVEL GAUGE SWITCH
                                                                                      from £414.75
                                                                                      from £414.75
                                                                                      # 036
                                                                                      MPN: 154802
                                                                                      GASKET
                                                                                      from £17.11
                                                                                      from £17.11
                                                                                      This part replaces part number 116792 - and 2 more. Click to view details
                                                                                      # 037
                                                                                      MPN: 121435
                                                                                      RING NUT
                                                                                      from £44.76
                                                                                      from £44.76
                                                                                      This part replaces part number 116012 - and 6 more. Click to view details
                                                                                      # 038
                                                                                      MPN: 140361
                                                                                      TANK GUARD PLATE
                                                                                      from £1,290.83
                                                                                      from £1,290.83
                                                                                      # 039
                                                                                      MPN: 15829001
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 040
                                                                                      MPN: 14497701
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 041
                                                                                      MPN: 12601274
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                      # 042
                                                                                      MPN: 106850
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                      # 043
                                                                                      MPN: 133956
                                                                                      O RING
                                                                                      from £0.74
                                                                                      from £0.74
                                                                                      # 044
                                                                                      MPN: 142792
                                                                                      GASKET FOR CAP
                                                                                      Supersession
                                                                                      Supersession
