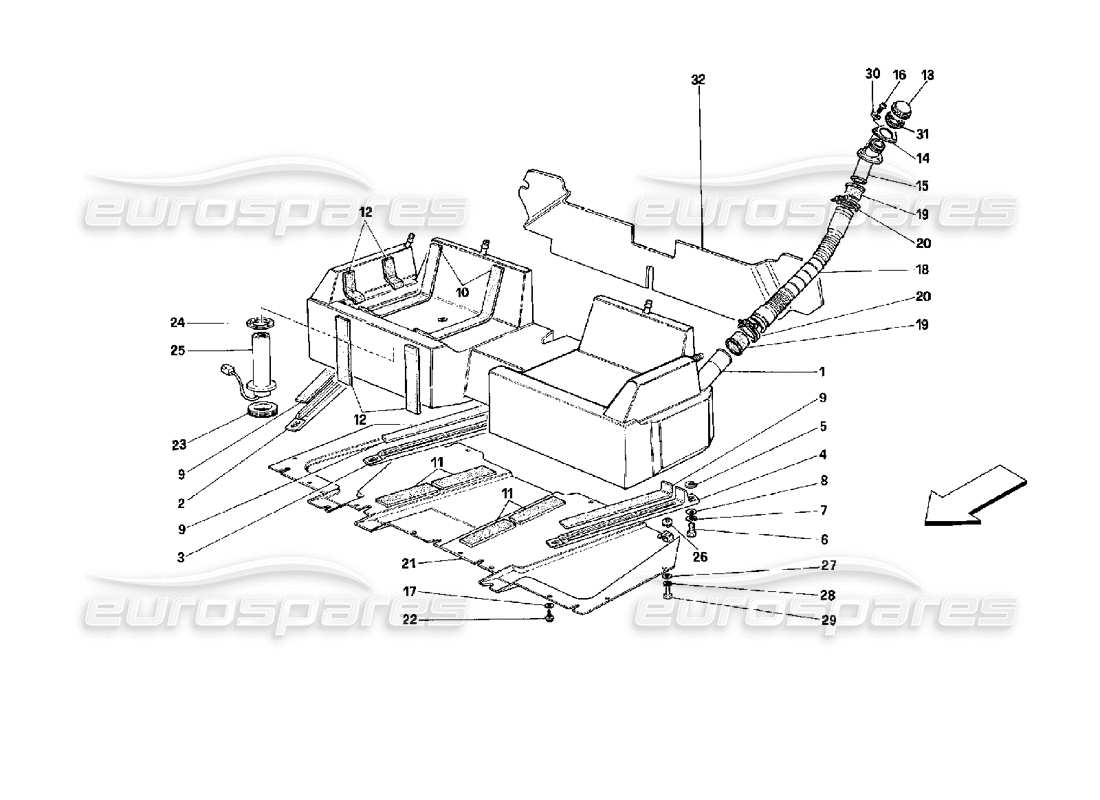

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 133966

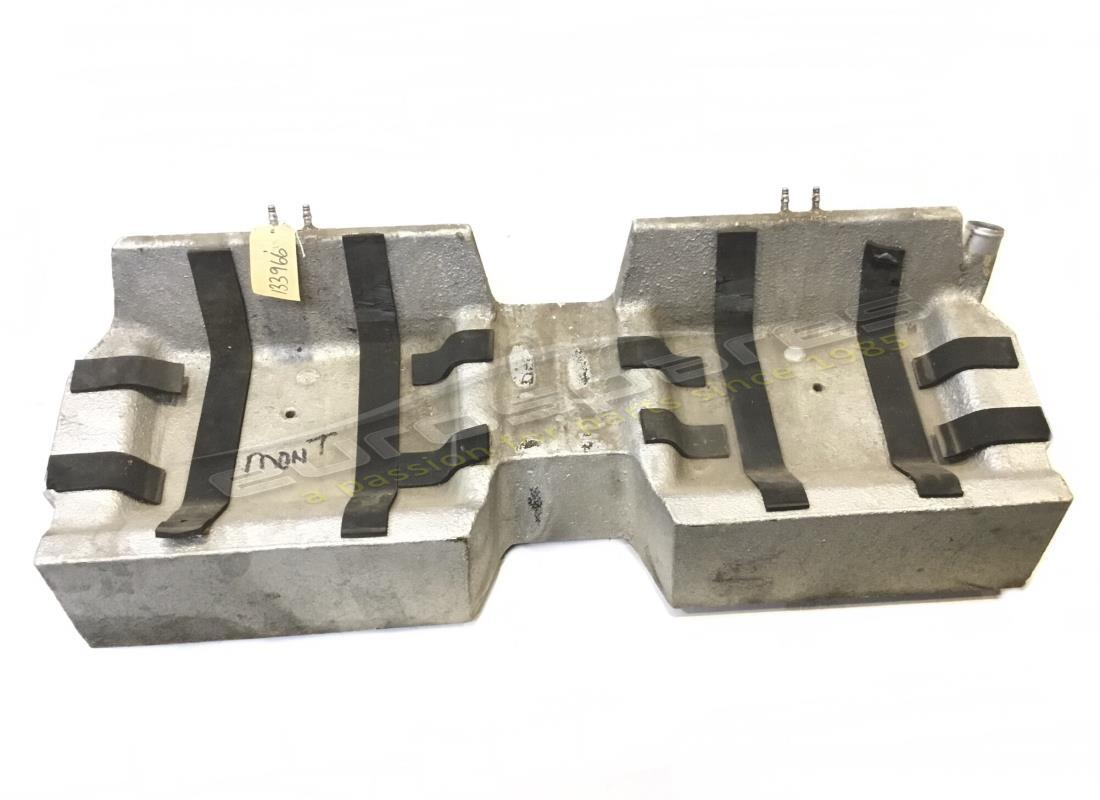

                                                          GASOLINE TANK
                                                          from £2,763.44
                                                          from £2,763.44
                                                          # 002
                                                          MPN: 139177
                                                          RH BRACKET
                                                          from £32.73
                                                          from £32.73
                                                          # 003
                                                          MPN: 139178
                                                          CENTRAL BRACKET
                                                          from £45.84
                                                          from £45.84
                                                          # 004
                                                          MPN: 139179
                                                          LH BRACKET
                                                          from £32.87
                                                          from £32.87
                                                          # 005
                                                          MPN: 140745
                                                          WASHER
                                                          - Thick. 2 - For possible assembly
                                                          from £0.67
                                                          from £0.67
                                                          # 005
                                                          MPN: 140746
                                                          WASHER
                                                          - Thick. 3 - For possible assembly
                                                          from £0.47
                                                          from £0.47
                                                          # 005
                                                          MPN: 140747
                                                          WASHER
                                                          - Thick. 4 - For possible assembly
                                                          from £25.22
                                                          from £25.22
                                                          # 006
                                                          MPN: 11306921
                                                          SCREW
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 11306934 which we have in stock
                                                          # 007
                                                          MPN: 127497
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 10516871 - and 2 more. Click to view details
                                                          # 008
                                                          MPN: 14496621
                                                          WASHER
                                                          Supersession
                                                          Supersession
                                                          # 009
                                                          MPN: 139518
                                                          RUBBER SPACER
                                                          from £4.83
                                                          from £4.83
                                                          # 010
                                                          MPN: 141256
                                                          RUBBER SPACER
                                                          from £4.83
                                                          from £4.83
                                                          # 011
                                                          MPN: 115330
                                                          RUBBER SPACER
                                                          from £8.54
                                                          from £8.54
                                                          # 012
                                                          MPN: 139504
                                                          RUBBER SPACER
                                                          from £2.61
                                                          from £2.61
                                                          # 013
                                                          MPN: 180320
                                                          FUEL CAP
                                                          from £95.00
                                                          from £95.00
                                                          # 014
                                                          MPN: 123897
                                                          GASKET
                                                          Supersession
                                                          Supersession
                                                          # 015
                                                          MPN: 140931
                                                          UNION
                                                          - Not for de - catalyst cars
                                                          from £279.45
                                                          from £279.45
                                                          # 015
                                                          MPN: 149717
                                                          UNION
                                                          - Valid for de - catalyst cars
                                                          from £315.00
                                                          from £315.00
                                                          # 016
                                                          MPN: 14064511
                                                          SCREW
                                                          from £0.80
                                                          from £0.80
                                                          # 017
                                                          MPN: 14497701
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          # 019
                                                          MPN: 141033
                                                          GASKET
                                                          from £12.13
                                                          from £12.13
                                                          # 020
                                                          MPN: 12182290
                                                          CLAMP
                                                          from £0.47
                                                          from £0.47
                                                          # 021
                                                          MPN: 140361
                                                          TANK GUARD PLATE
                                                          from £1,290.83
                                                          from £1,290.83
                                                          # 022
                                                          MPN: 15829001
                                                          SCREW
                                                          from £0.47
                                                          from £0.47
                                                          # 023
                                                          MPN: 121435
                                                          RING NUT
                                                          from £44.76
                                                          from £44.76
                                                          This part replaces part number 116012 - and 5 more. Click to view details
                                                          # 024
                                                          MPN: 154802
                                                          GASKET
                                                          from £17.11
                                                          from £17.11
                                                          This part replaces part number 116792 - and 2 more. Click to view details
                                                          # 025
                                                          MPN: 137419
                                                          LEVEL GAUGE SWITCH
                                                          from £414.75
                                                          from £414.75
                                                          # 026
                                                          MPN: 60659100
                                                          NUT WITH CAGE
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                          # 027
                                                          MPN: 127494
                                                          WASHER
                                                          (minimum order quantity = 20)
                                                          from £0.50
                                                          from £0.50
                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                          # 028
                                                          MPN: 12643701
                                                          WASHER
                                                          Supersession
                                                          Supersession
                                                          This part replaces part number 12643704 - and 1 more. Click to view details
                                                          # 029
                                                          MPN: 10902221
                                                          SCREW
                                                          from £0.52
                                                          from £0.52
                                                          # 030
                                                          MPN: 12601274
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                          # 031
                                                          MPN: 142792
                                                          GASKET FOR PLUG
                                                          Supersession
                                                          Supersession
                                                          # 032
                                                          MPN: 146445

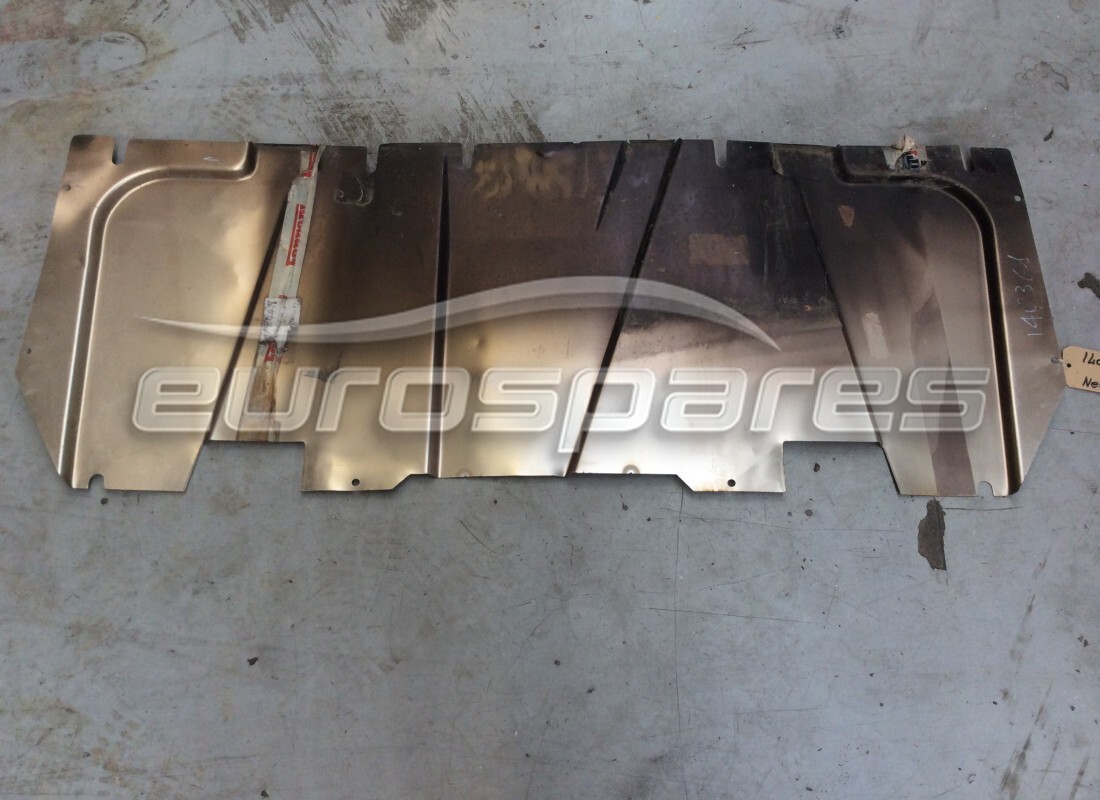

                                                          TANK-ENGINE SHIELD
                                                          - Valid for J
                                                          from £612.09
                                                          from £612.09
                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
