ferrari mondial 3.4 t coupe/cabrio air intake - motronic 2.7 parts diagram

013B - Air Intake - Motronic 2.7

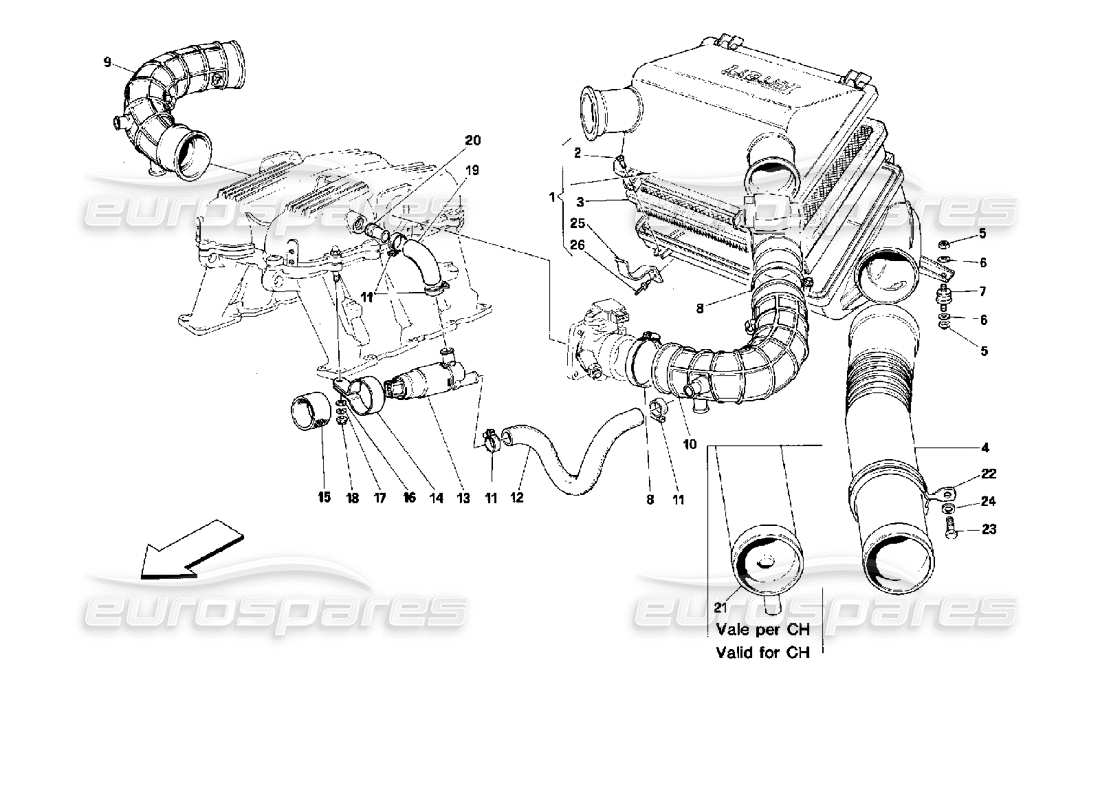

Ferrari Mondial 3.4 t Coupe/Cabrio Air Intake - Motronic 2.7 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 141862
                                                AIR INLET ASSY
                                                from £405.91
                                                from £405.91
                                                # 002
                                                MPN: 10376777
                                                SCREW
                                                from £0.47
                                                from £0.47
                                                # 003
                                                MPN: 155871
                                                AIR FILTER
                                                from £26.71
                                                from £26.71
                                                This part replaces part number 133180
                                                # 004
                                                MPN: 143950
                                                PIPE FOR AIR INLET CONNECTING
                                                - Not for CH
                                                from £206.87
                                                from £206.87
                                                This part replaces part number 140092
                                                # 006
                                                MPN: 14496401
                                                WASHER
                                                Supersession
                                                Supersession
                                                # 007
                                                MPN: 102947
                                                PAD
                                                from £6.92
                                                from £6.92
                                                This part replaces part number 102007 - and 14 more. Click to view details
                                                # 008
                                                MPN: 12177290
                                                CLAMP
                                                from £6.21
                                                from £6.21
                                                # 009
                                                MPN: 143257
                                                RH SLEEVE
                                                from £149.57
                                                from £149.57
                                                # 010
                                                MPN: 143236
                                                LH SLEEVE
                                                from £149.57
                                                from £149.57
                                                # 011
                                                MPN: 13000490
                                                CLAMP
                                                from £0.48
                                                from £0.48
                                                This part replaces part number 10169090 - and 3 more. Click to view details
                                                # 012
                                                MPN: 143201
                                                LH PIPE
                                                from £13.32
                                                from £13.32
                                                # 012
                                                MPN: 143202
                                                RH PIPE
                                                from £13.32
                                                from £13.32
                                                # 013
                                                MPN: 142432
                                                REGULATOR
                                                from £189.00
                                                from £189.00

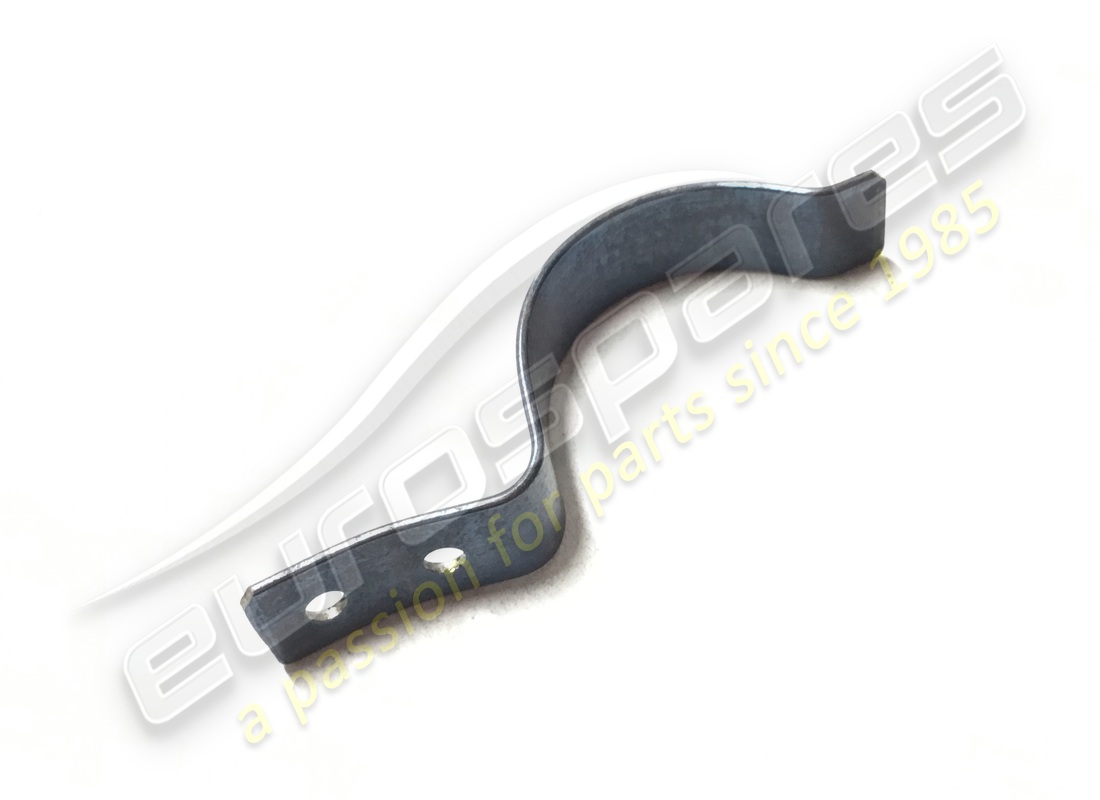

                                                # 014
                                                MPN: 143294
                                                LH BRACKET
                                                from £2.37
                                                from £2.37
                                                # 014
                                                MPN: 143301
                                                RH BRACKET
                                                from £1.74
                                                from £1.74
                                                # 015
                                                MPN: 143291
                                                SLEEVE
                                                from £1.85
                                                from £1.85
                                                # 016
                                                MPN: 14496401
                                                WASHER
                                                Supersession
                                                Supersession
                                                # 017
                                                MPN: 127494
                                                WASHER
                                                (minimum order quantity = 20)
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 10516470 - and 4 more. Click to view details
                                                # 018
                                                MPN: 15896211
                                                NUT
                                                Supersession
                                                Supersession
                                                This part replaces part number 15896210 which we have in stock
                                                # 019
                                                MPN: 143270
                                                PIPE FROM REGULATOR TO AIR PLENUM CHAMBER
                                                from £25.25
                                                from £25.25
                                                # 020
                                                MPN: 143286
                                                UNION
                                                from £3.09
                                                from £3.09
                                                # 021
                                                MPN: 142492
                                                PIPE FOR AIR INLET CONNECTING
                                                - Valid for CH
                                                from £296.60
                                                from £296.60
                                                # 022
                                                MPN: 140653
                                                CLAMP
                                                from £6.63
                                                from £6.63
                                                # 023
                                                MPN: 10977524
                                                SCREW
                                                from £0.53
                                                from £0.53
                                                # 024
                                                MPN: 11193279
                                                WASHER
                                                from £0.71
                                                from £0.71
                                                # 025
                                                MPN: 139550
                                                SPRING
                                                from £5.81
                                                from £5.81
                                                # 026
                                                MPN: 14640891
                                                RIVET
                                                from £0.47
                                                from £0.47
