014 - Throttle Housing and Linkage

Ferrari Mondial 3.4 t Coupe/Cabrio Throttle Housing and Linkage Parts Diagram

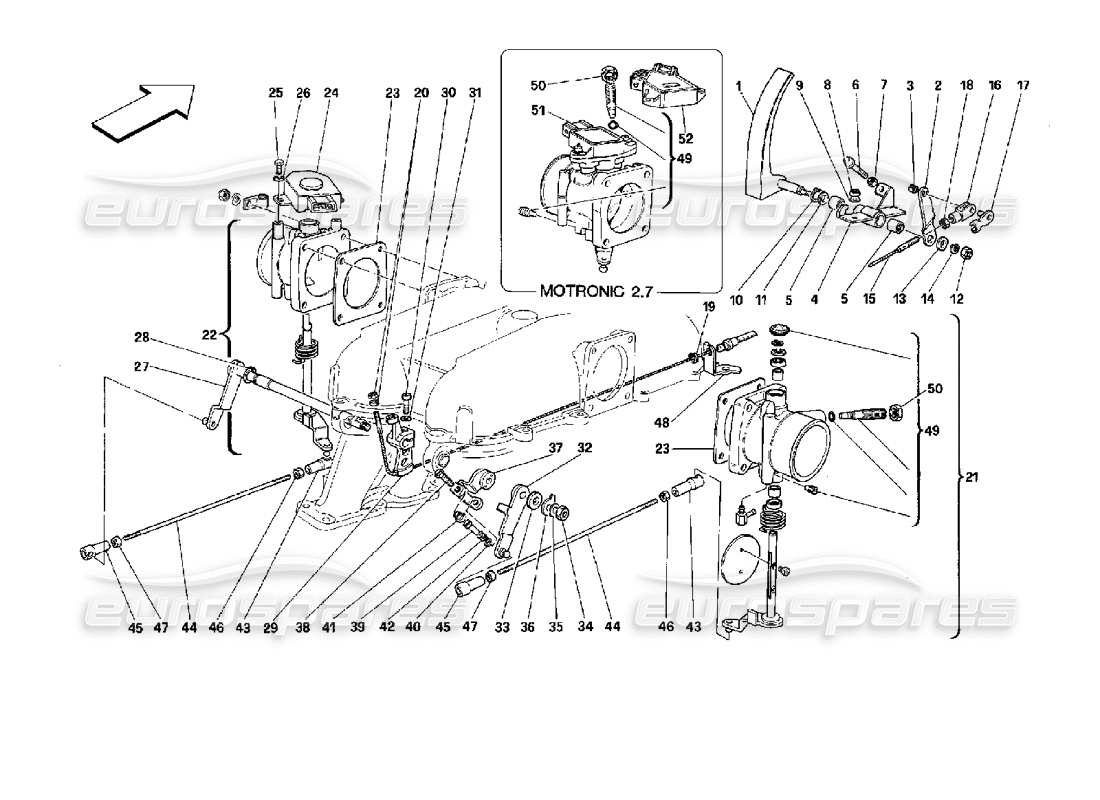

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 137203
                                                                                          Accelerator Pedal
                                                                                          from £32.00
                                                                                          from £32.00
                                                                                          # 002
                                                                                          MPN: 133751
                                                                                          ACCELERATOR CONTROL LEVER
                                                                                          from £3.72
                                                                                          from £3.72
                                                                                          # 003
                                                                                          MPN: 132212
                                                                                          BUSHING
                                                                                          from £20.40
                                                                                          from £20.40
                                                                                          # 004
                                                                                          MPN: 115396
                                                                                          ACCELERATOR PEDAL SUPPORT
                                                                                          from £23.85
                                                                                          from £23.85
                                                                                          # 005
                                                                                          MPN: 101677
                                                                                          ROLLER BEARING
                                                                                          from £2.04
                                                                                          from £2.04
                                                                                          # 006
                                                                                          MPN: 105232
                                                                                          CONTROL SCREW
                                                                                          from £3.71
                                                                                          from £3.71
                                                                                          # 007
                                                                                          MPN: 16102311
                                                                                          NUT
                                                                                          from £0.42
                                                                                          from £0.42
                                                                                          This part replaces part number 16102315
                                                                                          # 008
                                                                                          MPN: 16100824
                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                          # 009
                                                                                          MPN: 127496
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                          # 010
                                                                                          MPN: 11066076
                                                                                          SEEGER RING
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 11066075
                                                                                          # 011
                                                                                          MPN: 108576
                                                                                          WASHER
                                                                                          from £0.70
                                                                                          from £0.70
                                                                                          # 012
                                                                                          MPN: 16100824
                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                          # 013
                                                                                          MPN: 10519624
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                          # 014
                                                                                          MPN: 127496
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                          # 015
                                                                                          MPN: 138429
                                                                                          ACCELERATOR CONTROL CABLE
                                                                                          from £48.38
                                                                                          from £48.38
                                                                                          # 016
                                                                                          MPN: 132290
                                                                                          FORK
                                                                                          from £13.23
                                                                                          from £13.23
                                                                                          # 017
                                                                                          MPN: 132291
                                                                                          PIN
                                                                                          from £28.90
                                                                                          from £28.90
                                                                                          # 018
                                                                                          MPN: 10725011
                                                                                          NUT
                                                                                          from £0.85
                                                                                          from £0.85
                                                                                          # 019
                                                                                          MPN: 11087974
                                                                                          RING
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 11087976
                                                                                          # 020
                                                                                          MPN: 10725011
                                                                                          NUT
                                                                                          from £0.85
                                                                                          from £0.85
                                                                                          # 021
                                                                                          MPN: 136958
                                                                                          COMPLETE RH THROTTLE BODY
                                                                                          - Not for M. 2.7
                                                                                          from £852.13
                                                                                          from £852.13
                                                                                          # 021
                                                                                          MPN: 142498
                                                                                          COMPLETE RH THROTTLE BODY
                                                                                          - Valid for M. 2.7
                                                                                          from £447.62
                                                                                          from £447.62
                                                                                          This part replaces part number 144228
                                                                                          # 022
                                                                                          MPN: 136959
                                                                                          COMPLETE LH THROTTLE BODY
                                                                                          - Not for M. 2.7
                                                                                          from £450.21
                                                                                          from £450.21
                                                                                          # 022
                                                                                          MPN: 142499
                                                                                          COMPLETE LH THROTTLE BODY
                                                                                          - Valid for M. 2.7 - Not for F.E.
                                                                                          from £447.62
                                                                                          from £447.62
                                                                                          # 022
                                                                                          MPN: 155997
                                                                                          COMPLETE LH THROTTLE BODY
                                                                                          - Valid for M. 2.7 - Valid for F.E.
                                                                                          from £754.21
                                                                                          from £754.21
                                                                                          # 023
                                                                                          MPN: 136919

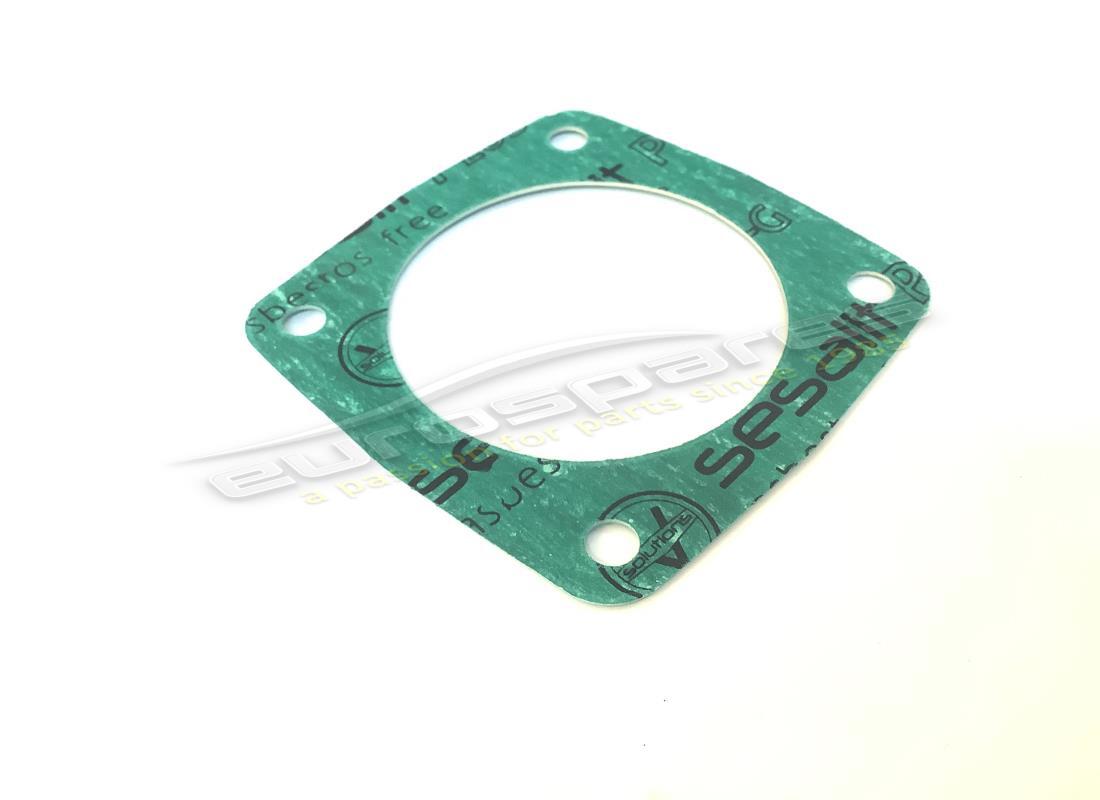

                                                                                          GASKET
                                                                                          from £2.88
                                                                                          from £2.88
                                                                                          # 024
                                                                                          MPN: 130974
                                                                                          MICRO SWITCH
                                                                                          - Not for M. 2.7
                                                                                          from £319.27
                                                                                          from £319.27
                                                                                          # 025
                                                                                          MPN: 10444521
                                                                                          SCREW
                                                                                          - For M. 2.7 Q.ty 4
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 026
                                                                                          MPN: 12601070
                                                                                          WASHER
                                                                                          - For M. 2.7 Q.ty 4
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 027
                                                                                          MPN: 139925
                                                                                          THROTTLE CONTROL SHAFT
                                                                                          from £59.77
                                                                                          from £59.77
                                                                                          # 028
                                                                                          MPN: 11065976
                                                                                          RING
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 11065975
                                                                                          # 029
                                                                                          MPN: 139923
                                                                                          THROTTLE CONTROL ECCENTRIC
                                                                                          from £33.01
                                                                                          from £33.01
                                                                                          # 030
                                                                                          MPN: 14432221
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 031
                                                                                          MPN: 12639701
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 12639704
                                                                                          # 032
                                                                                          MPN: 139929
                                                                                          DRIVEN LEVER
                                                                                          from £14.27
                                                                                          from £14.27
                                                                                          # 033
                                                                                          MPN: 137053
                                                                                          SPACER
                                                                                          from £3.85
                                                                                          from £3.85
                                                                                          # 034
                                                                                          MPN: 16102311
                                                                                          NUT
                                                                                          from £0.42
                                                                                          from £0.42
                                                                                          This part replaces part number 16102315
                                                                                          # 035
                                                                                          MPN: 13550301
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 036
                                                                                          MPN: 113566
                                                                                          SAFETY PLATE
                                                                                          from £1.96
                                                                                          from £1.96
                                                                                          # 037
                                                                                          MPN: 138358
                                                                                          LEADING LEVER
                                                                                          from £25.99
                                                                                          from £25.99
                                                                                          # 038
                                                                                          MPN: 122909
                                                                                          SCREW
                                                                                          from £3.42
                                                                                          from £3.42
                                                                                          # 039
                                                                                          MPN: 122913
                                                                                          PIN
                                                                                          from £10.16
                                                                                          from £10.16
                                                                                          # 040
                                                                                          MPN: 11087571
                                                                                          RING
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 041
                                                                                          MPN: 122910
                                                                                          CYLINDRIC NUT
                                                                                          from £6.68
                                                                                          from £6.68
                                                                                          # 042
                                                                                          MPN: 122914
                                                                                          SPRING
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 043
                                                                                          MPN: 173999
                                                                                          RH THREAD THROTTLE BALL JOINT
                                                                                          from £4.15
                                                                                          from £4.15
                                                                                          This part replaces part number 105617
                                                                                          # 044
                                                                                          MPN: 139551
                                                                                          TIE ROD
                                                                                          from £6.31
                                                                                          from £6.31
                                                                                          # 046
                                                                                          MPN: 15896470
                                                                                          RH THREAD NUT
                                                                                          (minimum order quantity = 20)
                                                                                          from £0.76
                                                                                          from £0.76
                                                                                          This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                          # 047
                                                                                          MPN: 105586
                                                                                          LH THREAD NUT
                                                                                          from £4.65
                                                                                          from £4.65
                                                                                          # 048
                                                                                          MPN: 138422
                                                                                          BRACKET
                                                                                          from £37.84
                                                                                          from £37.84
                                                                                          # 049
                                                                                          MPN: 70000610
                                                                                          THROTTLE BODY REPAIR KIT
                                                                                          from £81.99
                                                                                          from £81.99
                                                                                          # 050
                                                                                          MPN: 11691311
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 051
                                                                                          MPN: 158170

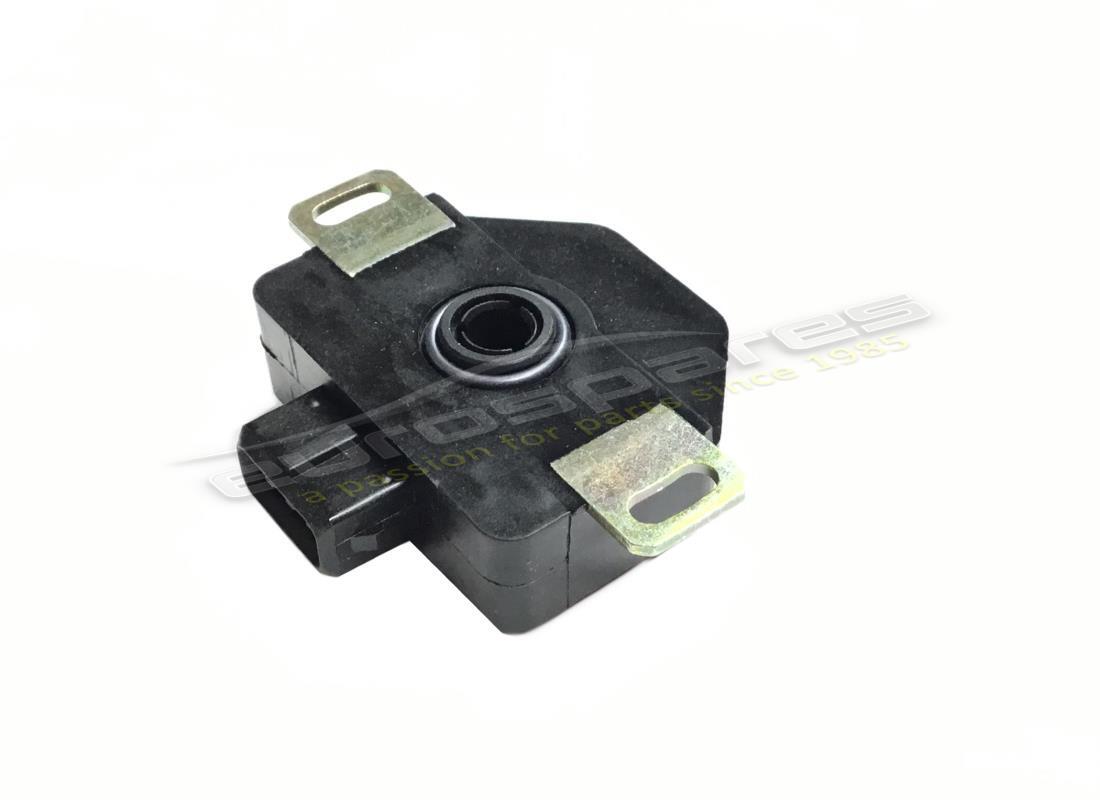

                                                                                          POTENTIOMETER FOR THROTTLE VALVE
                                                                                          - Valid for M. 2.7 - For F.E. RH Q.ty 1
                                                                                          from £119.83
                                                                                          from £119.83
                                                                                          This part replaces part number 142434 - and 1 more. Click to view details
                                                                                          # 052
                                                                                          MPN: 155980
                                                                                          LH POTENTIOMETER FOR THROTTLE VALVE
                                                                                          - Valid for M. 2.7 - Valid for F.E.
                                                                                          from £109.21
                                                                                          from £109.21
