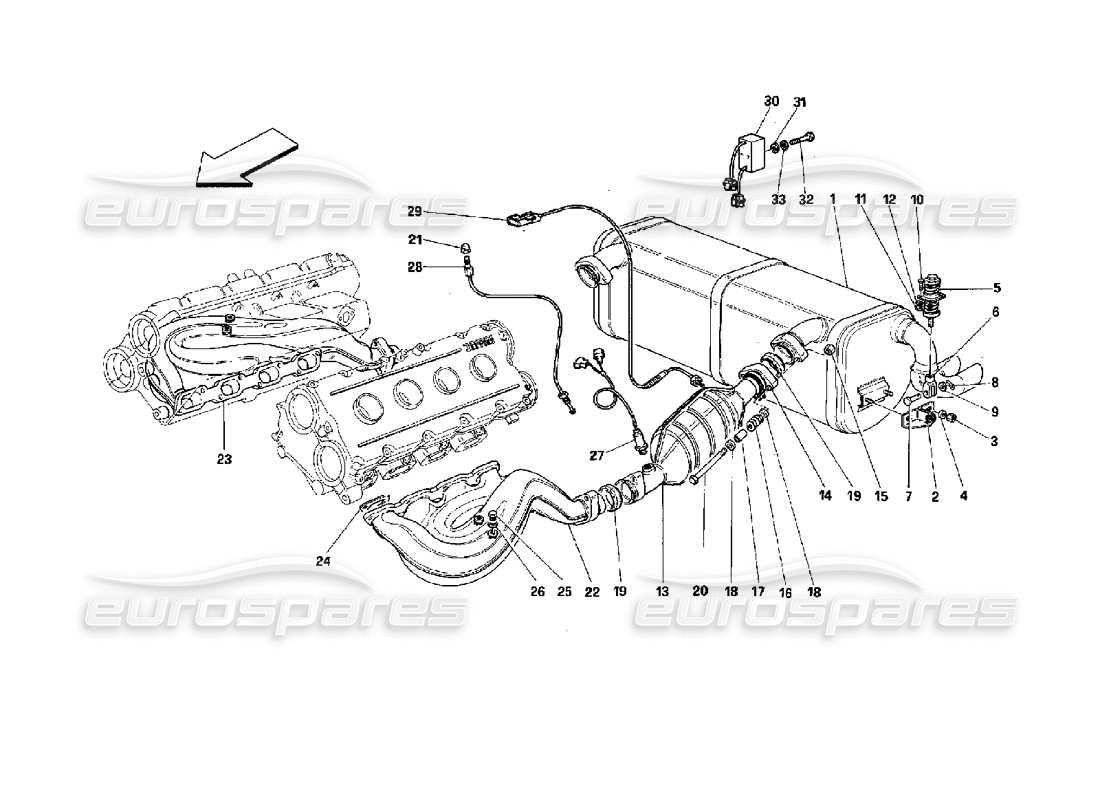

015A - Exhaust System - for Cars With Catalysts and 77DB

Ferrari Mondial 3.4 t Coupe/Cabrio Exhaust System - for Cars With Catalysts and 77DB Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 138887
                                                      EXHAUST SILENCER
                                                      from £498.75
                                                      from £498.75
                                                      # 002
                                                      MPN: 139329
                                                      BRACKET FOR SILENCER
                                                      from £23.00
                                                      from £23.00
                                                      # 003
                                                      MPN: 114748
                                                      NUT
                                                      from £9.07
                                                      from £9.07
                                                      # 004
                                                      MPN: 10519624
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 10519601 - and 3 more. Click to view details
                                                      # 005
                                                      MPN: 139180
                                                      PAD
                                                      from £170.08
                                                      from £170.08
                                                      # 006
                                                      MPN: 10007871
                                                      FORK
                                                      from £5.83
                                                      from £5.83
                                                      # 007
                                                      MPN: 10050811
                                                      PIN
                                                      from £5.22
                                                      from £5.22
                                                      This part replaces part number 10050810
                                                      # 008
                                                      MPN: 10734301
                                                      SPLIT PIN
                                                      from £0.47
                                                      from £0.47
                                                      # 009
                                                      MPN: 10519624
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 10519601 - and 3 more. Click to view details
                                                      # 010
                                                      MPN: 10977624
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 10977611 - and 1 more. Click to view details
                                                      # 011
                                                      MPN: 15896470
                                                      NUT
                                                      (minimum order quantity = 20)
                                                      from £0.78
                                                      from £0.78
                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                      # 012
                                                      MPN: 127493
                                                      WASHER
                                                      from £0.48
                                                      from £0.48
                                                      This part replaces part number 106849 - and 1 more. Click to view details
                                                      # 013
                                                      MPN: 134001
                                                      RH CATALYST
                                                      not as spare part - replaced by part number: 160506 (replace in pairs)
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 136273
                                                      # 013
                                                      MPN: 143871
                                                      PRE MUFFLER
                                                      - Valid for not catalyst cars - With pipes for CO suction
                                                      from £250.00
                                                      from £250.00
                                                      # 013
                                                      MPN: 149715
                                                      PRE MUFFLER
                                                      - Valid for de catalyst cars - Valid for GB
                                                      from £340.55
                                                      from £340.55
                                                      # 013
                                                      MPN: 151609
                                                      PRE MUFFLER
                                                      - Valid for not catalyst cars - With lambda feeler 151667 - Not for GB
                                                      from £265.30
                                                      from £265.30
                                                      # 013
                                                      MPN: 160506
                                                      CATALYTIC CONVERTER
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 134001 - and 2 more. Click to view details
                                                      # 013
                                                      MPN: 160506
                                                      CATALYTIC CONVERTER
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 134001 - and 2 more. Click to view details
                                                      # 014
                                                      MPN: 141874
                                                      STUB PIPE
                                                      from £207.64
                                                      from £207.64
                                                      # 015
                                                      MPN: 114748
                                                      NUT
                                                      from £8.97
                                                      from £8.97
                                                      # 016
                                                      MPN: 111743
                                                      SPRING
                                                      from £6.94
                                                      from £6.94
                                                      # 017
                                                      MPN: 114749
                                                      SPACER
                                                      from £1.24
                                                      from £1.24
                                                      # 018
                                                      MPN: 128010
                                                      WASHER
                                                      from £2.16
                                                      from £2.16
                                                      # 019
                                                      MPN: 154984
                                                      GASKET
                                                      from £11.70
                                                      from £11.70
                                                      This part replaces part number 118338 - and 2 more. Click to view details
                                                      # 020
                                                      MPN: 137431
                                                      SCREW
                                                      from £27.27
                                                      from £27.27
                                                      # 021
                                                      MPN: 150595
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 16109642
                                                      # 022
                                                      MPN: 136276
                                                      LH EXHAUST INLET DUCT
                                                      - With plugs for CO suction
                                                      from £576.93
                                                      from £576.93
                                                      This part replaces part number 149948 - and 1 more. Click to view details
                                                      # 022
                                                      MPN: 149948
                                                      LH EXHAUST INLET DUCT
                                                      - Without plugs for CO suction - Valid for USA, CH, J
                                                      Supersession
                                                      Supersession
                                                      # 023
                                                      MPN: 136275
                                                      RH EXHAUST INLET DUCT
                                                      - With plugs for CO suction
                                                      from £605.78
                                                      from £605.78
                                                      This part replaces part number 149947 - and 1 more. Click to view details
                                                      # 023
                                                      MPN: 149947
                                                      RH EXHAUST INLET DUCT
                                                      - Without plugs for CO suction - Valid for USA, CH, J
                                                      Supersession
                                                      Supersession
                                                      # 024
                                                      MPN: 138076
                                                      GASKET
                                                      from £6.27
                                                      from £6.27
                                                      This part replaces part number 133908
                                                      # 025
                                                      MPN: 110860
                                                      PLUG
                                                      from £7.65
                                                      from £7.65
                                                      This part replaces part number 11903240
                                                      # 026
                                                      MPN: 10298460
                                                      GASKET
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 93353
                                                      # 027
                                                      MPN: 121515
                                                      LAMBDA FEELER
                                                      - Not for M. 2.7
                                                      from £190.51
                                                      from £190.51
                                                      This part replaces part number 125881
                                                      # 027
                                                      MPN: 142514
                                                      LAMBDA FEELER
                                                      - Valid for M. 2.7 - Valid for ignition/supply control system
                                                      from £239.29
                                                      from £239.29
                                                      # 027
                                                      MPN: 146650
                                                      LAMBDA FEELER
                                                      - Valid for M. 2.7 - Valid for ignition/supply control system 147176 - ref. BOSCH 0261 200489
                                                      from £154.36
                                                      from £154.36
                                                      # 027
                                                      MPN: 151667
                                                      LAMBDA FEELER
                                                      - Valid for not catalyst cars with pre muffler 151609
                                                      from £369.82
                                                      from £369.82
                                                      # 028
                                                      MPN: 144515
                                                      RH CO SUCTION PIPE
                                                      - Valid for 77 DB versions
                                                      from £96.96
                                                      from £96.96
                                                      # 028
                                                      MPN: 144516
                                                      LH CO SUCTION PIPE
                                                      - Valid for 77 DB versions
                                                      from £112.88
                                                      from £112.88
                                                      # 029
                                                      MPN: 141038
                                                      THERMOCOUPLE
                                                      from £268.17
                                                      from £268.17
                                                      # 030
                                                      MPN: 141037
                                                      DEVICE FOR CATALYSTS
                                                      - Valid for M. 2.5
                                                      from £341.91
                                                      from £341.91
                                                      # 030
                                                      MPN: 142581
                                                      DEVICE FOR CATALYSTS
                                                      - Valid for M. 2.7
                                                      from £426.98
                                                      from £426.98
                                                      # 031
                                                      MPN: 14496204
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 14496201
                                                      # 032
                                                      MPN: 15210811
                                                      SCREW
                                                      # 033
                                                      MPN: 10615279
                                                      WASHER
                                                      Supersession
                                                      Supersession
