ferrari mondial 3.4 t coupe/cabrio clutch and controls parts diagram

021 - Clutch and Controls

Ferrari Mondial 3.4 t Coupe/Cabrio Clutch and Controls Parts Diagram

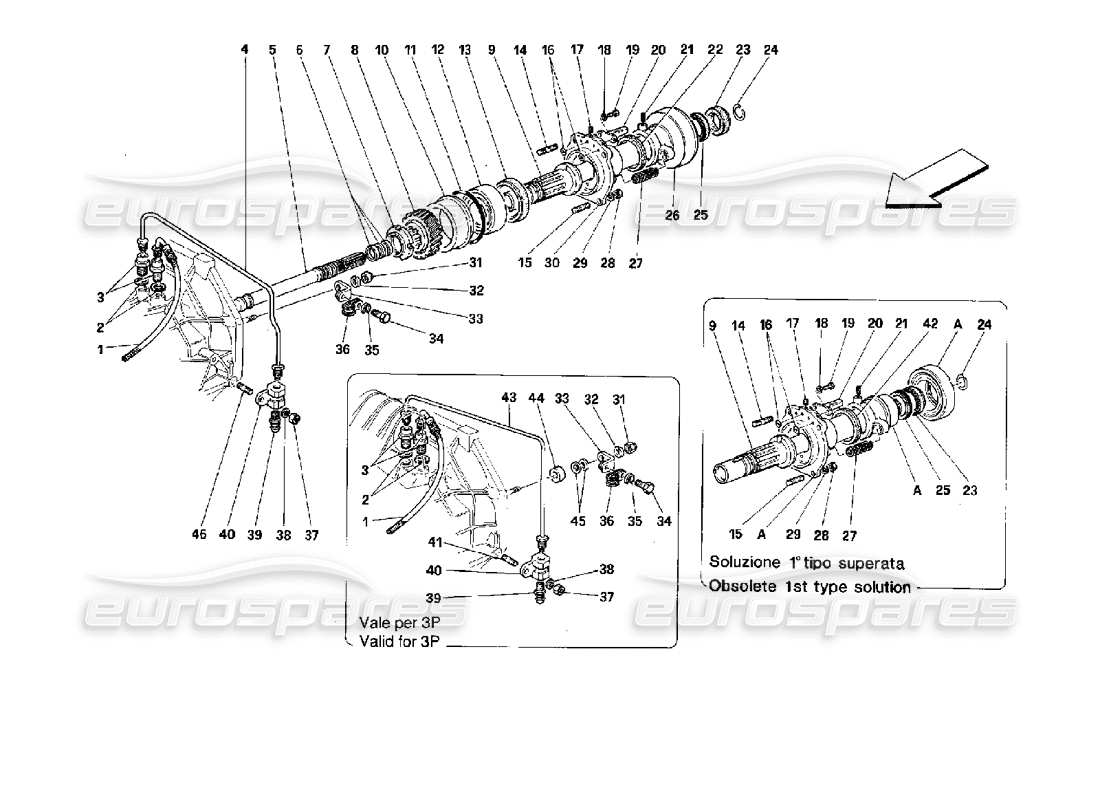

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 000
                                                                                              -
                                                                                              1ST TYPE SOLUTION
                                                                                              # 001
                                                                                              MPN: 137413
                                                                                              CLUTCH CONTROL PIPE
                                                                                              from £613.01
                                                                                              from £613.01
                                                                                              # 002
                                                                                              MPN: 10257060
                                                                                              GASKET
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                              # 003
                                                                                              MPN: 148604
                                                                                              UNION
                                                                                              from £60.81
                                                                                              from £60.81
                                                                                              This part replaces part number 126496
                                                                                              # 004
                                                                                              MPN: 147839
                                                                                              PIPE
                                                                                              from £109.57
                                                                                              from £109.57
                                                                                              # 005
                                                                                              MPN: 136899
                                                                                              DRIVING SHAFT
                                                                                              from £154.05
                                                                                              from £154.05
                                                                                              # 006
                                                                                              MPN: 137249
                                                                                              RING
                                                                                              from £6.97
                                                                                              from £6.97
                                                                                              # 007
                                                                                              MPN: 131667
                                                                                              RING NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 008
                                                                                              MPN: 131248
                                                                                              GEAR FOR SHAFT
                                                                                              from £663.25
                                                                                              from £663.25
                                                                                              # 008
                                                                                              MPN: 70000595
                                                                                              CLUTCH-PINION SHAFT TRANSMISSION CYLINDRIC TORQUE
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 131281 which we have in stock
                                                                                              # 009
                                                                                              MPN: 136898
                                                                                              CLUTCH SHAFT
                                                                                              from £720.87
                                                                                              from £720.87
                                                                                              # 010
                                                                                              MPN: 148667
                                                                                              BEARING
                                                                                              from £1,269.36
                                                                                              from £1,269.36
                                                                                              This part replaces part number 131662
                                                                                              # 011
                                                                                              MPN: 143178
                                                                                              SEAL RING
                                                                                              from £2.29
                                                                                              from £2.29
                                                                                              This part replaces part number 132578
                                                                                              # 012
                                                                                              MPN: 131054
                                                                                              BEARING
                                                                                              from £136.61
                                                                                              from £136.61
                                                                                              This part replaces part number 138338
                                                                                              # 012
                                                                                              MPN: 131054
                                                                                              BEARING
                                                                                              from £136.61
                                                                                              from £136.61
                                                                                              This part replaces part number 138338
                                                                                              # 013
                                                                                              MPN: 131651
                                                                                              SEAL RING
                                                                                              from £25.57
                                                                                              from £25.57
                                                                                              This part replaces part number 141426
                                                                                              # 014
                                                                                              MPN: 12354524
                                                                                              STUD BOLT
                                                                                              from £15.48
                                                                                              from £15.48
                                                                                              This part replaces part number 12354521
                                                                                              # 015
                                                                                              MPN: 13543221
                                                                                              STUD BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 016
                                                                                              MPN: 166432
                                                                                              O.R. GASKET
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 121813
                                                                                              # 017
                                                                                              MPN: 65928500
                                                                                              PLUG
                                                                                              from £24.36
                                                                                              from £24.36
                                                                                              This part replaces part number 10267550
                                                                                              # 018
                                                                                              MPN: 127493
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 106849 - and 1 more. Click to view details
                                                                                              # 019
                                                                                              MPN: 10977521
                                                                                              SCREW
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 10977501 - and 1 more. Click to view details
                                                                                              # 020
                                                                                              MPN: 138382
                                                                                              PLATE
                                                                                              from £0.98
                                                                                              from £0.98
                                                                                              # 021
                                                                                              MPN: 14163670
                                                                                              PIN
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 022
                                                                                              MPN: 151822
                                                                                              GASKET
                                                                                              from £17.06
                                                                                              from £17.06
                                                                                              This part replaces part number 144989
                                                                                              # 023
                                                                                              MPN: 138387
                                                                                              RING
                                                                                              from £7.02
                                                                                              from £7.02
                                                                                              # 024
                                                                                              MPN: 13398176
                                                                                              STOP RING
                                                                                              from £1.26
                                                                                              from £1.26
                                                                                              # 025
                                                                                              MPN: 139438
                                                                                              SEAL RING
                                                                                              from £7.38
                                                                                              from £7.38
                                                                                              This part replaces part number 131664
                                                                                              # 026
                                                                                              MPN: 177784
                                                                                              THRUST BEARING ASSEMBLY WITH FLANGE
                                                                                              from £851.78
                                                                                              from £851.78
                                                                                              This part replaces part number 165932
                                                                                              # 028
                                                                                              MPN: 133989
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 8 D 4-UNI 207
                                                                                              # 029
                                                                                              MPN: 127496
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                              # 030
                                                                                              MPN: 144984
                                                                                              THRUST SUPPORTING FLANGE
                                                                                              from £868.01
                                                                                              from £868.01
                                                                                              This part replaces part number 138378
                                                                                              # 031
                                                                                              MPN: 133989
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 8 D 4-UNI 207
                                                                                              # 032
                                                                                              MPN: 12601374
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                              # 033
                                                                                              MPN: 142060
                                                                                              BRACKET
                                                                                              from £3.42
                                                                                              from £3.42
                                                                                              # 034
                                                                                              MPN: 10902011
                                                                                              SCREW
                                                                                              from £1.08
                                                                                              from £1.08
                                                                                              This part replaces part number 10902411
                                                                                              # 035
                                                                                              MPN: 106850
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                              # 036
                                                                                              MPN: 10440990
                                                                                              BRACKET
                                                                                              from £0.77
                                                                                              from £0.77
                                                                                              # 037
                                                                                              MPN: 133988
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12164711 - and 2 more. Click to view details
                                                                                              # 038
                                                                                              MPN: 14496601
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 039
                                                                                              MPN: 121699
                                                                                              SCREW
                                                                                              from £11.71
                                                                                              from £11.71
                                                                                              # 040
                                                                                              MPN: 139921
                                                                                              BLOCK
                                                                                              from £103.91
                                                                                              from £103.91
                                                                                              # 041
                                                                                              MPN: 13546021
                                                                                              STUD
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 042
                                                                                              MPN: 139436
                                                                                              SEAL RING
                                                                                              from £18.86
                                                                                              from £18.86
                                                                                              This part replaces part number 131663
                                                                                              # 043
                                                                                              MPN: 139924
                                                                                              BLEEDER PIPE
                                                                                              from £55.52
                                                                                              from £55.52
                                                                                              # 044
                                                                                              MPN: 147683
                                                                                              SPACER
                                                                                              from £1.11
                                                                                              from £1.11
                                                                                              # 045
                                                                                              MPN: 12647121
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 046
                                                                                              MPN: 13546621
                                                                                              STUD
                                                                                              from £4.26
                                                                                              from £4.26
