ferrari mondial 3.4 t coupe/cabrio electronic clutch - controls parts diagram

021B - Electronic Clutch - Controls

Ferrari Mondial 3.4 t Coupe/Cabrio Electronic Clutch - Controls Parts Diagram

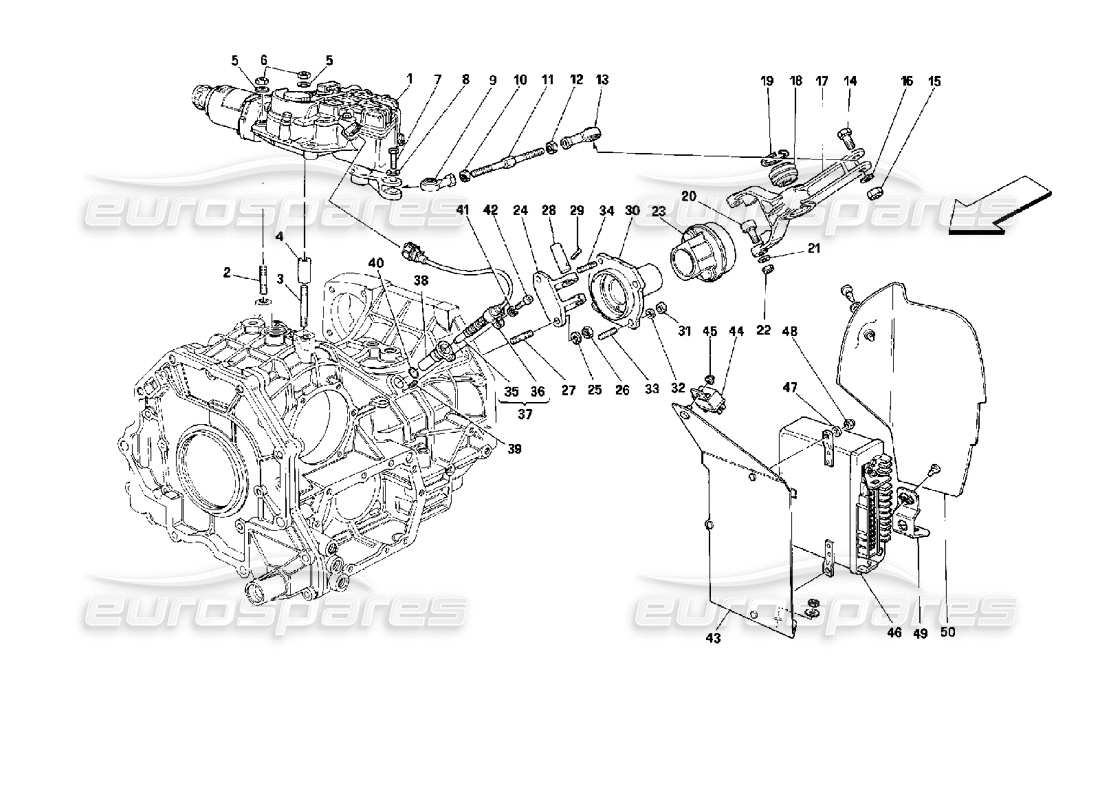

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 150449
                                                                                                      CLUTCH CONTROL ACTUATOR COMPLETE
                                                                                                      from £3,006.84
                                                                                                      from £3,006.84
                                                                                                      This part replaces part number 141568
                                                                                                      # 002
                                                                                                      MPN: 13543521
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 003
                                                                                                      MPN: 13544121
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 005
                                                                                                      MPN: 12601374
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                      # 006
                                                                                                      MPN: 133989
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 8 D 4-UNI 207
                                                                                                      # 007
                                                                                                      MPN: 130926
                                                                                                      SCREW
                                                                                                      from £3.70
                                                                                                      from £3.70
                                                                                                      # 008
                                                                                                      MPN: 10519624
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                      # 009
                                                                                                      MPN: 145482
                                                                                                      RH BALL JOINT
                                                                                                      from £38.56
                                                                                                      from £38.56
                                                                                                      # 010
                                                                                                      MPN: 133989
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 8 D 4-UNI 207
                                                                                                      # 011
                                                                                                      MPN: 140759
                                                                                                      TIE ROD
                                                                                                      from £29.28
                                                                                                      from £29.28
                                                                                                      # 012
                                                                                                      MPN: 16102111
                                                                                                      LH NUT
                                                                                                      from £1.06
                                                                                                      from £1.06
                                                                                                      # 013
                                                                                                      MPN: 145483
                                                                                                      LH BALL JOINT
                                                                                                      from £64.30
                                                                                                      from £64.30
                                                                                                      # 014
                                                                                                      MPN: 137116
                                                                                                      SCREW
                                                                                                      from £4.37
                                                                                                      from £4.37
                                                                                                      # 015
                                                                                                      MPN: 150978
                                                                                                      NUT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 016
                                                                                                      MPN: 12601374
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                      # 017
                                                                                                      MPN: 140751
                                                                                                      CLUTCH CONTROL LEVER
                                                                                                      from £309.33
                                                                                                      from £309.33
                                                                                                      # 018
                                                                                                      MPN: 150453
                                                                                                      BALL JOINT
                                                                                                      from £336.49
                                                                                                      from £336.49
                                                                                                      This part replaces part number 145481
                                                                                                      # 019
                                                                                                      MPN: 148407
                                                                                                      STOP RING
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 020
                                                                                                      MPN: 144975
                                                                                                      ROLLER PIN
                                                                                                      from £28.55
                                                                                                      from £28.55
                                                                                                      # 021
                                                                                                      MPN: 12601374
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                      # 022
                                                                                                      MPN: 133989
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 8 D 4-UNI 207
                                                                                                      # 023
                                                                                                      MPN: 141575

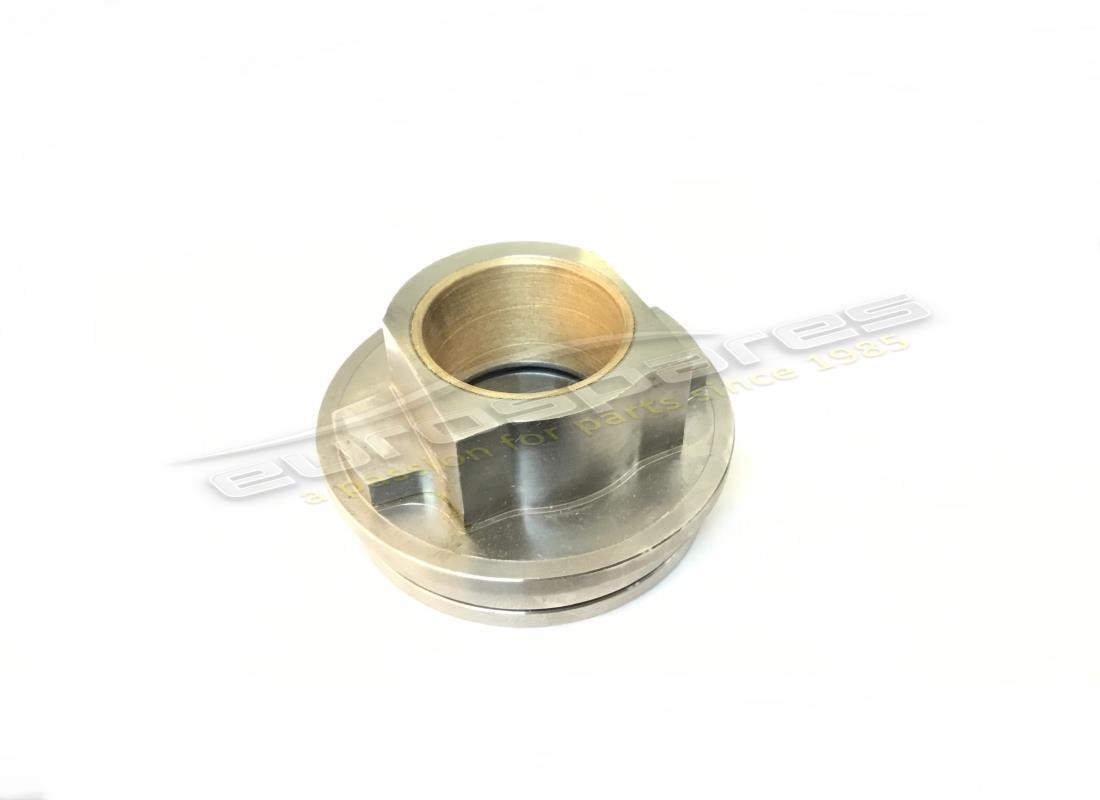

                                                                                                      BEARING
                                                                                                      from £370.99
                                                                                                      from £370.99
                                                                                                      # 024
                                                                                                      MPN: 145474
                                                                                                      CLUTCH CONTROL LEVER SUPPORT
                                                                                                      from £190.80
                                                                                                      from £190.80
                                                                                                      # 025
                                                                                                      MPN: 12601374
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                      # 026
                                                                                                      MPN: 133989
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 8 D 4-UNI 207
                                                                                                      # 027
                                                                                                      MPN: 13543121
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 028
                                                                                                      MPN: 145475
                                                                                                      PIN
                                                                                                      from £27.56
                                                                                                      from £27.56
                                                                                                      # 029
                                                                                                      MPN: 14162270
                                                                                                      SPRING PIN
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 030
                                                                                                      MPN: 140725
                                                                                                      FLANGE
                                                                                                      from £295.77
                                                                                                      from £295.77
                                                                                                      # 031
                                                                                                      MPN: 133989
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 8 D 4-UNI 207
                                                                                                      # 032
                                                                                                      MPN: 127496
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                      # 033
                                                                                                      MPN: 13543221
                                                                                                      STUD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 034
                                                                                                      MPN: 12354524
                                                                                                      STUD
                                                                                                      from £15.48
                                                                                                      from £15.48
                                                                                                      This part replaces part number 12354521
                                                                                                      # 035
                                                                                                      MPN: 150451
                                                                                                      PICK UP
                                                                                                      from £873.22
                                                                                                      from £873.22
                                                                                                      This part replaces part number 141571 - and 2 more. Click to view details
                                                                                                      # 036
                                                                                                      MPN: 141571
                                                                                                      PICK UP SUPPORT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 037
                                                                                                      MPN: 150451
                                                                                                      SUPPORT AND PICK UP ASSY
                                                                                                      from £873.22
                                                                                                      from £873.22
                                                                                                      This part replaces part number 141571 - and 2 more. Click to view details
                                                                                                      # 038
                                                                                                      MPN: 140749
                                                                                                      PICK UP BUSH
                                                                                                      from £110.88
                                                                                                      from £110.88
                                                                                                      # 039
                                                                                                      MPN: 13525470
                                                                                                      HELI-COIL
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 107333
                                                                                                      # 040
                                                                                                      MPN: 134233
                                                                                                      O-RING
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 041
                                                                                                      MPN: 10615470
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 042
                                                                                                      MPN: 14305224
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 043
                                                                                                      MPN: 144415
                                                                                                      CONTROL UNIT SUPPORT PLATE
                                                                                                      from £120.79
                                                                                                      from £120.79
                                                                                                      # 044
                                                                                                      MPN: 138954
                                                                                                      REMOTE CONTROL SWITCH
                                                                                                      from £43.75
                                                                                                      from £43.75
                                                                                                      # 045
                                                                                                      MPN: 12574117
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 046
                                                                                                      MPN: 150393
                                                                                                      ELECTRONIC CLUTCH CONTROL UNIT
                                                                                                      from £6,563.10
                                                                                                      from £6,563.10
                                                                                                      # 047
                                                                                                      MPN: 14496377
                                                                                                      WASHER
                                                                                                      from £1.07
                                                                                                      from £1.07
                                                                                                      This part replaces part number 14496309
                                                                                                      # 048
                                                                                                      MPN: 12574117
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 049
                                                                                                      MPN: 62863000
                                                                                                      BRACKET
                                                                                                      from £22.00
                                                                                                      from £22.00
                                                                                                      # 050
                                                                                                      MPN: 62862100
                                                                                                      BULKHEAD FOR UNIT COVERING - COUPE'
                                                                                                      from £115.85
                                                                                                      from £115.85
                                                                                                      # 050
                                                                                                      MPN: 62862200
                                                                                                      BULKHEAD FOR UNIT COVERING - CABRIOLET
                                                                                                      from £259.70
                                                                                                      from £259.70
