ferrari mondial 3.4 t coupe/cabrio clutch release control - valid for gs parts diagram

022 - Clutch Release Control - Valid for GS

Ferrari Mondial 3.4 t Coupe/Cabrio Clutch Release Control - Valid for GS Parts Diagram

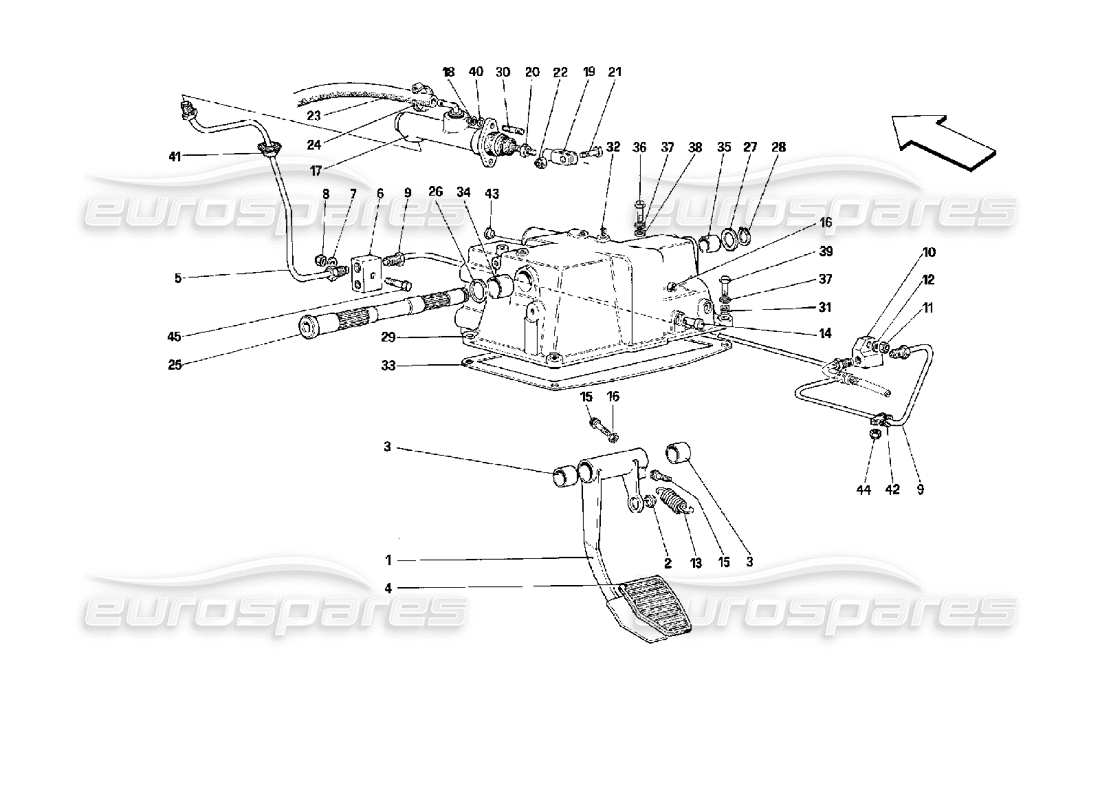

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 137410
                                                                                          CLUTCH PEDAL
                                                                                          from £205.63
                                                                                          from £205.63
                                                                                          # 002
                                                                                          MPN: 109407
                                                                                          BALL JOINT
                                                                                          from £22.52
                                                                                          from £22.52
                                                                                          # 003
                                                                                          MPN: 103163
                                                                                          BUSH
                                                                                          from £2.93
                                                                                          from £2.93
                                                                                          # 004
                                                                                          MPN: 106949
                                                                                          PEDAL COVER
                                                                                          from £18.25
                                                                                          from £18.25
                                                                                          # 005
                                                                                          MPN: 137411
                                                                                          PIPE
                                                                                          from £29.05
                                                                                          from £29.05
                                                                                          # 006
                                                                                          MPN: 139375
                                                                                          UNION
                                                                                          from £83.52
                                                                                          from £83.52
                                                                                          # 007
                                                                                          MPN: 12639701
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 12639704
                                                                                          # 009
                                                                                          MPN: 137412
                                                                                          PIPE -COUPE'
                                                                                          from £42.11
                                                                                          from £42.11
                                                                                          # 009
                                                                                          MPN: 141057
                                                                                          PIPE -CABRIOLET
                                                                                          from £168.57
                                                                                          from £168.57
                                                                                          # 012
                                                                                          MPN: 12639701
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 12639704
                                                                                          # 013
                                                                                          MPN: 101305
                                                                                          RETURN SPRING
                                                                                          from £8.36
                                                                                          from £8.36
                                                                                          This part replaces part number 660343
                                                                                          # 014
                                                                                          MPN: 129612
                                                                                          PIN
                                                                                          from £1.41
                                                                                          from £1.41
                                                                                          # 015
                                                                                          MPN: 144011
                                                                                          STOP PUSH ROD
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 016
                                                                                          MPN: 16102311
                                                                                          NUT
                                                                                          from £0.43
                                                                                          from £0.43
                                                                                          This part replaces part number 16102315
                                                                                          # 017
                                                                                          MPN: 175211
                                                                                          MASTER CYLINDER
                                                                                          from £89.18
                                                                                          from £89.18
                                                                                          This part replaces part number 123416 - and 4 more. Click to view details
                                                                                          # 018
                                                                                          MPN: 133215
                                                                                          SELF LOCKING NUT
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 64342800
                                                                                          # 019
                                                                                          MPN: 10248271
                                                                                          FORK
                                                                                          from £13.15
                                                                                          from £13.15
                                                                                          # 020
                                                                                          MPN: 16102311
                                                                                          LOCK NUT
                                                                                          from £0.43
                                                                                          from £0.43
                                                                                          This part replaces part number 16102315
                                                                                          # 021
                                                                                          MPN: 130926
                                                                                          SCREW
                                                                                          from £3.70
                                                                                          from £3.70
                                                                                          # 022
                                                                                          MPN: 16104411
                                                                                          SELF LOCKING NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 023
                                                                                          MPN: 151845
                                                                                          PIPE
                                                                                          from £34.21
                                                                                          from £34.21
                                                                                          This part replaces part number 120929 - and 1 more. Click to view details
                                                                                          # 024
                                                                                          MPN: 12179190
                                                                                          CLAMP
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 102604
                                                                                          # 025
                                                                                          MPN: 129613
                                                                                          PIN
                                                                                          from £1,111.04
                                                                                          from £1,111.04
                                                                                          # 026
                                                                                          MPN: 112125
                                                                                          SHIM
                                                                                          from £1.04
                                                                                          from £1.04
                                                                                          # 027
                                                                                          MPN: 112127
                                                                                          SHIM - THICK 0,9 MM.
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 027
                                                                                          MPN: 112128
                                                                                          SHIM - THICK 1,0 MM.
                                                                                          from £24.97
                                                                                          from £24.97
                                                                                          # 027
                                                                                          MPN: 112129
                                                                                          SHIM - THICK 1,1 MM.
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 027
                                                                                          MPN: 112130
                                                                                          SHIM - THICK 1,2 MM.
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 027
                                                                                          MPN: 112131
                                                                                          SHIM - THICK 1,3 MM.
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 028
                                                                                          MPN: 11066676
                                                                                          SEEGER RING
                                                                                          from £0.51
                                                                                          from £0.51
                                                                                          This part replaces part number 11066675
                                                                                          # 029
                                                                                          MPN: 129614
                                                                                          PEDAL CASE
                                                                                          from £1,083.27
                                                                                          from £1,083.27
                                                                                          # 030
                                                                                          MPN: 16100814
                                                                                          STUD
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                          # 031
                                                                                          MPN: 13525770
                                                                                          HELI-COIL
                                                                                          from £1.59
                                                                                          from £1.59
                                                                                          This part replaces part number 103830
                                                                                          # 032
                                                                                          MPN: 13525170
                                                                                          HELI-COIL
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 033
                                                                                          MPN: 129615
                                                                                          GASKET
                                                                                          from £8.77
                                                                                          from £8.77
                                                                                          # 034
                                                                                          MPN: 101314
                                                                                          BUSH
                                                                                          from £2.18
                                                                                          from £2.18
                                                                                          This part replaces part number 660867
                                                                                          # 035
                                                                                          MPN: 112153
                                                                                          BUSH
                                                                                          from £1.86
                                                                                          from £1.86
                                                                                          # 037
                                                                                          MPN: 127496
                                                                                          WASHER
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                          # 038
                                                                                          MPN: 10519624
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                          # 039
                                                                                          MPN: 16043321
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 041
                                                                                          MPN: 105369
                                                                                          RING
                                                                                          - Not for F.E.
                                                                                          from £19.10
                                                                                          from £19.10
                                                                                          # 041
                                                                                          MPN: 141457
                                                                                          PLUG
                                                                                          - Valid for F.E.
                                                                                          from £13.88
                                                                                          from £13.88
                                                                                          # 042
                                                                                          MPN: 10440990
                                                                                          BRACKET
                                                                                          from £0.77
                                                                                          from £0.77
                                                                                          # 043
                                                                                          MPN: 139521
                                                                                          PLUG
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 045
                                                                                          MPN: 10902821
                                                                                          SCREW
                                                                                          from £1.11
                                                                                          from £1.11
                                                                                          This part replaces part number 10902801 - and 1 more. Click to view details
