023 - Gearbox Housing and Interm. Casing - Valid for Cars With 3P

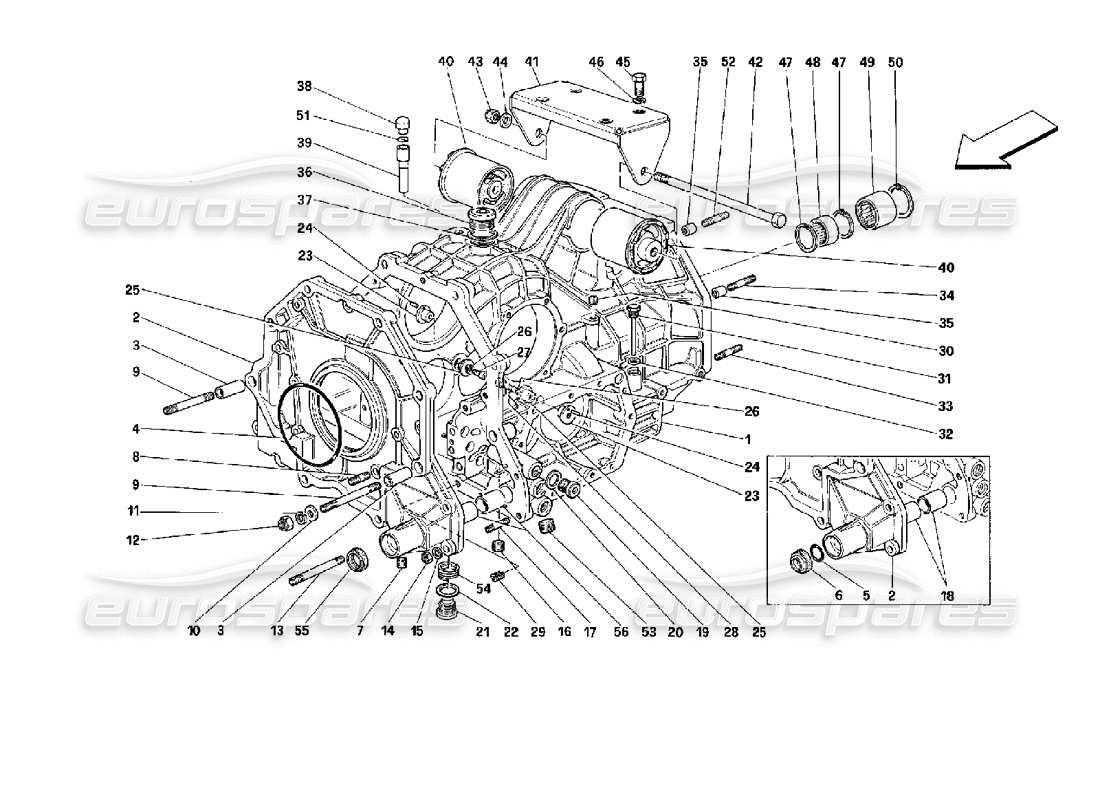

Ferrari Mondial 3.4 t Coupe/Cabrio Gearbox Housing and Interm. Casing - Valid for Cars With 3P Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
-
GEARCHANGE BOX-DIFFERENTIAL GEAR
- Not as spare parts - With the gearchange box and differential gear complete
# 001
MPN: 143278
COMPLETE INTERMEDIATE BODY
- Valid till gearbox No. 568 and for CH till gearbox No. 170 - Valid till stock exhaustion
Supersession
Supersession
This part replaces part number 134845 - and 1 more. Click to view details
# 001
MPN: 143280
GEARCHANGE BOX AND DIFFERENTIAL GEAR COMPLETE
- Not for gearbox with flange - Part. 12 Draw. 37 - Not supplied - Replaced with 156299
Supersession
Supersession
# 001
MPN: 146950
INTERMEDIATE BODY
- Valid from gearbox No. 569 and for CH No.171 till gearbox No. 694 and for CH till gearbox No. 187 - Not as spare parts - Replaced with 149584
Supersession
Supersession
# 001
MPN: 149584
COMPLETE INTERMEDIATE BODY
- Valid from gearbox No. 695 and for CH from gearbox No. 188 and after stock exhaustion of 143278
from £515.80
from £515.80
This part replaces part number 143278 - and 1 more. Click to view details
# 001
MPN: 156299
GEARCHANGE BOX AND DIFFERENTIAL GEAR COMPLETE
- Valid for gearbox with flange - Part. 12 Draw. 37
from £3,955.46
from £3,955.46
This part replaces part number 143280
# 002
-
INTERMEDIATE BODY
- Not as spare parts with the complete intermediate body
# 003
MPN: 131749
DOWEL
from £2.33
from £2.33
# 004
MPN: 131736
SEAL RING
from £2.83
from £2.83
# 005
MPN: 105140
SEAL RING
- Valid till gearbox No. 694 and for CH till gearbox No.187
from £2.88
from £2.88
# 006
MPN: 131886
GASKET
- Valid till gearbox No. 694 and for CH till gearbox No.187
from £7.56
from £7.56
# 007
MPN: 10269550
PLUG
from £1.55
from £1.55
# 008
MPN: 13543121
STUD BOLT
Supersession
Supersession
# 009
MPN: 13547535
STUD BOLT
Supersession
Supersession
# 010
MPN: 14496621
WASHER
Supersession
Supersession
# 011
MPN: 127497
WASHER
from £0.47
from £0.47
This part replaces part number 10516871 - and 2 more. Click to view details
# 012
MPN: 133988
NUT
from £0.47
from £0.47
This part replaces part number 12164711 - and 2 more. Click to view details
# 013
MPN: 13544524
STUD BOLT
from £18.55
from £18.55
This part replaces part number 13544521
# 014
MPN: 133989
NUT
from £0.47
from £0.47
This part replaces part number 8 D 4-UNI 207
# 015
MPN: 12601374
WASHER
from £0.47
from £0.47
This part replaces part number 10615474 - and 6 more. Click to view details
# 016
MPN: 10269550
PLUG
from £1.55
from £1.55
# 017
MPN: 13543521
STUD BOLT
Supersession
Supersession
# 018
MPN: 112153
BUSH
- Valid till gearbox No. 694 and for CH till gearbox No. 187
from £2.28
from £2.28
# 019
MPN: 10273140
PLUG
from £1.33
from £1.33
# 020
MPN: 10259960
GASKET
from £0.47
from £0.47
This part replaces part number 95017
# 021
MPN: 104280
PLUG
from £4.95
from £4.95
This part replaces part number 523977
# 022
MPN: 10263460
GASKET
from £0.47
from £0.47
This part replaces part number 95119
# 023
MPN: 131756
THREADED BUSH
from £17.50
from £17.50
# 024
MPN: 14159470
PIN
from £2.73
from £2.73
# 025
MPN: 131757
BUSH
from £3.63
from £3.63
# 026
MPN: 10569273
WASHER
Supersession
Supersession
# 027
MPN: 14305224
SCREW
from £0.47
from £0.47
# 028
MPN: 14305327
SCREW
from £0.63
from £0.63
# 029
MPN: 13526170
HELI-COIL
from £2.39
from £2.39
This part replaces part number 105197
# 030
MPN: 14326050
PLUG
from £0.89
from £0.89
# 031
MPN: 140201
OIL LEVEL ROD
from £17.29
from £17.29
# 032
MPN: 10261060
GASKET
from £0.47
from £0.47
# 033
MPN: 13543421
STUD BOLT
Supersession
Supersession
# 034
MPN: 13543521
STUD BOLT
- Valid from gearbox No. 24981 - For clutch housing 150463
Supersession
Supersession
# 034
MPN: 13543921
STUD BOLT
- Valid till gearbox No. 24980 - For clutch housing 143279
from £0.47
from £0.47
# 035
MPN: 100041
DOWEL
from £4.66
from £4.66
# 036
MPN: 10276140
PLUG
from £20.40
from £20.40
# 037
MPN: 10265060
GASKET
from £0.92
from £0.92
# 038
MPN: 13414691
BREATHER
from £5.57
from £5.57
# 039
MPN: 142873
BRATHER EXTENSION
from £3.36
from £3.36
This part replaces part number 139754
# 040
MPN: 139230
GEARCHANGE SUPPORT PAD
from £82.72
from £82.72
# 041
MPN: 134601
GEARCHANGE SUPPORT BRACKET
from £24.83
from £24.83
# 042
MPN: 134512
SCREW
from £3.28
from £3.28
# 043
MPN: 16105125
NUT
Supersession
Supersession
# 044
MPN: 14496701
WASHER
from £0.47
from £0.47
# 045
MPN: 15970631
SCREW
from £0.47
from £0.47
# 046
MPN: 127497
WASHER
from £0.47
from £0.47
This part replaces part number 10516871 - and 2 more. Click to view details
# 047
MPN: 131958
BEARING SEAL RING
from £0.47
from £0.47
# 048
MPN: 131049
BEARING FOR DRIVING SHAFT
from £25.34
from £25.34
This part replaces part number 138341
# 048
MPN: 138341
BEARING
- In alternative to 131049
Supersession
Supersession
# 049
MPN: 131050
BEARING FOR CLUTCH SHAFT
from £25.98
from £25.98
This part replaces part number 138340
# 049
MPN: 138340
BEARING
- In alternative to 131050
Supersession
Supersession
# 050
MPN: 103096
BEARING SEAL RING
from £1.30
from £1.30
This part replaces part number 104835
# 051
MPN: 13415400
DISC
from £0.47
from £0.47
# 052
MPN: 13543721
STUD BOLT
Supersession
Supersession
# 053
MPN: 14326050
PLUG
from £0.89
from £0.89
# 054
MPN: 112254
HELI-COIL
from £2.15
from £2.15
# 055
MPN: 146306
GASKET
- Valid from transmission No. 695 and for CH from gearbox No. 188
from £1.43
from £1.43
# 056
MPN: 149907
BUSH
- Valid from transmission No. 695 and for CH from gearbox No. 188
from £17.67
from £17.67
This part replaces part number 143775 - and 1 more. Click to view details
