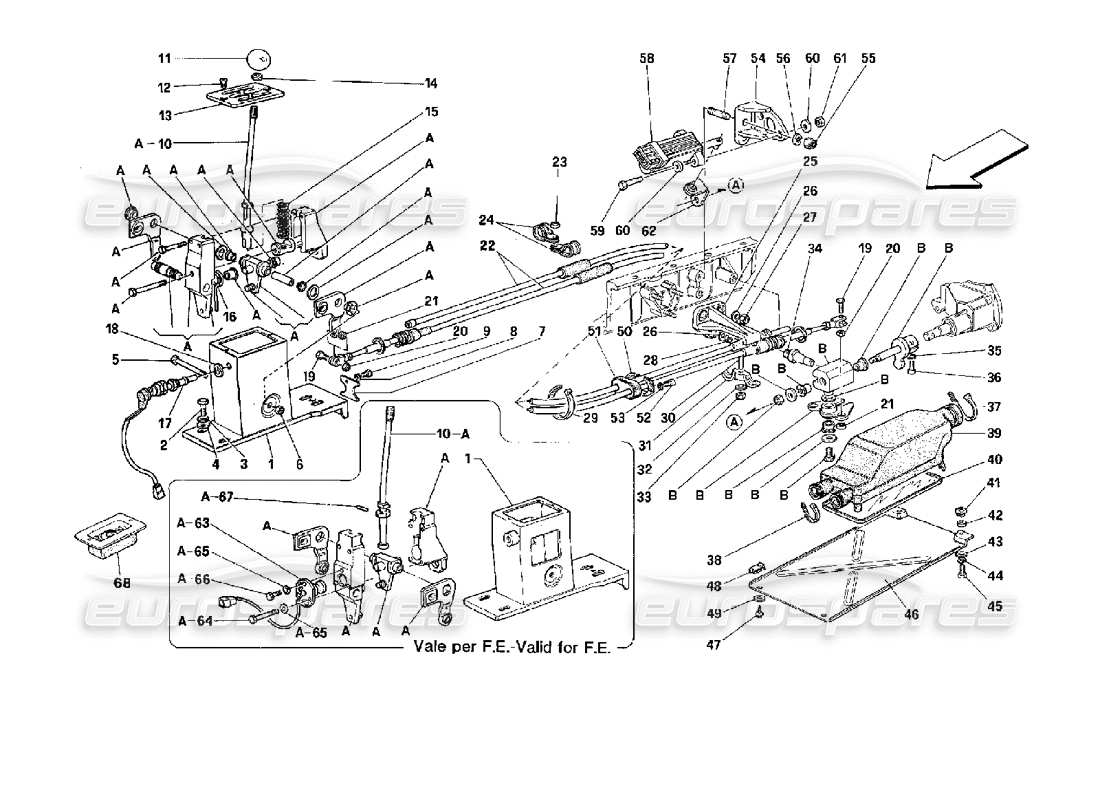

028 - Outside Gearbox Controls

Ferrari Mondial 3.4 t Coupe/Cabrio Outside Gearbox Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                #
                                                                                                                                Part number
                                                                                                                                Description
                                                                                                                                Price
                                                                                                                                # 000
                                                                                                                                -
                                                                                                                                NOT AS SPARE PARTS
                                                                                                                                # 000-B
                                                                                                                                MPN: 148077
                                                                                                                                GEAR LEVER TRANSLATER ASSY
                                                                                                                                from £498.75
                                                                                                                                from £498.75
                                                                                                                                This part replaces part number 139796 - and 7 more. Click to view details

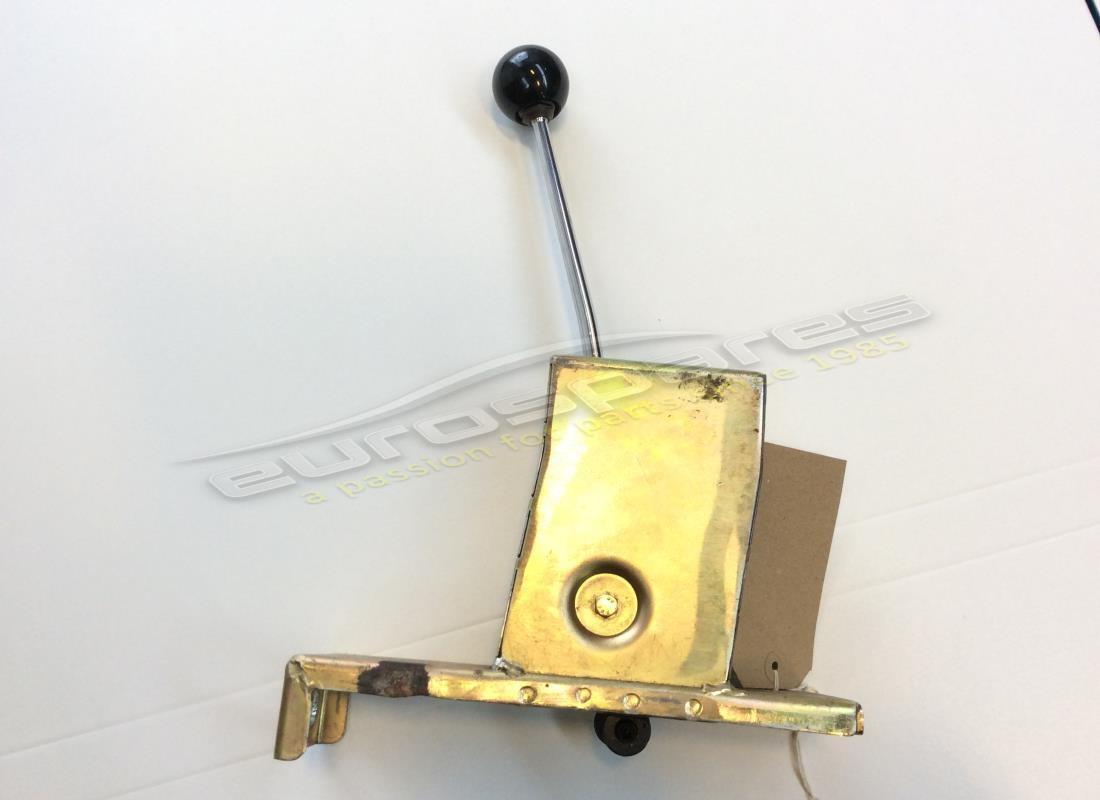

                                                                                                                                # 001
                                                                                                                                MPN: 139857
                                                                                                                                GEARBOX CONTROL BOX
                                                                                                                                - Not for F.E.
                                                                                                                                from £87.06
                                                                                                                                from £87.06
                                                                                                                                # 001
                                                                                                                                MPN: 143056
                                                                                                                                GEARBOX CONTROL BOX
                                                                                                                                - Valid for F.E.
                                                                                                                                from £696.42
                                                                                                                                from £696.42
                                                                                                                                # 001
                                                                                                                                MPN: 144742
                                                                                                                                GEARBOX CONTROL ASSEMBLY
                                                                                                                                - Not for GD - Not for F.E.
                                                                                                                                from £1,052.66
                                                                                                                                from £1,052.66
                                                                                                                                This part replaces part number 139774
                                                                                                                                # 001
                                                                                                                                MPN: 144744
                                                                                                                                GEARBOX CONTROL ASSEMBLY
                                                                                                                                - Valid for GD - Not for F.E.
                                                                                                                                from £971.25
                                                                                                                                from £971.25
                                                                                                                                # 001
                                                                                                                                MPN: 144787
                                                                                                                                GEARBOX CONTROL ASSEMBLY
                                                                                                                                - Not for GD - Valid for F.E.
                                                                                                                                from £1,997.59
                                                                                                                                from £1,997.59
                                                                                                                                # 001
                                                                                                                                MPN: 148424
                                                                                                                                GEARBOX CONTROL ASSEMBLY
                                                                                                                                - Valid for GD - Valid for F.E.
                                                                                                                                from £624.75
                                                                                                                                from £624.75
                                                                                                                                # 001
                                                                                                                                MPN: 150746
                                                                                                                                INNER CONTROL DRIVING GEAR ASSEMBLY
                                                                                                                                - Not for F.E.
                                                                                                                                from £241.17
                                                                                                                                from £241.17
                                                                                                                                # 001
                                                                                                                                MPN: 156426
                                                                                                                                INNER CONTROL DRIVING GEAR ASSEMBLY
                                                                                                                                - Valid for F.E.
                                                                                                                                # 001
                                                                                                                                MPN: 156431
                                                                                                                                TRANSLATOR ASSEMBLY
                                                                                                                                - Valid for F.E.
                                                                                                                                from £322.92
                                                                                                                                from £322.92
                                                                                                                                # 002
                                                                                                                                MPN: 16043321
                                                                                                                                SCREW
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 003
                                                                                                                                MPN: 127496
                                                                                                                                WASHER
                                                                                                                                from £0.54
                                                                                                                                from £0.54
                                                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                                # 004
                                                                                                                                MPN: 14499421
                                                                                                                                WASHER
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 14499424
                                                                                                                                # 005
                                                                                                                                MPN: 139846
                                                                                                                                SCREW
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 006
                                                                                                                                MPN: 139847
                                                                                                                                NUT
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 007
                                                                                                                                MPN: 139784
                                                                                                                                PLATE
                                                                                                                                from £0.84
                                                                                                                                from £0.84
                                                                                                                                # 008
                                                                                                                                MPN: 139843
                                                                                                                                WASHER
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 009
                                                                                                                                MPN: 139851
                                                                                                                                SCREW
                                                                                                                                from £1.37
                                                                                                                                from £1.37
                                                                                                                                # 010
                                                                                                                                MPN: 141371
                                                                                                                                GEARBOX CONTROL LEVER
                                                                                                                                - Valid for a semi auto gearbox
                                                                                                                                from £301.93
                                                                                                                                from £301.93
                                                                                                                                # 010
                                                                                                                                MPN: 142880
                                                                                                                                GEARBOX CONTROL LEVER
                                                                                                                                from £909.50
                                                                                                                                from £909.50
                                                                                                                                # 012
                                                                                                                                MPN: 101619
                                                                                                                                SCREW
                                                                                                                                from £9.27
                                                                                                                                from £9.27
                                                                                                                                This part replaces part number 95940228
                                                                                                                                # 013
                                                                                                                                MPN: 148452
                                                                                                                                GEAR SELECTOR
                                                                                                                                from £361.19
                                                                                                                                from £361.19
                                                                                                                                This part replaces part number 127444 which we have in stock - and 2 more. Click to view details
                                                                                                                                # 014
                                                                                                                                MPN: 108010
                                                                                                                                LOCK NUT
                                                                                                                                from £5.46
                                                                                                                                from £5.46
                                                                                                                                This part replaces part number 103312 - and 1 more. Click to view details
                                                                                                                                # 015
                                                                                                                                MPN: 139786
                                                                                                                                REVERSE GEAR SPRING
                                                                                                                                from £0.83
                                                                                                                                from £0.83
                                                                                                                                # 016
                                                                                                                                MPN: 139785
                                                                                                                                MOUTH PIECE SPRING
                                                                                                                                from £1.51
                                                                                                                                from £1.51
                                                                                                                                # 017
                                                                                                                                MPN: 115980
                                                                                                                                PUSH-BUTTON SWITCH
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                This part replaces part number 104320
                                                                                                                                # 019
                                                                                                                                MPN: 141410
                                                                                                                                SCREW
                                                                                                                                from £0.63
                                                                                                                                from £0.63
                                                                                                                                # 020
                                                                                                                                MPN: 141411
                                                                                                                                NUT
                                                                                                                                from £1.17
                                                                                                                                from £1.17

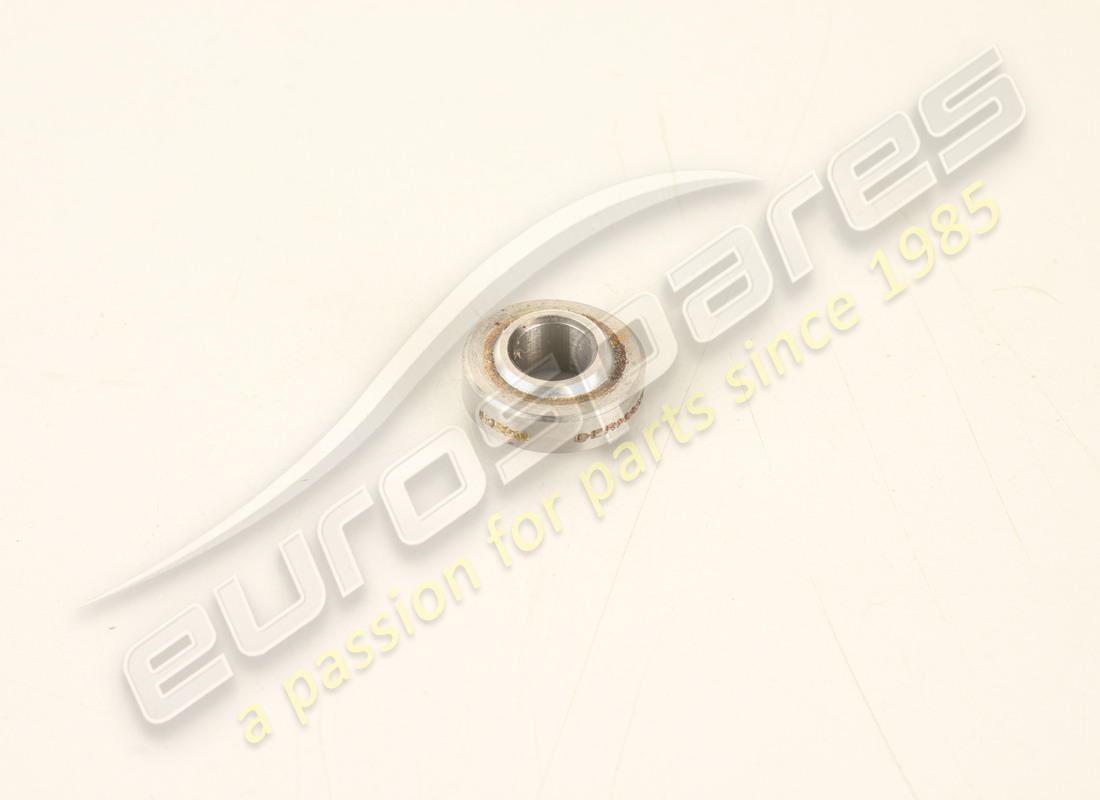

                                                                                                                                # 021
                                                                                                                                MPN: 141408
                                                                                                                                BUSH
                                                                                                                                from £17.07
                                                                                                                                from £17.07
                                                                                                                                # 022
                                                                                                                                MPN: 144741
                                                                                                                                GEARBOX CONTROL CABLES
                                                                                                                                - Valid for GD
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 022
                                                                                                                                MPN: 150297
                                                                                                                                GEARBOX CONTROL CABLES
                                                                                                                                - No for GD
                                                                                                                                from £907.91
                                                                                                                                from £907.91
                                                                                                                                This part replaces part number 144738
                                                                                                                                # 024
                                                                                                                                MPN: 10441590
                                                                                                                                CABLES FASTENING CLAMP
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 10113600
                                                                                                                                # 025
                                                                                                                                MPN: 137476
                                                                                                                                CABLES SUPPORT
                                                                                                                                from £64.55
                                                                                                                                from £64.55
                                                                                                                                # 026
                                                                                                                                MPN: 12601374
                                                                                                                                WASHER
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                                # 027
                                                                                                                                MPN: 104030
                                                                                                                                SELF LOCKING NUT
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 16104125
                                                                                                                                # 028
                                                                                                                                MPN: 16102311
                                                                                                                                NUT
                                                                                                                                from £0.43
                                                                                                                                from £0.43
                                                                                                                                This part replaces part number 16102315
                                                                                                                                # 029
                                                                                                                                MPN: 105550
                                                                                                                                CLAMP
                                                                                                                                from £1.28
                                                                                                                                from £1.28
                                                                                                                                # 030
                                                                                                                                MPN: 13540921
                                                                                                                                STUD BOLT
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 031
                                                                                                                                MPN: 152645
                                                                                                                                CABLES LOWER SUPPORT
                                                                                                                                from £43.95
                                                                                                                                from £43.95
                                                                                                                                This part replaces part number 145394
                                                                                                                                # 032
                                                                                                                                MPN: 12601274
                                                                                                                                WASHER
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                                # 033
                                                                                                                                MPN: 15896211
                                                                                                                                NUT
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                This part replaces part number 15896210
                                                                                                                                # 034
                                                                                                                                MPN: 139800
                                                                                                                                TRANSLATOR REACTION PIN
                                                                                                                                from £359.94
                                                                                                                                from £359.94
                                                                                                                                # 036
                                                                                                                                MPN: 141399
                                                                                                                                SCREW
                                                                                                                                - Not for F.E.
                                                                                                                                from £53.13
                                                                                                                                from £53.13
                                                                                                                                This part replaces part number 13027387
                                                                                                                                # 036
                                                                                                                                MPN: 147366
                                                                                                                                SCREW
                                                                                                                                - Valid for F.E.
                                                                                                                                from £18.82
                                                                                                                                from £18.82
                                                                                                                                # 037
                                                                                                                                MPN: 145855
                                                                                                                                CLAMP
                                                                                                                                from £0.54
                                                                                                                                from £0.54
                                                                                                                                This part replaces part number 14560287 - and 1 more. Click to view details
                                                                                                                                # 038
                                                                                                                                MPN: 139854
                                                                                                                                CLAMP
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 039
                                                                                                                                MPN: 139802
                                                                                                                                COVER
                                                                                                                                - Not for F.E.
                                                                                                                                from £10.43
                                                                                                                                from £10.43
                                                                                                                                # 039
                                                                                                                                MPN: 147902
                                                                                                                                COVER
                                                                                                                                - Valid for F.E.
                                                                                                                                from £17.31
                                                                                                                                from £17.31
                                                                                                                                # 040
                                                                                                                                MPN: 139803
                                                                                                                                COVER PLATE
                                                                                                                                from £225.01
                                                                                                                                from £225.01
                                                                                                                                # 041
                                                                                                                                MPN: 60659100
                                                                                                                                NUT WITH CAGE
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                                                                                                # 042
                                                                                                                                MPN: 104339
                                                                                                                                SPACER
                                                                                                                                from £3.35
                                                                                                                                from £3.35
                                                                                                                                # 043
                                                                                                                                MPN: 12643724
                                                                                                                                WASHER
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                                # 044
                                                                                                                                MPN: 127494
                                                                                                                                WASHER
                                                                                                                                (minimum order quantity = 20)
                                                                                                                                from £0.53
                                                                                                                                from £0.53
                                                                                                                                This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                                # 045
                                                                                                                                MPN: 10902221
                                                                                                                                SCREW
                                                                                                                                from £0.52
                                                                                                                                from £0.52
                                                                                                                                # 046
                                                                                                                                MPN: 140847
                                                                                                                                PROTECTION SHEET
                                                                                                                                from £441.00
                                                                                                                                from £441.00
                                                                                                                                # 047
                                                                                                                                MPN: 15687901
                                                                                                                                SCREW
                                                                                                                                from £0.86
                                                                                                                                from £0.86
                                                                                                                                # 048
                                                                                                                                MPN: 60696300
                                                                                                                                SPRING
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 049
                                                                                                                                MPN: 14497701
                                                                                                                                WASHER
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 050
                                                                                                                                MPN: 62596700
                                                                                                                                GASKET COVER
                                                                                                                                from £5.94
                                                                                                                                from £5.94
                                                                                                                                # 051
                                                                                                                                MPN: 62532100
                                                                                                                                GASKET
                                                                                                                                from £7.44
                                                                                                                                from £7.44
                                                                                                                                # 052
                                                                                                                                MPN: 14304121
                                                                                                                                SCREW
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 84158300
                                                                                                                                # 053
                                                                                                                                MPN: 149951
                                                                                                                                WASHER
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 10615301 - and 4 more. Click to view details
                                                                                                                                # 054
                                                                                                                                MPN: 152636
                                                                                                                                POTENTIOMETER SUPPORT
                                                                                                                                from £252.38
                                                                                                                                from £252.38
                                                                                                                                This part replaces part number 148131
                                                                                                                                # 055
                                                                                                                                MPN: 133989
                                                                                                                                NUT
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 8 D 4-UNI 207
                                                                                                                                # 056
                                                                                                                                MPN: 127496
                                                                                                                                WASHER
                                                                                                                                from £0.54
                                                                                                                                from £0.54
                                                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details

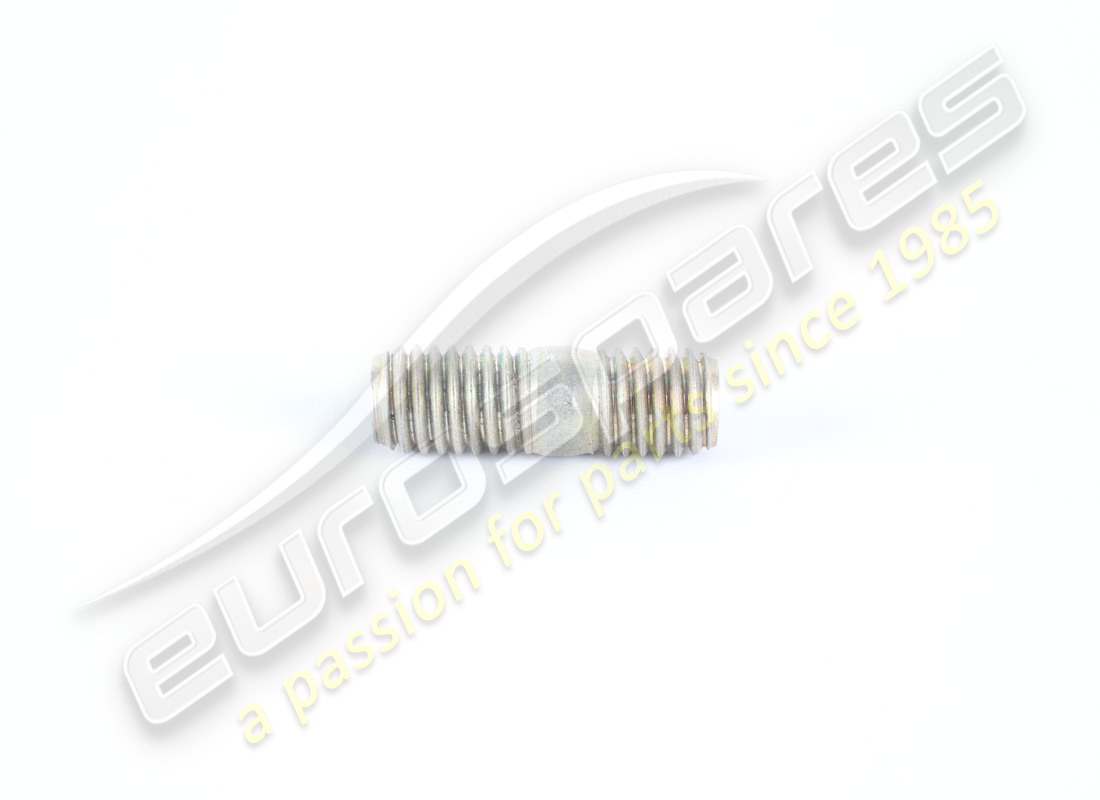

                                                                                                                                # 057
                                                                                                                                MPN: 13516421
                                                                                                                                STUD
                                                                                                                                from £3.35
                                                                                                                                from £3.35
                                                                                                                                # 058
                                                                                                                                MPN: 150454
                                                                                                                                POTENTIOMETER
                                                                                                                                from £1,837.34
                                                                                                                                from £1,837.34
                                                                                                                                # 059
                                                                                                                                MPN: 10978221
                                                                                                                                SCREW
                                                                                                                                from £1.14
                                                                                                                                from £1.14
                                                                                                                                This part replaces part number 10978224
                                                                                                                                # 060
                                                                                                                                MPN: 12638101
                                                                                                                                WASHER
                                                                                                                                from £0.71
                                                                                                                                from £0.71
                                                                                                                                # 061
                                                                                                                                MPN: 12574115
                                                                                                                                NUT
                                                                                                                                from £1.08
                                                                                                                                from £1.08
                                                                                                                                # 062
                                                                                                                                MPN: 144447
                                                                                                                                POTENTIOMETER CONTROL LEVER
                                                                                                                                from £53.44
                                                                                                                                from £53.44
                                                                                                                                # 063
                                                                                                                                MPN: 150455
                                                                                                                                PICK-UP (GEAR LEVER)
                                                                                                                                from £928.55
                                                                                                                                from £928.55
                                                                                                                                This part replaces part number 141574
                                                                                                                                # 064
                                                                                                                                MPN: 10978521
                                                                                                                                SCREW
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 065
                                                                                                                                MPN: 12601179
                                                                                                                                WASHER
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                This part replaces part number 12601171 - and 1 more. Click to view details
                                                                                                                                # 066
                                                                                                                                MPN: 10977624
                                                                                                                                SCREW
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                                                                # 067
                                                                                                                                MPN: 10334520
                                                                                                                                PIN
                                                                                                                                from £1.31
                                                                                                                                from £1.31
                                                                                                                                # 068
                                                                                                                                MPN: 145498
                                                                                                                                DRIVING GEAR BELLOW
                                                                                                                                from £50.06
                                                                                                                                from £50.06
