029 - Differential & Axle Shafts

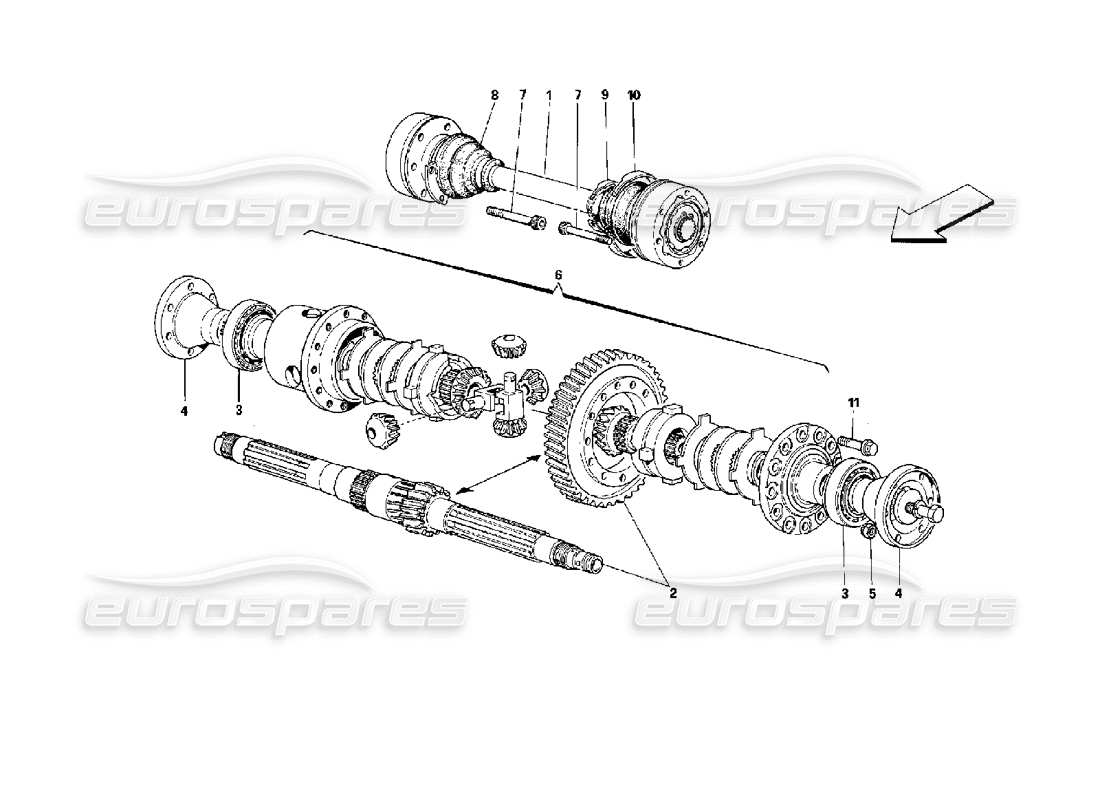

Ferrari Mondial 3.4 t Coupe/Cabrio Differential & Axle Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 134300

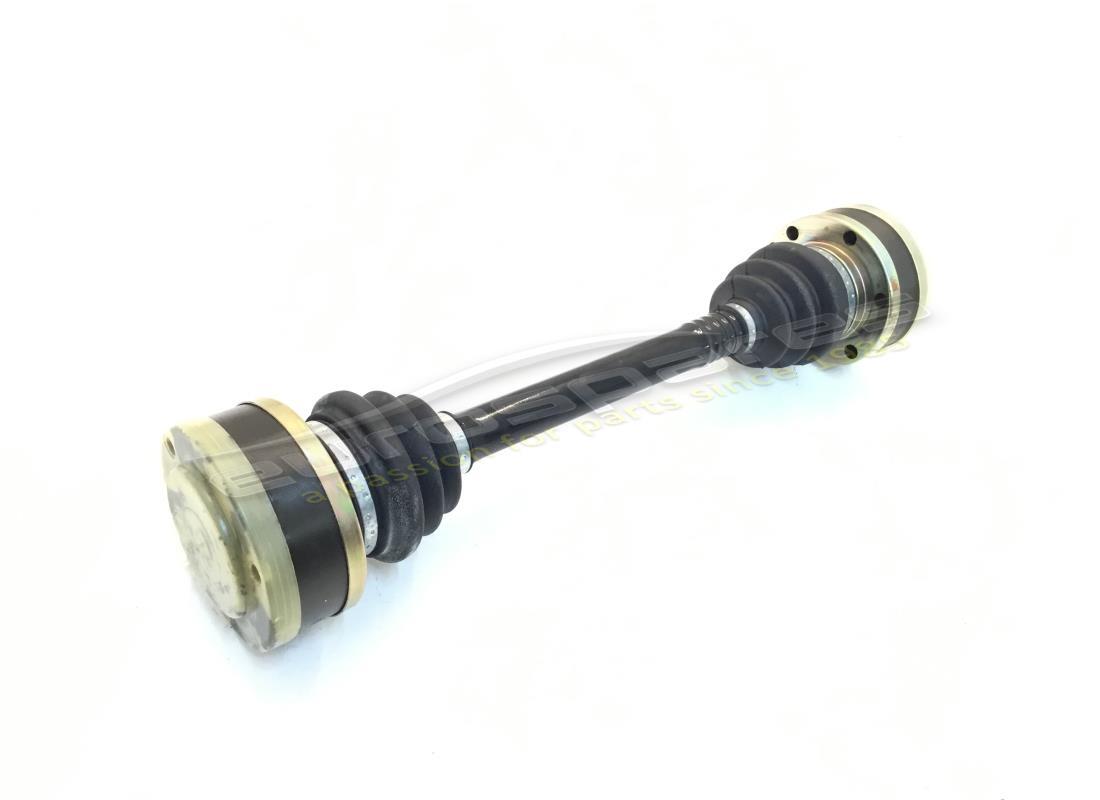

AXLE SHAFT ASSEMBLY
from £709.58
from £709.58
# 002
MPN: 70000577
COMPLETE CYLINDRIC PAIR
- Not for CH
from £4,344.57
from £4,344.57
# 002
MPN: 70000596
COMPLETE CYLINDRIC PAIR
- Valid for CH
from £740.50
from £740.50
# 003
MPN: 125390
BEARING
from £96.46
from £96.46
# 004
MPN: 128256
AXLE SHAFT CONNECTION FLANGE
from £73.00
from £73.00
# 005
MPN: 101633
DRIVESHAFT NUT
(original)
from £4.29
from £4.29
# 006
MPN: 101626

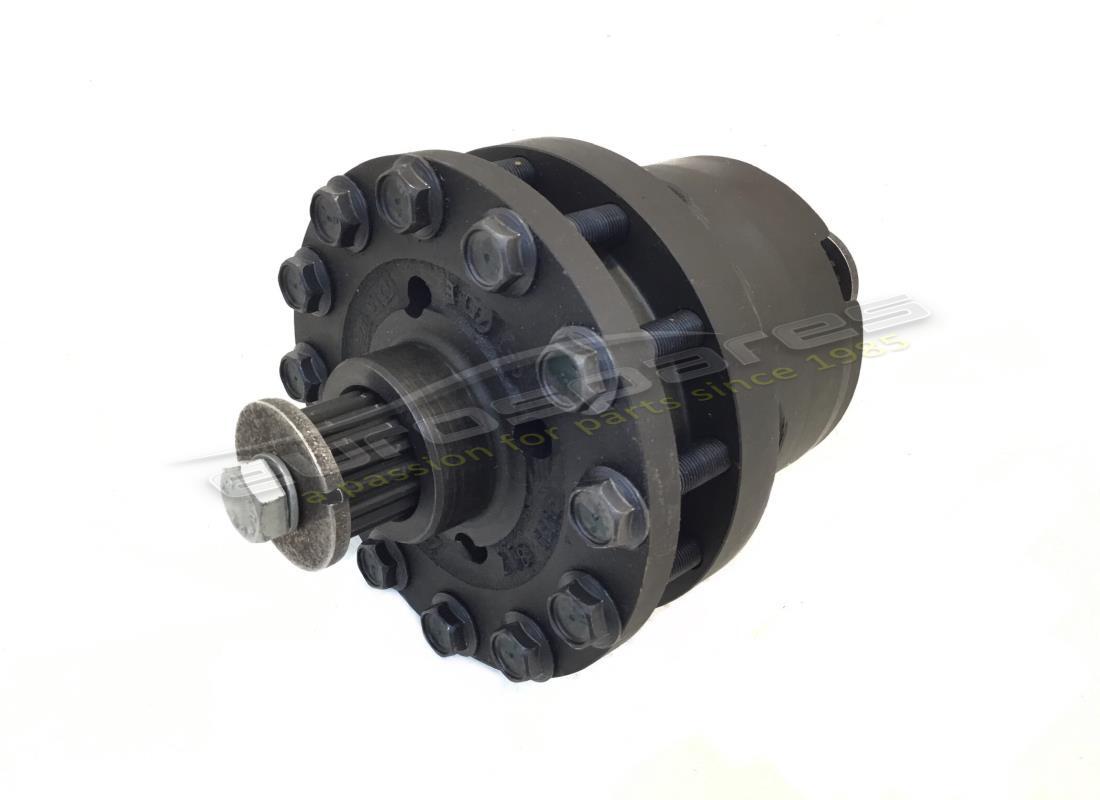

DIFFERENTIAL
- Valid till stock exhaustion
Supersession
Supersession
This part replaces part number 101623
# 006
MPN: 147258
DIFFERENTIAL
- Valid after stock exhaustion of 101626
from £4,430.57
from £4,430.57
This part replaces part number 101626
# 007
MPN: 101632
DRIVESHAFT BOLT
from £15.05
from £15.05
This part replaces part number 103432 - and 5 more. Click to view details
# 008
MPN: 95860404
DRIVE SHAFT GAITER
from £9.95
from £9.95
This part replaces part number 95860404/A
# 008
MPN: 95860404/A
CV BOOT KIT
Supersession
Supersession
# 009
MPN: 117956
LITTLE CLAMP FOR AXLE SHAFT PROTECTION
from £2.77
from £2.77
# 010
MPN: 117957
BIG CLAMP FOR AXLE SHAFT PROTECTION
from £3.56
from £3.56
# 011
MPN: 152613
SCREW
from £8.17
from £8.17
