ferrari mondial 3.4 t coupe/cabrio hydraulic system for antiskid parts diagram

031 - Hydraulic System for Antiskid

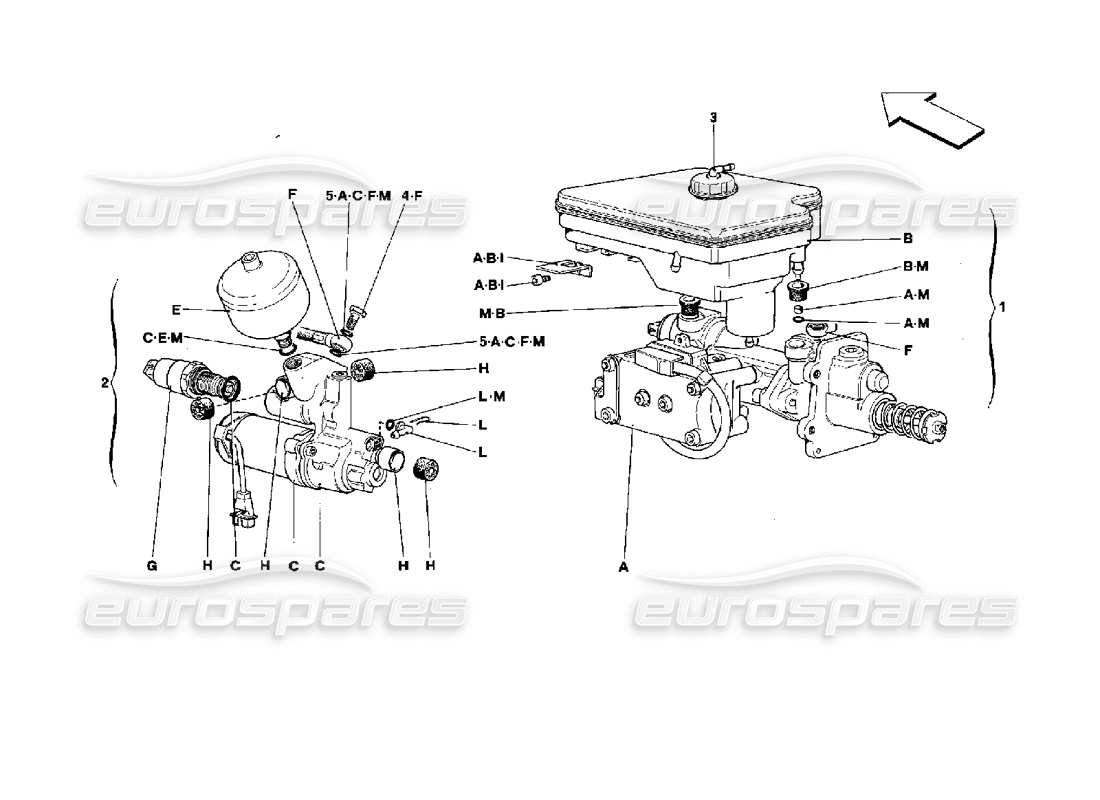

Ferrari Mondial 3.4 t Coupe/Cabrio Hydraulic System for Antiskid Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 70000537
                        KIT FOR ABS HYDRAULIC UNIT
                        with reservoir
                        from £11,707.48
                        from £11,707.48
                        This part replaces part number 137006 - and 1 more. Click to view details
                        # 002
                        MPN: 70000772/A
                        BRAKES CONTROL PUMP KIT
                        SUPPLIED WITHOUT ACCUMULATOR & PRESSOSTAT, use 148977
                        # 003
                        MPN: 152238
                        CAP FOR RESERVOIR
                        - Without breather
                        from £49.60
                        from £49.60
                        # 003
                        MPN: 70000508
                        CAP FOR RESERVOIR
                        - With breather
                        from £10.72
                        from £10.72
                        # 004
                        MPN: 131873
                        UNION
                        from £3.59
                        from £3.59
                        # 005
                        MPN: 70000510
                        O-RING KIT
                        from £94.57
                        from £94.57
                        This part replaces part number 131874
                        # A
                        MPN: 70000538

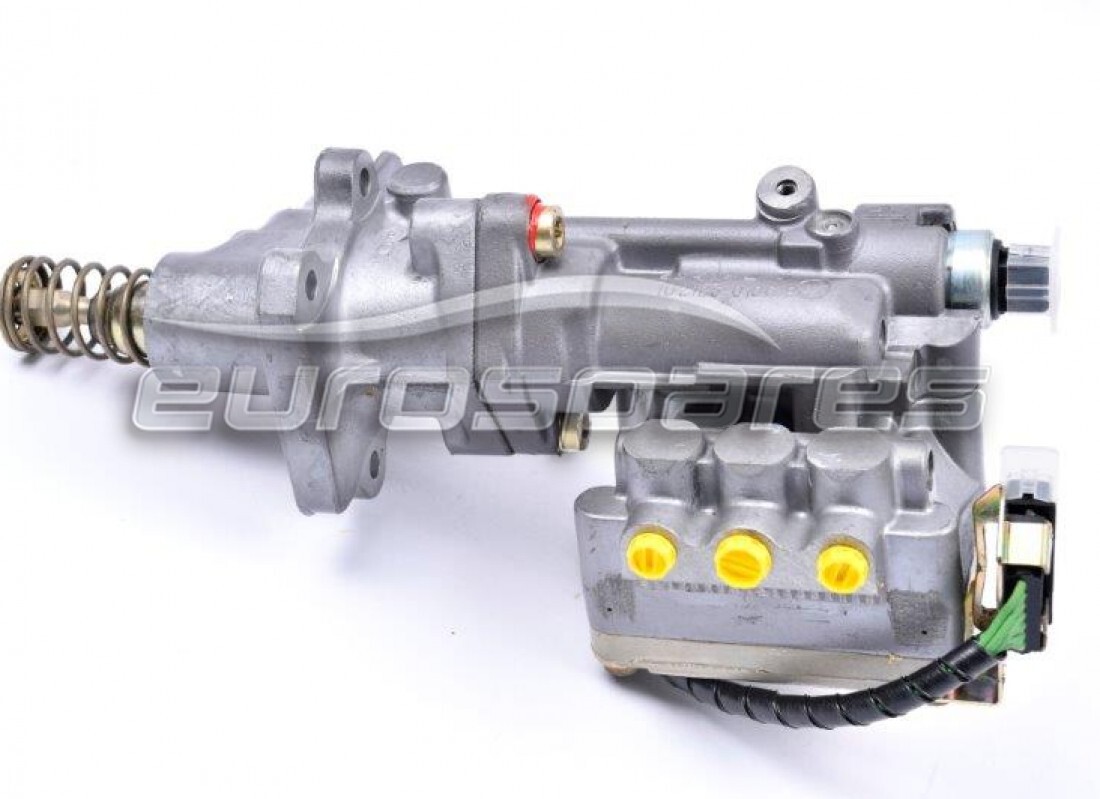

                        KIT FOR ABS HYDRAULIC UNIT
                        from £2,393.67
                        from £2,393.67
                        This part replaces part number 70000501
                        # B
                        MPN: 70000502
                        RESERVOIR KIT
                        from £583.06
                        from £583.06
                        # C
                        MPN: 148977
                        BRAKE PUMP KIT
                        Supersession
                        Supersession
                        # E
                        MPN: 70000504
                        ACCUMULATOR
                        from £258.49
                        from £258.49
                        # F
                        MPN: 135960
                        KIT HOSES
                        from £89.02
                        from £89.02
                        This part replaces part number 131872
                        # G
                        MPN: 70000505
                        PRESSOSTAT
                        - G on Picture -
                        from £509.67
                        from £509.67
                        # H
                        MPN: 70000506
                        BUSHING KIT
                        from £47.12
                        from £47.12
                        # I
                        MPN: 70000507
                        RESERVOIR KIT
                        from £7.79
                        from £7.79
                        # L
                        MPN: 70000509
                        PUMP UNION KIT
                        from £6.49
                        from £6.49
                        # M
                        MPN: 70000510
                        O-RING KIT
                        from £94.57
                        from £94.57
                        This part replaces part number 131874
