ferrari mondial 3.4 t coupe/cabrio anti skid system parts diagram

032 - Anti skid System

Ferrari Mondial 3.4 t Coupe/Cabrio Anti skid System Parts Diagram

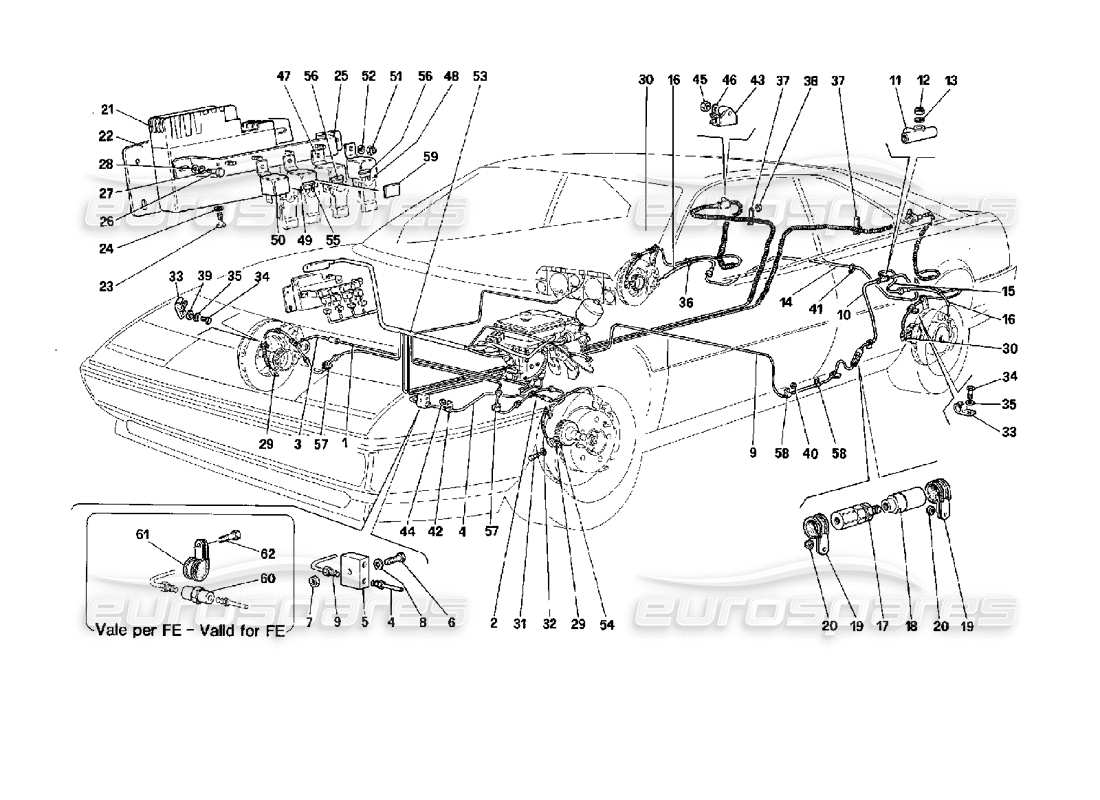

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 143621
                                                                                                            PIPE FROM CONTROL UNIT TO HOSE RH FRONT
                                                                                                            - Not for GD
                                                                                                            from £9.52
                                                                                                            from £9.52
                                                                                                            # 001
                                                                                                            MPN: 143631
                                                                                                            PIPE FROM CONTROL UNIT TO HOSE RH FRONT
                                                                                                            - Valid for GD
                                                                                                            from £6.19
                                                                                                            from £6.19
                                                                                                            # 002
                                                                                                            MPN: 143624
                                                                                                            PIPE FROM CONTROL UNIT TO HOSE LH FRONT
                                                                                                            - Not for GD
                                                                                                            from £5.94
                                                                                                            from £5.94
                                                                                                            # 002
                                                                                                            MPN: 143635
                                                                                                            PIPE FROM CONTROL UNIT TO HOSE LH FRONT
                                                                                                            - Valid for GD
                                                                                                            from £6.93
                                                                                                            from £6.93
                                                                                                            # 003
                                                                                                            MPN: 118101
                                                                                                            FRONT BRAKE HOSE
                                                                                                            from £135.00
                                                                                                            from £135.00
                                                                                                            # 004
                                                                                                            MPN: 140677
                                                                                                            PIPE FROM CONTROL UNIT TO 2 WAY UNION
                                                                                                            - Valid for GD - Valid till stock exhaustion
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 004
                                                                                                            MPN: 143626
                                                                                                            PIPE FROM CONTROL UNIT TO 2 WAY UNION
                                                                                                            - Not for GD
                                                                                                            from £8.43
                                                                                                            from £8.43
                                                                                                            # 004
                                                                                                            MPN: 143636
                                                                                                            PIPE FROM CONTROL UNIT TO 2 WAY UNION
                                                                                                            - Valid for GD - Valid after stock exhaustion of 140677
                                                                                                            from £8.06
                                                                                                            from £8.06
                                                                                                            This part replaces part number 140677
                                                                                                            # 005
                                                                                                            MPN: 139375
                                                                                                            2 WAY UNION BRAKE AND CLUTCH PIPE
                                                                                                            from £83.52
                                                                                                            from £83.52
                                                                                                            # 006
                                                                                                            MPN: 10902821
                                                                                                            SCREW
                                                                                                            from £1.08
                                                                                                            from £1.08
                                                                                                            This part replaces part number 10902801 - and 1 more. Click to view details
                                                                                                            # 008
                                                                                                            MPN: 12639701
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 12639704
                                                                                                            # 009
                                                                                                            MPN: 139916
                                                                                                            PIPE FROM 2 WAY TO PRESSURE REGULATOR - COUPE'
                                                                                                            - Not for GD
                                                                                                            from £11.77
                                                                                                            from £11.77
                                                                                                            # 009
                                                                                                            MPN: 141058
                                                                                                            PIPE FROM 2 WAY TO PRESSURE REGULATOR - CABRIOLET
                                                                                                            - Not for GD
                                                                                                            from £19.90
                                                                                                            from £19.90
                                                                                                            # 009
                                                                                                            MPN: 141866
                                                                                                            PIPE FROM 2 WAY TO PRESSURE REGULATOR - COUPE'
                                                                                                            - Valid for GD
                                                                                                            from £21.77
                                                                                                            from £21.77
                                                                                                            # 009
                                                                                                            MPN: 143666
                                                                                                            PIPE FROM 2 WAY TO PRESSURE REGULATOR - CABRIOLET
                                                                                                            - Valid for GD
                                                                                                            from £31.50
                                                                                                            from £31.50
                                                                                                            # 010
                                                                                                            MPN: 143627
                                                                                                            PIPE FROM PRESSURE REGULATOR TO 3 WAY UNION
                                                                                                            from £6.70
                                                                                                            from £6.70
                                                                                                            This part replaces part number 139915
                                                                                                            # 011
                                                                                                            MPN: 101394
                                                                                                            3 WAY UNION
                                                                                                            from £27.42
                                                                                                            from £27.42
                                                                                                            This part replaces part number 680980 - and 7 more. Click to view details
                                                                                                            # 013
                                                                                                            MPN: 12639701
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 12639704
                                                                                                            # 014
                                                                                                            MPN: 143628
                                                                                                            PIPE FROM 3 WAY TO HOSE RH REAR
                                                                                                            - Valid for 3P
                                                                                                            from £12.35
                                                                                                            from £12.35
                                                                                                            # 014
                                                                                                            MPN: 143630
                                                                                                            PIPE FROM 3 WAY TO HOSE RH REAR
                                                                                                            - Valid for 4P
                                                                                                            from £9.66
                                                                                                            from £9.66
                                                                                                            # 015
                                                                                                            MPN: 143629
                                                                                                            PIPE FROM 3 WAY TO HOSE LH REAR
                                                                                                            from £7.06
                                                                                                            from £7.06
                                                                                                            # 016
                                                                                                            MPN: 271712
                                                                                                            REAR BRAKE HOSE
                                                                                                            from £14.88
                                                                                                            from £14.88
                                                                                                            This part replaces part number 118100
                                                                                                            # 017
                                                                                                            MPN: 134597
                                                                                                            DELAY VALVE
                                                                                                            from £662.59
                                                                                                            from £662.59
                                                                                                            # 018
                                                                                                            MPN: 131322
                                                                                                            PRESSURE REGULATOR
                                                                                                            from £76.44
                                                                                                            from £76.44
                                                                                                            # 019
                                                                                                            MPN: 10441990
                                                                                                            STRAP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 021
                                                                                                            MPN: 131325

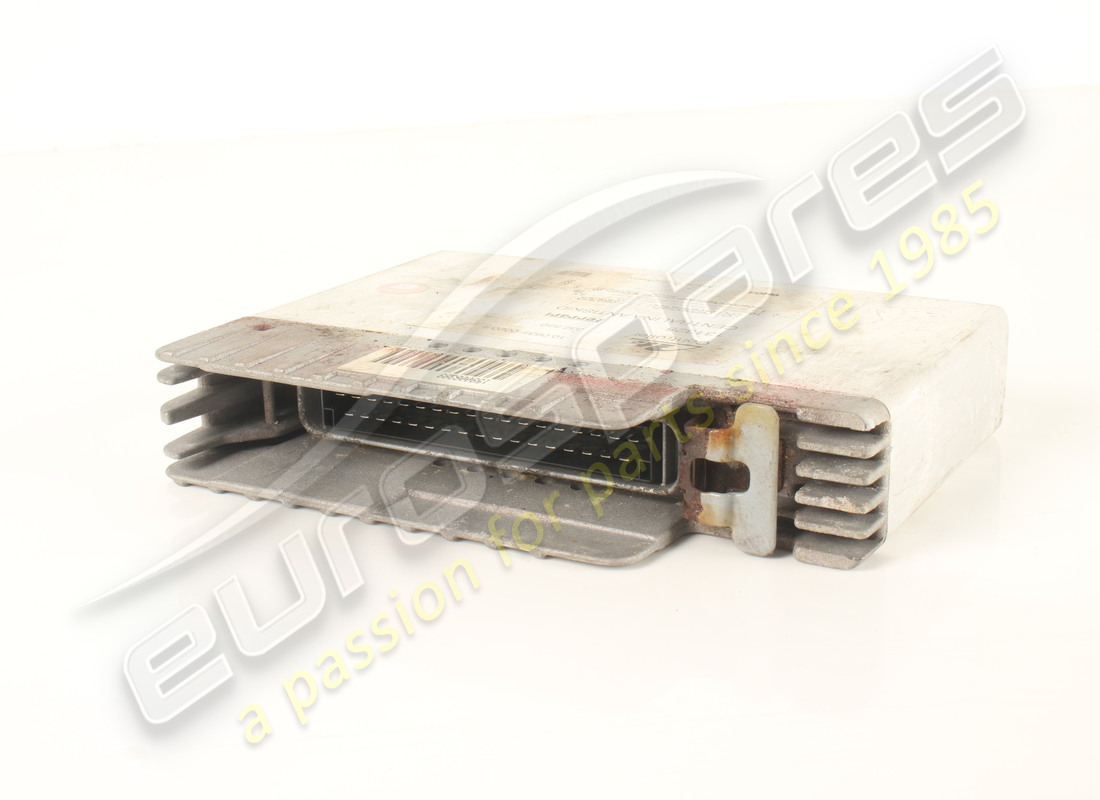

                                                                                                            ELECTRONIC CONTROL UNIT
                                                                                                            from £1,149.75
                                                                                                            from £1,149.75
                                                                                                            # 022
                                                                                                            MPN: 131744
                                                                                                            BRACKET
                                                                                                            from £15.71
                                                                                                            from £15.71
                                                                                                            # 023
                                                                                                            MPN: 131745
                                                                                                            SCREW
                                                                                                            from £1.43
                                                                                                            from £1.43
                                                                                                            # 024
                                                                                                            MPN: 10615279
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 025
                                                                                                            MPN: 131945
                                                                                                            BRACKET
                                                                                                            from £18.43
                                                                                                            from £18.43
                                                                                                            # 026
                                                                                                            MPN: 10977624
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                                            # 027
                                                                                                            MPN: 149951
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10615301 - and 4 more. Click to view details
                                                                                                            # 029
                                                                                                            MPN: 139478

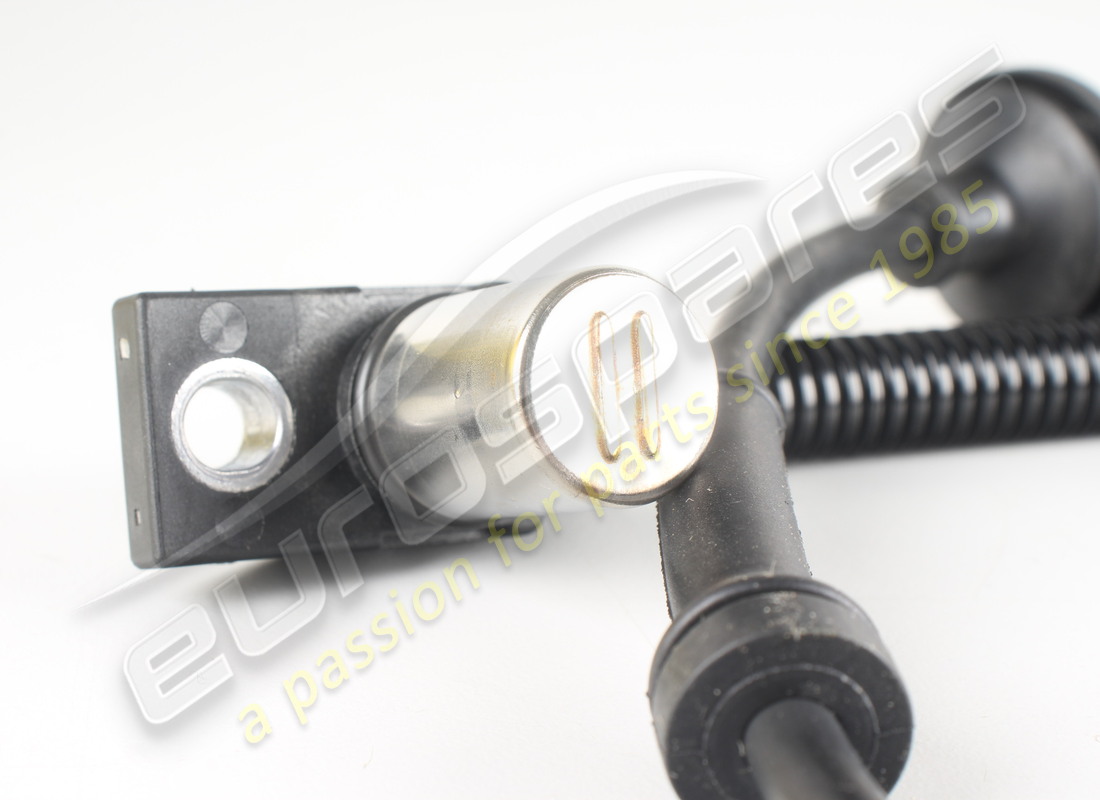

                                                                                                            FRONT SENSOR
                                                                                                            from £182.21
                                                                                                            from £182.21
                                                                                                            # 030
                                                                                                            MPN: 139479
                                                                                                            REAR SENSOR
                                                                                                            from £192.91
                                                                                                            from £192.91
                                                                                                            # 031
                                                                                                            MPN: 10902124
                                                                                                            SCREW
                                                                                                            from £0.51
                                                                                                            from £0.51
                                                                                                            This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                            # 032
                                                                                                            MPN: 12601274
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                            # 033
                                                                                                            MPN: 131783
                                                                                                            CLIP
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 131783 N/L/A
                                                                                                            # 034
                                                                                                            MPN: 10902124
                                                                                                            SCREW
                                                                                                            from £0.51
                                                                                                            from £0.51
                                                                                                            This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                            # 035
                                                                                                            MPN: 12601274
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                            # 036
                                                                                                            MPN: 140130
                                                                                                            MODULE
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 037
                                                                                                            MPN: 10418501
                                                                                                            STRAP
                                                                                                            from £1.08
                                                                                                            from £1.08
                                                                                                            # 039
                                                                                                            MPN: 12648201
                                                                                                            WASHER
                                                                                                            from £1.40
                                                                                                            from £1.40
                                                                                                            # 041
                                                                                                            MPN: 139474
                                                                                                            CLIP
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            # 042
                                                                                                            MPN: 10440890
                                                                                                            STRAP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 043
                                                                                                            MPN: 128292
                                                                                                            CLIP
                                                                                                            from £1.36
                                                                                                            from £1.36
                                                                                                            # 045
                                                                                                            MPN: 12574011
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 046
                                                                                                            MPN: 10519201
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10519281
                                                                                                            # 047
                                                                                                            MPN: 131938
                                                                                                            ELECTRONIC CONTROL UNIT
                                                                                                            from £60.15
                                                                                                            from £60.15
                                                                                                            # 048
                                                                                                            MPN: 131939

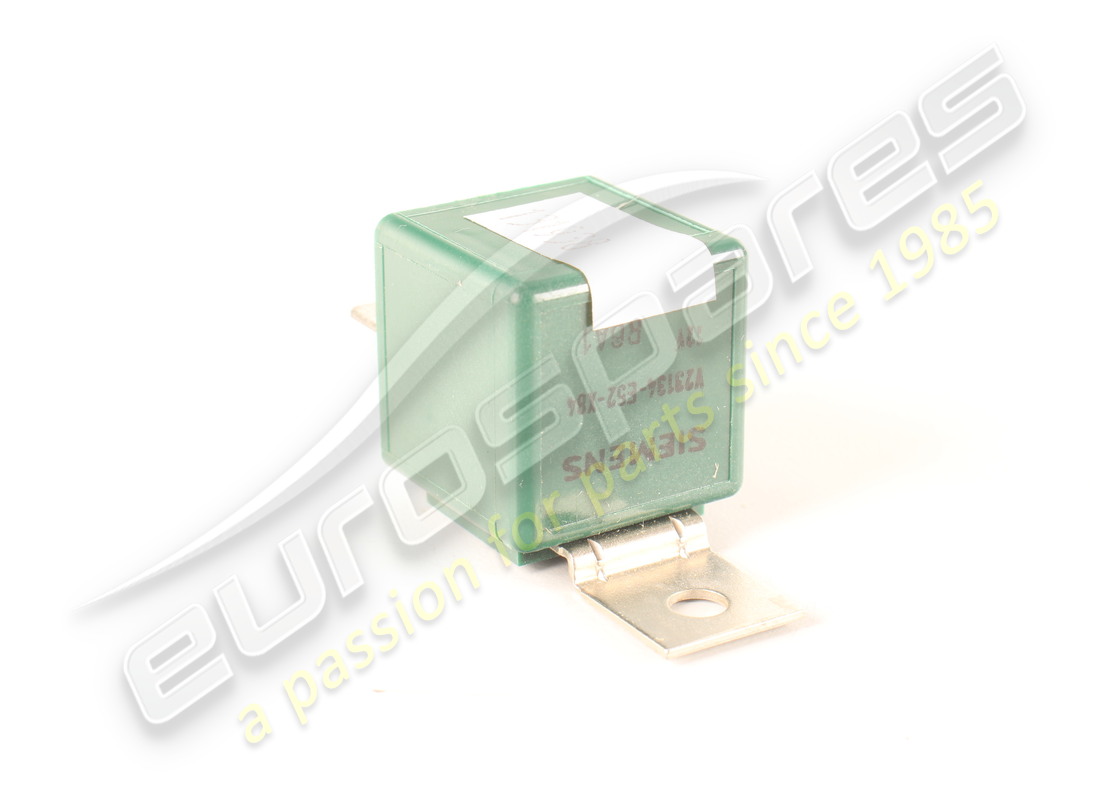

                                                                                                            RELAY FOR MOTOR PUMP
                                                                                                            from £45.38
                                                                                                            from £45.38
                                                                                                            # 049
                                                                                                            MPN: 131940
                                                                                                            RELAY FOR SYSTEM OVERRIDING
                                                                                                            from £66.58
                                                                                                            from £66.58
                                                                                                            # 050
                                                                                                            MPN: 131785
                                                                                                            PROTECTION RELAY
                                                                                                            from £23.76
                                                                                                            from £23.76
                                                                                                            # 051
                                                                                                            MPN: 169180
                                                                                                            NUT
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 12574121
                                                                                                            # 052
                                                                                                            MPN: 10519377
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 10519305 - and 1 more. Click to view details
                                                                                                            # 053
                                                                                                            MPN: 139543
                                                                                                            CABLES FOR ANTISKID
                                                                                                            - Not for GD
                                                                                                            from £446.39
                                                                                                            from £446.39
                                                                                                            # 053
                                                                                                            MPN: 139667
                                                                                                            CABLES FOR ANTISKID
                                                                                                            - Valid for GD
                                                                                                            from £1,085.37
                                                                                                            from £1,085.37
                                                                                                            # 054
                                                                                                            MPN: 136401
                                                                                                            WASHER
                                                                                                            - Possible fitting
                                                                                                            from £0.59
                                                                                                            from £0.59
                                                                                                            # 055
                                                                                                            MPN: 131942
                                                                                                            3 AMP FUSE
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number MC3742/10
                                                                                                            # 056
                                                                                                            MPN: 131941
                                                                                                            30 AMP FUSE
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number MC3742/6
                                                                                                            # 057
                                                                                                            MPN: 105369
                                                                                                            CAP
                                                                                                            from £19.10
                                                                                                            from £19.10
                                                                                                            # 058
                                                                                                            MPN: 10440890
                                                                                                            CLAMP
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 059
                                                                                                            MPN: 61183200
                                                                                                            REMOTE CONTROL SWITCH PLATE - RED
                                                                                                            from £1.37
                                                                                                            from £1.37
                                                                                                            # 059
                                                                                                            MPN: 61183300
                                                                                                            REMOTE CONTROL SWITCH PLATE - YELLOW
                                                                                                            from £1.37
                                                                                                            from £1.37
                                                                                                            # 059
                                                                                                            MPN: 61183400
                                                                                                            REMOTE CONTROL SWITCH PLATE - GREEN
                                                                                                            from £1.37
                                                                                                            from £1.37
                                                                                                            # 059
                                                                                                            MPN: 61183600
                                                                                                            REMOTE CONTROL SWITCH PLATE - BLACK
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 060
                                                                                                            MPN: 127505
                                                                                                            2-WAY UNION
                                                                                                            - Valid for F.E.
                                                                                                            from £8.38
                                                                                                            from £8.38
                                                                                                            # 061
                                                                                                            MPN: 10441490
                                                                                                            CLAMP
                                                                                                            - Valid for F.E.
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 062
                                                                                                            MPN: 10977524
                                                                                                            SCREW
                                                                                                            from £0.53
                                                                                                            from £0.53
