ferrari mondial 3.4 t coupe/cabrio front brakes calipers parts diagram

033 - Front Brakes Calipers

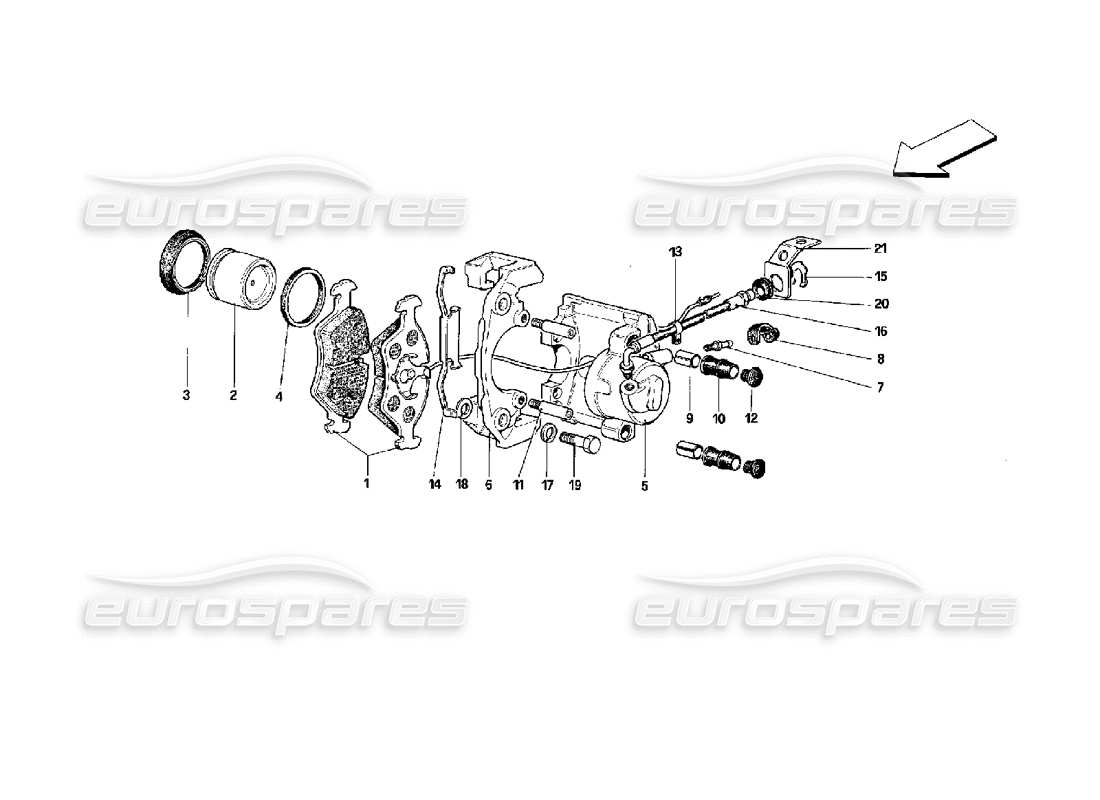

Ferrari Mondial 3.4 t Coupe/Cabrio Front Brakes Calipers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price

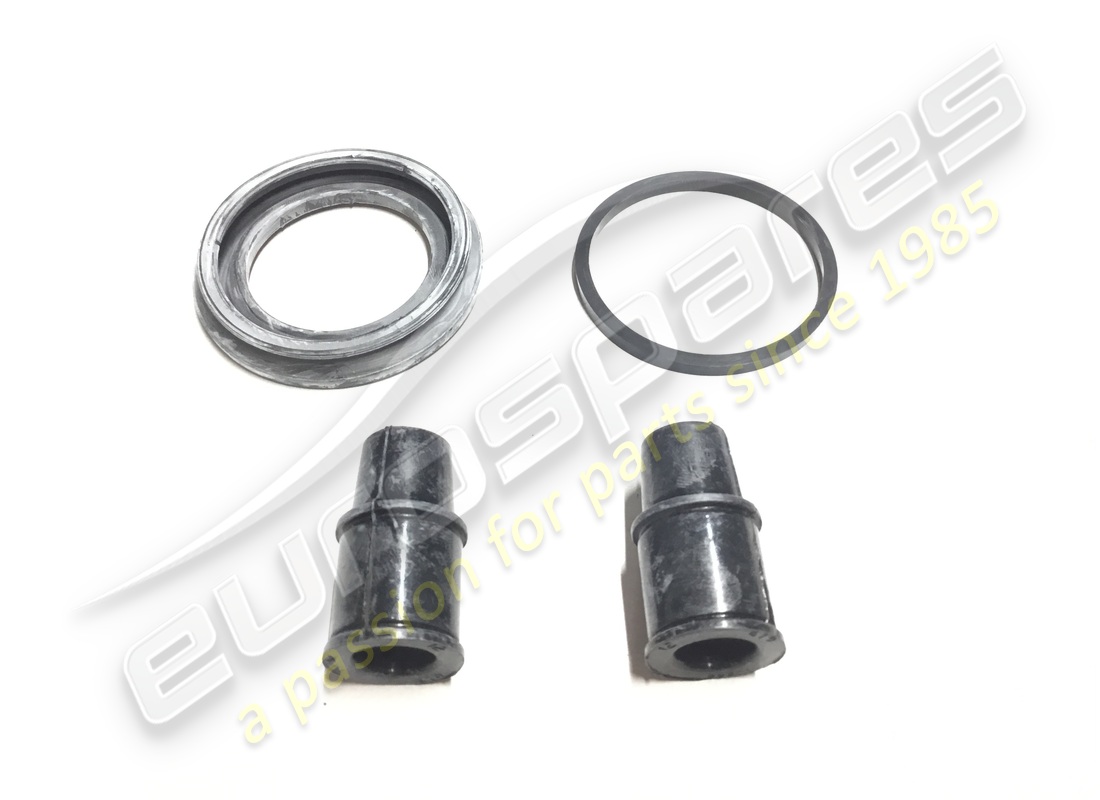

                        # 00
                        MPN: 116928
                        OVERHAUL KIT FOR REAR CALIPERS
                        per caliper
                        from £57.08
                        from £57.08

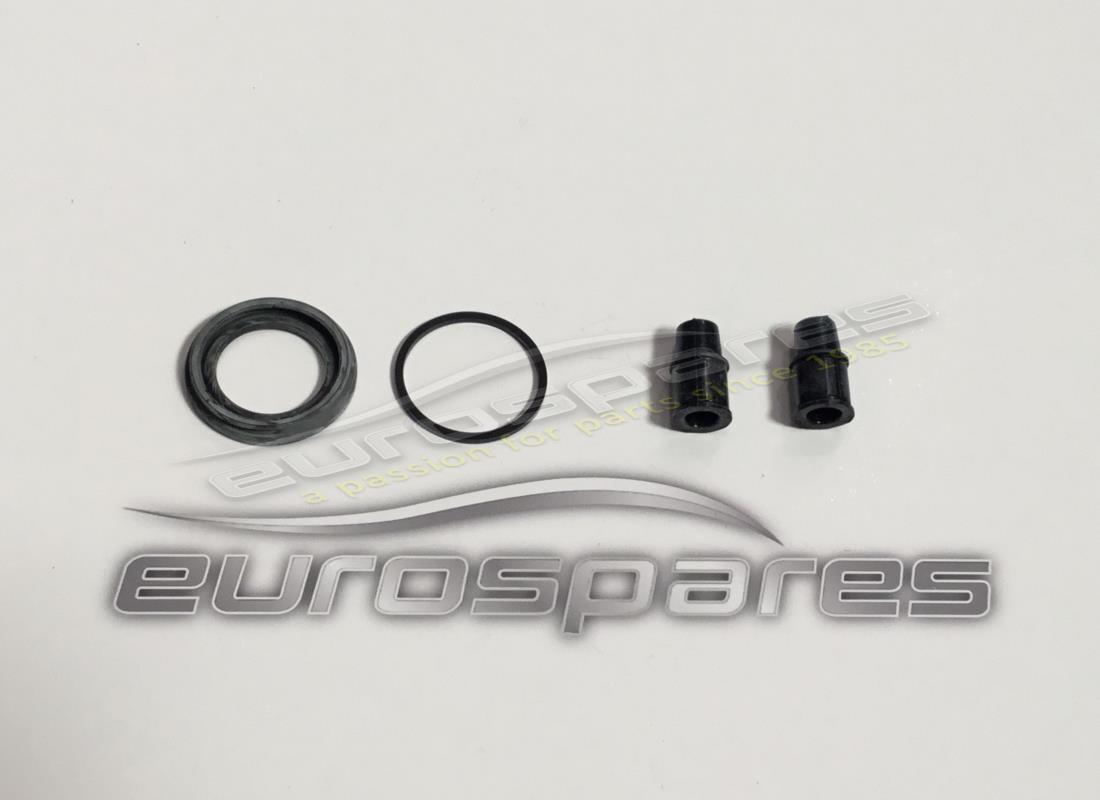

                        # 000
                        MPN: 116927

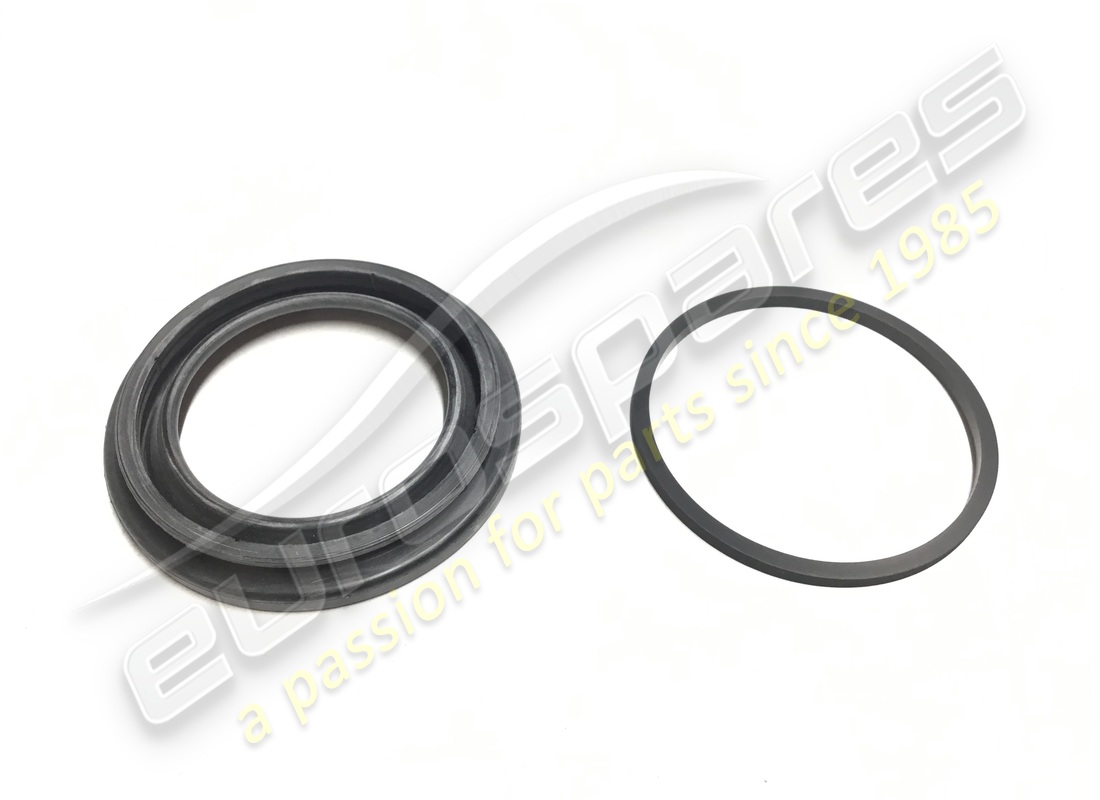

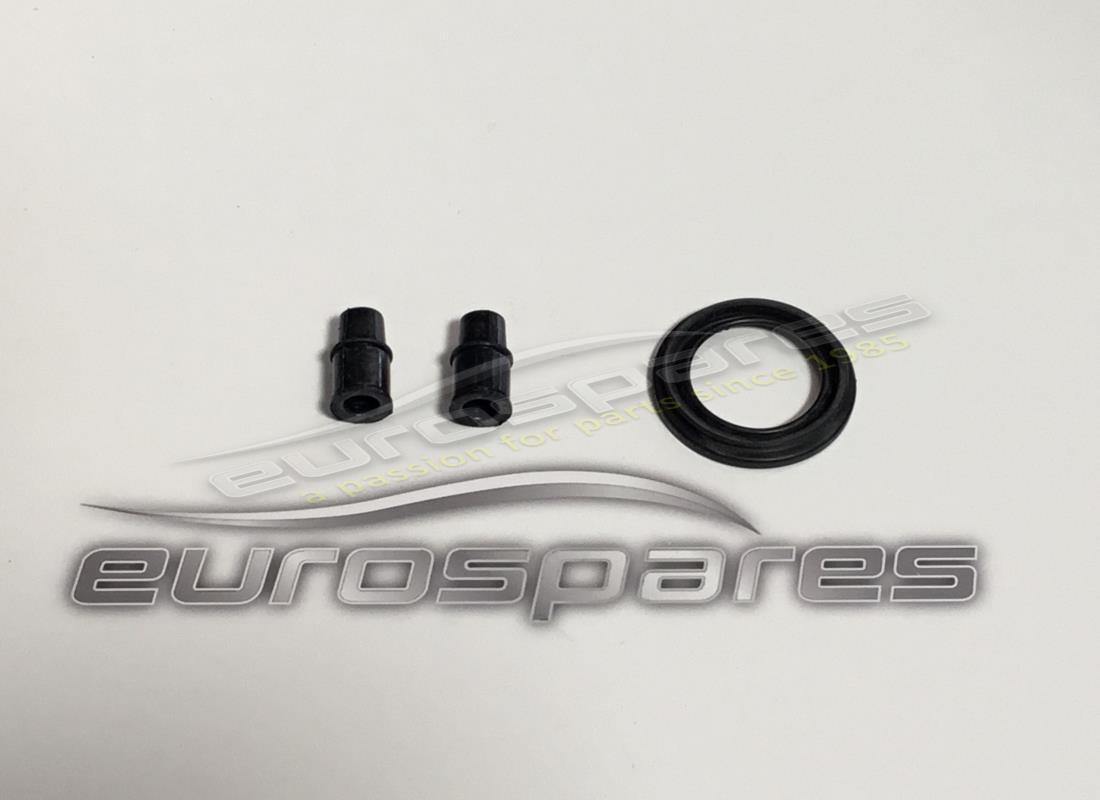

                        OVERHAUL KIT FOR FRONT CALIPERS
                        per caliper
                        from £50.40
                        from £50.40
                        # 000
                        MPN: 136603

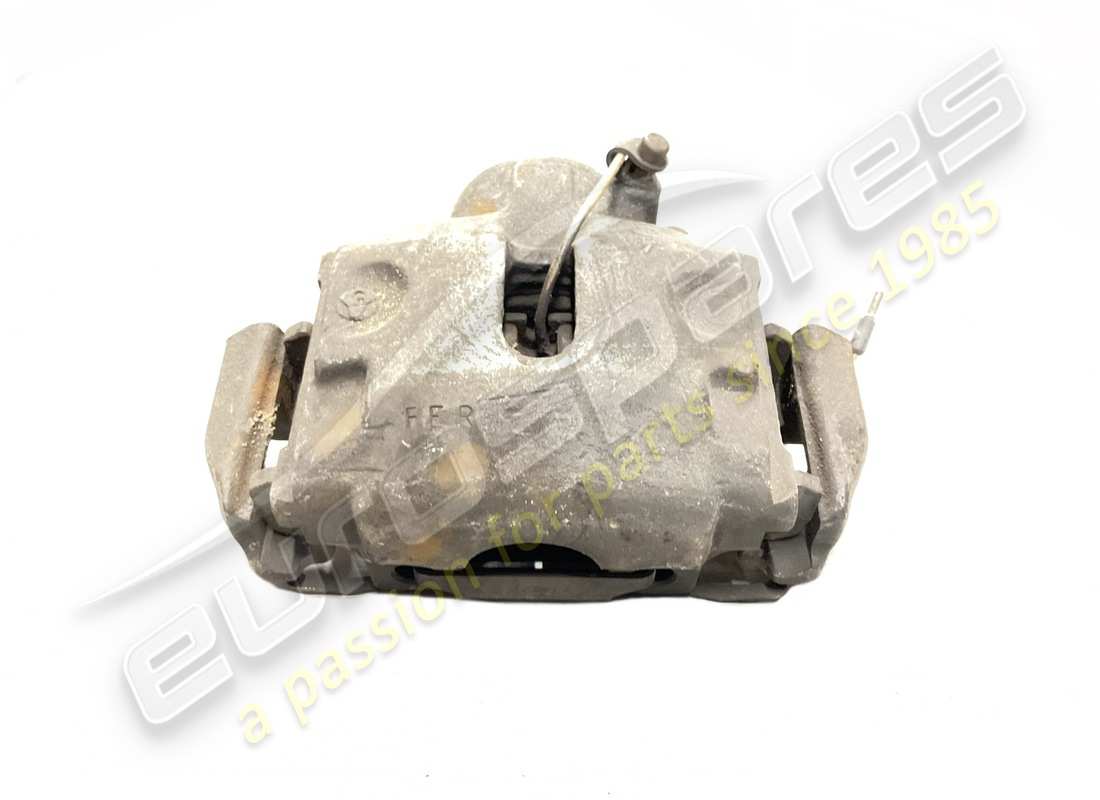

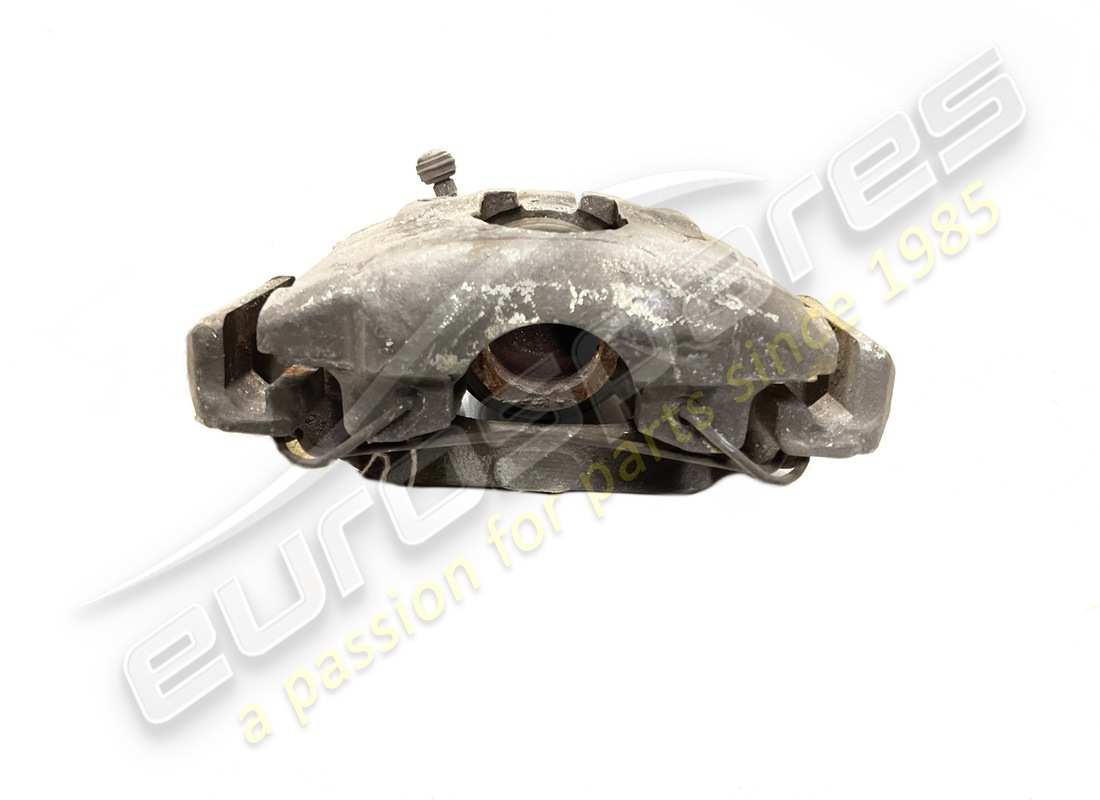

                        RIGHT REAR CALIPER UNIT
                        from £196.81
                        from £196.81
                        This part replaces part number 117184 - and 4 more. Click to view details
                        # 001
                        MPN: 135704
                        FRONT PADS
                        Supersession
                        Supersession
                        # 001
                        MPN: 136600

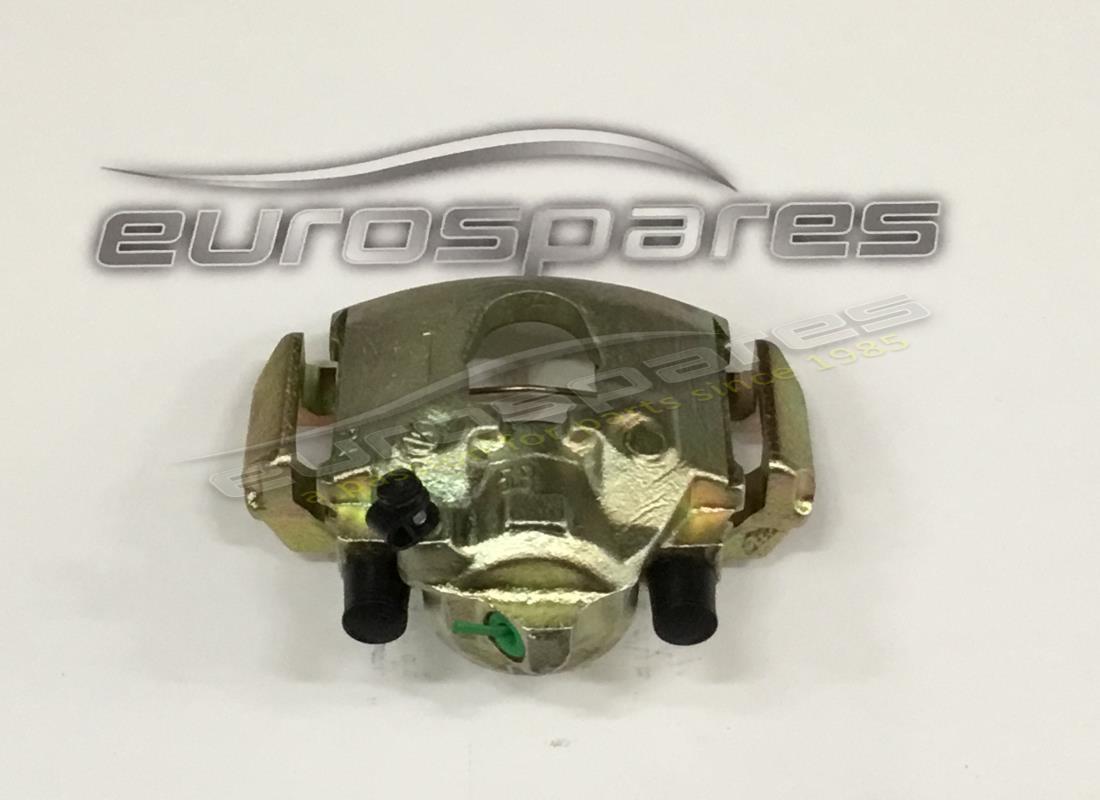

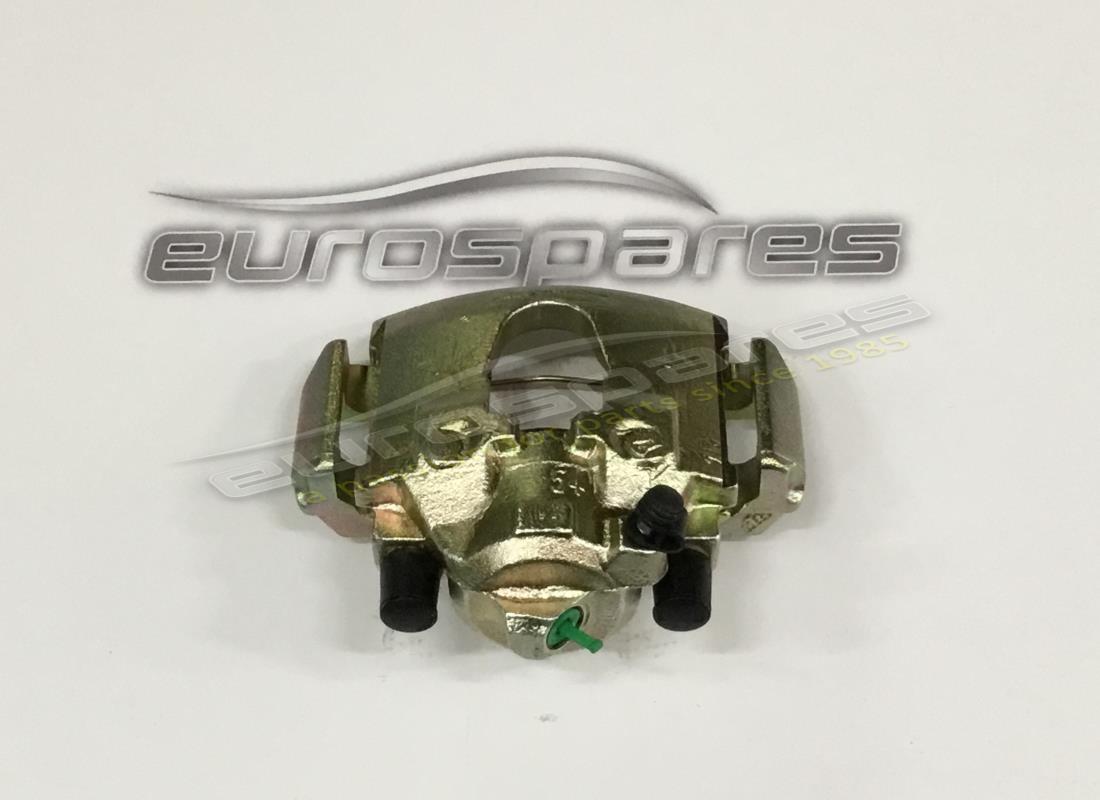

                        RIGHT FRONT CALIPER UNIT
                        from £317.79
                        from £317.79
                        This part replaces part number 117181 - and 2 more. Click to view details
                        # 001
                        MPN: 136601

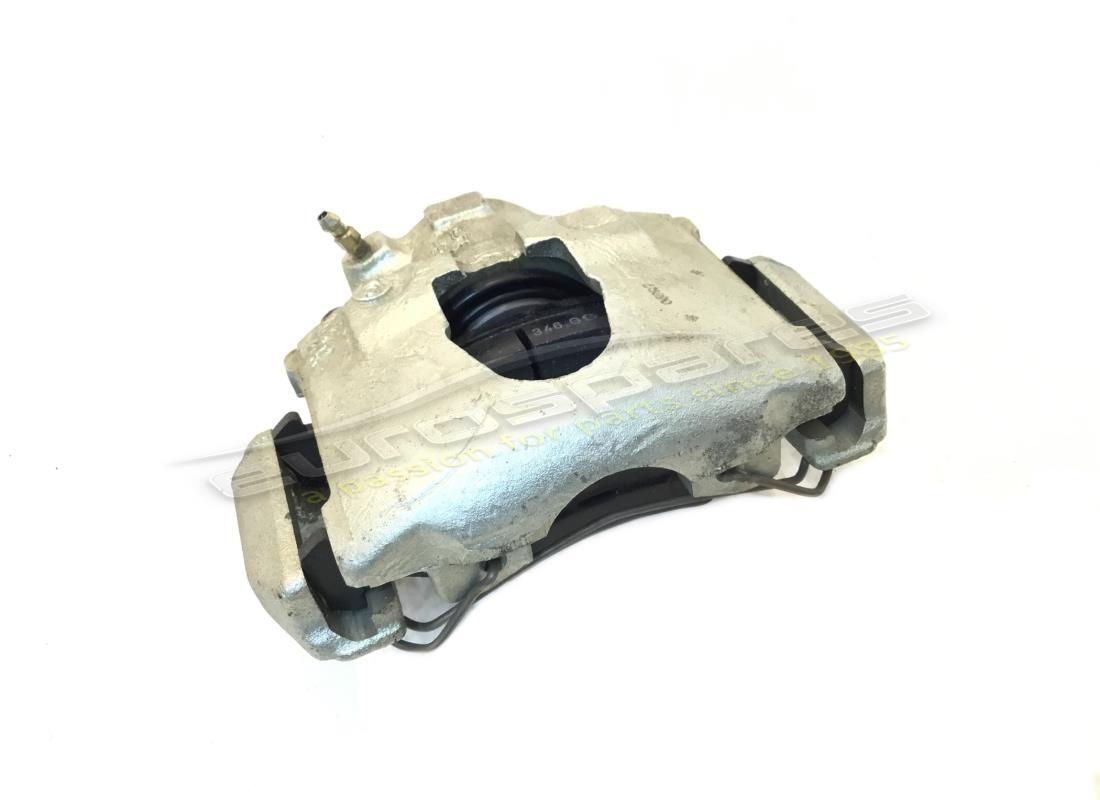

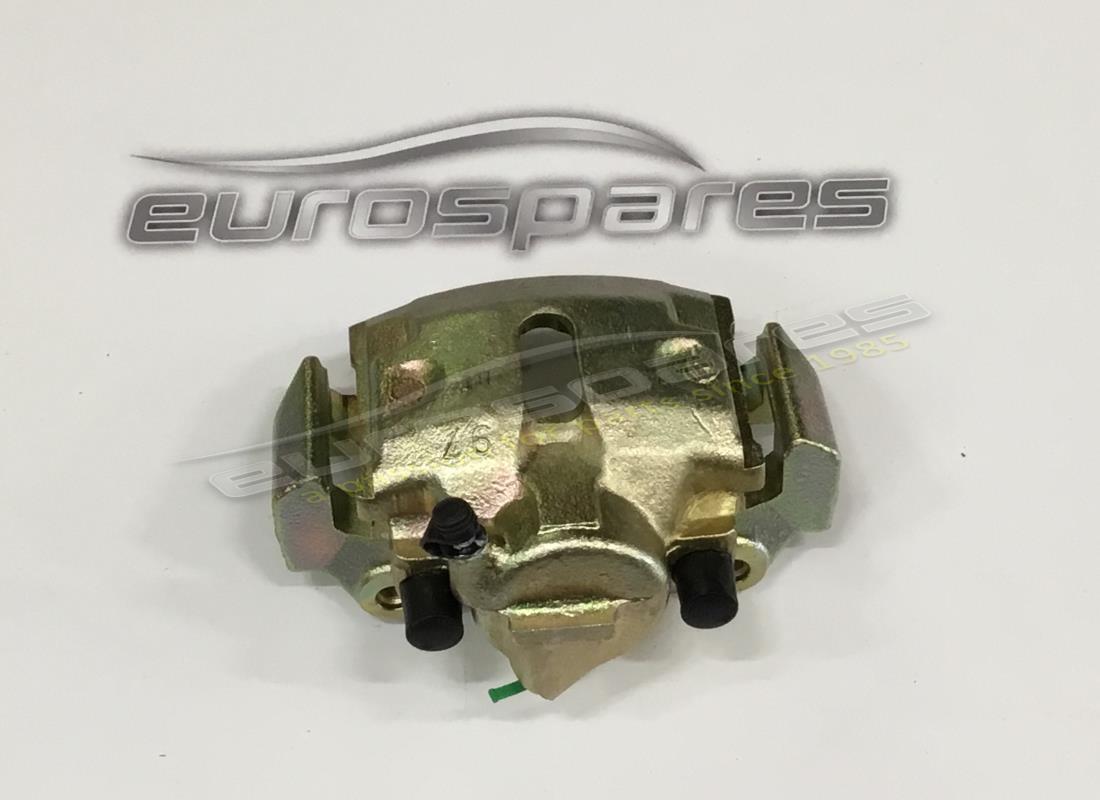

                        LEFT FRONT CALIPER UNIT
                        from £170.72
                        from £170.72
                        This part replaces part number 117182 which we have in stock - and 4 more. Click to view details
                        # 002
                        MPN: ATE
                        BRAKE CYLINDER 136600 AND 136601
                        - With assembly
                        # 003
                        MPN: ATE
                        SEALING RING
                        - With kit no. 116927
                        # 004
                        MPN: ATE
                        STOP RING
                        - With kit no. 116927
                        # 005
                        MPN: ATE
                        CYLINDER BODY
                        - With assembly 136600 and 136601
                        # 006
                        MPN: ATE
                        SUPPORT FOR CALIPER
                        - With assembly 136600 and 136601
                        # 007
                        MPN: ATE
                        BLEEDER
                        - With assembly 136600 and 136601
                        # 008
                        MPN: ATE
                        BLEEDER CAP
                        - With assembly 136600 and 136601
                        # 009
                        MPN: ATE
                        GUIDE BUSH
                        - With kit no. 116927
                        # 010
                        MPN: ATE
                        DUST PROTECTION RING
                        - With kit no. 116927
                        # 011
                        MPN: 95691540
                        THREADED PIN
                        from £23.48
                        from £23.48
                        # 012
                        MPN: ATE
                        CAP
                        - With kit no. 116927
                        # 013
                        MPN: 14560187
                        CLAMP (CABLE TIE)
                        from £0.47
                        from £0.47
                        This part replaces part number 40135402 which we have in stock
                        # 014
                        MPN: 95691541
                        CLIP FOR CALIPER
                        from £15.96
                        from £15.96
                        # 015
                        MPN: 116374
                        CLAMP FOR HOSE
                        from £1.18
                        from £1.18
                        # 016
                        MPN: 118101
                        FRONT BRAKE HOSE
                        from £135.00
                        from £135.00
                        # 017
                        MPN: 106854
                        WASHER
                        Supersession
                        Supersession
                        # 018
                        MPN: 108922
                        DITTO, THICKNESS 0,7 MM.
                        Supersession
                        Supersession
                        # 018
                        MPN: 156260
                        WASHER BETWEEN CALIPER AND STUB AXLE, 0,2 MM. THICKNESS
                        from £0.64
                        from £0.64
                        This part replaces part number 108918
                        # 018
                        MPN: 156261
                        DITTO, THICKNESS 0,3 MM.
                        from £2.97
                        from £2.97
                        This part replaces part number 108919
                        # 018
                        MPN: 156262
                        DITTO, THICKNESS 0,5 MM.
                        from £0.64
                        from £0.64
                        This part replaces part number 108920
                        # 018
                        MPN: 156263
                        DITTO, THICKNESS 0,6 MM.
                        from £0.65
                        from £0.65
                        This part replaces part number 108921
                        # 018
                        MPN: 156265
                        DITTO, THICKNESS 0,8 MM.
                        from £1.56
                        from £1.56
                        This part replaces part number 108923
                        # 018
                        MPN: 156266
                        DITTO, THICKNESS 1,0 MM.
                        from £0.64
                        from £0.64
                        This part replaces part number 108924
                        # 019
                        MPN: 117193
                        SCREW FIXING CALIPER TO STUB AXLE
                        from £28.94
                        from £28.94
                        # 020
                        MPN: 40134801
                        FAIR-LEAD
                        Supersession
                        Supersession
                        # 021
                        MPN: 118102
                        BRACKET FOR HOSE
                        from £11.76
                        from £11.76
                        # 021
                        MPN: 136602

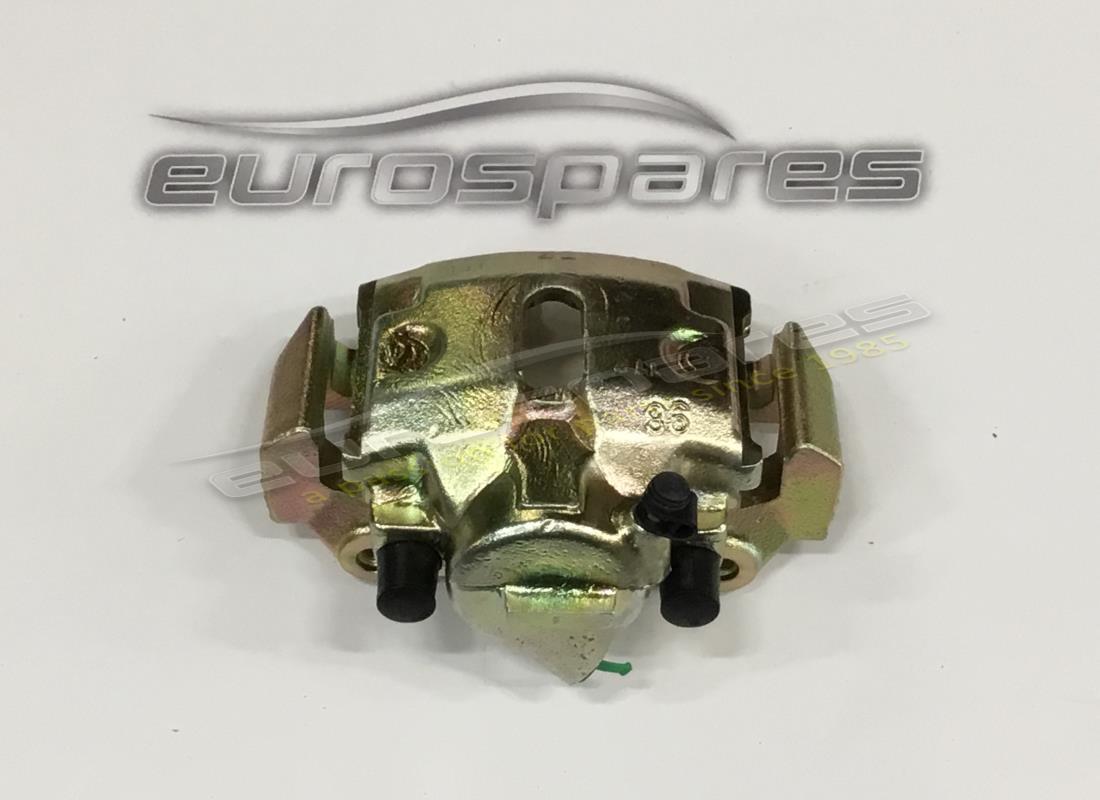

                        LEFT REAR CALIPER UNIT
                        from £178.51
                        from £178.51
                        This part replaces part number 117183 - and 3 more. Click to view details
