ferrari mondial 3.4 t coupe/cabrio calipers for rear brakes parts diagram

033A - Calipers for Rear Brakes

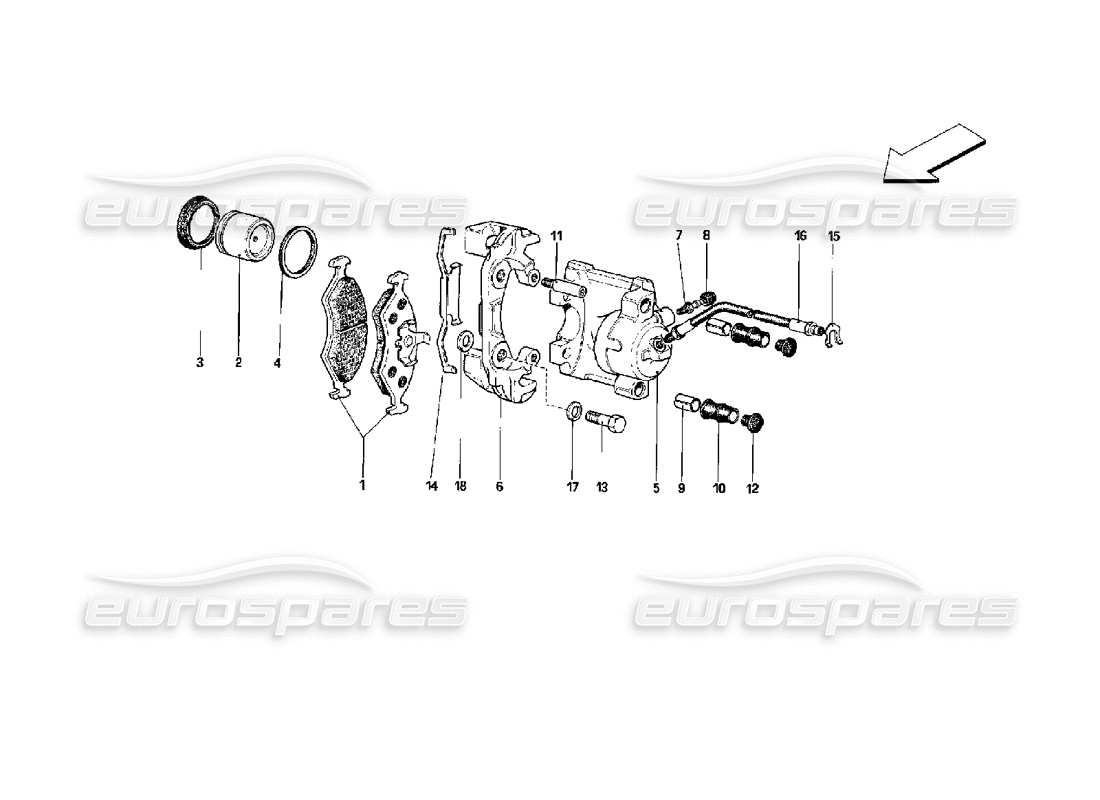

Ferrari Mondial 3.4 t Coupe/Cabrio Calipers for Rear Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 135705
                  REAR BRAKE PADS
                  Supersession
                  Supersession
                  This part replaces part number 118589
                  # 002
                  MPN: ATE
                  BRAKE CYLINDER
                  - With assembly 136602 and 136603
                  # 003
                  MPN: ATE
                  SEALING RING
                  - With kit no. 116928
                  # 004
                  MPN: ATE
                  STOP RING
                  - With kit no. 116928
                  # 005
                  MPN: ATE
                  CYLINDER BODY
                  - With assembly 136602 and 136603
                  # 006
                  MPN: ATE
                  SUPPORT FOR CALIPER
                  - With assembly 136602 and 136603
                  # 007
                  MPN: ATE
                  BLEEDER
                  - With assembly 136602 and 136603
                  # 008
                  MPN: ATE
                  BLEEDER CAP
                  - With assembly 136602 and 136603
                  # 009
                  MPN: ATE
                  GUIDE BUSH
                  - With kit no. 116928
                  # 010
                  MPN: ATE
                  DUST PROTECTION RING
                  - With kit no. 116928
                  # 011
                  MPN: 95691540
                  THREADED PIN
                  from £23.48
                  from £23.48
                  # 012
                  MPN: ATE
                  CAP
                  - With kit no. 116928
                  # 013
                  MPN: 117194
                  CALIPER FIXING SCREW
                  from £14.01
                  from £14.01
                  # 014
                  MPN: 95691542
                  CLIP FOR CALIPER
                  from £7.41
                  from £7.41
                  # 015
                  MPN: 116374
                  CLAMP FOR HOSE
                  from £1.15
                  from £1.15
                  # 016
                  MPN: 271712
                  REAR BRAKE HOSE
                  from £14.76
                  from £14.76
                  This part replaces part number 118100
                  # 017
                  MPN: 11198379
                  WASHER
                  from £0.47
                  from £0.47
                  # 018
                  MPN: 107835
                  DITTO, THICKNESS 1 MM.
                  from £7.82
                  from £7.82
                  # 018
                  MPN: 108283
                  DITTO, THICKNESS 0,4 MM.
                  from £0.79
                  from £0.79
                  # 018
                  MPN: 117084
                  WASHER BETWEEN CALIPER AND HUB HOLDER 0,2 MM. THICKNESS
                  from £0.47
                  from £0.47
                  # 018
                  MPN: 117085
                  DITTO, THICKNESS 0,3 MM.
                  from £0.47
                  from £0.47
                  # 018
                  MPN: 117086
                  DITTO, THICKNESS 0,5 MM.
                  from £0.88
                  from £0.88
