035 - Hydraulic Steering Box and Linkage

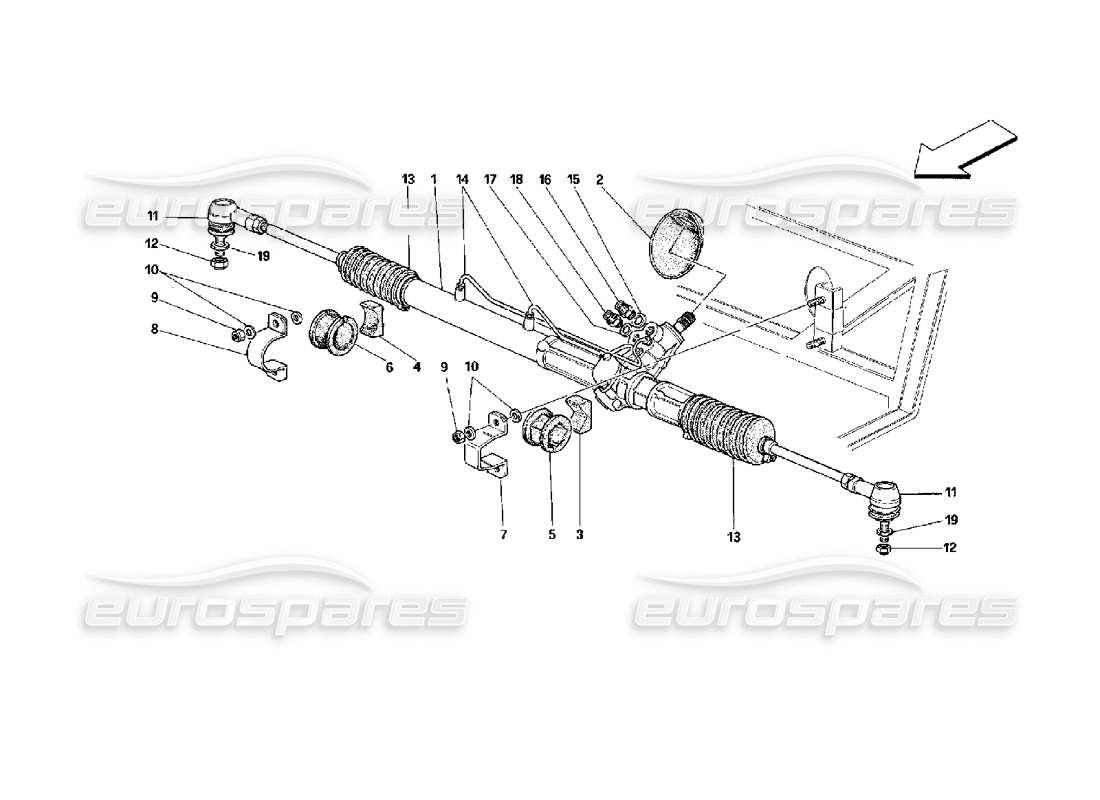

Ferrari Mondial 3.4 t Coupe/Cabrio Hydraulic Steering Box and Linkage Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 146710
SERVOCONTROLLED BOX
- Valid for GD - Valid till stock exhaustion
Supersession
Supersession
This part replaces part number 144685
# 001
MPN: 154913
SERVOCONTROLLED BOX
- Not for GD
from £1,218.96
from £1,218.96
This part replaces part number 146709
# 001
MPN: 154914
SERVOCONTROLLED BOX
- Valid for GD - Valid after stock exhaustion of 146710
from £1,152.56
from £1,152.56
This part replaces part number 138113 - and 3 more. Click to view details
# 002
MPN: 137525
PROTECTION
from £12.84
from £12.84
# 003
MPN: 137531
PILOT SIDE SMALL BLOCK
- Valid from car No. 80585
from £62.49
from £62.49
# 003
MPN: 141436
PILOT SIDE SMALL BLOCK
- Valid till car No. 80551
from £3.47
from £3.47
# 004
MPN: 137532
PASSENGER SIDE SMALL BLOCK
- Valid from car No. 80585
from £3.47
from £3.47
# 004
MPN: 141542
PASSENGER SIDE SMALL BLOCK
- Valid till car No. 80551
from £3.47
from £3.47
# 005
MPN: 137527
PILOT SIDE PAD
from £94.89
from £94.89
# 006
MPN: 137528
PASSENGER SIDE PAD
from £442.28
from £442.28
# 007
MPN: 137529
PILOT SIDE BRACKET
from £49.17
from £49.17
# 008
MPN: 137530
PASSENGER SIDE BRACKET
from £33.85
from £33.85
# 009
MPN: 104030
NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 010
MPN: 117311
WASHER
from £0.47
from £0.47
# 011
MPN: 103592
BALL JOINT
from £21.00
from £21.00
# 012
MPN: 134287
NUT
from £8.40
from £8.40
# 013
MPN: 70000575
BELLOWS REPLACEMENT KIT
Supersession
Supersession
# 014
MPN: 70000576
PIPES REPLACEMENT KIT
from £33.24
from £33.24
# 015
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 016
MPN: 138813
UNION FOR TANK RETURN PIPE
from £27.43
from £27.43
# 017
MPN: 10280060
GASKET
from £0.53
from £0.53
This part replaces part number 100501 - and 3 more. Click to view details
# 018
MPN: 138749
UNION FOR PIPE FROM PUMP
from £58.04
from £58.04
# 019
MPN: 122238
WASHER
from £4.31
from £4.31
