041 - Rear Suspension - Wishbones

Ferrari Mondial 3.4 t Coupe/Cabrio Rear Suspension - Wishbones Parts Diagram

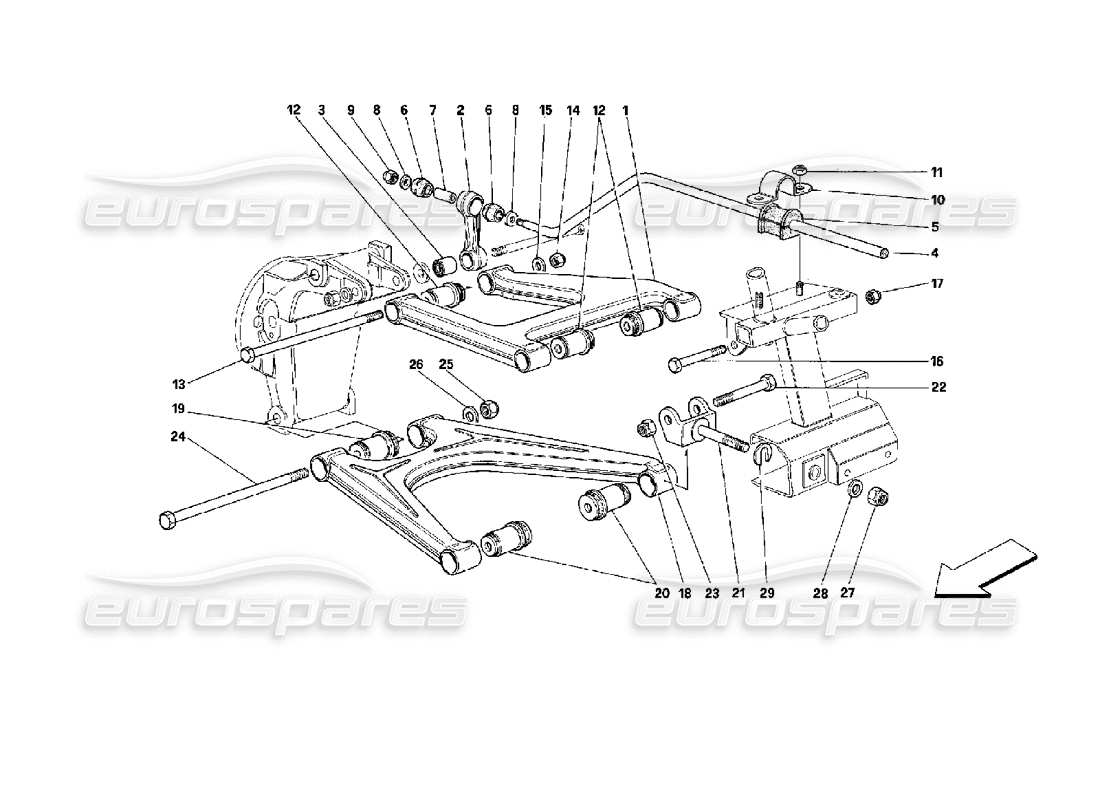

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 131923

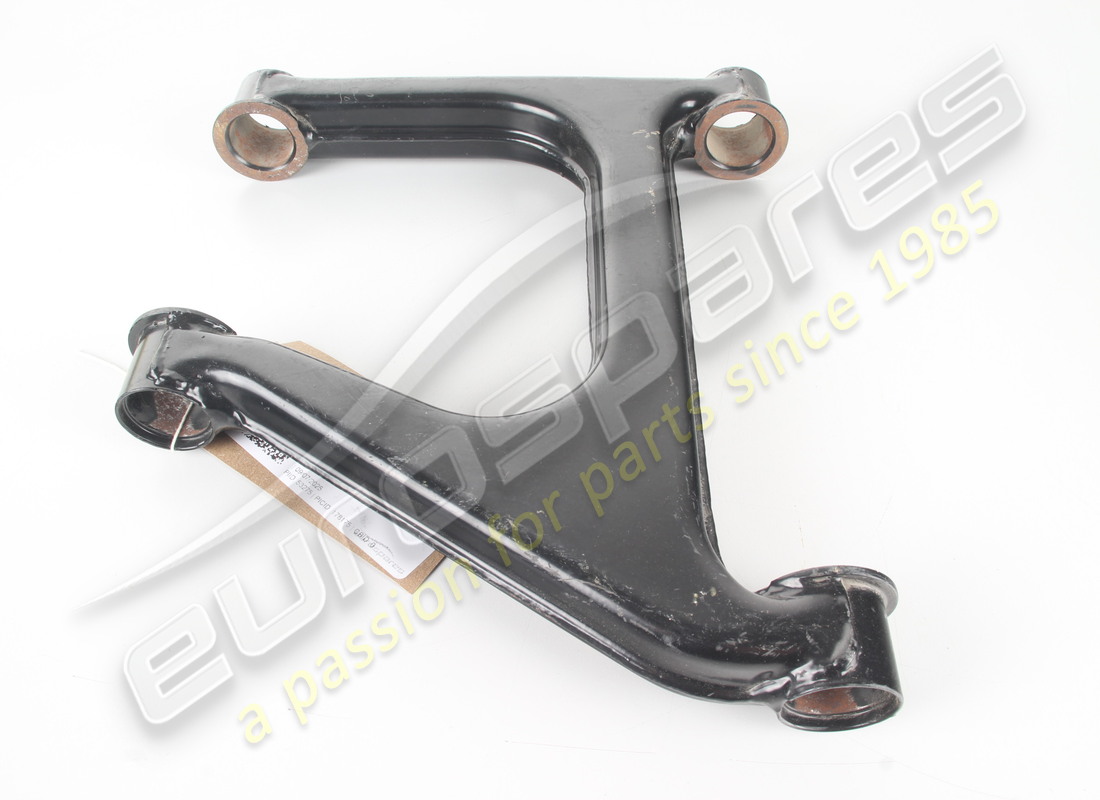

                                                          UPPER LEVER
                                                          from £930.57
                                                          from £930.57
                                                          # 002
                                                          MPN: 108432
                                                          BAR LINK
                                                          from £141.14
                                                          from £141.14
                                                          This part replaces part number 107334 - and 4 more. Click to view details
                                                          # 003
                                                          MPN: 100773
                                                          SILENTBLOCK FOR LINK
                                                          from £19.76
                                                          from £19.76
                                                          This part replaces part number 60220 - and 1 more. Click to view details
                                                          # 004
                                                          MPN: 137878
                                                          STABILIZER BAR
                                                          from £70.98
                                                          from £70.98
                                                          # 005
                                                          MPN: 116381
                                                          BAR PAD
                                                          from £106.21
                                                          from £106.21
                                                          # 006
                                                          MPN: 107335
                                                          RUBBER GROMMET
                                                          from £11.33
                                                          from £11.33
                                                          # 007
                                                          MPN: 108294
                                                          SPACER
                                                          from £45.53
                                                          from £45.53
                                                          This part replaces part number 107336 - and 1 more. Click to view details
                                                          # 008
                                                          MPN: 117285
                                                          WASHER
                                                          from £1.07
                                                          from £1.07
                                                          # 009
                                                          MPN: 16104425
                                                          NUT
                                                          Supersession
                                                          Supersession
                                                          This part replaces part number 16104421
                                                          # 011
                                                          MPN: 104030
                                                          SELF LOCKING NUT
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 16104125

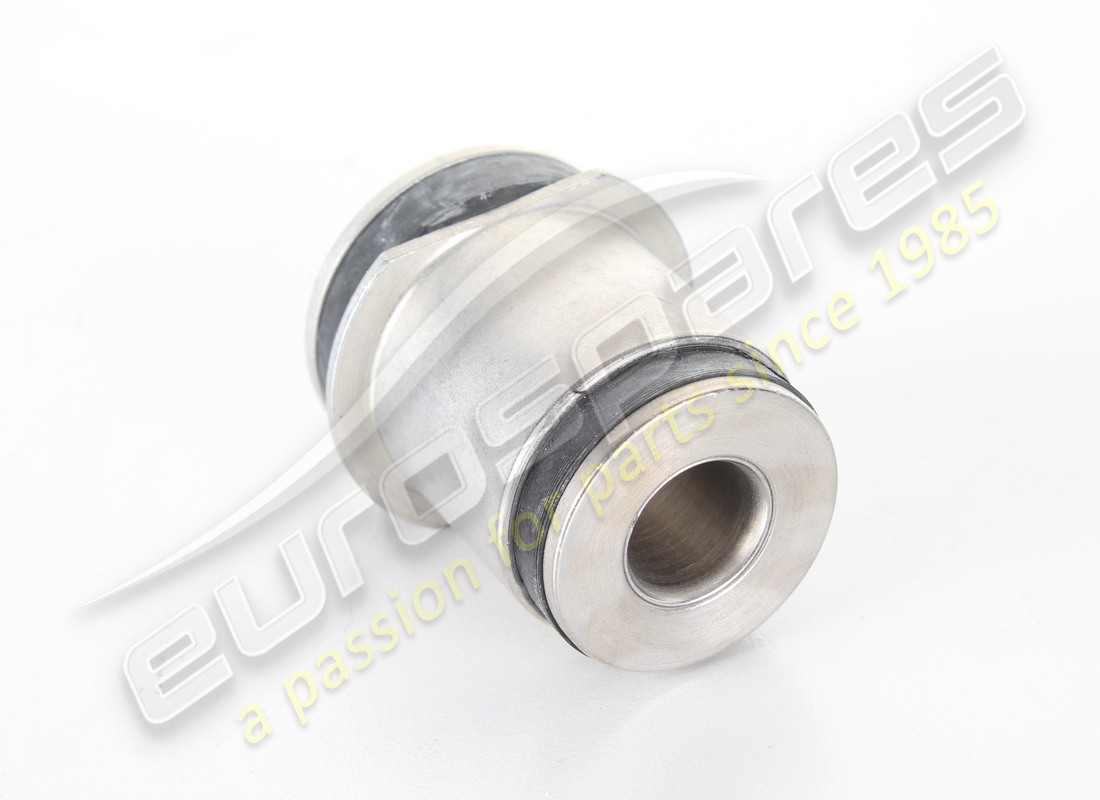

                                                          # 012
                                                          MPN: 154537
                                                          UPPER LEVER FLAMBLOCK
                                                          USE : 163038/154536
                                                          from £26.82
                                                          from £26.82
                                                          This part replaces part number 104398 - and 1 more. Click to view details
                                                          # 013
                                                          MPN: 128904
                                                          SCREW
                                                          from £15.87
                                                          from £15.87
                                                          # 014
                                                          MPN: 16105125
                                                          NUT
                                                          Supersession
                                                          Supersession
                                                          # 015
                                                          MPN: 106616
                                                          WASHER
                                                          from £0.78
                                                          from £0.78
                                                          # 016
                                                          MPN: 106419
                                                          SCREW
                                                          from £10.91
                                                          from £10.91
                                                          This part replaces part number 100808 - and 9 more. Click to view details
                                                          # 017
                                                          MPN: 16105125
                                                          NUT
                                                          Supersession
                                                          Supersession

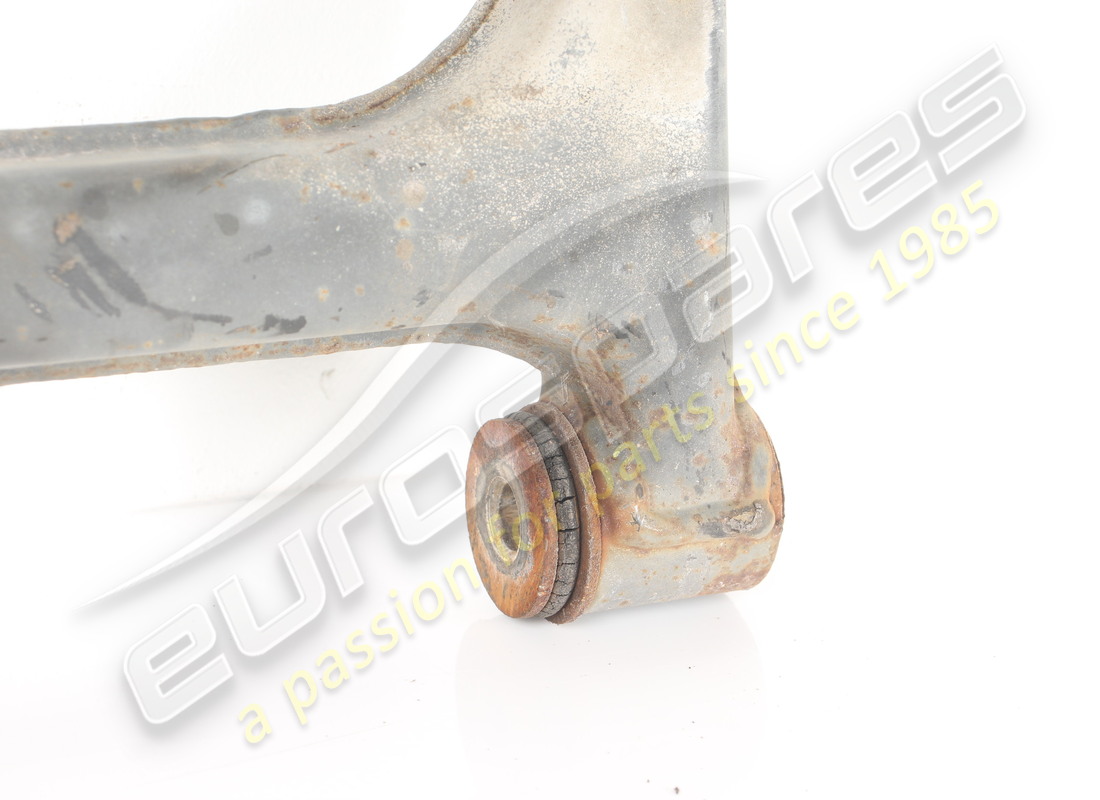

                                                          # 018
                                                          MPN: 136186
                                                          LOWER LEVER
                                                          from £240.61
                                                          from £240.61

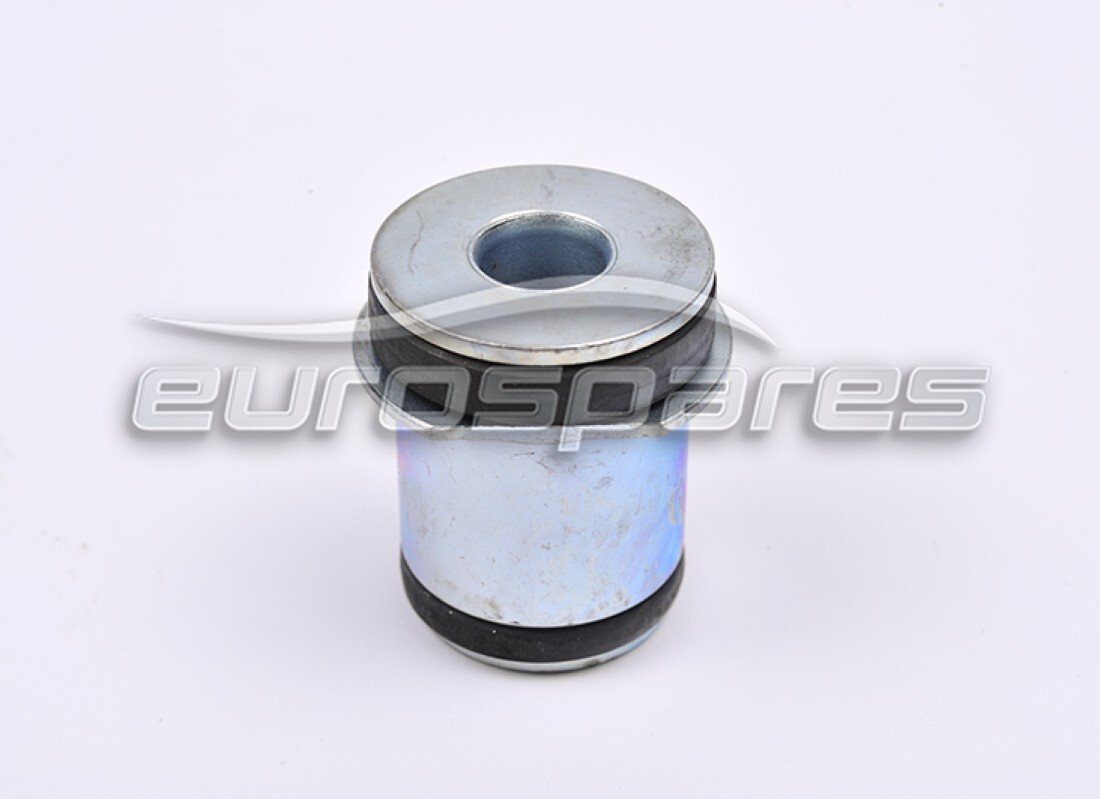

                                                          # 019
                                                          MPN: 154538
                                                          LOWER LEVER FLAMBLOCK CONNECTION TO HUBHOLDER
                                                          from £53.40
                                                          from £53.40
                                                          This part replaces part number 120813 which we have in stock

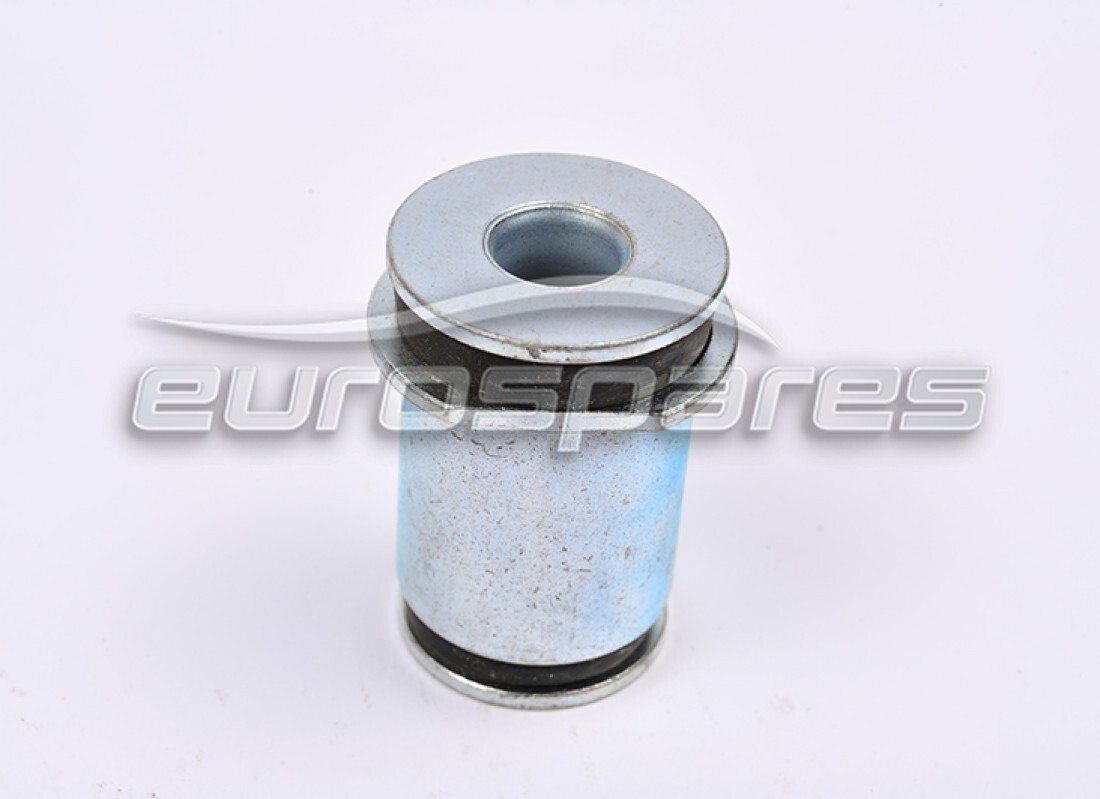

                                                          # 020
                                                          MPN: 154539
                                                          LOWER LEVER FLAMBLOCK CONNECTION TO FRAME
                                                          from £54.51
                                                          from £54.51

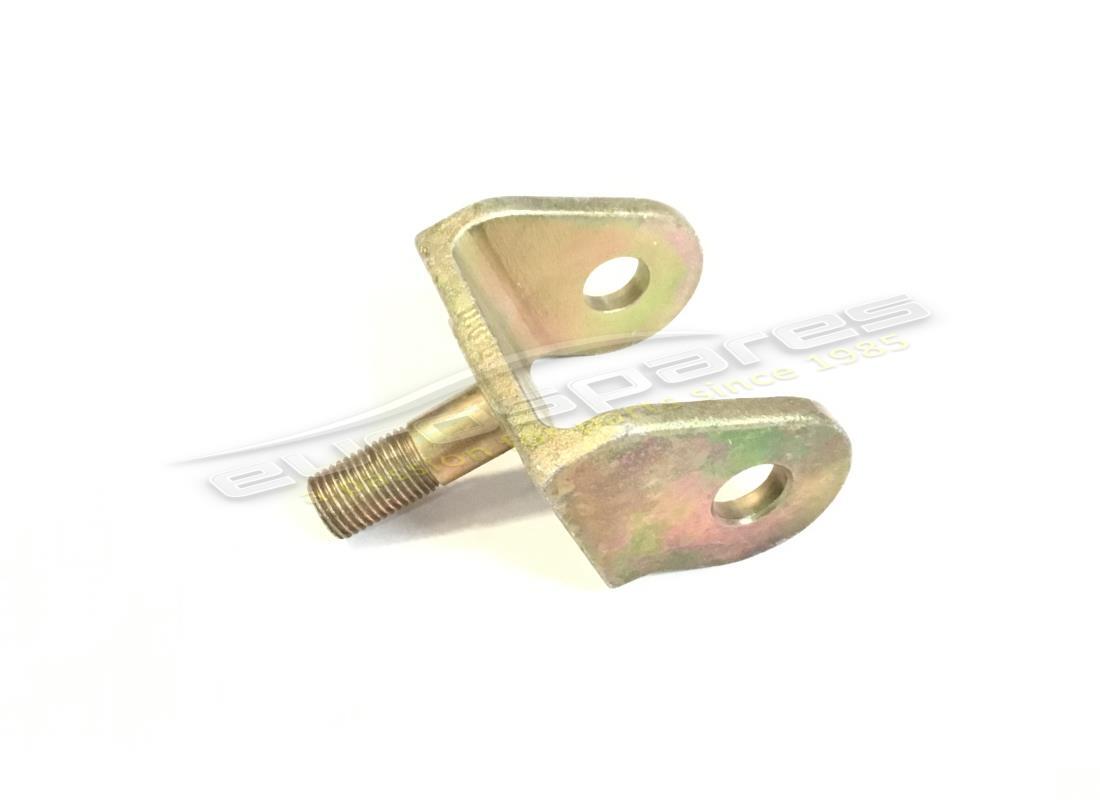

                                                          # 021
                                                          MPN: 136189
                                                          LOWER FORK - ROD MM 38
                                                          from £55.98
                                                          from £55.98

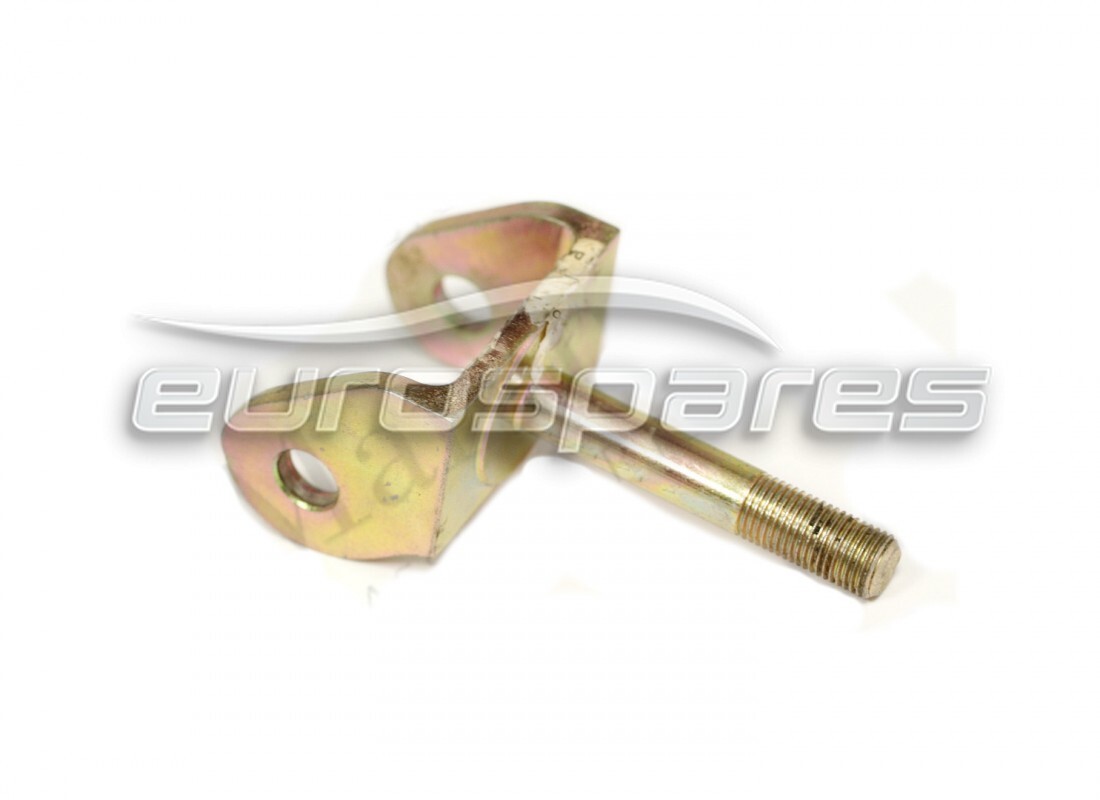

                                                          # 021
                                                          MPN: 159399
                                                          LOWER FORK
                                                          from £202.65
                                                          from £202.65
                                                          This part replaces part number 100784 - and 3 more. Click to view details
                                                          # 022
                                                          MPN: 106422
                                                          SCREW
                                                          from £8.37
                                                          from £8.37
                                                          # 023
                                                          MPN: 150238
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12575821 - and 2 more. Click to view details
                                                          # 024
                                                          MPN: 136218
                                                          SCREW
                                                          from £9.61
                                                          from £9.61
                                                          # 025
                                                          MPN: 150238
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12575821 - and 2 more. Click to view details
                                                          # 026
                                                          MPN: 105434
                                                          WASHER
                                                          from £20.28
                                                          from £20.28
                                                          # 027
                                                          MPN: 150238
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12575821 - and 2 more. Click to view details
                                                          # 028
                                                          MPN: 103024
                                                          WASHER
                                                          from £1.99
                                                          from £1.99
                                                          # 029
                                                          MPN: 101039
                                                          THRUST WASHER - THICK. MM 1
                                                          from £1.78
                                                          from £1.78
                                                          This part replaces part number 107025 - and 1 more. Click to view details
                                                          # 029
                                                          MPN: 107338
                                                          THRUST WASHER - THICK. MM 1,5
                                                          from £13.05
                                                          from £13.05
                                                          This part replaces part number 107418
                                                          # 029
                                                          MPN: 107339
                                                          THRUST WASHER - THICK. MM 2
                                                          from £1.18
                                                          from £1.18
                                                          This part replaces part number 107419
                                                          # 029
                                                          MPN: 107340
                                                          THRUST WASHER - THICK. MM 2,5
                                                          from £1.11
                                                          from £1.11
                                                          This part replaces part number 107420
                                                          # 029
                                                          MPN: 107341
                                                          THRUST WASHER - THICK. MM 3
                                                          from £2.84
                                                          from £2.84
                                                          This part replaces part number 107421
                                                          # 029
                                                          MPN: 107342
                                                          THRUST WASHER - THICK. MM 3,25
                                                          from £0.48
                                                          from £0.48
                                                          This part replaces part number 107422
