042 - Wheels

Ferrari Mondial 3.4 t Coupe/Cabrio Wheels Parts Diagram

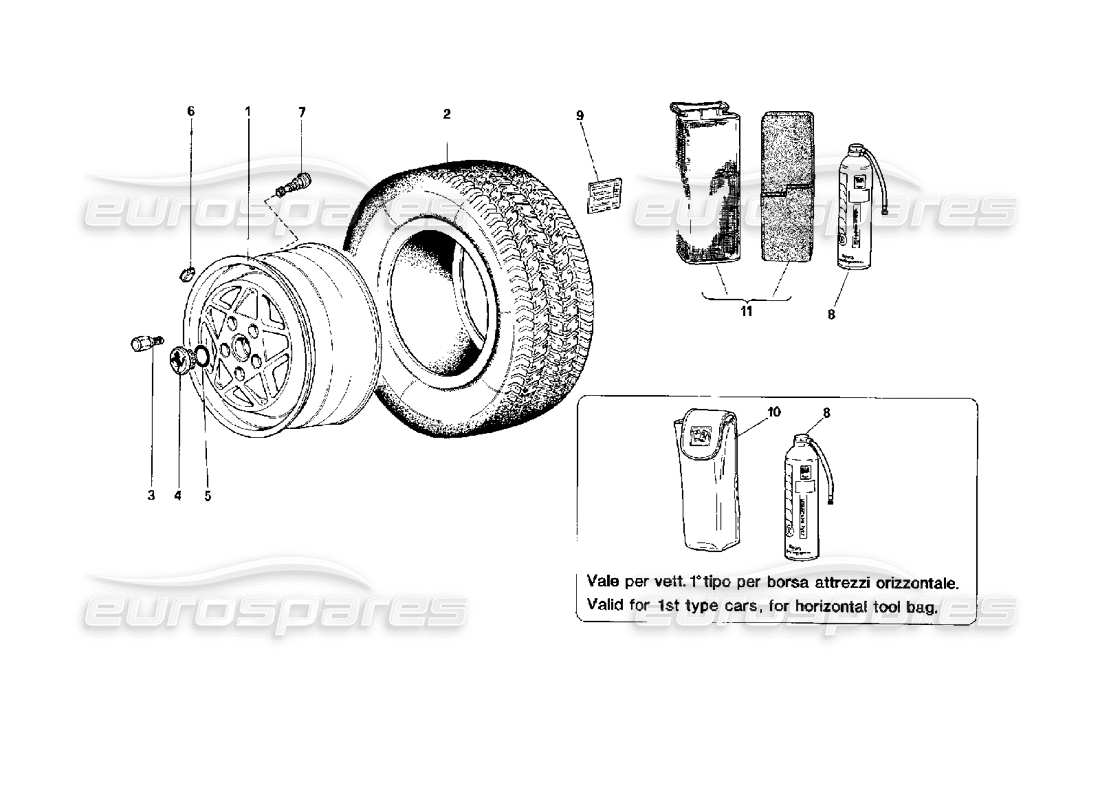

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 137087

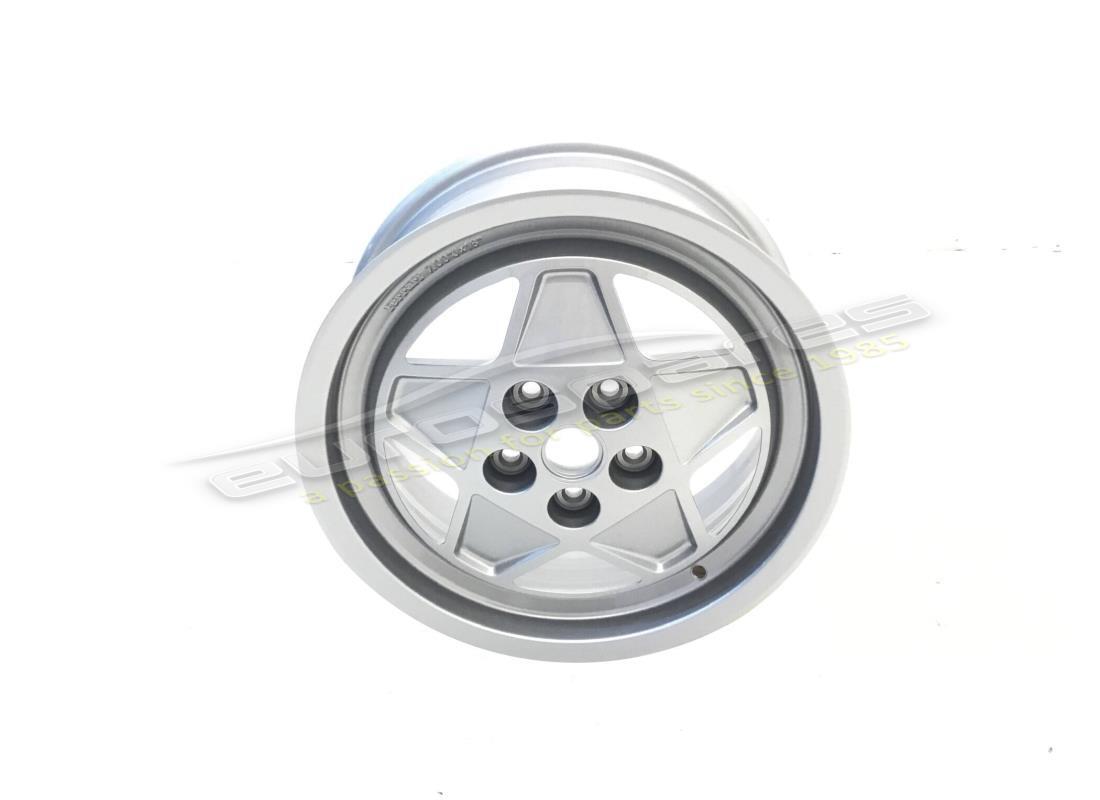

            REAR WHEEL 8X 16
            from £1,183.77
            from £1,183.77
            # 001
            MPN: 138857
            RIM FOR FRONT WHEEL 7J X 16
            from £682.50
            from £682.50
            # 002
            MPN: 129866
            FRONT TIRE - GOODYEAR EAGLE 205/55 ZR16
            # 002
            MPN: 129867
            REAR TIRE - GOODYEAR EAGLE 225/55 ZR16
            from £257.44
            from £257.44
            # 002
            MPN: 137140
            FRONT TIRE - MICHELIN MXX 205/55 ZR16
            - Not for AUS and J
            This part replaces part number 133224
            # 002
            MPN: 137141
            REAR TIRE - MICHELIN MXX 225/55 ZR 16
            - Not for AUS and J
            # 002
            MPN: 145438
            REAR TIRE - PIRELLI 205/55 ZR 16
            - Not for USA
            from £207.09
            from £207.09
            # 002
            MPN: 145439
            REAR TIRE - PIRELLI 225/55 ZR 16
            - Not for USA
            from £239.34
            from £239.34
            # 002
            MPN: 145674
            REAR TIRE - BRIDGESTONE 205/55 ZR16
            - Not for USA, AUS and J
            from £364.80
            from £364.80
            # 002
            MPN: 145675
            REAR TIRE - BRIDGESTONE 225/55 ZR16
            - Not for USA, AUS and J
            from £389.85
            from £389.85
            # 003
            MPN: 120503

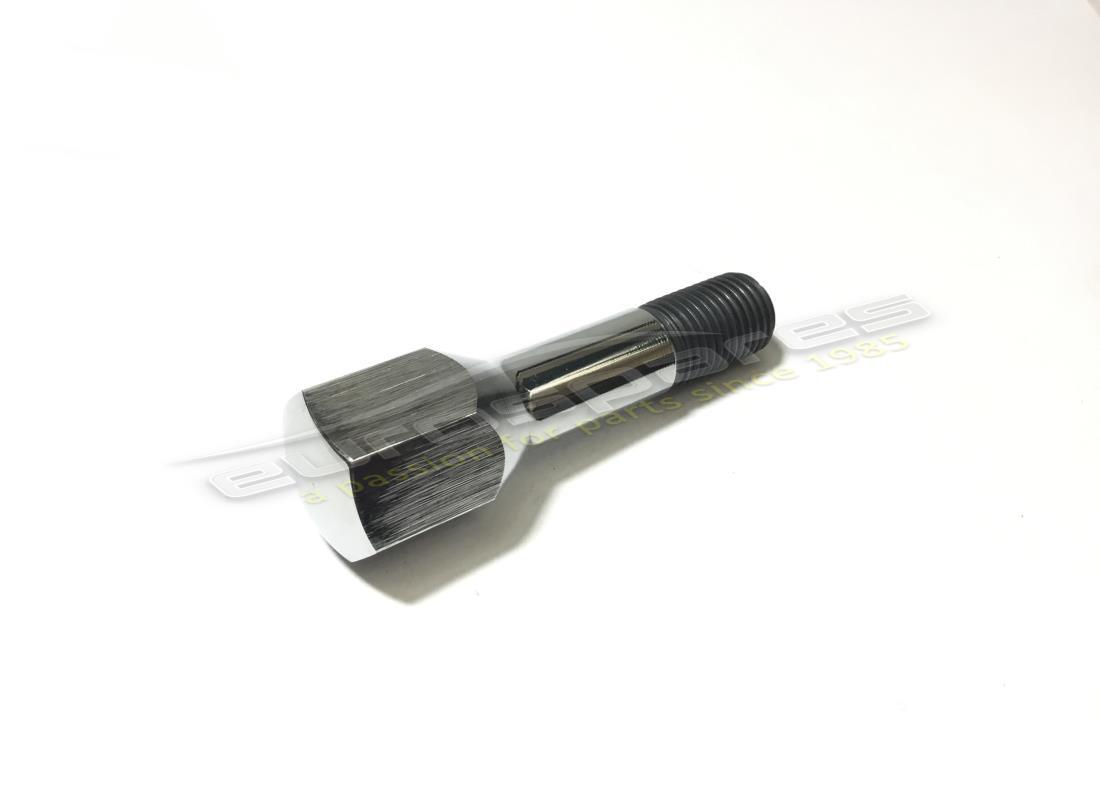

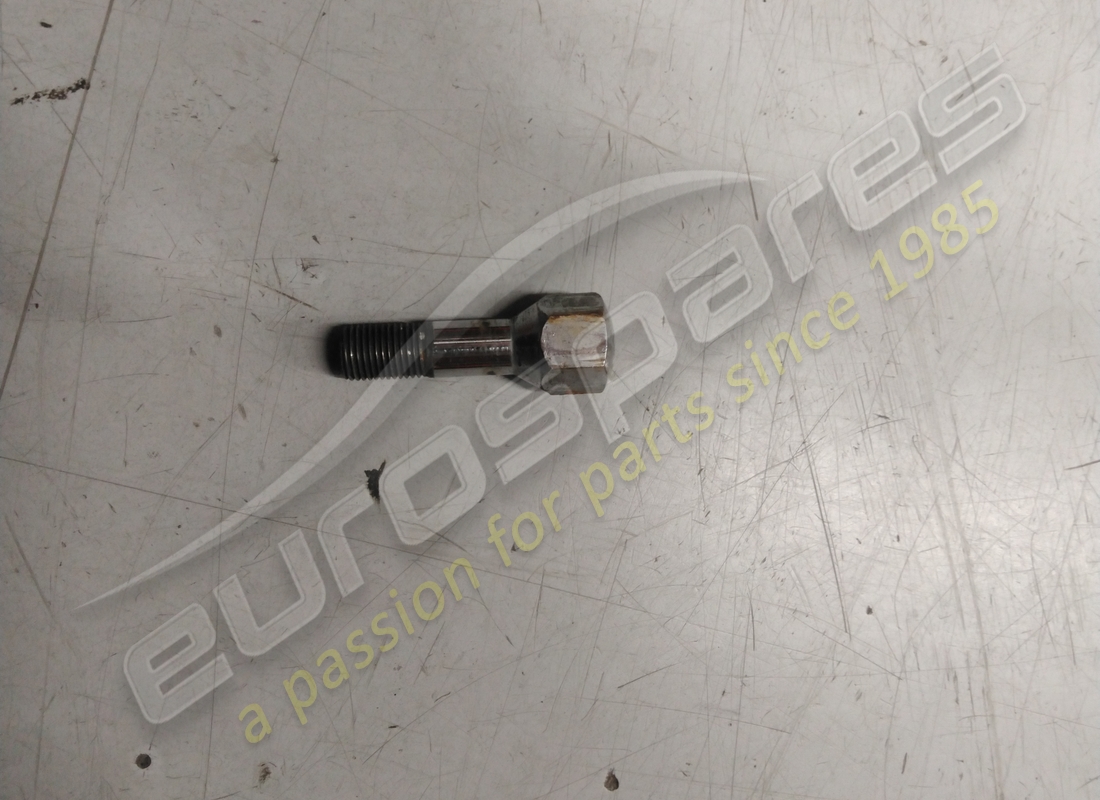

            WHEELS FASTENING COLUMN
            from £19.95
            from £19.95
            # 004
            MPN: 340066
            WHEEL BADGE
            Use on exhasution of 226245 (darker yellow - suggested to replace in sets)
            from £5.26
            from £5.26
            This part replaces part number 226245 - and 2 more. Click to view details
            # 005
            MPN: 120065
            SEAL RING
            from £0.82
            from £0.82
            # 006
            MPN: 140966
            COUNTERWEIGHT
            Supersession
            Supersession
            # 007
            MPN: 174166
            VALVE
            from £5.20
            from £5.20
            This part replaces part number 105069 - and 1 more. Click to view details
            # 007
            MPN: 70002212
            VALVE CAP KIT
            (includes 4x Ferrari logo chromium valve caps)
            from £42.90
            from £42.90
            # 008
            MPN: 152367
            TYRE REPAIR CYLINDER BOTTLE
            (UK shipment only or Collection)
            from £495.42
            from £495.42
            This part replaces part number 171576 - and 1 more. Click to view details
            # 009
            MPN: 140981

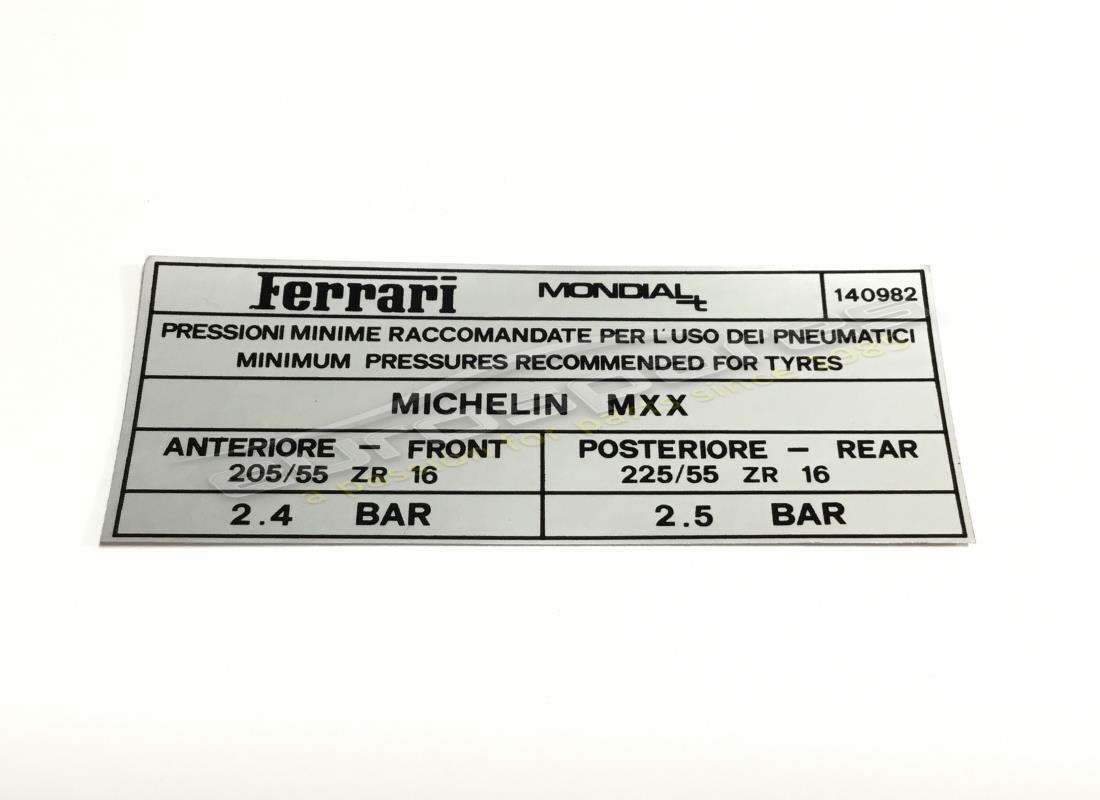

            TYRE PRESSURE PLATE - GOODYEAR
            - Not for USA and AUS
            from £3.35
            from £3.35
            # 009
            MPN: 140982

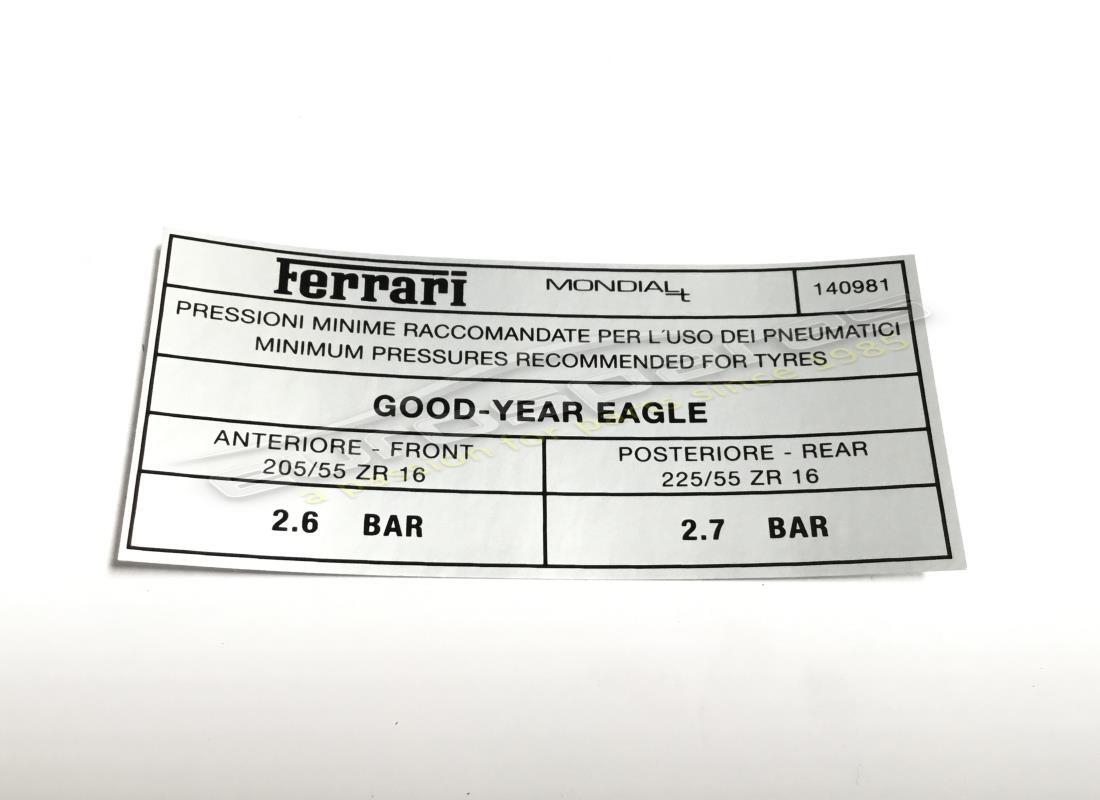

            TYRE PRESSURE PLATE - GOODYEAR
            - Not for USA, AUS and J
            from £2.48
            from £2.48
            # 009
            MPN: 143086
            TYRE PRESSURE PLATE - GOODYEAR
            - Valid for USA
            from £2.99
            from £2.99
            # 009
            MPN: 145393

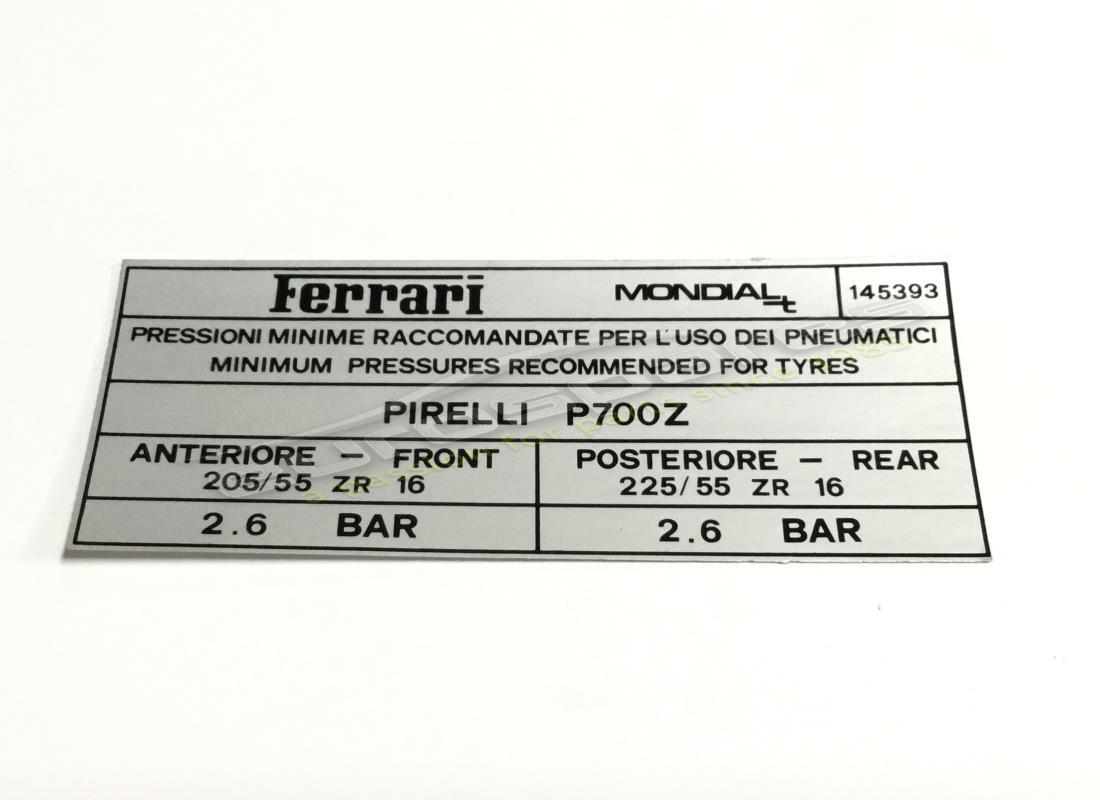

            TYRE PRESSURE PLATE - PIRELLI
            - Not for USA and AUS
            from £2.48
            from £2.48
            # 009
            MPN: 145676

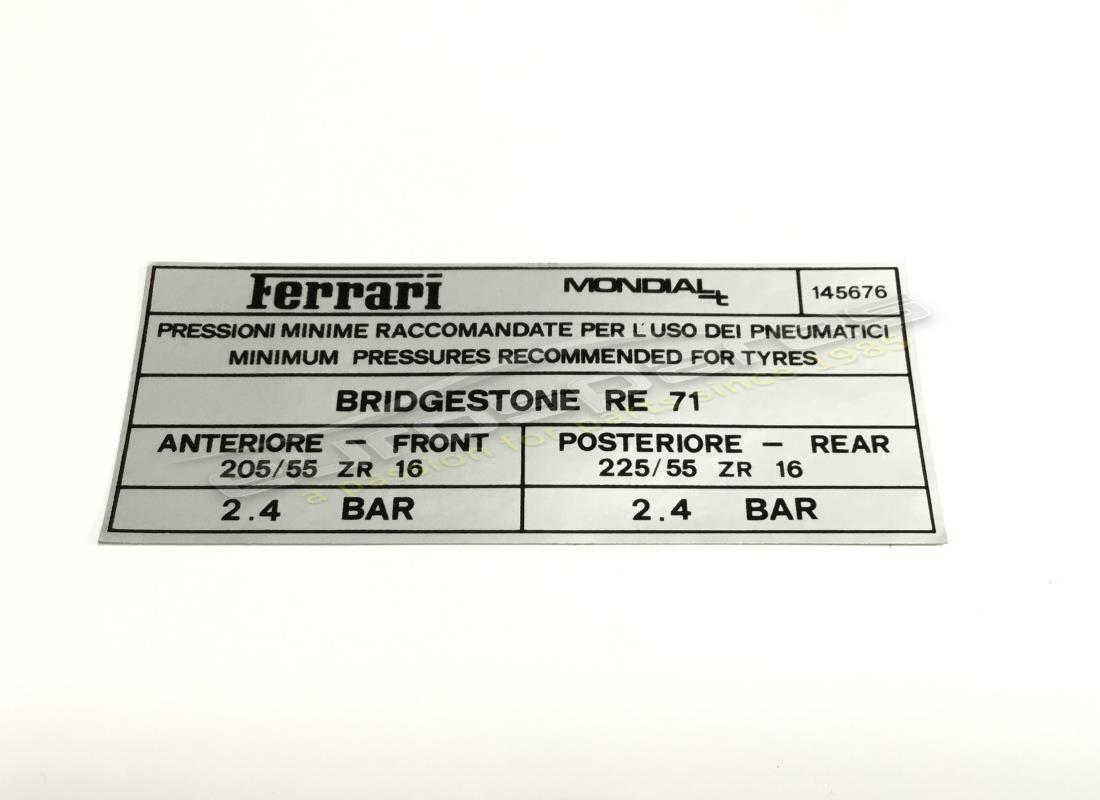

            TYRE PRESSURE PLATE - BRIDGESTONE
            - Not for USA, AUS and J
            from £4.09
            from £4.09
            # 009
            MPN: 147253
            TYRE PRESSURE PLATE - PIRELLI
            - Valid for AUS
            from £26.68
            from £26.68
            # 009
            MPN: 147270
            TYRE PRESSURE PLATE - GOODYEAR
            - Valid for AUS
            from £6.07
            from £6.07
            # 009
            MPN: 148115
            TYRE PRESSURE PLATE - MICHELIN
            - Valid for USA
            from £26.68
            from £26.68
            # 010
            MPN: 145492
            TYRE REPAIR KIT
            Supersession
            Supersession
            # 011
            MPN: 145506
            BOMB PORTFOLIO
            - Valid for vertical tool kit
            from £595.00
            from £595.00
