ferrari mondial 3.4 t coupe/cabrio air conditioning compressor parts diagram

044 - AIR CONDITIONING COMPRESSOR

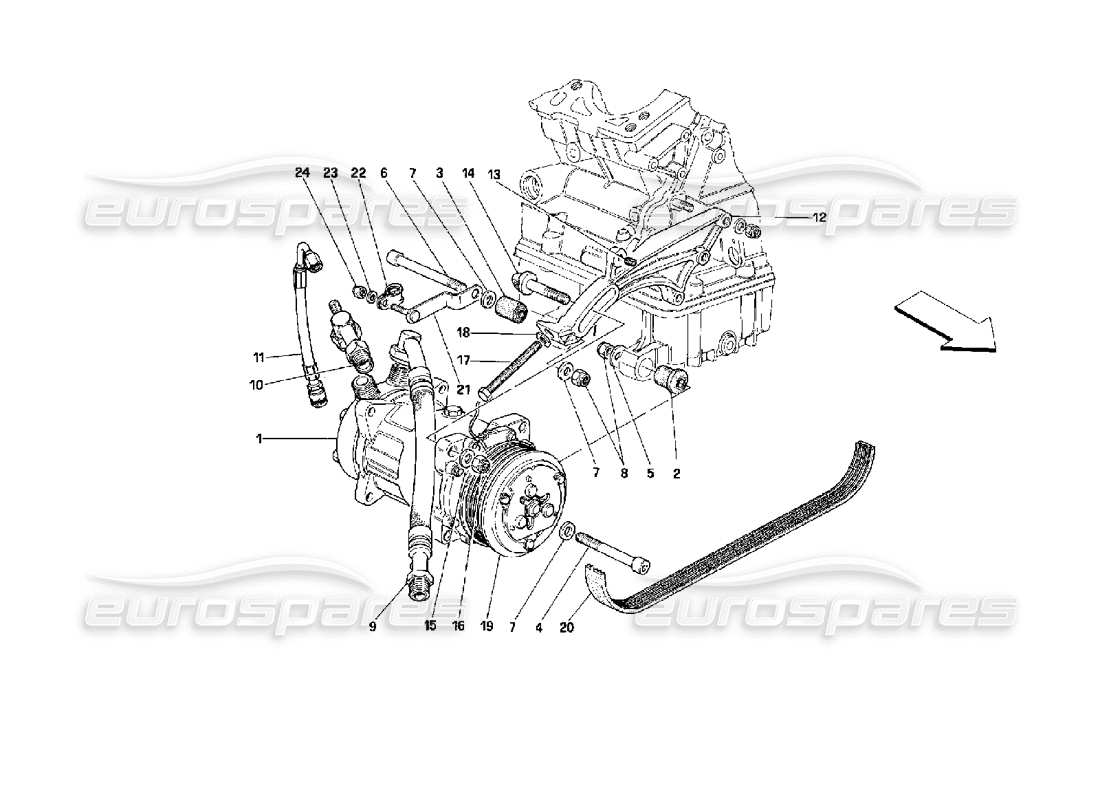

Ferrari Mondial 3.4 t Coupe/Cabrio Air Conditioning Compressor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 157355
                                          COMPRESSOR (SANDEN SD7)
                                          from £650.00
                                          from £650.00
                                          This part replaces part number 146619
                                          # 002
                                          MPN: 137768
                                          ESTENDBLOCK ON FRONT LOWER SUPPORT
                                          from £43.36
                                          from £43.36
                                          # 003
                                          MPN: 135108
                                          ESTENDBLOCK ON REAR LOWER SUPPORT
                                          from £33.60
                                          from £33.60
                                          # 004
                                          MPN: 14308221
                                          FRONT SUPPORT SCREW
                                          from £0.81
                                          from £0.81
                                          # 006
                                          MPN: 14308121
                                          REAR SUPPORT SCREW
                                          from £1.59
                                          from £1.59
                                          # 007
                                          MPN: 12642501
                                          WASHER
                                          Supersession
                                          Supersession
                                          # 008
                                          MPN: 12575625
                                          NUT
                                          Supersession
                                          Supersession
                                          This part replaces part number 121660 - and 2 more. Click to view details

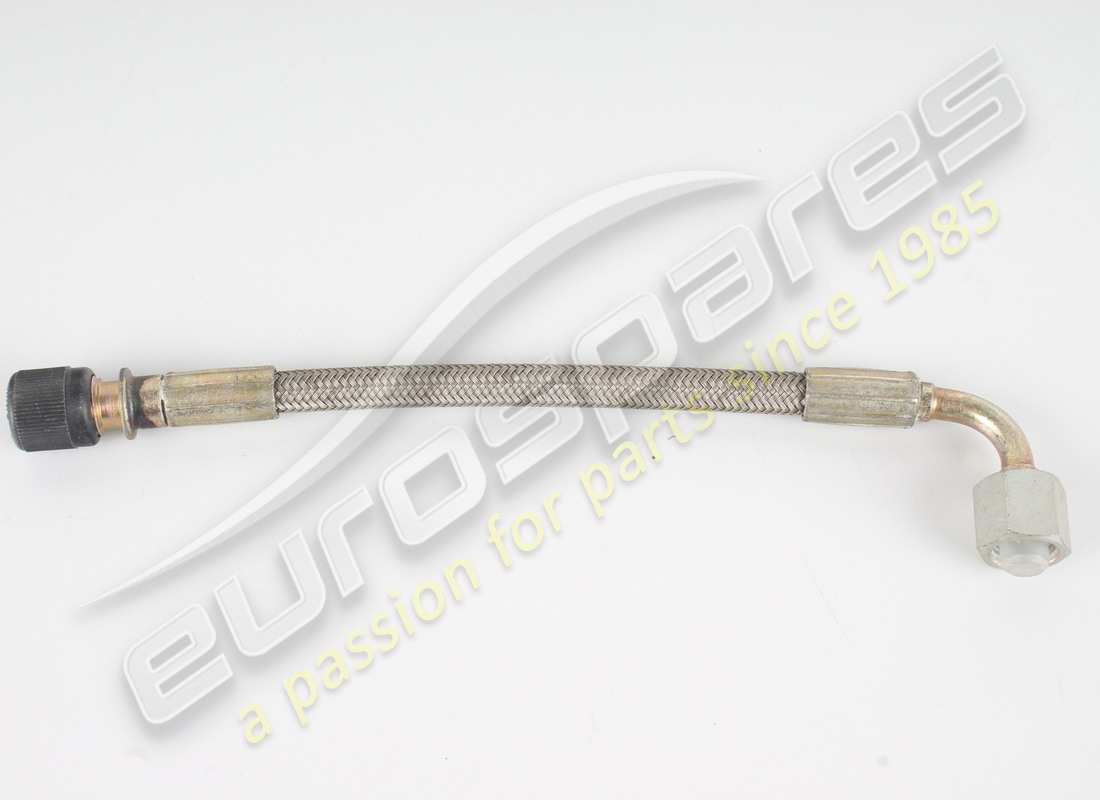

                                          # 009
                                          MPN: 62606800
                                          RETURN PIPE
                                          Supersession
                                          Supersession
                                          # 010
                                          MPN: 62607100
                                          UNION WITH VALVE
                                          - Valid till car 83417 Coupe' and 83647 Cabrio - Not as spare parts
                                          Supersession
                                          Supersession
                                          # 010
                                          MPN: 63006600
                                          UNION WITHOUT VALVE
                                          - For pipe 62936000
                                          from £456.71
                                          from £456.71
                                          This part replaces part number 62607100
                                          # 011
                                          MPN: 62659700
                                          A.C. LOAD PIPE
                                          - Valid till car 83417 Coupe' and 83647 Cabrio - Not as spare parts
                                          # 011
                                          MPN: 62936000
                                          A.C. LOAD PIPE
                                          - For union 63006600
                                          from £183.50
                                          from £183.50
                                          # 012
                                          MPN: 139348
                                          BRACKET
                                          See also 147639
                                          from £834.75
                                          from £834.75
                                          # 012
                                          MPN: 147639
                                          BRACKET
                                          from £414.75
                                          from £414.75
                                          This part replaces part number 139348 which we have in stock - and 1 more. Click to view details
                                          # 013
                                          MPN: 13525470
                                          HELI-COIL
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 107333

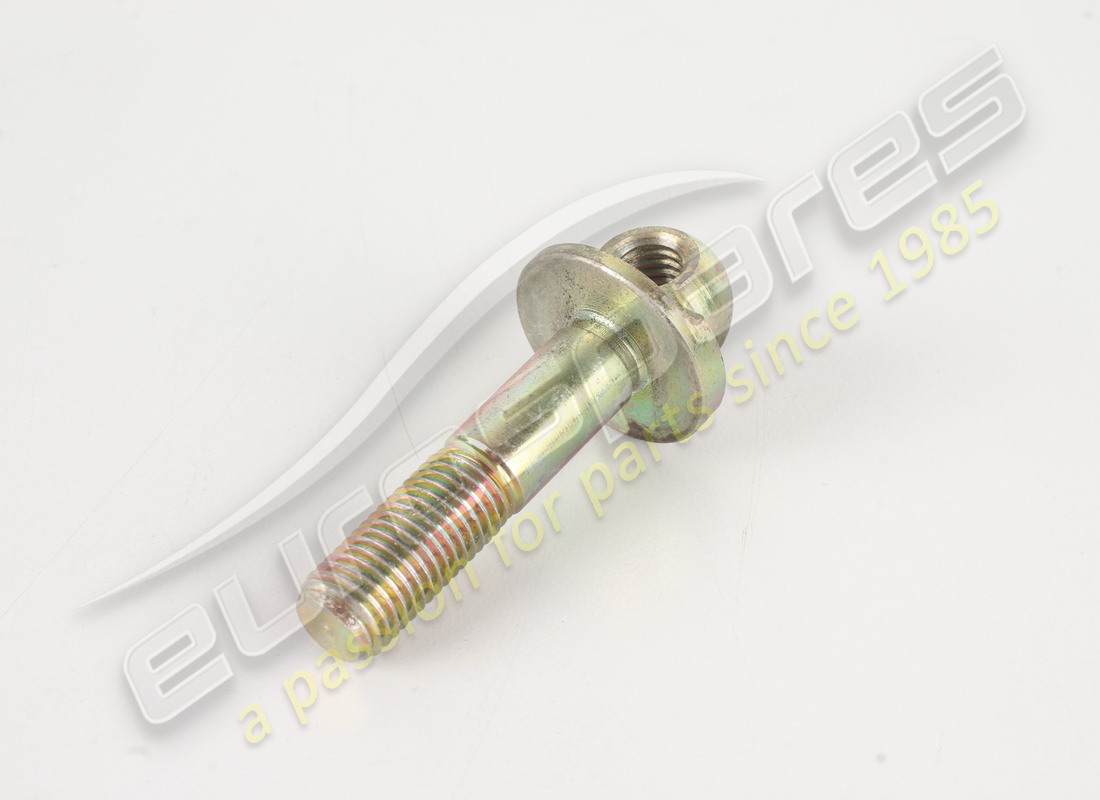

                                          # 014
                                          MPN: 139352
                                          THREADED PIN
                                          from £23.90
                                          from £23.90
                                          # 015
                                          MPN: 13550401
                                          WASHER
                                          from £0.71
                                          from £0.71
                                          # 016
                                          MPN: 12575625
                                          NUT
                                          Supersession
                                          Supersession
                                          This part replaces part number 121660 - and 2 more. Click to view details
                                          # 017
                                          MPN: 125668
                                          BELT ADJUSTMENT SCREW
                                          from £0.86
                                          from £0.86
                                          # 018
                                          MPN: 14496501
                                          WASHER
                                          from £0.86
                                          from £0.86
                                          # 019
                                          MPN: 138331
                                          ELECTROMAGNETIC JOINT
                                          from £820.95
                                          from £820.95
                                          # 020
                                          MPN: 199819

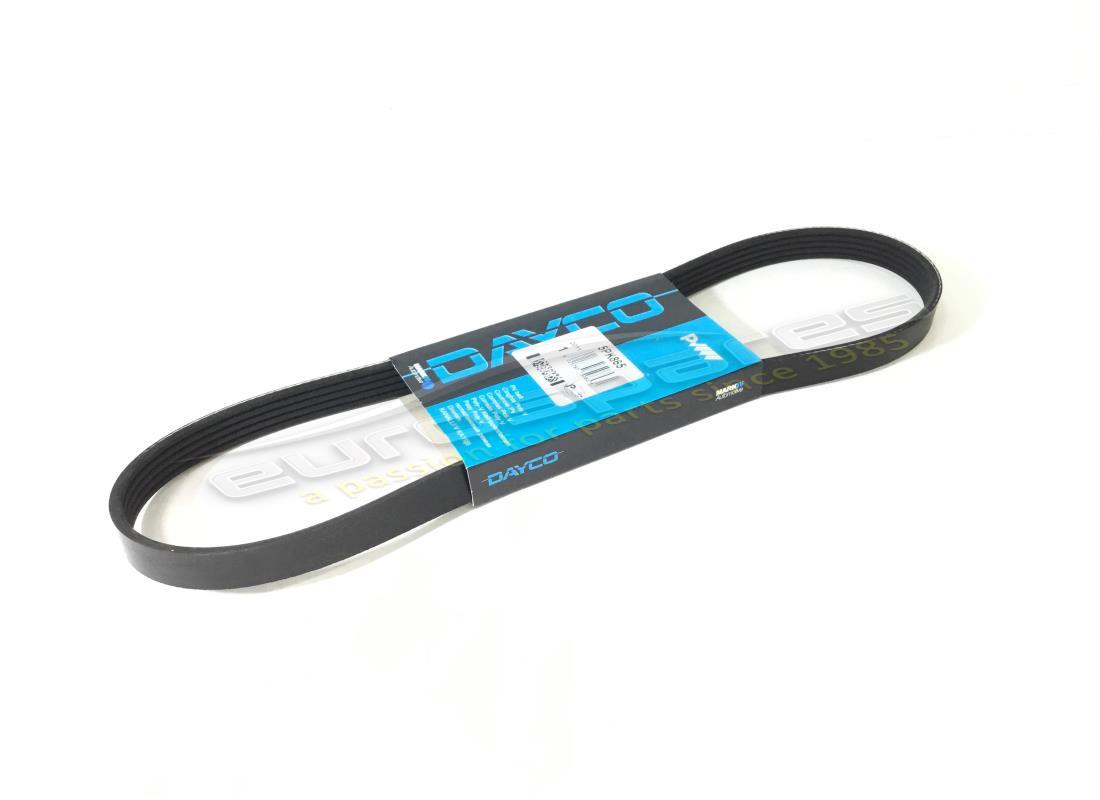

                                          COMPRESSOR CONTROL BELT
                                          On Exhaustion use 199819 (1mm Shorter)
                                          from £10.45
                                          from £10.45
                                          This part replaces part number 133228

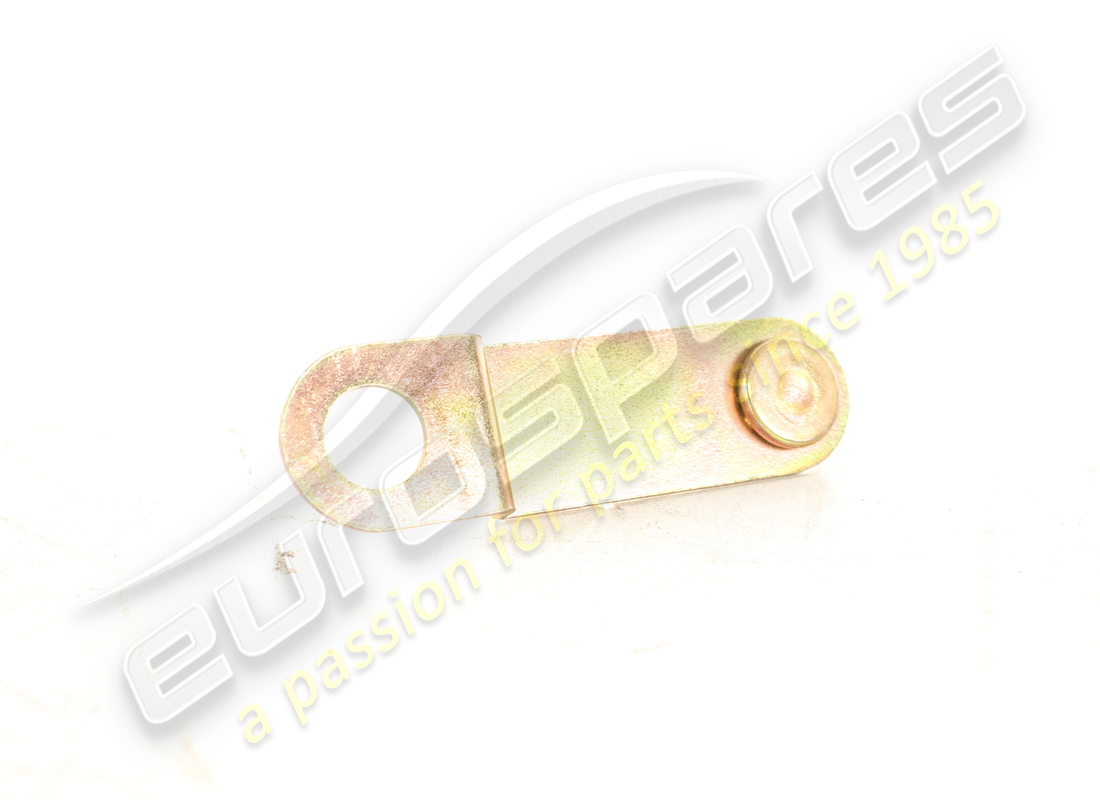

                                          # 021
                                          MPN: 62883700
                                          BRACKET
                                          from £2.48
                                          from £2.48
                                          # 022
                                          MPN: 10441290
                                          BRACKET WITH HOSE
                                          from £0.47
                                          from £0.47
                                          # 023
                                          MPN: 14496405
                                          WASHER
                                          Supersession
                                          Supersession
                                          # 024
                                          MPN: 12574217
                                          NUT
                                          Supersession
                                          Supersession
