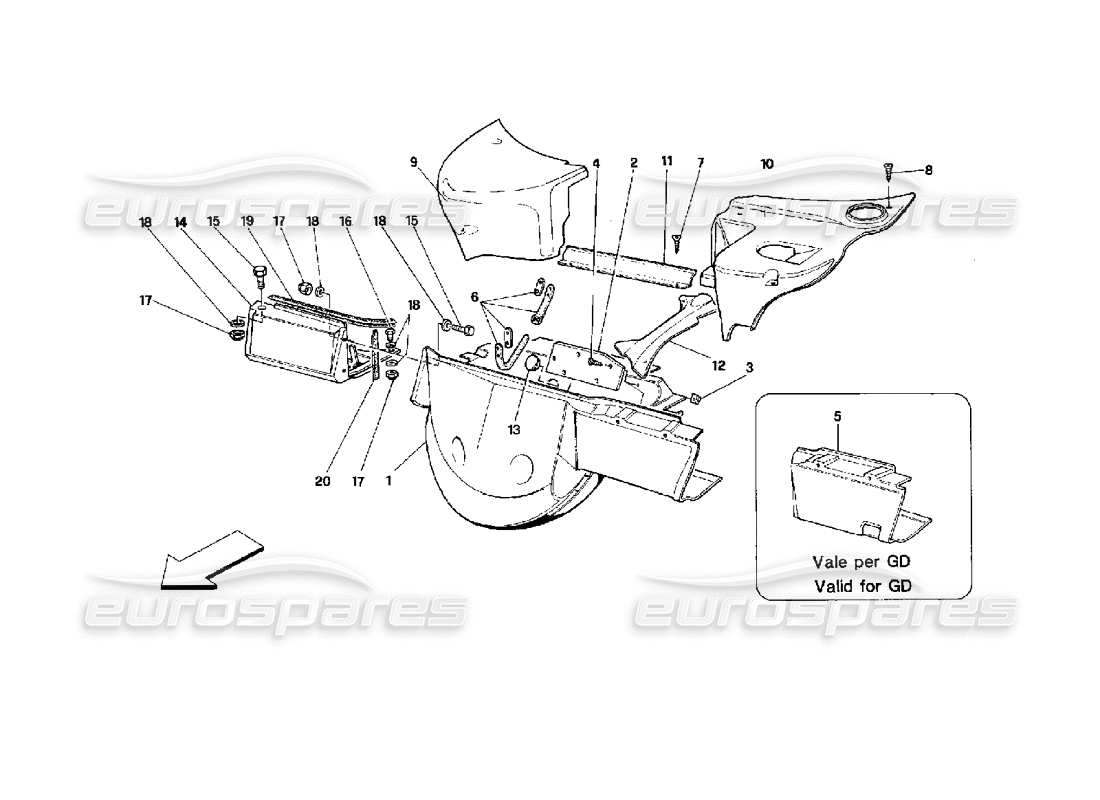

102A - Front Part - Inner Element

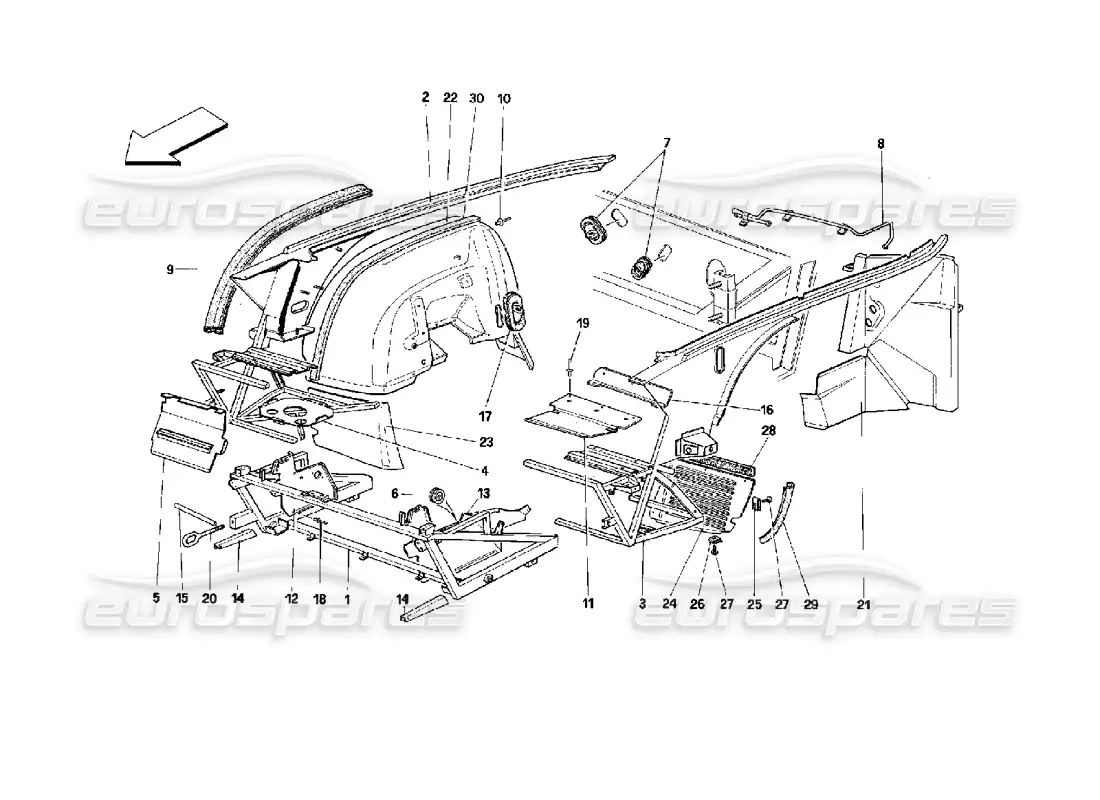

Ferrari Mondial 3.4 t Coupe/Cabrio Front Part - Inner Element Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 62574100
                        SPARE WHEEL CARRIER
                        - Not for GD
                        from £835.34
                        from £835.34
                        # 001
                        MPN: 62814200
                        SPARE WHEEL CARRIER
                        - Valid for GD
                        from £618.68
                        from £618.68
                        # 002
                        MPN: 62574200
                        INSPECTION DOOR
                        - Not for GD
                        from £52.35
                        from £52.35
                        # 002
                        MPN: 62814300
                        INSPECTION DOOR
                        - Valid for GD
                        from £53.60
                        from £53.60
                        # 003
                        MPN: 60597000
                        SPRING
                        from £0.59
                        from £0.59
                        # 004
                        MPN: 15915807
                        SCREW
                        from £0.47
                        from £0.47
                        # 005
                        MPN: 62840700
                        CONDENSER COVER A.C.
                        - Valid for GD
                        from £91.69
                        from £91.69
                        # 006
                        MPN: 62848300

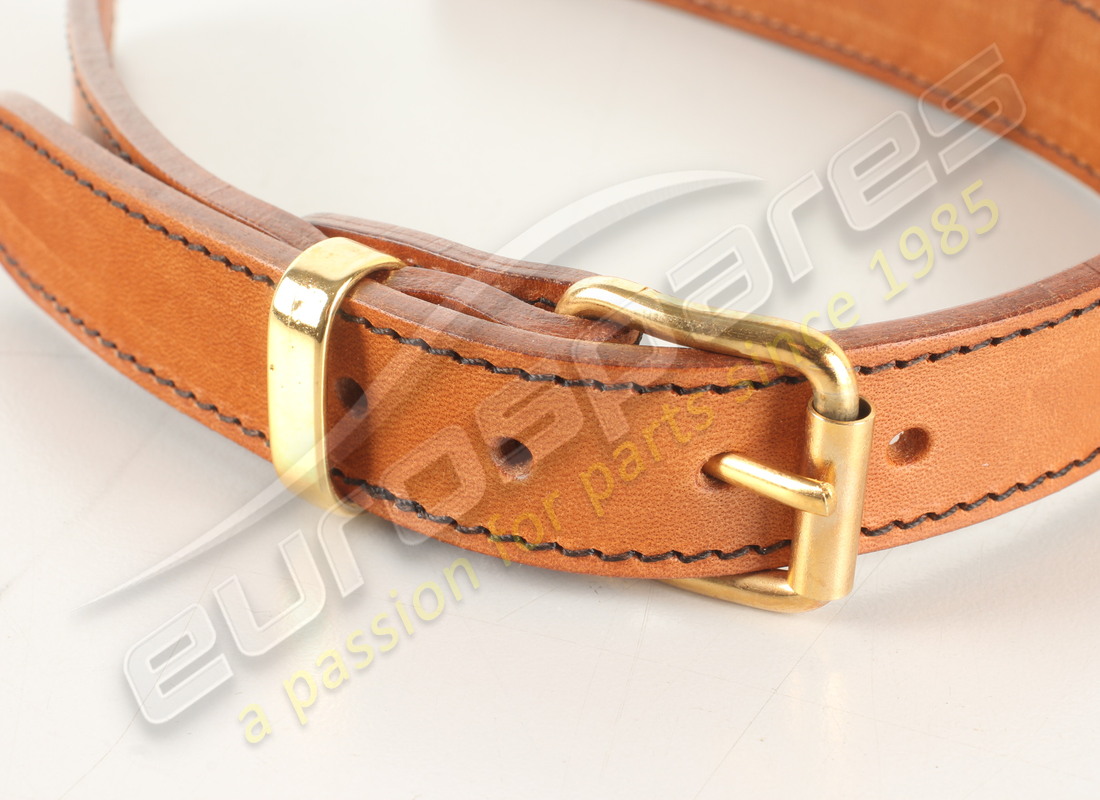

                        BELT TO RET. TOOL BAG
                        - Valid for horizontal tool kit
                        from £41.40
                        from £41.40
                        # 006
                        MPN: 63568000
                        BELT TO RET. TOOL BAG
                        - Valid for vertical tool kit
                        from £39.76
                        from £39.76
                        # 007
                        MPN: 15688375
                        SCREW
                        (minimum order quantity = 30)
                        from £0.47
                        from £0.47
                        This part replaces part number 15688306 which we have in stock
                        # 008
                        MPN: 20286209
                        SCREW
                        from £5.40
                        from £5.40
                        # 009
                        MPN: 61994000
                        COVER
                        - Not for GD
                        from £125.35
                        from £125.35
                        # 009
                        MPN: 62802400
                        COVER
                        - Valid for GD
                        from £50.68
                        from £50.68
                        # 010
                        MPN: 62587600

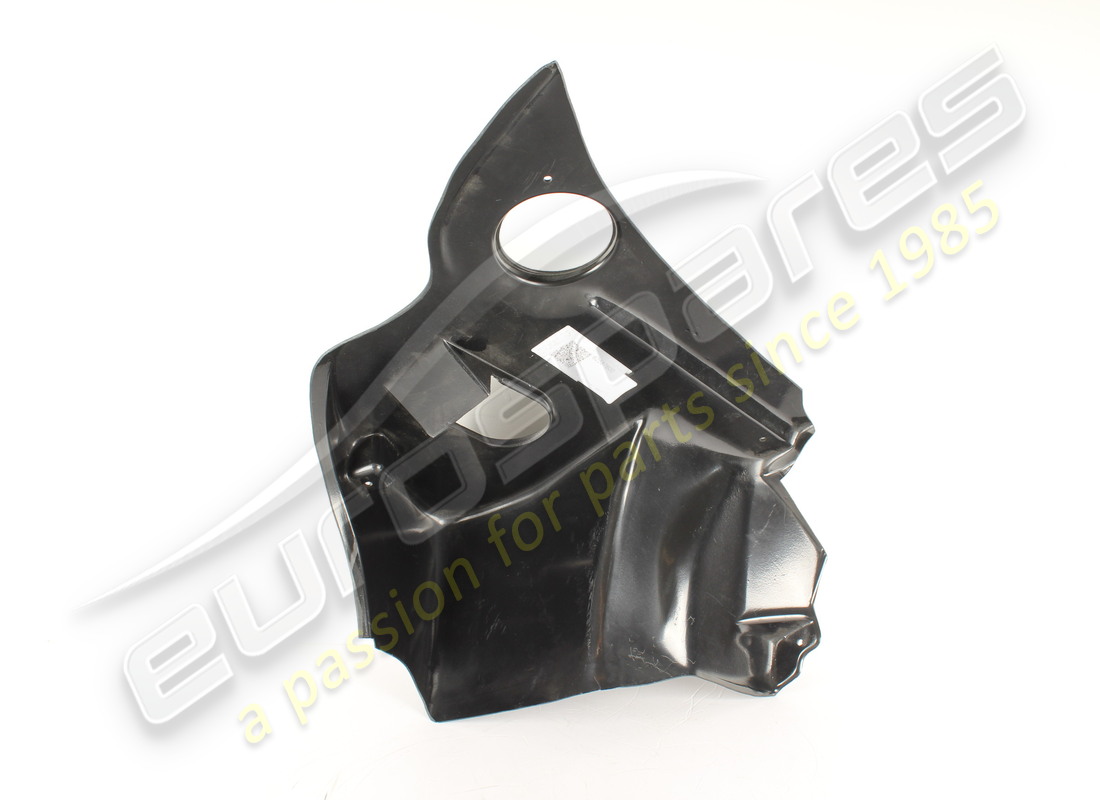

                        APRON
                        - Not for GD
                        from £133.35
                        from £133.35
                        # 010
                        MPN: 62802500
                        APRON
                        - Valid for GD
                        from £381.55
                        from £381.55
                        # 011
                        MPN: 62377500
                        APRON
                        - Not for GD
                        from £30.28
                        from £30.28
                        # 011
                        MPN: 62802600
                        APRON
                        - Valid for GD
                        from £30.36
                        from £30.36
                        # 012
                        MPN: 61994400
                        CABLE APRON
                        - Not for GD
                        from £44.71
                        from £44.71
                        # 012
                        MPN: 62380400
                        CABLE APRON
                        - Valid for GD
                        from £25.47
                        from £25.47
                        # 013
                        MPN: 14507187
                        CAP
                        from £2.07
                        from £2.07
                        # 014
                        MPN: 62516100
                        CABLE APRON
                        from £254.38
                        from £254.38
                        # 015
                        MPN: 10902421
                        SCREW
                        from £0.47
                        from £0.47
                        # 016
                        MPN: 10902221
                        SCREW
                        from £0.52
                        from £0.52
                        # 017
                        MPN: 12574221
                        NUT
                        Supersession
                        Supersession
                        This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                        # 018
                        MPN: 12643721
                        WASHER
                        from £0.92
                        from £0.92
                        # 019
                        MPN: 60920200
                        GASKET
                        from £12.69
                        from £12.69
                        # 020
                        MPN: 63501100
                        GASKET
                        from £1.95
                        from £1.95
                        This part replaces part number 60920500
