ferrari mondial 3.4 t coupe/cabrio rear removable frame - valid for cars with 3p parts diagram

104 - Rear Removable Frame - Valid for Cars With 3P

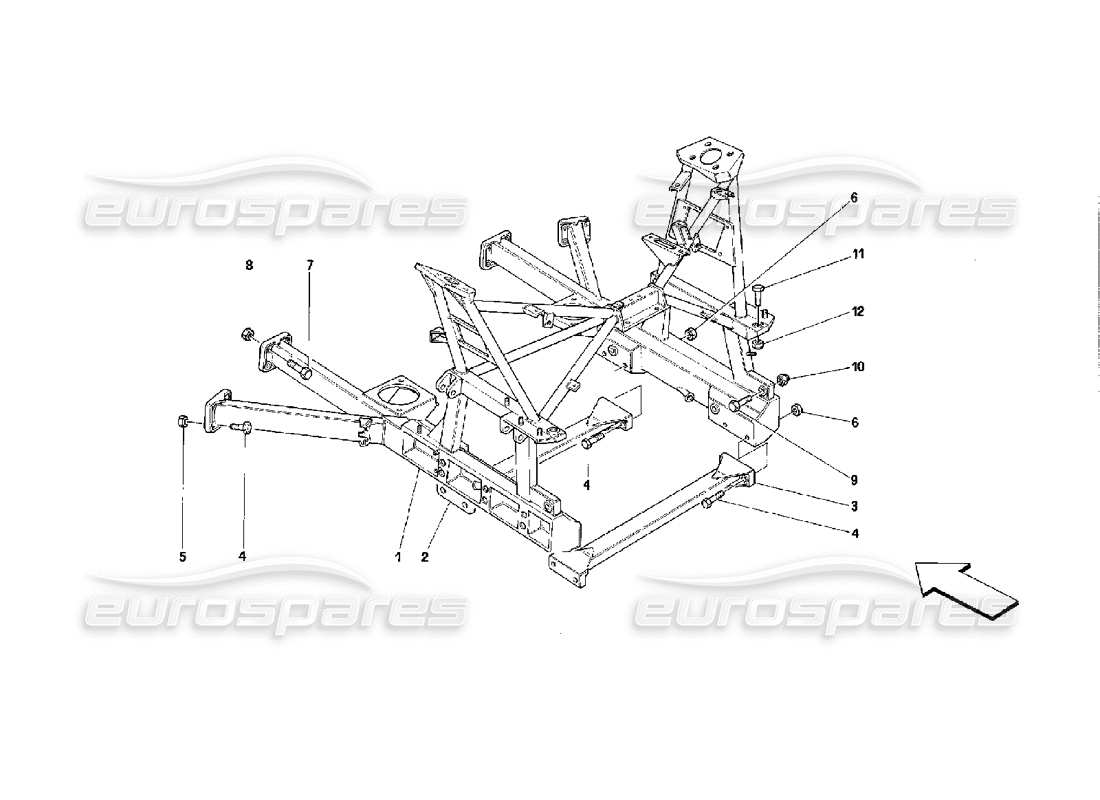

Ferrari Mondial 3.4 t Coupe/Cabrio Rear Removable Frame - Valid for Cars With 3P Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 139265

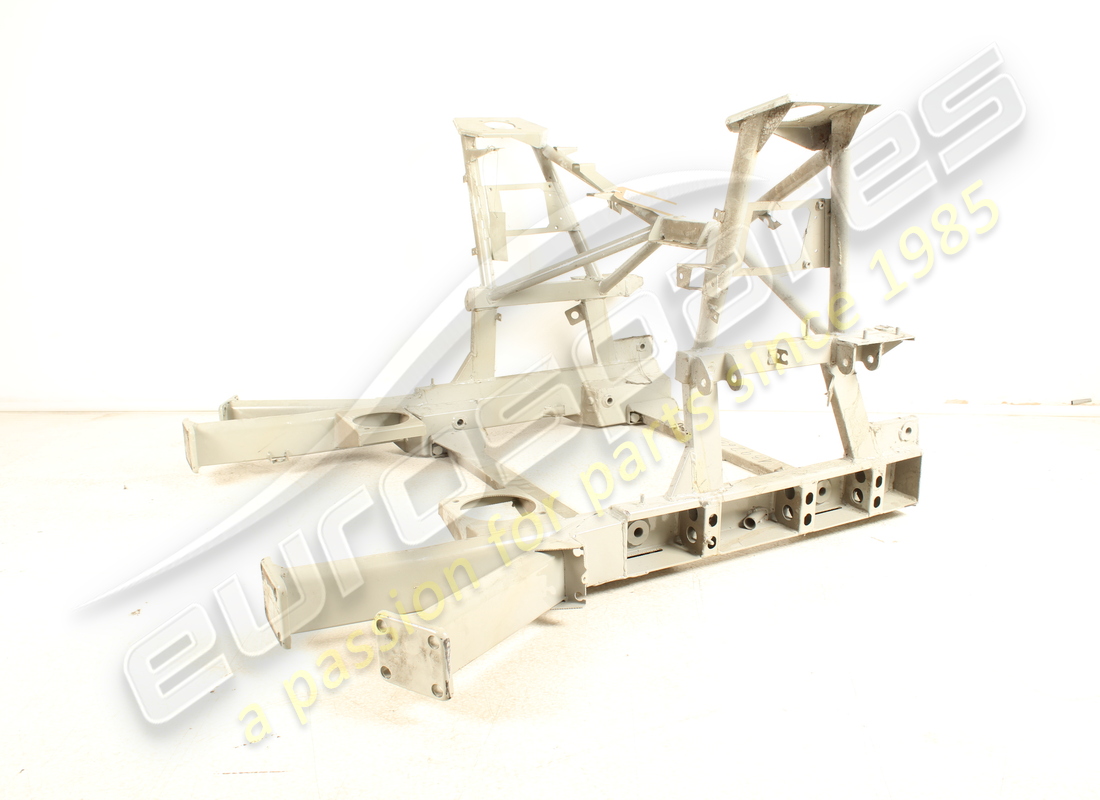

                    REAR REMOVABLE FRAME - COUPÉ
                    - Not for CH and GD
                    from £1,862.07
                    from £1,862.07
                    # 001
                    MPN: 142183
                    REAR REMOVABLE FRAME - COUPÉ
                    - Valid for GD
                    from £2,548.90
                    from £2,548.90
                    # 001
                    MPN: 142533

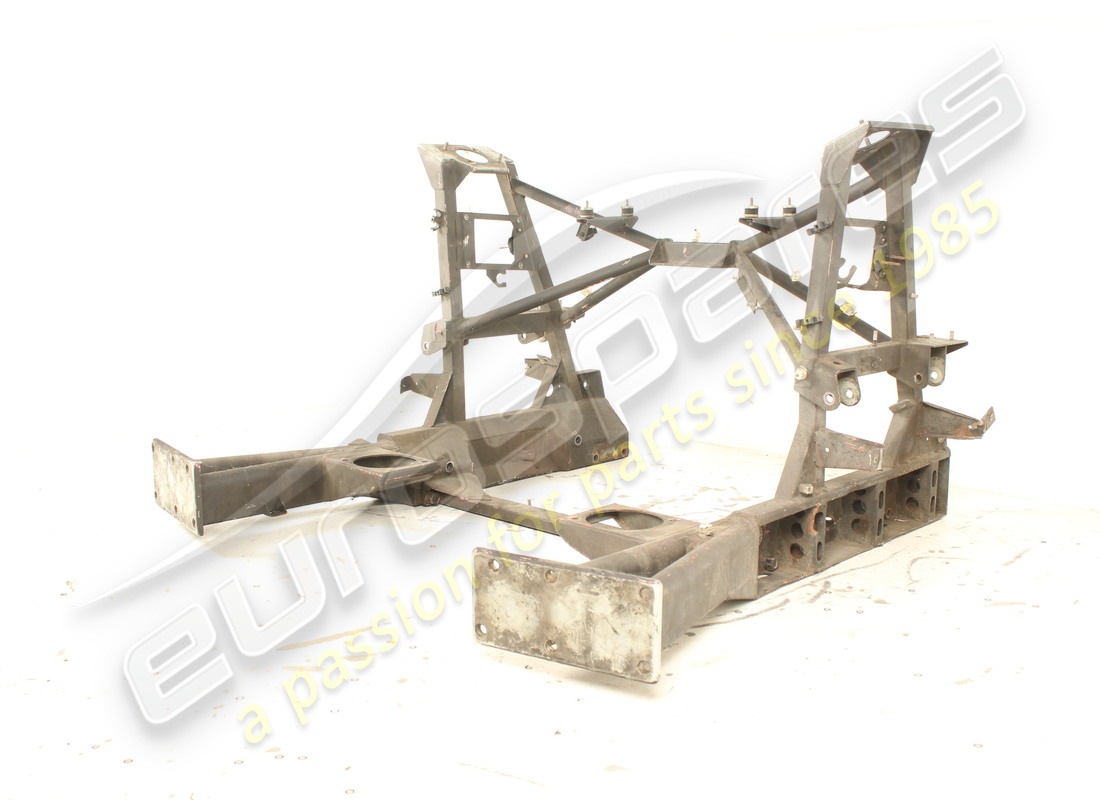

                    REAR REMOVABLE FRAME - CABRIOLET
                    - Not for CH and GD
                    from £5,469.35
                    from £5,469.35
                    # 001
                    MPN: 142535
                    REAR REMOVABLE FRAME - CABRIOLET
                    - Valid for GD
                    from £3,729.56
                    from £3,729.56
                    # 001
                    MPN: 142536
                    REAR REMOVABLE FRAME - CABRIOLET
                    - Valid for CH
                    from £3,851.96
                    from £3,851.96
                    # 001
                    MPN: 142537
                    REAR REMOVABLE FRAME - COUPÉ
                    - Valid for CH
                    from £3,851.96
                    from £3,851.96
                    # 002
                    MPN: 140405
                    FRONT CROSS MEMBER REMOVABLE
                    - Not for CH
                    from £208.70
                    from £208.70
                    # 002
                    MPN: 145684
                    FRONT CROSS MEMBER REMOVABLE
                    - Valid for CH
                    from £131.89
                    from £131.89
                    # 003
                    MPN: 145685
                    REAR CROSS MEMBER REMOVABLE
                    - Valid for CH
                    from £131.89
                    from £131.89
                    # 003
                    MPN: 62465000
                    REAR CROSS MEMBER REMOVABLE
                    - Not for CH
                    from £193.22
                    from £193.22
                    # 004
                    MPN: 15540621
                    SCREW
                    from £2.16
                    from £2.16
                    This part replaces part number 64224200
                    # 005
                    MPN: 16105011
                    NUT
                    from £0.47
                    from £0.47
                    # 006
                    MPN: 142438
                    NUT
                    from £0.57
                    from £0.57
                    # 007
                    MPN: 15540421
                    SCREW
                    from £2.26
                    from £2.26
                    # 008
                    MPN: 16105011
                    NUT
                    from £0.47
                    from £0.47
                    # 009
                    MPN: 15541221
                    SCREW
                    from £2.06
                    from £2.06
                    # 011
                    MPN: 15540421
                    SCREW
                    from £2.45
                    from £2.45
                    # 012
                    MPN: 102825
                    NUT
                    from £0.53
                    from £0.53
                    This part replaces part number 95900617
