ferrari mondial 3.4 t coupe/cabrio rear removable frame - valid for cars with 4p parts diagram

104A - Rear Removable Frame - Valid for Cars With 4P

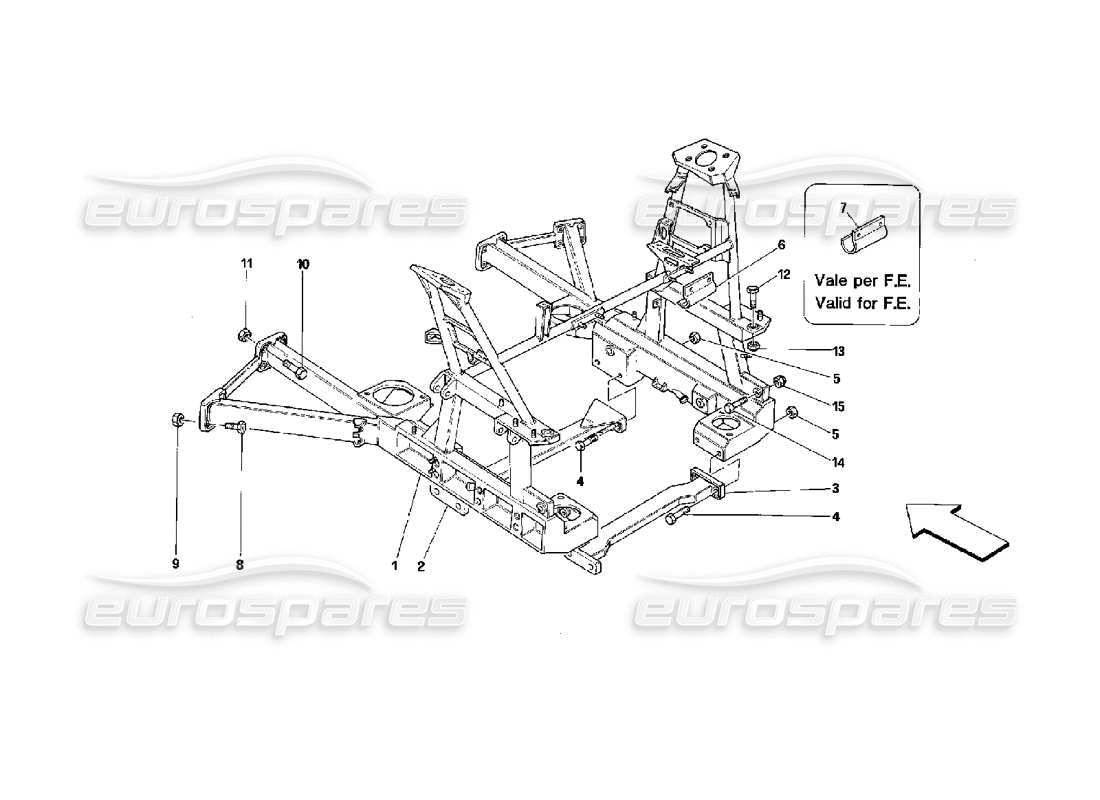

Ferrari Mondial 3.4 t Coupe/Cabrio Rear Removable Frame - Valid for Cars With 4P Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 143982
                        REAR REMOVABLE FRAME - CABRIOLET
                        - Valid for USA
                        from £2,352.39
                        from £2,352.39
                        # 001
                        MPN: 146412
                        REAR REMOVABLE FRAME - COUPÉ
                        - Valid for SA
                        # 001
                        MPN: 146428
                        REAR REMOVABLE FRAME - CABRIOLET
                        - Valid for AUS
                        # 001
                        MPN: 146458
                        REAR REMOVABLE FRAME -CABRIOLET-
                        - Valid for J
                        # 001
                        MPN: 146488
                        REAR REMOVABLE FRAME - COUPÉ
                        - Valid for J
                        # 001
                        MPN: 147217
                        REAR REMOVABLE FRAME - CABRIOLET
                        - Not for USA-CH-J-AUS-ZA and GB
                        from £3,108.63
                        from £3,108.63
                        # 001
                        MPN: 147232
                        REAR REMOVABLE FRAME - COUPÉ
                        - Not for CH-SA-J and GD
                        # 001
                        MPN: 147276
                        REAR REMOVABLE FRAME - CABRIOLET
                        - Valid for ZA and GB
                        from £2,320.06
                        from £2,320.06
                        # 001
                        MPN: 147307
                        REAR REMOVABLE FRAME - COUPÉ
                        - Valid for GD
                        # 001
                        MPN: 147933
                        REAR REMOVABLE FRAME - COUPÉ
                        - Valid for CH
                        # 001
                        MPN: 147942
                        REAR REMOVABLE FRAME - CABRIOLET
                        - Valid for CH
                        # 002
                        MPN: 140405
                        FRONT CROSS MEMBER REMOVABLE
                        - Not for CH
                        from £208.70
                        from £208.70
                        # 002
                        MPN: 145684
                        FRONT CROSS MEMBER REMOVABLE
                        - Valid for CH
                        from £131.89
                        from £131.89
                        # 003
                        MPN: 144208
                        REAR CROSS MEMBER REMOVABLE
                        from £305.50
                        from £305.50
                        # 004
                        MPN: 15540521
                        SCREW
                        from £0.49
                        from £0.49
                        # 005
                        MPN: 142438
                        NUT
                        from £0.48
                        from £0.48
                        # 006
                        MPN: 145662
                        BRACKET
                        - For F.E. Q.ty 1
                        from £2.21
                        from £2.21
                        # 007
                        MPN: 145663
                        BRACKET
                        - Valid for F.E.
                        from £1.18
                        from £1.18
                        # 008
                        MPN: 15540621
                        SCREW
                        from £2.16
                        from £2.16
                        This part replaces part number 64224200
                        # 009
                        MPN: 16105011
                        NUT
                        from £0.47
                        from £0.47
                        # 010
                        MPN: 15540421
                        SCREW
                        from £1.79
                        from £1.79
                        # 011
                        MPN: 16105011
                        NUT
                        from £0.47
                        from £0.47
                        # 012
                        MPN: 15540421
                        SCREW
                        from £1.79
                        from £1.79
                        # 013
                        MPN: 102825
                        NUT
                        from £0.47
                        from £0.47
                        This part replaces part number 95900617
