105 - Interior Compartment Insulation - Coupe

Ferrari Mondial 3.4 t Coupe/Cabrio Interior Compartment Insulation - Coupe Parts Diagram

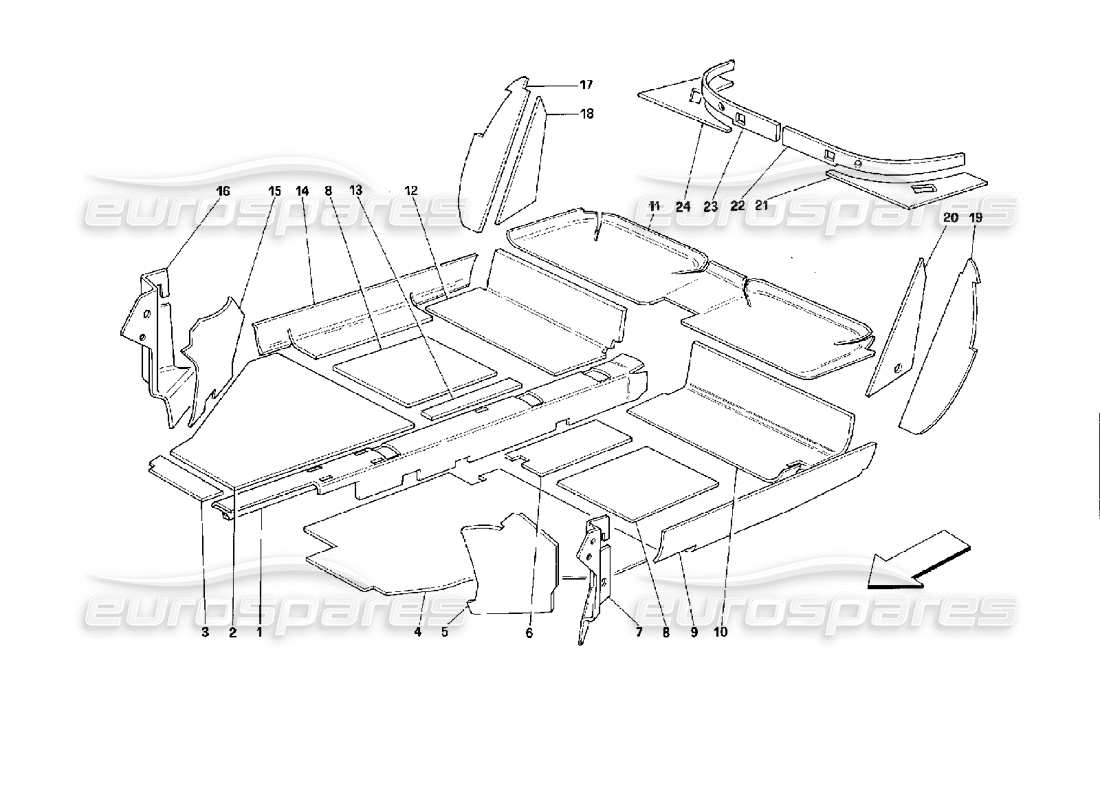

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 000
                          MPN: 62630290
                          Carpet set
                          from £126.10
                          from £126.10
                          This part replaces part number 626302..
                          # 000
                          MPN: 62630294
                          Carpet set
                          from £114.09
                          from £114.09
                          This part replaces part number 626302.. - and 1 more. Click to view details
                          CARPET BLUE Genuine Ferrari Part - New (other) In stock
                          VALID FOR MONDIAL T RHD - Blue, Driver''s Side Only
                          # 001
                          MPN: 62602600
                          TUNNEL INSULATING MATERIAL
                          - Valid for GS
                          from £235.00
                          from £235.00
                          # 001
                          MPN: 62824800
                          TUNNEL INSULATING MATERIAL
                          - Valid for GD
                          from £174.64
                          from £174.64
                          # 002
                          MPN: 62602000
                          RH FRONT INSULATING MATERIAL ON PLATFORM
                          - Valid for GS
                          from £118.78
                          from £118.78
                          # 002
                          MPN: 62823700
                          RH FRONT INSULATING MATERIAL ON PLATFORM
                          - Valid for GD
                          from £139.14
                          from £139.14
                          # 003
                          MPN: 62602900
                          RH FRONT INSULATING MATERIAL UNDER FOOT REST
                          - Valid for GS
                          from £12.13
                          from £12.13
                          # 003
                          MPN: 62823800
                          RH FRONT INSULATING MATERIAL UNDER FOOT REST
                          - Valid for GD
                          from £4.14
                          from £4.14
                          # 004
                          MPN: 62602100
                          LH FRONT INSULATING MATERIAL ON PLATFORM
                          - Valid for GS
                          from £118.78
                          from £118.78
                          # 004
                          MPN: 62823600
                          LH FRONT INSULATING MATERIAL ON PLATFORM
                          - Valid for GD
                          from £115.97
                          from £115.97
                          # 005
                          MPN: 62601800
                          INNER INSULATING MATERIAL FOR LH FRONT WHEELHOUSE
                          - Valid for GS
                          from £133.12
                          from £133.12
                          # 005
                          MPN: 62824400
                          LOWER INSULATING MATERIAL FOR LH FRONT WHEELHOUSE
                          - Valid for GD
                          from £32.23
                          from £32.23
                          # 006
                          MPN: 62602700
                          LH INNER CENTRE INSULATING MATERIAL
                          - Valid for GS
                          from £145.72
                          from £145.72
                          # 006
                          MPN: 62824100
                          LH INNER CENTRE INSULATING MATERIAL
                          - Valid for GD
                          from £4.14
                          from £4.14
                          # 007
                          MPN: 62602200
                          EXT. INSULATING MATERIAL FOR LH FRONT WHEELHOUSE
                          - Valid for GS
                          from £117.81
                          from £117.81
                          # 007
                          MPN: 62824500
                          UPPER INSULATING MATERIAL FOR LH FRONT WHEELHOUSE
                          - Valid for GD
                          from £32.84
                          from £32.84
                          # 008
                          MPN: 62601500
                          INSULATING MATERIAL BETWEEN FRONT SEATS GUIDES
                          from £5.78
                          from £5.78
                          # 009
                          MPN: 62601700
                          INSULATING MATERIAL ONLH SIDE MEMBER
                          - Valid for GS
                          from £167.83
                          from £167.83
                          # 009
                          MPN: 62824000
                          INSULATING MATERIAL ONLH SIDE MEMBER
                          - Valid for GD
                          from £144.43
                          from £144.43
                          # 010
                          MPN: 62602400
                          LH REAR INSULATING MATERIAL ON PLATFORM
                          - Valid for GS
                          from £181.58
                          from £181.58
                          # 010
                          MPN: 62824700
                          LH REAR INSULATING MATERIAL ON PLATFORM
                          - Valid for GD
                          from £46.82
                          from £46.82
                          # 011
                          MPN: 62600900
                          REAR SEAT INSULATING MATERIAL
                          from £227.69
                          from £227.69
                          # 012
                          MPN: 62602500
                          RH REAR INSULATING MATERIAL ON PLATFORM
                          - Valid for GS
                          from £89.04
                          from £89.04
                          # 012
                          MPN: 62824600
                          RH REAR INSULATING MATERIAL ON PLATFORM
                          - Valid for GD
                          from £46.82
                          from £46.82
                          # 013
                          MPN: 62602800
                          RH INNER CENTRAL INSULATING MATERIAL
                          from £153.01
                          from £153.01
                          # 014
                          MPN: 62601600
                          INSULATING MATERIAL ON RH SIDE MEMBER
                          - Valid for GS
                          from £101.27
                          from £101.27
                          # 014
                          MPN: 62823900
                          INSULATING MATERIAL ON RH SIDE MEMBER
                          - Valid for GD
                          from £144.43
                          from £144.43
                          # 015
                          MPN: 62601900
                          INNER INSULATING MATERIAL FOR RH FRONT WHEELHOUSE
                          - Valid for GS
                          from £133.12
                          from £133.12
                          # 015
                          MPN: 62824300
                          LOWER INSULATING MATERIAL FOR RH FRONT WHEELHOUSE
                          - Valid for GD
                          from £32.60
                          from £32.60
                          # 016
                          MPN: 62602300
                          EXTERNAL INSULATING MATERIAL FOR
                          - Valid for GS
                          from £112.20
                          from £112.20
                          # 016
                          MPN: 62824200
                          UPPER INSULATING MATERIAL FOR RH FRONT WHEELHOUSE
                          - Valid for GD
                          from £32.60
                          from £32.60
                          # 017
                          MPN: 62600500
                          INSULATING MATERIAL ON RH REAR MUDGUARD REINFORCEMENT
                          from £133.97
                          from £133.97
                          # 018
                          MPN: 62601400
                          RH SIDE INSULATING MATERIAL FOR REAR SEATS
                          from £127.60
                          from £127.60
                          # 019
                          MPN: 62600600
                          INSULATING MATERIAL ON LH REAR MUDGUARD REINFORCEMENT
                          from £133.97
                          from £133.97
                          # 020
                          MPN: 62601300
                          LH SIDE INSULATING MATERIAL FOR REAR SEATS
                          from £127.60
                          from £127.60
                          # 021
                          MPN: 62588700
                          LH INSULATING MATERIAL FOR REAR WINDOW PANEL
                          from £143.61
                          from £143.61
                          # 022
                          MPN: 62588900
                          REAR WINDOW LH INSULATING MATERIAL
                          from £12.13
                          from £12.13
                          # 023
                          MPN: 62589000
                          REAR WINDOW RH INSULATING MATERIAL
                          from £12.13
                          from £12.13
                          # 024
                          MPN: 62588800
                          RH INSULATING MATERIAL FOR REAR WINDOW PANEL
                          from £143.61
                          from £143.61
