107 - Trunk Insulation

Ferrari Mondial 3.4 t Coupe/Cabrio Trunk Insulation Parts Diagram

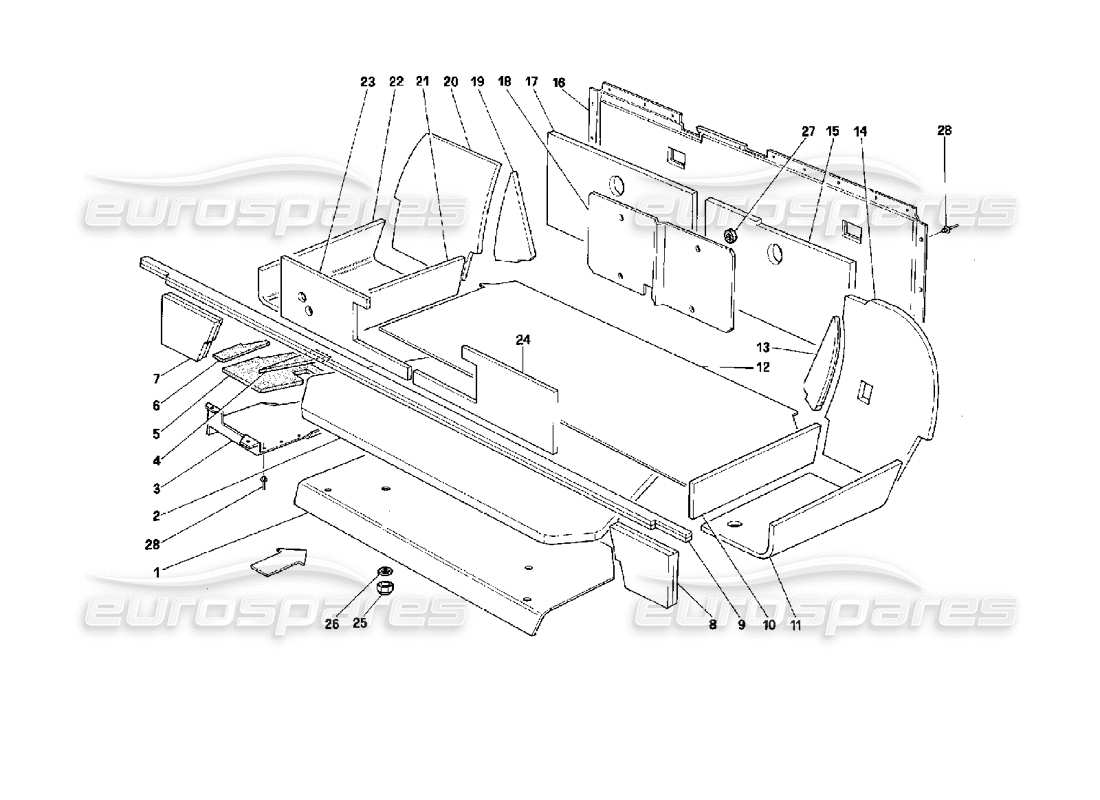

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 62543000
                                                        TRUNK/SILENCERPANEL
                                                        from £496.38
                                                        from £496.38
                                                        # 002
                                                        MPN: 61845700
                                                        TRUNK BOTTOM LOWER INSULATING MATERIAL
                                                        from £173.75
                                                        from £173.75
                                                        # 003
                                                        MPN: 62599200
                                                        LH SIDE SHEET FOR INSULATING MATERIALS
                                                        from £78.79
                                                        from £78.79
                                                        # 003
                                                        MPN: 62599300
                                                        RH SIDE SHEET FOR INSULATING MATERIALS
                                                        from £78.79
                                                        from £78.79
                                                        # 004
                                                        MPN: 61844900
                                                        RH INNER INSULATING MATERIAL AMONG FRAME PIPES
                                                        from £3.19
                                                        from £3.19
                                                        # 004
                                                        MPN: 61845000
                                                        LH INNER INSULATING MATERIAL AMONG FRAME PIPES
                                                        from £2.48
                                                        from £2.48
                                                        # 005
                                                        MPN: 62599000
                                                        LH INSULATING MATERIAL UNDER TRUNK
                                                        from £10.64
                                                        from £10.64
                                                        # 005
                                                        MPN: 62599100
                                                        RH INSULATING MATERIAL UNDER TRUNK
                                                        from £10.13
                                                        from £10.13
                                                        # 006
                                                        MPN: 61845100
                                                        RH EXTERNAL INSULATING MATERIAL AMONG FRAME PIPES
                                                        from £5.89
                                                        from £5.89
                                                        # 006
                                                        MPN: 61845200
                                                        LH EXTERNAL INSULATING MATERIAL AMONG FRAME PIPES
                                                        from £4.37
                                                        from £4.37
                                                        # 007
                                                        MPN: 62599700
                                                        CUP LH REAR INSULATING MATERIAL
                                                        from £97.37
                                                        from £97.37
                                                        # 008
                                                        MPN: 62599800
                                                        CUP RH REAR INSULATING MATERIAL
                                                        from £77.37
                                                        from £77.37
                                                        # 009
                                                        MPN: 62600200
                                                        REAR UPPER INSULATING MATERIAL
                                                        from £112.20
                                                        from £112.20
                                                        # 010
                                                        MPN: 61877400
                                                        RH CUP INNER INSULATING MATERIAL
                                                        from £19.19
                                                        from £19.19
                                                        # 011
                                                        MPN: 61845900
                                                        RH CUP INSULATING MATERIAL
                                                        from £86.20
                                                        from £86.20
                                                        # 012
                                                        MPN: 61877300
                                                        TRUNK BOTTOM INTERMEDIATE INSULATING MATERIAL
                                                        from £341.43
                                                        from £341.43
                                                        # 013
                                                        MPN: 62599900
                                                        RH WHEELHOUSE SIDE INSULATING MATERIAL
                                                        from £99.90
                                                        from £99.90
                                                        # 014
                                                        MPN: 62599500
                                                        INSULATING MATERIAL ON RH WHEELHOUSE - COUPÉ
                                                        from £91.98
                                                        from £91.98
                                                        # 014
                                                        MPN: 62679300
                                                        INSULATING MATERIAL ON RH WHEELHOUSE - CABRIOLET
                                                        from £108.68
                                                        from £108.68
                                                        # 015
                                                        MPN: 62621000
                                                        ENGINE/TRUNK DIVIDING PANEL RH INSULATING MATERIAL
                                                        from £149.60
                                                        from £149.60
                                                        # 016
                                                        MPN: 62532800
                                                        PANEL BETWEEN ENGINE AND TRUNK
                                                        - Not for F.E.
                                                        from £817.56
                                                        from £817.56
                                                        # 016
                                                        MPN: 62881000
                                                        PANEL BETWEEN ENGINE AND TRUNK
                                                        - Valid for F.E.
                                                        from £726.44
                                                        from £726.44
                                                        # 017
                                                        MPN: 62621100
                                                        ENGINE/TRUNK DIVIDING PANEL LH INSULATING MATERIAL
                                                        from £149.60
                                                        from £149.60
                                                        # 018
                                                        MPN: 62609300
                                                        SHEET FOR ELECTRONIC DEVICES
                                                        from £42.98
                                                        from £42.98
                                                        # 019
                                                        MPN: 62600000
                                                        LH WHEELHOUSE SIDE INSULATING MATERIAL
                                                        from £79.42
                                                        from £79.42
                                                        # 020
                                                        MPN: 62599600
                                                        INSULATING MATERIAL ON LH WHEELHOUSE
                                                        from £8.59
                                                        from £8.59
                                                        # 021
                                                        MPN: 61877500
                                                        LH CUP INNER INSULATING MATERIAL
                                                        from £11.51
                                                        from £11.51
                                                        # 022
                                                        MPN: 61846000
                                                        LH CUP INSULATING MATERIAL
                                                        from £108.57
                                                        from £108.57
                                                        # 023
                                                        MPN: 61821500
                                                        LH REAR INSULATING MATERIAL
                                                        from £84.35
                                                        from £84.35
                                                        # 024
                                                        MPN: 61821400
                                                        RH REAR INSULATING MATERIAL
                                                        from £80.33
                                                        from £80.33
                                                        # 025
                                                        MPN: 14048115
                                                        NUT
                                                        from £1.07
                                                        from £1.07
                                                        This part replaces part number 14048611 - and 1 more. Click to view details
                                                        # 026
                                                        MPN: 106744
                                                        WASHER
                                                        from £5.32
                                                        from £5.32
                                                        # 027
                                                        MPN: 146712
                                                        SPACER
                                                        from £1.66
                                                        from £1.66
                                                        This part replaces part number 105924
                                                        # 028
                                                        MPN: 61755900
                                                        RIVET
                                                        from £0.47
                                                        from £0.47
