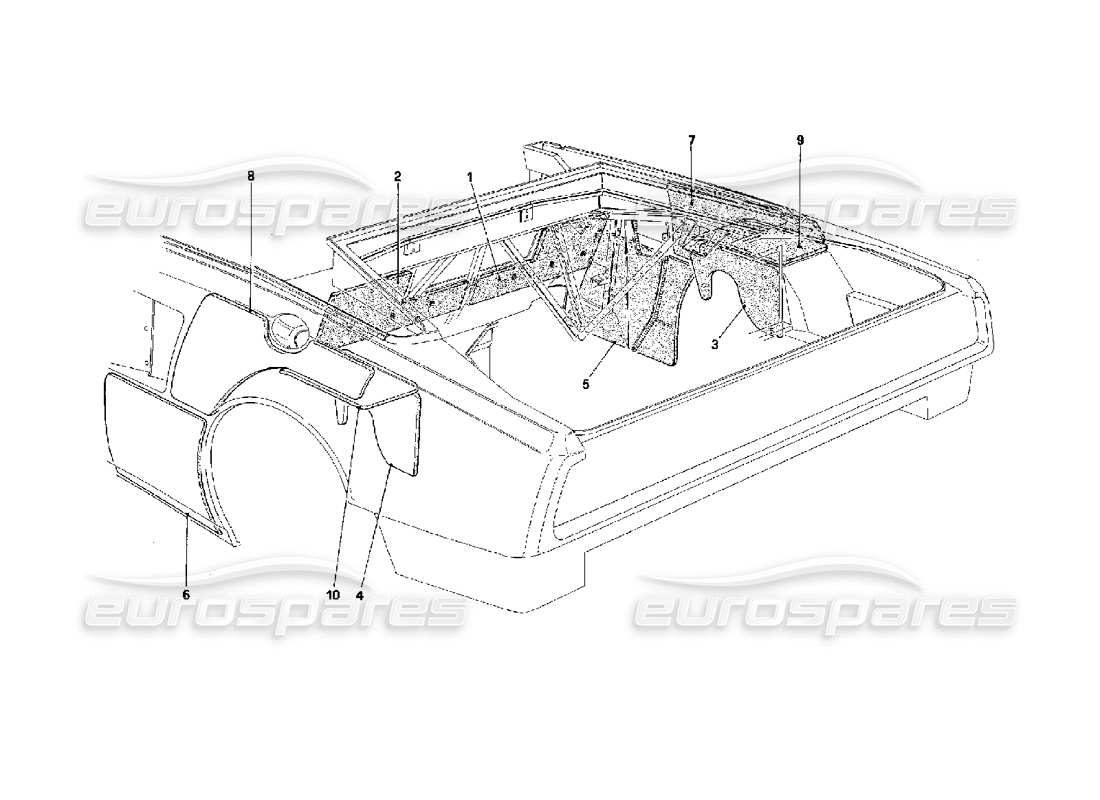

109 - Engine Compartment Insulation - Cabriolet - for CH Version Cars

Ferrari Mondial 3.4 t Coupe/Cabrio Engine Compartment Insulation - Cabriolet - for CH Version Cars Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 62814800
                      MOTOR INSULATION BEHIND RH REAR SEAT
                      from £16.71
                      from £16.71
                      # 002
                      MPN: 62814900
                      MOTOR INSULATION BEHIND LH REAR SEAT
                      from £16.71
                      from £16.71
                      # 003
                      MPN: 62815100
                      RH WHEELHOUSE INSULATION
                      from £96.34
                      from £96.34
                      # 004
                      MPN: 62815000
                      LH WHEELHOUSE INSULATION
                      from £96.34
                      from £96.34
                      # 005
                      MPN: 62860700
                      FRONT RH MUDGUARD INSULATION
                      from £34.11
                      from £34.11
                      # 006
                      MPN: 62860800
                      FRONT LH MUDGUARD INSULATION
                      from £45.05
                      from £45.05
                      # 007
                      MPN: 62815400
                      RH CENTRAL INSULATION
                      from £173.35
                      from £173.35
                      # 008
                      MPN: 62815500
                      LH CENTRAL INSULATION
                      from £126.55
                      from £126.55
                      # 009
                      MPN: 62815800
                      RH UPPER WHEELHOUSE INSULATION
                      from £138.67
                      from £138.67
                      # 010
                      MPN: 62815900
                      LH UPPER WHEELHOUSE INSULATION
                      from £138.67
                      from £138.67
