ferrari mondial 3.4 t coupe/cabrio front compartment lid parts diagram

110 - Front Compartment Lid

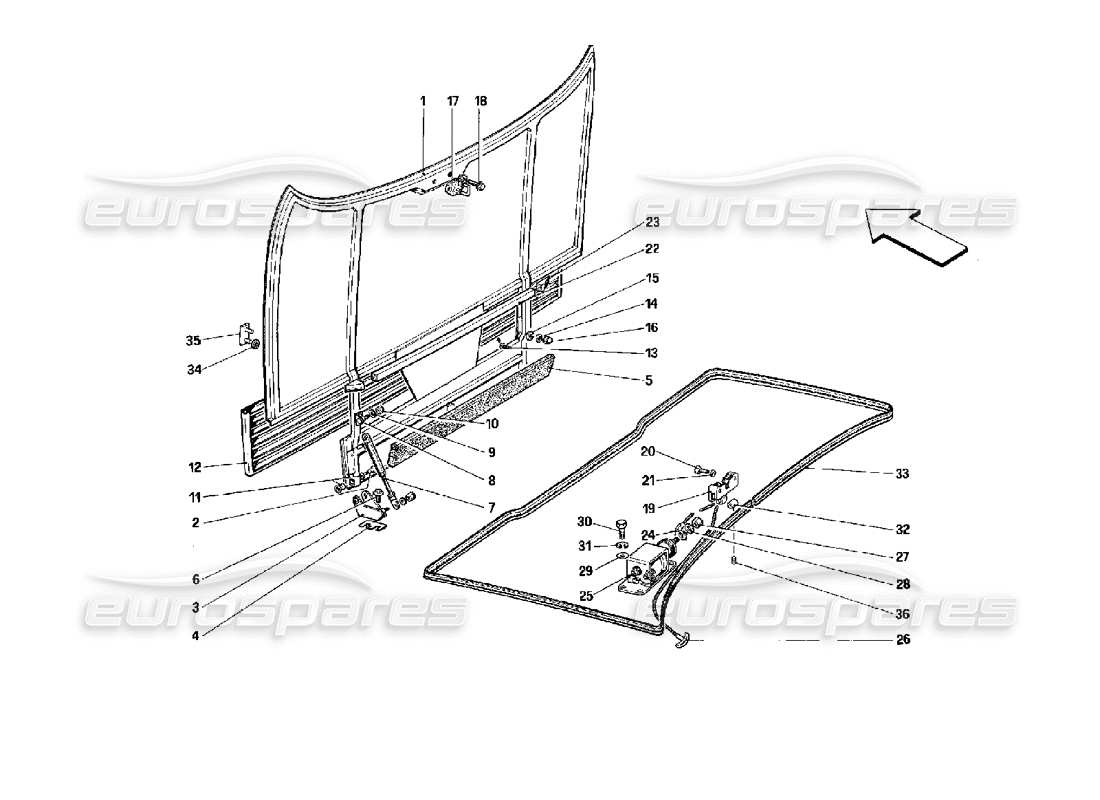

Ferrari Mondial 3.4 t Coupe/Cabrio Front Compartment Lid Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 62560800
                                                                  FRONT BONNET
                                                                  - Not for USA
                                                                  from £3,571.86
                                                                  from £3,571.86
                                                                  # 001
                                                                  MPN: 62636500
                                                                  FRONT BONNET
                                                                  - Valid for USA
                                                                  from £2,203.16
                                                                  from £2,203.16
                                                                  # 002
                                                                  MPN: 60919100
                                                                  PIN FOR HINGE
                                                                  from £8.32
                                                                  from £8.32
                                                                  # 003
                                                                  MPN: 60559000
                                                                  RIGHT HINGE
                                                                  from £26.68
                                                                  from £26.68
                                                                  # 003
                                                                  MPN: 60918700
                                                                  LEFT HINGE
                                                                  from £17.92
                                                                  from £17.92
                                                                  # 004
                                                                  MPN: 60644700
                                                                  SHIM FOR HINGE
                                                                  from £1.83
                                                                  from £1.83
                                                                  # 005
                                                                  MPN: 62589900
                                                                  RADIATOR SIDE GASKET
                                                                  from £28.62
                                                                  from £28.62
                                                                  This part replaces part number 60773300
                                                                  # 006
                                                                  MPN: 13838071
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 007
                                                                  MPN: 60559500
                                                                  FRONT COVER/ENGINE COVER STRUT
                                                                  from £31.07
                                                                  from £31.07
                                                                  # 008
                                                                  MPN: 60558800
                                                                  BRACKET
                                                                  from £16.74
                                                                  from £16.74
                                                                  # 009
                                                                  MPN: 12639701
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 12639704
                                                                  # 010
                                                                  MPN: 12574211
                                                                  SELF LOCKING NUT
                                                                  from £0.71
                                                                  from £0.71
                                                                  # 011
                                                                  MPN: 60919400
                                                                  BUSH
                                                                  from £4.39
                                                                  from £4.39
                                                                  # 012
                                                                  MPN: 62517010
                                                                  GRILL
                                                                  from £574.21
                                                                  from £574.21
                                                                  # 013
                                                                  MPN: 20297602
                                                                  SCREW (FOR DARK-COLOUR CARS)
                                                                  from £5.65
                                                                  from £5.65
                                                                  # 013
                                                                  MPN: 61349600
                                                                  SCREW (FOR LIGHT-COLOUR CARS)
                                                                  from £0.77
                                                                  from £0.77
                                                                  # 014
                                                                  MPN: 12638178
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                                                                  # 015
                                                                  MPN: 10519377
                                                                  SPRING WASHER FOR GRILL
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
                                                                  # 016
                                                                  MPN: 14054048
                                                                  FIXING NUT FOR GRILL
                                                                  This part replaces part number 14054042
                                                                  # 017
                                                                  MPN: 60536900
                                                                  CATCH
                                                                  from £6.11
                                                                  from £6.11
                                                                  # 018
                                                                  MPN: 13836371
                                                                  SCREW
                                                                  from £0.69
                                                                  from £0.69
                                                                  # 019
                                                                  MPN: 60277407
                                                                  LOCK FOR BONNET
                                                                  from £32.75
                                                                  from £32.75
                                                                  This part replaces part number 60023405 - and 15 more. Click to view details
                                                                  # 020
                                                                  MPN: 20297503
                                                                  SCREW
                                                                  from £0.70
                                                                  from £0.70
                                                                  # 021
                                                                  MPN: 10519501
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 022
                                                                  MPN: 60641400
                                                                  REAR GASDET FOR GRILL
                                                                  from £4.82
                                                                  from £4.82
                                                                  # 023
                                                                  MPN: 60703000
                                                                  RUBBER PIECE
                                                                  from £0.48
                                                                  from £0.48
                                                                  # 024
                                                                  MPN: 61993800
                                                                  LOCK CABLE-DEVICE
                                                                  - Not for GD
                                                                  from £1.70
                                                                  from £1.70
                                                                  # 024
                                                                  MPN: 62382700
                                                                  LOCK CABLE-DEVICE
                                                                  - Valid for GD
                                                                  from £3.27
                                                                  from £3.27
                                                                  # 025
                                                                  MPN: 152326
                                                                  ELECTRIC BONNET OPENER
                                                                  from £446.19
                                                                  from £446.19
                                                                  This part replaces part number 60536500 - and 1 more. Click to view details
                                                                  # 026
                                                                  MPN: 60706200
                                                                  EMERGENCY CABLE
                                                                  from £4.03
                                                                  from £4.03
                                                                  # 027
                                                                  MPN: 15896470
                                                                  NUT
                                                                  (minimum order quantity = 20)
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                  # 028
                                                                  MPN: 11195479
                                                                  SPRING WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 029
                                                                  MPN: 12637801
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 030
                                                                  MPN: 10977624
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 10977611 - and 1 more. Click to view details
                                                                  # 031
                                                                  MPN: 127493
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 106849 - and 1 more. Click to view details
                                                                  # 032
                                                                  MPN: 60276607
                                                                  CABLE CLAMP
                                                                  from £11.72
                                                                  from £11.72
                                                                  This part replaces part number 60276707 - and 4 more. Click to view details
                                                                  # 033
                                                                  MPN: 60949300
                                                                  GASKET
                                                                  from £170.10
                                                                  from £170.10
                                                                  # 034
                                                                  MPN: 149951
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                  # 035
                                                                  MPN: 60795400
                                                                  FRONT ORNAMENT
                                                                  Two pin type.
                                                                  from £122.04
                                                                  from £122.04
                                                                  This part replaces part number 60043007
                                                                  # 036
                                                                  MPN: 60276805
                                                                  DOWEL
                                                                  from £0.47
                                                                  from £0.47
                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
