ferrari mondial 3.4 t coupe/cabrio engine compartment lid - coupe parts diagram

111 - Engine Compartment Lid - Coupe

Ferrari Mondial 3.4 t Coupe/Cabrio Engine Compartment Lid - Coupe Parts Diagram

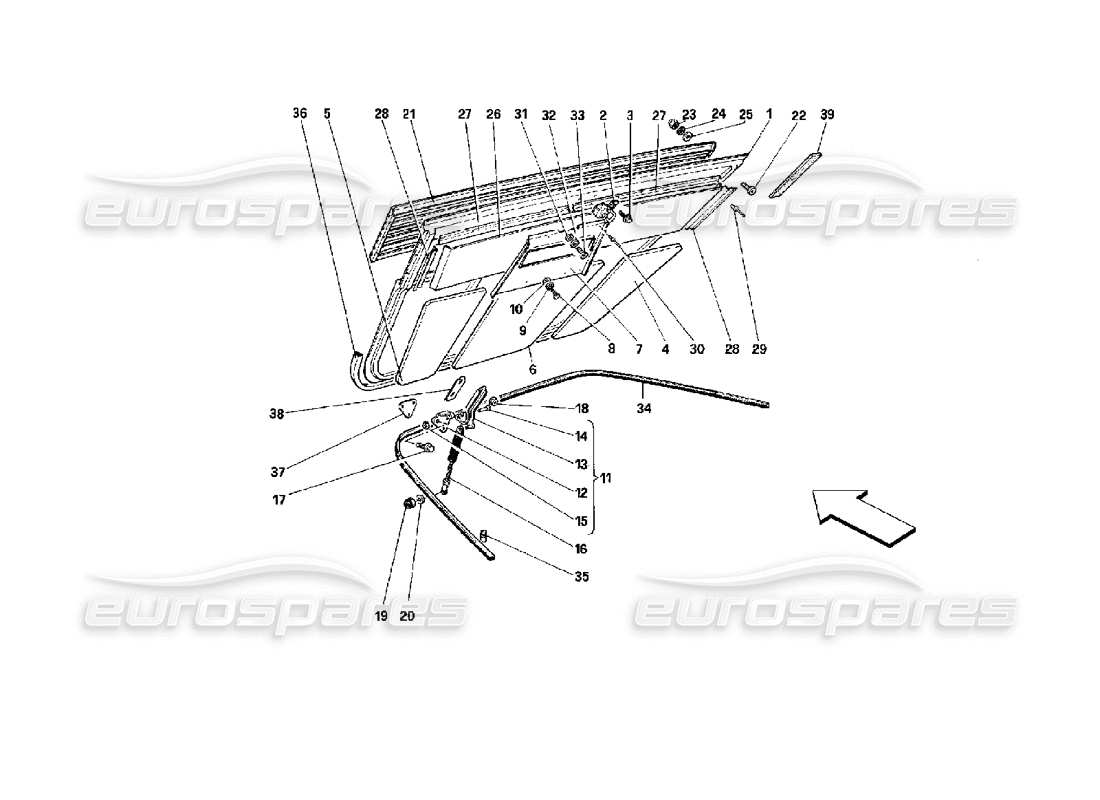

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Price
                                                                                # 001
                                                                                MPN: 60533900
                                                                                Engine Bonnet
                                                                                from £370.13
                                                                                from £370.13
                                                                                # 002
                                                                                MPN: 60702100
                                                                                CATCH
                                                                                from £7.12
                                                                                from £7.12
                                                                                # 003
                                                                                MPN: 13836371
                                                                                SCREW
                                                                                from £1.49
                                                                                from £1.49
                                                                                # 004
                                                                                MPN: 61155600
                                                                                INSULATION RH
                                                                                from £40.72
                                                                                from £40.72
                                                                                # 005
                                                                                MPN: 61155700
                                                                                INSULATION LH
                                                                                from £40.72
                                                                                from £40.72
                                                                                # 006
                                                                                MPN: 61155800
                                                                                Insulation
                                                                                from £48.19
                                                                                from £48.19
                                                                                # 007
                                                                                MPN: 62612900
                                                                                WATER SHIELD
                                                                                from £68.31
                                                                                from £68.31
                                                                                # 008
                                                                                MPN: 14072416
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 009
                                                                                MPN: 149951
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                # 010
                                                                                MPN: 12638178
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                # 011
                                                                                MPN: 60514900
                                                                                COMPLETE HINGE FOR BONNET
                                                                                from £37.77
                                                                                from £37.77
                                                                                This part replaces part number 60784000 - and 1 more. Click to view details
                                                                                # 012
                                                                                MPN: 60515000
                                                                                FIXED HINGE
                                                                                from £29.91
                                                                                from £29.91
                                                                                This part replaces part number 60784100
                                                                                # 013
                                                                                MPN: 60515100
                                                                                MOBILE HINGE
                                                                                from £56.33
                                                                                from £56.33
                                                                                This part replaces part number 60784200
                                                                                # 014
                                                                                MPN: 60515200
                                                                                PIN
                                                                                from £8.06
                                                                                from £8.06
                                                                                # 015
                                                                                MPN: 11087974
                                                                                CIRCLIP
                                                                                from £0.51
                                                                                from £0.51
                                                                                This part replaces part number 11087976
                                                                                # 016
                                                                                MPN: 60559500
                                                                                FRONT COVER/ENGINE COVER STRUT
                                                                                from £74.17
                                                                                from £74.17
                                                                                # 017
                                                                                MPN: 13836071
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 018
                                                                                MPN: 13832101
                                                                                NUT
                                                                                from £0.53
                                                                                from £0.53
                                                                                # 019
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                # 020
                                                                                MPN: 12639701
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                This part replaces part number 12639704
                                                                                # 022
                                                                                MPN: 20297602
                                                                                SCREW (FOR DARK-COLOUR CARS)
                                                                                from £5.68
                                                                                from £5.68
                                                                                # 022
                                                                                MPN: 61349600
                                                                                SCREW (FOR LIGHT-COLOUR CARS)
                                                                                from £0.77
                                                                                from £0.77
                                                                                # 023
                                                                                MPN: 14054048
                                                                                NUT
                                                                                This part replaces part number 14054042
                                                                                # 024
                                                                                MPN: 10519377
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
                                                                                # 025
                                                                                MPN: 12638178
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                # 026
                                                                                MPN: 60561100
                                                                                NET UNDER THE GRILL
                                                                                from £43.14
                                                                                from £43.14
                                                                                # 027
                                                                                MPN: 60534800
                                                                                REAR ANGULAR
                                                                                from £181.19
                                                                                from £181.19
                                                                                # 028
                                                                                MPN: 60535200
                                                                                SIDE ANGULAR
                                                                                from £25.08
                                                                                from £25.08
                                                                                # 029
                                                                                MPN: 60853400
                                                                                RIVET TO FIX. NET UNDER THE GRILL
                                                                                from £0.87
                                                                                from £0.87
                                                                                # 030
                                                                                MPN: 60159001
                                                                                RIVET TO FIX. WATER SHIELD
                                                                                from £0.75
                                                                                from £0.75
                                                                                # 031
                                                                                MPN: 12644406
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                # 032
                                                                                MPN: 10615471
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                # 033
                                                                                MPN: 61681100
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 034
                                                                                MPN: 60880600
                                                                                GASKET
                                                                                from £28.27
                                                                                from £28.27
                                                                                # 035
                                                                                MPN: 60568000
                                                                                STOP BUFFER
                                                                                Supersession
                                                                                Supersession
                                                                                # 036
                                                                                MPN: 60997100
                                                                                GASKET
                                                                                from £33.76
                                                                                from £33.76
                                                                                # 037
                                                                                MPN: 60732300
                                                                                ZINCFOIL
                                                                                from £1.06
                                                                                from £1.06
                                                                                # 038
                                                                                MPN: 60732400
                                                                                ZINCFOIL
                                                                                from £2.14
                                                                                from £2.14
                                                                                # 039
                                                                                MPN: 61349700
                                                                                GASKET
                                                                                from £1.61
                                                                                from £1.61
                                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
