112 - Luggage Compartment Lid

Ferrari Mondial 3.4 t Coupe/Cabrio Luggage Compartment Lid Parts Diagram

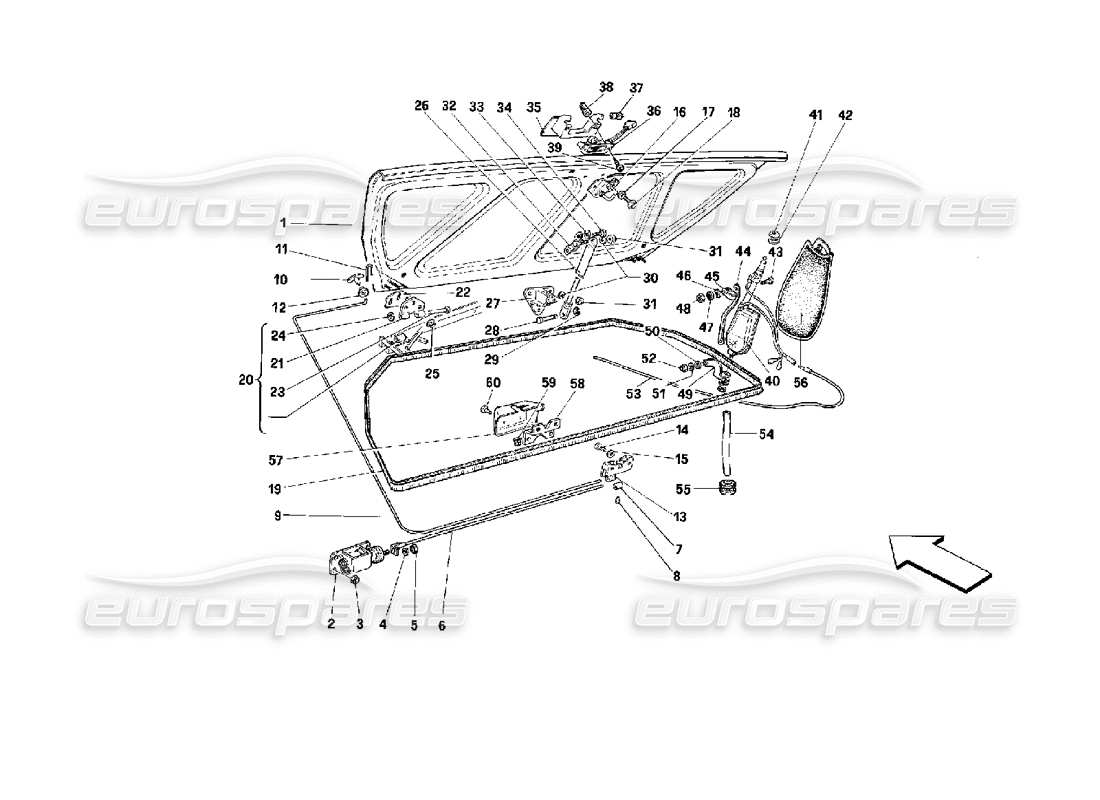

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Price
                                                                                                                      # 001
                                                                                                                      MPN: 61899800
                                                                                                                      TRUNK BONNET
                                                                                                                      from £712.81
                                                                                                                      from £712.81
                                                                                                                      This part replaces part number 60544200 - and 3 more. Click to view details
                                                                                                                      # 002
                                                                                                                      MPN: 152326
                                                                                                                      BONNET OPENER
                                                                                                                      from £446.19
                                                                                                                      from £446.19
                                                                                                                      This part replaces part number 60536500 - and 1 more. Click to view details
                                                                                                                      # 003
                                                                                                                      MPN: 102948
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                      # 004
                                                                                                                      MPN: 11195479
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 005
                                                                                                                      MPN: 15896470
                                                                                                                      NUT
                                                                                                                      (minimum order quantity = 20)
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                      # 006
                                                                                                                      MPN: 60670700
                                                                                                                      BONNET OPENER CABLE
                                                                                                                      from £1.36
                                                                                                                      from £1.36
                                                                                                                      # 007
                                                                                                                      MPN: 60276607
                                                                                                                      CLAMP
                                                                                                                      from £11.72
                                                                                                                      from £11.72
                                                                                                                      This part replaces part number 60276707 - and 4 more. Click to view details
                                                                                                                      # 008
                                                                                                                      MPN: 60276805
                                                                                                                      DOWEL
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 009
                                                                                                                      MPN: 61221200
                                                                                                                      EMERGENCY CABLE - CABRIOLET
                                                                                                                      from £2.00
                                                                                                                      from £2.00
                                                                                                                      # 009
                                                                                                                      MPN: 62619400
                                                                                                                      EMERGENCY CABLE - COUPÉ
                                                                                                                      from £2.40
                                                                                                                      from £2.40
                                                                                                                      # 010
                                                                                                                      MPN: 60710900
                                                                                                                      HANDLE FOR EMERGENCY CABLE
                                                                                                                      from £5.13
                                                                                                                      from £5.13
                                                                                                                      # 011
                                                                                                                      MPN: 60711000
                                                                                                                      SPRING FOR HANDLE
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 012
                                                                                                                      MPN: 60509200
                                                                                                                      WASHER FOR HANDLE - CABRIOLET
                                                                                                                      from £3.53
                                                                                                                      from £3.53
                                                                                                                      # 013
                                                                                                                      MPN: 60277407
                                                                                                                      BONNET LOCK
                                                                                                                      from £32.75
                                                                                                                      from £32.75
                                                                                                                      This part replaces part number 60023405 - and 15 more. Click to view details
                                                                                                                      # 014
                                                                                                                      MPN: 20297503
                                                                                                                      SCREW
                                                                                                                      from £0.70
                                                                                                                      from £0.70
                                                                                                                      # 015
                                                                                                                      MPN: 10519501
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 016
                                                                                                                      MPN: 60560100
                                                                                                                      CATCH
                                                                                                                      from £6.11
                                                                                                                      from £6.11
                                                                                                                      # 017
                                                                                                                      MPN: 12643724
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 109684 - and 3 more. Click to view details
                                                                                                                      # 018
                                                                                                                      MPN: 13836371
                                                                                                                      SCREW
                                                                                                                      from £0.69
                                                                                                                      from £0.69
                                                                                                                      # 019
                                                                                                                      MPN: 60545300
                                                                                                                      GASKET
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 020
                                                                                                                      MPN: 60523500
                                                                                                                      COMPLETE HINGE FOR BONNET
                                                                                                                      from £52.43
                                                                                                                      from £52.43
                                                                                                                      # 021
                                                                                                                      MPN: 60523600
                                                                                                                      HINGE MOBILE
                                                                                                                      from £8.50
                                                                                                                      from £8.50
                                                                                                                      # 022
                                                                                                                      MPN: 60732500
                                                                                                                      ZINCFOIL
                                                                                                                      from £1.53
                                                                                                                      from £1.53
                                                                                                                      # 023
                                                                                                                      MPN: 60523800
                                                                                                                      PIN
                                                                                                                      from £5.84
                                                                                                                      from £5.84
                                                                                                                      # 024
                                                                                                                      MPN: 11087974
                                                                                                                      SEEGER RING
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 11087976
                                                                                                                      # 025
                                                                                                                      MPN: 13832101
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 026
                                                                                                                      MPN: 60563300
                                                                                                                      LUGGAGE COMPARTMENT STRUT
                                                                                                                      from £30.61
                                                                                                                      from £30.61
                                                                                                                      # 027
                                                                                                                      MPN: 60563100
                                                                                                                      BRACKET
                                                                                                                      from £3.63
                                                                                                                      from £3.63
                                                                                                                      # 028
                                                                                                                      MPN: 60563200
                                                                                                                      PIN
                                                                                                                      from £7.17
                                                                                                                      from £7.17
                                                                                                                      # 029
                                                                                                                      MPN: 11087974
                                                                                                                      SEEGER RING
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 11087976
                                                                                                                      # 030
                                                                                                                      MPN: 60698400
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 031
                                                                                                                      MPN: 20293000
                                                                                                                      NUT
                                                                                                                      from £0.52
                                                                                                                      from £0.52
                                                                                                                      # 032
                                                                                                                      MPN: 60700700
                                                                                                                      BRACKET
                                                                                                                      from £11.42
                                                                                                                      from £11.42
                                                                                                                      # 033
                                                                                                                      MPN: 60700900
                                                                                                                      WASHER
                                                                                                                      from £0.76
                                                                                                                      from £0.76
                                                                                                                      # 034
                                                                                                                      MPN: 14304220
                                                                                                                      SCREW
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 035
                                                                                                                      MPN: 60846500
                                                                                                                      SUPPORT FOR PLATE LIGHT
                                                                                                                      from £109.94
                                                                                                                      from £109.94
                                                                                                                      This part replaces part number 60544800
                                                                                                                      # 036
                                                                                                                      MPN: 186180
                                                                                                                      NUMBER PLATE LIGHT
                                                                                                                      from £15.93
                                                                                                                      from £15.93
                                                                                                                      This part replaces part number 175204 - and 5 more. Click to view details
                                                                                                                      # 037
                                                                                                                      MPN: 101524
                                                                                                                      LAMP
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 20083002
                                                                                                                      # 038
                                                                                                                      MPN: 14201980
                                                                                                                      BLOCK
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 039
                                                                                                                      MPN: 15643978
                                                                                                                      SCREW TO FIX. SUPPORT PLATE LIGHT
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 039
                                                                                                                      MPN: 15687275
                                                                                                                      SCREW TO FIX. PLATE LIGHT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 15687206
                                                                                                                      # 040
                                                                                                                      MPN: 66235900
                                                                                                                      RADIO AERIAL
                                                                                                                      from £207.24
                                                                                                                      from £207.24
                                                                                                                      This part replaces part number 61928800
                                                                                                                      # 041
                                                                                                                      MPN: 60623100
                                                                                                                      BUSH FOR AERIAL
                                                                                                                      from £7.00
                                                                                                                      from £7.00
                                                                                                                      # 042
                                                                                                                      MPN: 60623200
                                                                                                                      GASKET
                                                                                                                      # 043
                                                                                                                      MPN: 10979421
                                                                                                                      SCREW
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 044
                                                                                                                      MPN: 61196500
                                                                                                                      COPPER PLAIT
                                                                                                                      from £0.58
                                                                                                                      from £0.58
                                                                                                                      # 045
                                                                                                                      MPN: 10418601
                                                                                                                      BRACKET
                                                                                                                      from £0.54
                                                                                                                      from £0.54
                                                                                                                      # 046
                                                                                                                      MPN: 12639701
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 12639704
                                                                                                                      # 048
                                                                                                                      MPN: 15896211
                                                                                                                      NUT
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 15896210 which we have in stock
                                                                                                                      # 049
                                                                                                                      MPN: 61897700
                                                                                                                      BRACKET - COUPÉ
                                                                                                                      from £5.16
                                                                                                                      from £5.16
                                                                                                                      # 049
                                                                                                                      MPN: 61968400
                                                                                                                      BRACKET - CABRIOLET
                                                                                                                      from £9.53
                                                                                                                      from £9.53
                                                                                                                      # 050
                                                                                                                      MPN: 12638178
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                                                                                                                      # 051
                                                                                                                      MPN: 149951
                                                                                                                      WASHER
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                                                      # 052
                                                                                                                      MPN: 15896472
                                                                                                                      NUT
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 15896416 which we have in stock
                                                                                                                      # 053
                                                                                                                      MPN: 60895500
                                                                                                                      CABLE
                                                                                                                      from £39.16
                                                                                                                      from £39.16
                                                                                                                      # 054
                                                                                                                      MPN: 61989100
                                                                                                                      EXHAUST WATER PIPE
                                                                                                                      from £1.77
                                                                                                                      from £1.77
                                                                                                                      # 055
                                                                                                                      MPN: 10396380
                                                                                                                      CABLE GUIDE
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 056
                                                                                                                      MPN: 60874000
                                                                                                                      AERIAL PROTECTION - COUPÉ
                                                                                                                      - Not for USA-SA-J
                                                                                                                      from £48.29
                                                                                                                      from £48.29
                                                                                                                      # 056
                                                                                                                      MPN: 61426400
                                                                                                                      AERIAL PROTECTION - COUPÉ
                                                                                                                      - Valid for USA-SA-J
                                                                                                                      from £67.07
                                                                                                                      from £67.07
                                                                                                                      # 057
                                                                                                                      MPN: 61866300
                                                                                                                      LOCK SHIELD
                                                                                                                      from £7.64
                                                                                                                      from £7.64
                                                                                                                      # 058
                                                                                                                      MPN: 61866400
                                                                                                                      BRACKET
                                                                                                                      from £3.55
                                                                                                                      from £3.55
                                                                                                                      # 059
                                                                                                                      MPN: 60695800
                                                                                                                      SPRING
                                                                                                                      from £0.62
                                                                                                                      from £0.62
                                                                                                                      # 060
                                                                                                                      MPN: 15908506
                                                                                                                      SCREW
                                                                                                                      from £0.80
                                                                                                                      from £0.80
