113 - Doors - Coupe - Framework and Linings

Ferrari Mondial 3.4 t Coupe/Cabrio Doors - Coupe - Framework and Linings Parts Diagram

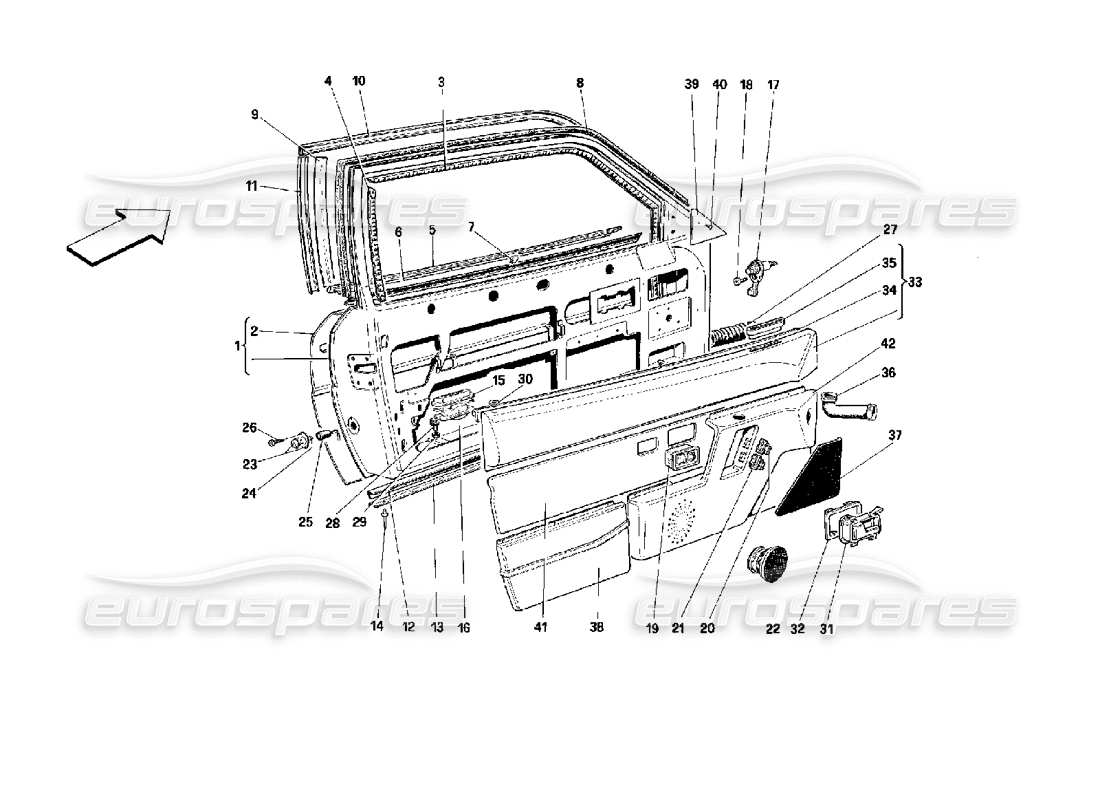

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 62524400
                                                                      RH DOOR
                                                                      - Not for USA and SA
                                                                      from £656.25
                                                                      from £656.25
                                                                      # 001
                                                                      MPN: 62524500
                                                                      LH DOOR
                                                                      - Not for USA and SA
                                                                      from £656.25
                                                                      from £656.25
                                                                      # 001
                                                                      MPN: 62634900
                                                                      RH DOOR
                                                                      - Valid for USA and SA
                                                                      from £1,341.20
                                                                      from £1,341.20
                                                                      This part replaces part number 62534900
                                                                      # 001
                                                                      MPN: 62635000
                                                                      LH DOOR
                                                                      - Valid for USA and SA
                                                                      from £1,341.20
                                                                      from £1,341.20
                                                                      # 002
                                                                      MPN: 62524600
                                                                      RH DOOR COVERING
                                                                      from £500.10
                                                                      from £500.10
                                                                      # 002
                                                                      MPN: 62524700
                                                                      LH DOOR COVERING
                                                                      from £500.10
                                                                      from £500.10
                                                                      # 003
                                                                      MPN: 60634900
                                                                      FRONT RUN CHANNEL
                                                                      from £21.28
                                                                      from £21.28
                                                                      # 004
                                                                      MPN: 60635100
                                                                      REAR RUN CHANNEL
                                                                      from £47.90
                                                                      from £47.90
                                                                      # 005
                                                                      MPN: 60635300
                                                                      RH MOLDING
                                                                      from £542.73
                                                                      from £542.73
                                                                      # 005
                                                                      MPN: 60635400
                                                                      LH MOLDING
                                                                      from £105.70
                                                                      from £105.70
                                                                      # 006
                                                                      MPN: 60635900
                                                                      GASKET
                                                                      from £37.28
                                                                      from £37.28
                                                                      This part replaces part number 60635900/K - and 1 more. Click to view details
                                                                      # 007
                                                                      MPN: 4211210
                                                                      SPRING
                                                                      from £4.46
                                                                      from £4.46
                                                                      This part replaces part number 253-42-588-00 - and 1 more. Click to view details
                                                                      # 008
                                                                      MPN: 60636000
                                                                      RH GASKET
                                                                      Supersession
                                                                      Supersession
                                                                      # 008
                                                                      MPN: 60904000
                                                                      LH GASKET
                                                                      from £125.25
                                                                      from £125.25
                                                                      This part replaces part number 60636100
                                                                      # 009
                                                                      MPN: 60636200
                                                                      RH VERTICAL MOLDING
                                                                      from £67.07
                                                                      from £67.07
                                                                      # 009
                                                                      MPN: 60636300
                                                                      LH VERTICAL MOLDING
                                                                      from £67.07
                                                                      from £67.07
                                                                      # 010
                                                                      MPN: 60636400
                                                                      RH UPPER FRAME
                                                                      from £52.02
                                                                      from £52.02
                                                                      # 010
                                                                      MPN: 60636500
                                                                      LH UPPER FRAME
                                                                      from £45.91
                                                                      from £45.91
                                                                      # 011
                                                                      MPN: 60636600
                                                                      RH REAR FRAME
                                                                      from £59.64
                                                                      from £59.64
                                                                      # 011
                                                                      MPN: 60636700
                                                                      LH REAR FRAME
                                                                      from £45.54
                                                                      from £45.54
                                                                      # 012
                                                                      MPN: 60725100
                                                                      UNDERDOOR GASKET
                                                                      Supersession
                                                                      Supersession
                                                                      # 013
                                                                      MPN: 60725000
                                                                      SUPPORT FOR GASKET
                                                                      from £20.99
                                                                      from £20.99
                                                                      # 014
                                                                      MPN: 12838850
                                                                      RIVET
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 015
                                                                      MPN: 60842000
                                                                      DOOR LAMP BOX
                                                                      from £2.42
                                                                      from £2.42
                                                                      This part replaces part number 63871300 - and 1 more. Click to view details
                                                                      # 016
                                                                      MPN: 65088400
                                                                      COURTESY LAMP
                                                                      from £70.62
                                                                      from £70.62
                                                                      This part replaces part number 60842100 - and 5 more. Click to view details
                                                                      # 016
                                                                      MPN: 65088400
                                                                      ROOF LAMP
                                                                      - Valid after stock exhaustion of 60842100
                                                                      from £70.62
                                                                      from £70.62
                                                                      This part replaces part number 60842100 - and 5 more. Click to view details
                                                                      # 017
                                                                      MPN: 141894
                                                                      SWITCH TO SIGNAL. OPEN DOOR
                                                                      - For USA-SA and J: Q.ty 3
                                                                      from £14.55
                                                                      from £14.55
                                                                      This part replaces part number 61503300 - and 13 more. Click to view details
                                                                      # 018
                                                                      MPN: 15690678
                                                                      SCREW
                                                                      - For USA-SA and J: Q.ty 3
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 019
                                                                      MPN: 61063200
                                                                      SWITCH FOR OUTER MIRRORS
                                                                      from £189.89
                                                                      from £189.89
                                                                      This part replaces part number 257-80-834-00 - and 1 more. Click to view details
                                                                      # 020
                                                                      MPN: 137496
                                                                      LH GLASS LIFTING SWITCH
                                                                      - Without lighting - For GD: Q.ty 2
                                                                      from £42.29
                                                                      from £42.29
                                                                      # 020
                                                                      MPN: 144797
                                                                      LH GLASS LIFTING SWITCH
                                                                      - With lighting - For GD: Q.ty 2
                                                                      from £88.26
                                                                      from £88.26
                                                                      # 021
                                                                      MPN: 137497
                                                                      RH GLASS LIFTING SWITCH
                                                                      - Without lighting - For GD: Q.ty 1
                                                                      from £48.98
                                                                      from £48.98
                                                                      # 021
                                                                      MPN: 144798
                                                                      RH GLASS LIFTING SWITCH
                                                                      - With lighting - For GD: Q.ty 1
                                                                      from £56.19
                                                                      from £56.19
                                                                      # 022
                                                                      MPN: 61835200
                                                                      WOOFER LOUDSPEAKER
                                                                      from £73.84
                                                                      from £73.84
                                                                      # 023
                                                                      MPN: 60788100
                                                                      OPEN - DOOR LIGHT
                                                                      Supersession
                                                                      Supersession
                                                                      # 024
                                                                      MPN: 101525
                                                                      BULB
                                                                      from £2.08
                                                                      from £2.08
                                                                      This part replaces part number 101528
                                                                      # 025
                                                                      MPN: 60101201
                                                                      PROTECTION CAP
                                                                      from £16.61
                                                                      from £16.61
                                                                      This part replaces part number 65910600
                                                                      # 026
                                                                      MPN: 15901370
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 027
                                                                      MPN: 60637900
                                                                      BELLOWS FOR ELECTRIC CABLES
                                                                      from £13.65
                                                                      from £13.65
                                                                      # 028
                                                                      MPN: 62302700
                                                                      RUBBER
                                                                      from £9.15
                                                                      from £9.15
                                                                      # 029
                                                                      MPN: 10725914
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 10725911 - and 1 more. Click to view details
                                                                      # 030
                                                                      MPN: 61813500
                                                                      BUSH
                                                                      from £0.66
                                                                      from £0.66
                                                                      # 031
                                                                      MPN: 61805400
                                                                      RH INNER HANDLE
                                                                      from £63.85
                                                                      from £63.85
                                                                      # 031
                                                                      MPN: 61805500
                                                                      LH INNER HANDLE
                                                                      from £57.19
                                                                      from £57.19
                                                                      # 032
                                                                      MPN: 61805600
                                                                      MOLDING
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 033
                                                                      MPN: 61696500
                                                                      RH COVERING UPPER PANEL
                                                                      from £36.24
                                                                      from £36.24
                                                                      This part replaces part number 60624400 - and 2 more. Click to view details
                                                                      # 033
                                                                      MPN: 61696600
                                                                      LH COVERING UPPER PANEL
                                                                      from £18.02
                                                                      from £18.02
                                                                      This part replaces part number 60624500 - and 2 more. Click to view details
                                                                      # 033
                                                                      MPN: 61774000
                                                                      RH DOOR UPPER PANEL ASSY WITH COVERING
                                                                      from £178.28
                                                                      from £178.28
                                                                      # 033
                                                                      MPN: 61774100
                                                                      LH DOOR UPPER PANEL ASSY WITH COVERING
                                                                      from £335.04
                                                                      from £335.04
                                                                      # 034
                                                                      MPN: 61811100
                                                                      GASKET
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 60136207 - and 2 more. Click to view details
                                                                      # 035
                                                                      MPN: 60624600
                                                                      AIR EXIT MOLDING
                                                                      from £12.49
                                                                      from £12.49
                                                                      # 036
                                                                      MPN: 60628300
                                                                      RH AIR DUCT
                                                                      from £38.23
                                                                      from £38.23
                                                                      # 036
                                                                      MPN: 60628400
                                                                      LH AIR DUCT
                                                                      from £5.78
                                                                      from £5.78
                                                                      # 037
                                                                      MPN: 608966..
                                                                      RH DOOR MOQUETTE
                                                                      Supersession
                                                                      Supersession
                                                                      # 037
                                                                      MPN: 608967..
                                                                      LH DOOR MOQUETTE
                                                                      Supersession
                                                                      Supersession
                                                                      # 038
                                                                      MPN: 611854..
                                                                      RH POCKET
                                                                      Supersession
                                                                      Supersession
                                                                      # 038
                                                                      MPN: 611855..
                                                                      LH POCKET
                                                                      Supersession
                                                                      Supersession
                                                                      # 039
                                                                      MPN: 61721000
                                                                      RH MOLDING
                                                                      from £14.71
                                                                      from £14.71
                                                                      # 039
                                                                      MPN: 61721100
                                                                      LH MOLDING
                                                                      from £13.21
                                                                      from £13.21
                                                                      # 040
                                                                      MPN: 20292009
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 041
                                                                      MPN: 613953..
                                                                      COVERING FOR RH CENTRAL PANEL
                                                                      Supersession
                                                                      Supersession
                                                                      # 041
                                                                      MPN: 619263..
                                                                      CENTRAL PANEL ASSY WITH COVERING FOR RH DOOR
                                                                      - Not for GD
                                                                      Supersession
                                                                      Supersession
                                                                      # 041
                                                                      MPN: 619264..
                                                                      CENTRAL PANEL ASSY WITH COVERING FOR LH DOOR
                                                                      - Not for GD
                                                                      Supersession
                                                                      Supersession
                                                                      # 041
                                                                      MPN: 619267..
                                                                      CENTRAL PANEL ASSY WITH COVERING FOR RH DOOR
                                                                      - Valid for GD
                                                                      Supersession
                                                                      Supersession
                                                                      # 041
                                                                      MPN: 619268..
                                                                      CENTRAL PANEL ASSY WITH COVERING FOR LH DOOR
                                                                      - Valid for GD
                                                                      Supersession
                                                                      Supersession
                                                                      # 041
                                                                      MPN: 619676..
                                                                      COVERING FOR LH CENTRAL PANEL
                                                                      Supersession
                                                                      Supersession
                                                                      # 042
                                                                      MPN: 625564..
                                                                      FRONT PANEL WITH COVERING FOR RH DOOR
                                                                      - Not for GD
                                                                      Supersession
                                                                      Supersession
                                                                      # 042
                                                                      MPN: 625565..
                                                                      FRONT PANEL WITH COVERING FOR LH DOOR
                                                                      - Not for GD
                                                                      Supersession
                                                                      Supersession
                                                                      # 042
                                                                      MPN: 626644..
                                                                      COVERING FOR RH FRONT PANEL
                                                                      Supersession
                                                                      Supersession
                                                                      # 042
                                                                      MPN: 626645..
                                                                      COVERING FOR LH FRONT PANEL
                                                                      Supersession
                                                                      Supersession
                                                                      # 042
                                                                      MPN: 628128..
                                                                      FRONT PANEL WITH COVERING FOR RH DOOR
                                                                      - Valid for GD
                                                                      Supersession
                                                                      Supersession
                                                                      # 042
                                                                      MPN: 628129..
                                                                      FRONT PANEL WITH COVERING FOR LH DOOR
                                                                      - Valid for GD
                                                                      Supersession
                                                                      Supersession
