113A - Doors - Coupe - Opening Control and Hinges

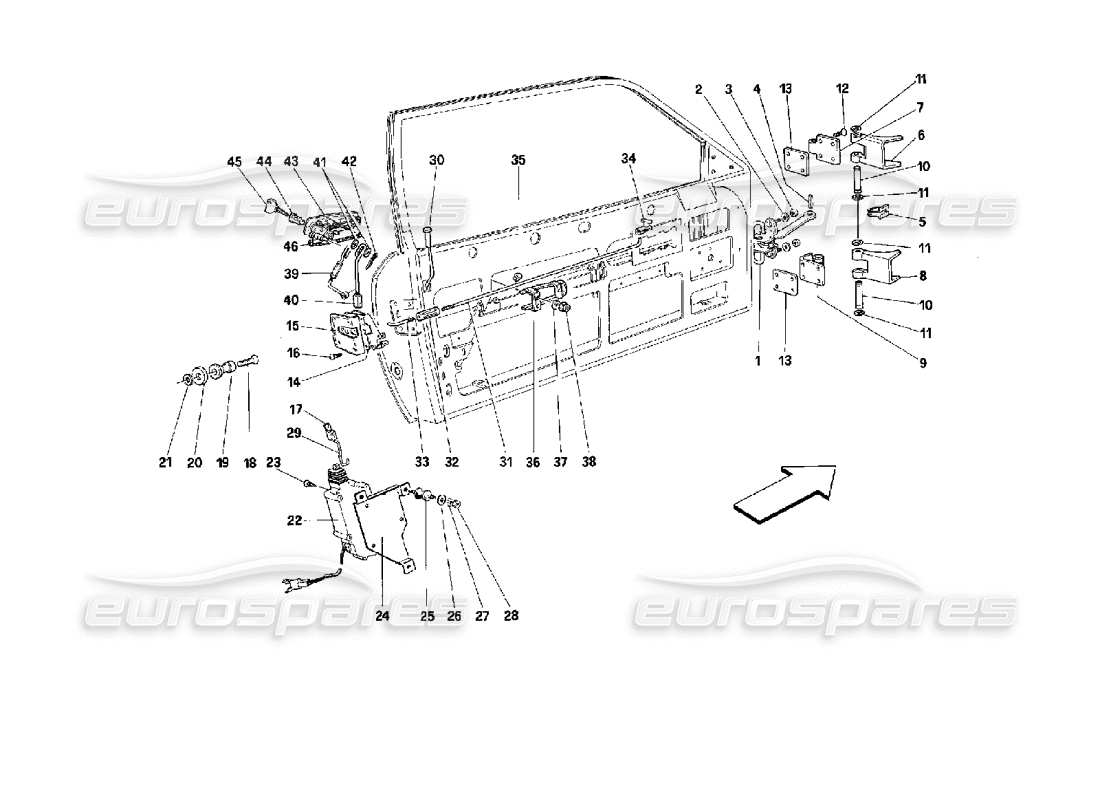

Ferrari Mondial 3.4 t Coupe/Cabrio Doors - Coupe - Opening Control and Hinges Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 60921100
STOP TIE ROD FOR DOOR
from £179.01
from £179.01
This part replaces part number 60666800 which we have in stock - and 1 more. Click to view details
# 002
MPN: 60711900
WASHER
from £0.53
from £0.53
# 003
MPN: 12574115
NUT
from £1.08
from £1.08
# 004
MPN: 65859300
PIN FOR TIE-ROD
from £9.42
from £9.42
This part replaces part number 60730200
# 005
MPN: 60549100
BRACKET TO FIX. STOP DOOR
from £1.61
from £1.61
This part replaces part number 60549200
# 006
MPN: 60547000
UPPER FIXED HINGE
from £8.93
from £8.93
# 006
MPN: 60547000/A
UPPER HINGE KIT
from £52.45
from £52.45
# 007
MPN: 60547200
UPPER MOBILE HINGE
from £11.38
from £11.38
# 008
MPN: 60547300
LOWER FIXED HINGE
from £20.95
from £20.95
# 008
MPN: 60547300/A
LOWER FIXED HINGE KIT
from £167.90
from £167.90
# 009
MPN: 60547500
LOWER MOBILE HINGE
from £108.27
from £108.27
# 010
MPN: 60547600
DOOR HINGES PIN
from £75.63
from £75.63
# 011
MPN: 16160976
SEEGER RING
from £0.48
from £0.48
# 012
MPN: 60127206
SCREW
from £0.47
from £0.47
# 013
MPN: 60732000
ZINCFOIL
from £1.61
from £1.61
# 014
MPN: 61775400
RH LOCK
from £34.44
from £34.44
# 014
MPN: 61775500
LH LOCK
from £146.55
from £146.55
# 015
MPN: 60634700
RH MOLDING
from £3.26
from £3.26
# 015
MPN: 60634800
LH MOLDING
from £3.94
from £3.94
# 016
MPN: 60909500
SCREW 6X15
from £1.37
from £1.37
# 016
MPN: 60909600
SCREW 6X30
from £1.51
from £1.51
# 017
MPN: 40063208
SPRING
Supersession
Supersession
# 018
MPN: 60673700
SCREW
from £46.95
from £46.95
# 019
MPN: 60670100
LOCK SUPPORT
from £4.18
from £4.18
# 020
MPN: 60775900
GASKET
from £8.67
from £8.67
# 021
MPN: 12642024
SPACER WASHER
from £0.53
from £0.53
This part replaces part number 12642020 - and 1 more. Click to view details
# 022
MPN: 62437700
LOCKING DEVICE FOR DOOR
from £297.39
from £297.39
This part replaces part number 61811300 - and 1 more. Click to view details
# 023
MPN: 15688007
SCREW
from £0.47
from £0.47
# 024
MPN: 61811400
RH SUPPORT
from £9.66
from £9.66
# 024
MPN: 61811500
LH SUPPORT
from £11.21
from £11.21
# 025
MPN: 113021
PAD
from £6.14
from £6.14
# 026
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 027
MPN: 149951
WASHER
from £0.52
from £0.52
This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
# 028
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 029
MPN: 61811600
RH ROD
from £4.23
from £4.23
# 029
MPN: 61811700
LH ROD
from £5.30
from £5.30
# 030
MPN: 61813600
SECURITY KNOB WITH ROD
from £27.52
from £27.52
# 031
MPN: 61789500
FRONT ROD
from £1.71
from £1.71
# 032
MPN: 60088606
SLEEVE
from £2.11
from £2.11
# 033
MPN: 61309800
REAR ROD
from £2.99
from £2.99
# 034
MPN: 61611500
SPRING
from £1.34
from £1.34
# 035
MPN: 14577880
SPRING
from £0.47
from £0.47
# 036
MPN: 62578000
BRACKET
from £9.65
from £9.65
# 037
MPN: 12638101
WASHER
from £0.71
from £0.71
# 038
MPN: 12574115
NUT
from £1.08
from £1.08
# 039
MPN: 60633800
ROD EXTERNAL HANDLE AND LOCK
from £8.08
from £8.08
# 040
MPN: 60633600
ROD WITH TERMINAL
from £14.27
from £14.27
# 041
MPN: 10519377
WASHER
Supersession
Supersession
This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
# 042
MPN: 10734101
COTTER PIN
from £1.55
from £1.55
This part replaces part number C1
# 043
MPN: 62577400
OUTER HANDLE ASSY FOR RH DOOR
from £136.71
from £136.71
# 043
MPN: 62577500
OUTER HANDLE ASSY FOR LH DOOR
from £144.66
from £144.66
# 044
MPN: 62612200
SET OF RH AND LH LOCKS WITH KEY
from £384.72
from £384.72
# 045
MPN: 95401147
BLANK KEY
from £168.00
from £168.00
This part replaces part number 95401030 which we have in stock
# 046
MPN: 62578100
EXTERNAL HANDLE GASKET
from £2.71
from £2.71
