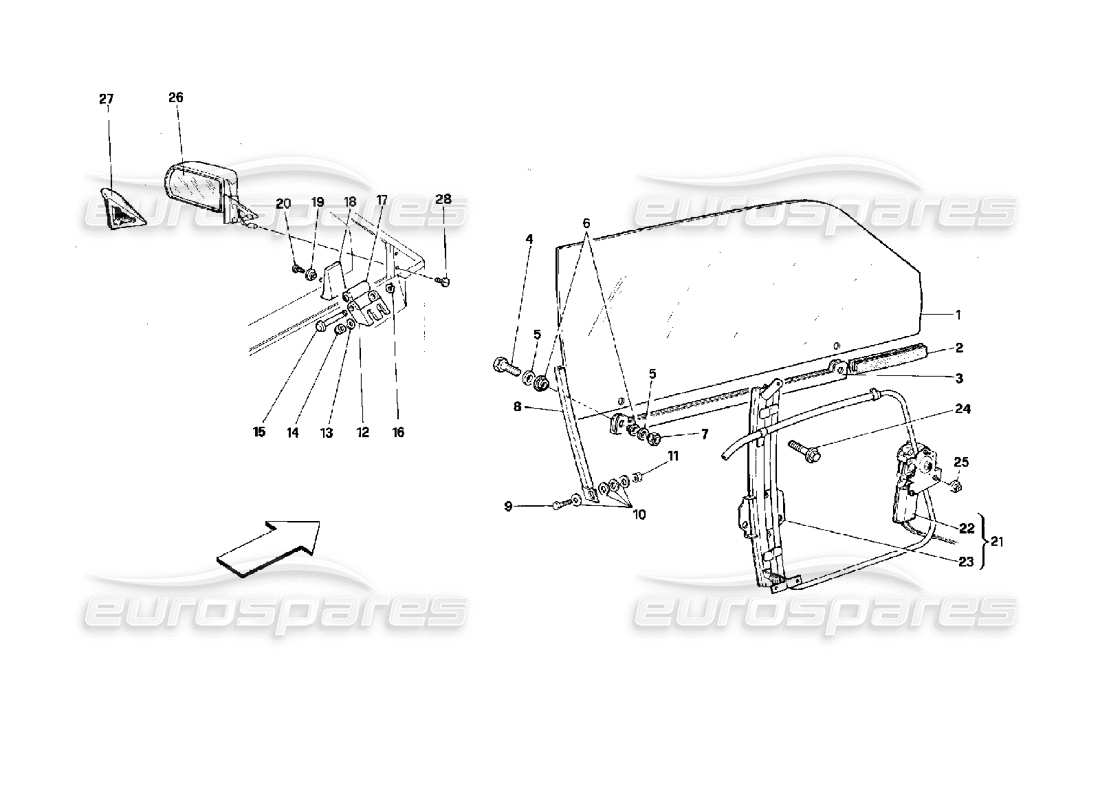

113B - Doors - Coupe - Glass Lifting Device and Rear Mirror

Ferrari Mondial 3.4 t Coupe/Cabrio Doors - Coupe - Glass Lifting Device and Rear Mirror Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 61034100
                                                      RH GLASS
                                                      from £46.51
                                                      from £46.51
                                                      This part replaces part number 60552700 - and 2 more. Click to view details
                                                      # 001
                                                      MPN: 61034200
                                                      LH GLASS
                                                      from £46.51
                                                      from £46.51
                                                      This part replaces part number 60552800 - and 2 more. Click to view details
                                                      # 002
                                                      MPN: 62301800
                                                      GASKET
                                                      from £2.45
                                                      from £2.45
                                                      # 003
                                                      MPN: 62301300
                                                      RH GLASS SUPPORT
                                                      from £72.83
                                                      from £72.83
                                                      # 003
                                                      MPN: 62301400
                                                      LH GLASS SUPPORT
                                                      from £8.71
                                                      from £8.71
                                                      # 004
                                                      MPN: 10902421
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      # 005
                                                      MPN: 12643701
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 12643704 - and 1 more. Click to view details
                                                      # 006
                                                      MPN: 50086909
                                                      BUSH
                                                      from £3.77
                                                      from £3.77
                                                      # 008
                                                      MPN: 60614400
                                                      RH GLASS GUIDE
                                                      from £15.80
                                                      from £15.80
                                                      # 008
                                                      MPN: 60614500
                                                      LH GLASS GUIDE
                                                      from £15.80
                                                      from £15.80
                                                      # 009
                                                      MPN: 10902411
                                                      SCREW
                                                      from £1.08
                                                      from £1.08
                                                      # 010
                                                      MPN: 12643724
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 109684 - and 3 more. Click to view details
                                                      # 011
                                                      MPN: 13832101
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      # 012
                                                      MPN: 61111900
                                                      BRACKET
                                                      from £5.03
                                                      from £5.03
                                                      # 013
                                                      MPN: 12638101
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      # 014
                                                      MPN: 12574121
                                                      NUT
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 12574111 - and 2 more. Click to view details
                                                      # 015
                                                      MPN: 61112000
                                                      PIN
                                                      from £5.23
                                                      from £5.23
                                                      # 016
                                                      MPN: 11065376
                                                      ELASTER SPRING
                                                      from £0.49
                                                      from £0.49
                                                      # 017
                                                      MPN: 61111700
                                                      ROLLER
                                                      from £3.98
                                                      from £3.98
                                                      # 018
                                                      MPN: 61038000
                                                      GUIDE FOR ROLLER
                                                      from £2.27
                                                      from £2.27
                                                      # 019
                                                      MPN: 61037900
                                                      WASHER
                                                      from £1.61
                                                      from £1.61
                                                      # 020
                                                      MPN: 15687270
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 15642670
                                                      # 021
                                                      MPN: 62301900
                                                      RH GLASS LIFTING ASSEMBLY AND MOTOR
                                                      from £109.87
                                                      from £109.87
                                                      # 021
                                                      MPN: 62302000
                                                      LH GLASS LIFTING ASSEMBLY AND MOTOR
                                                      from £62.30
                                                      from £62.30
                                                      # 022
                                                      MPN: 62302100
                                                      RH GLASS LIFTING MOTOR
                                                      from £125.63
                                                      from £125.63
                                                      This part replaces part number 62312400 which we have in stock - and 1 more. Click to view details
                                                      # 022
                                                      MPN: 62302200
                                                      LH ENGINE
                                                      from £125.63
                                                      from £125.63
                                                      This part replaces part number 62312500 - and 3 more. Click to view details
                                                      # 023
                                                      MPN: 62302300
                                                      RH GLASS LIFTING GUIDE
                                                      from £43.36
                                                      from £43.36
                                                      # 023
                                                      MPN: 62302400
                                                      LH GLASS LIFTING GUIDE
                                                      from £72.92
                                                      from £72.92
                                                      # 024
                                                      MPN: 13836371
                                                      SCREW
                                                      from £0.69
                                                      from £0.69
                                                      # 025
                                                      MPN: 13832101
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      # 026
                                                      MPN: 61090000
                                                      LH MIRROR
                                                      - Not for GD
                                                      from £744.09
                                                      from £744.09
                                                      This part replaces part number 60723700 - and 2 more. Click to view details
                                                      # 026
                                                      MPN: 61181100
                                                      RH MIRROR
                                                      - Not for USA and GD
                                                      from £558.58
                                                      from £558.58
                                                      This part replaces part number 60748900
                                                      # 026
                                                      MPN: 61182300
                                                      LH MIRROR
                                                      - Valid for GD
                                                      from £73.96
                                                      from £73.96
                                                      # 026
                                                      MPN: 61182500
                                                      RH MIRROR
                                                      - Valid for GD
                                                      from £157.50
                                                      from £157.50
                                                      This part replaces part number 60749200 - and 1 more. Click to view details
                                                      # 026
                                                      MPN: 61367700
                                                      RH MIRROR
                                                      - Valid for USA
                                                      from £117.19
                                                      from £117.19
                                                      This part replaces part number 61255900 - and 1 more. Click to view details
                                                      # 027
                                                      MPN: 61080500
                                                      LH MIRROR COVERING
                                                      - Not for GD
                                                      from £23.82
                                                      from £23.82
                                                      # 027
                                                      MPN: 61181200
                                                      RH MIRROR COVERING
                                                      - Not for GD
                                                      from £15.51
                                                      from £15.51
                                                      # 027
                                                      MPN: 61182400
                                                      LH MIRROR COVERING
                                                      - Valid for GD
                                                      from £21.05
                                                      from £21.05
                                                      # 027
                                                      MPN: 61182600
                                                      RH MIRROR COVERING
                                                      - Valid for GD
                                                      from £18.83
                                                      from £18.83
                                                      # 028
                                                      MPN: 61182700
                                                      SCREW
                                                      from £5.21
                                                      from £5.21
                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
