ferrari mondial 3.4 t coupe/cabrio doors - cabriolet - framework and linings parts diagram

114 - Doors - Cabriolet - Framework and Linings

Ferrari Mondial 3.4 t Coupe/Cabrio Doors - Cabriolet - Framework and Linings Parts Diagram

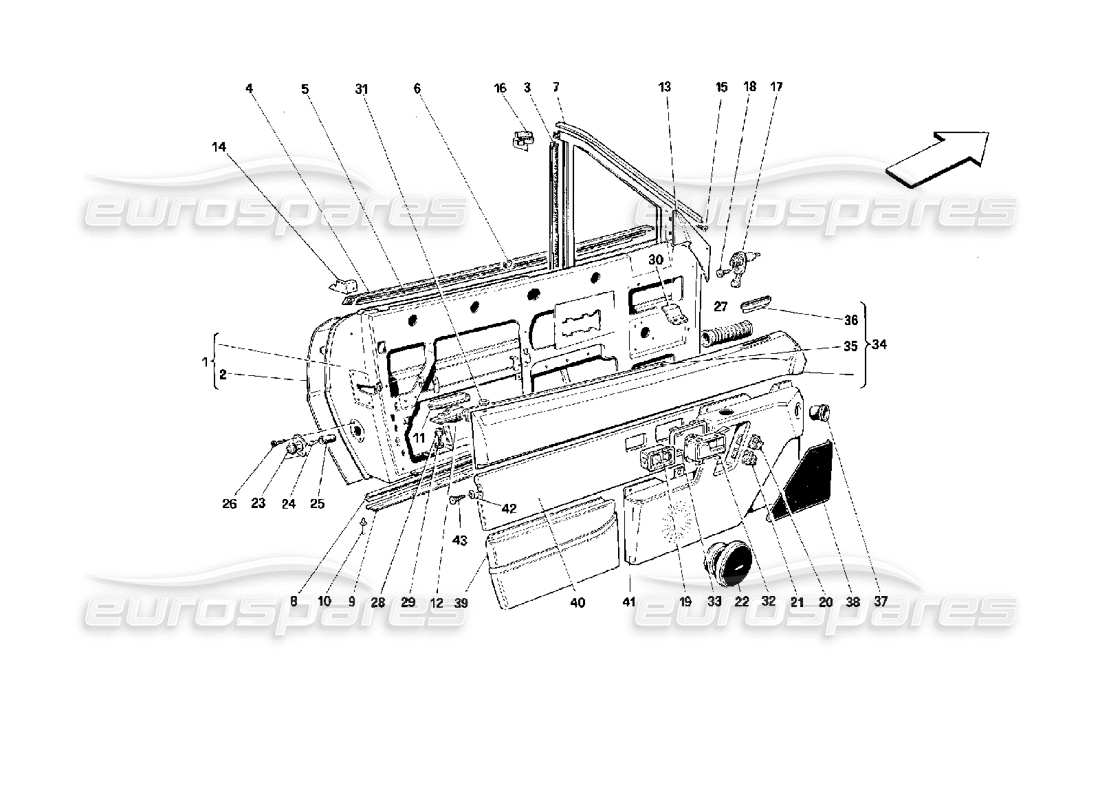

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001

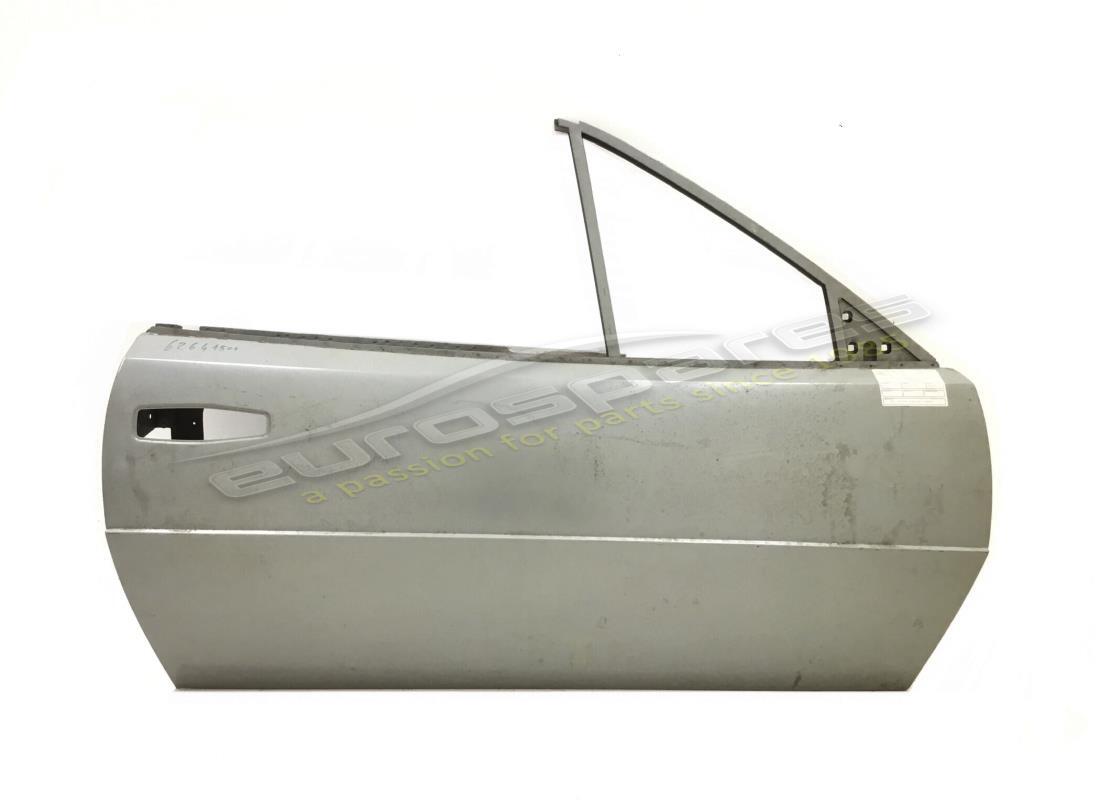

                                                                        MPN: 62641500
                                                                        RH DOOR
                                                                        - Not for USA and AUS
                                                                        from £1,989.75
                                                                        from £1,989.75
                                                                        # 001

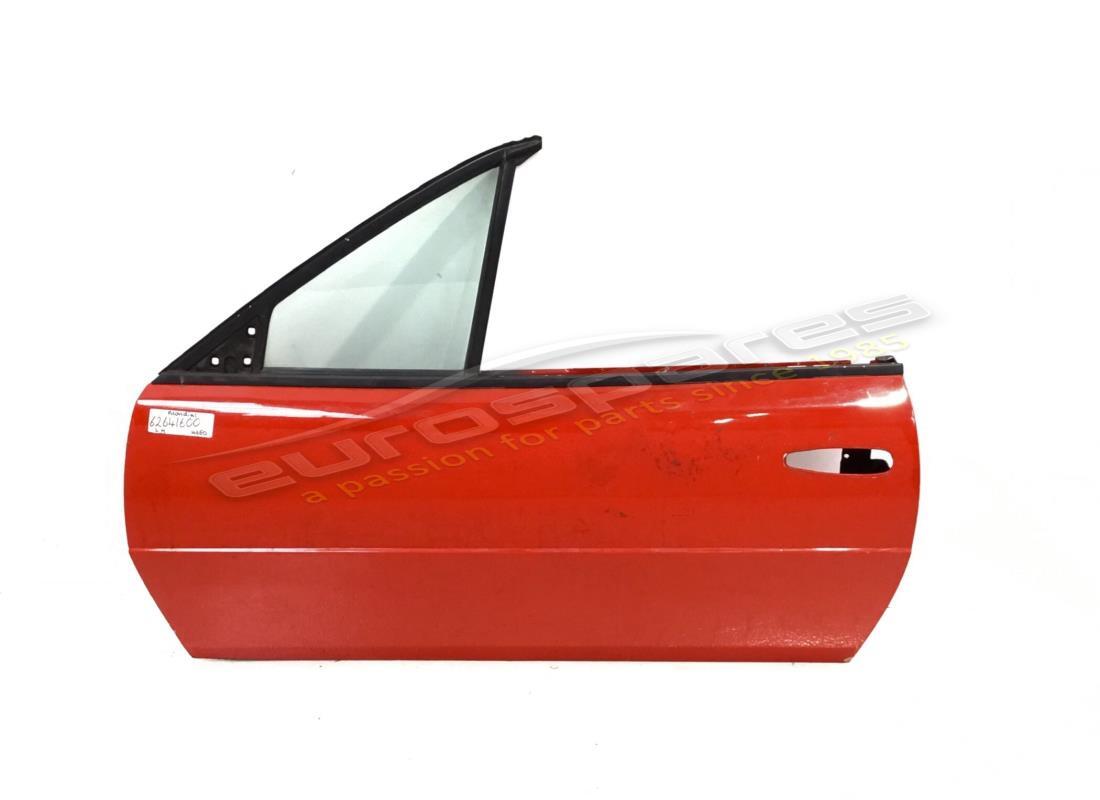

                                                                        MPN: 62641600
                                                                        LH DOOR
                                                                        - Not for USA and AUS
                                                                        from £1,312.50
                                                                        from £1,312.50
                                                                        LH DOOR Genuine Ferrari Part - Used In stock
                                                                        complete with small glass (2 studs broken small chip on paint)
                                                                        # 001
                                                                        MPN: 62686700
                                                                        RH DOOR
                                                                        - Valid for USA and AUS
                                                                        from £1,553.71
                                                                        from £1,553.71
                                                                        # 001
                                                                        MPN: 62686800
                                                                        LH DOOR
                                                                        - Valid for USA and AUS
                                                                        from £1,631.40
                                                                        from £1,631.40
                                                                        # 002
                                                                        MPN: 62524600
                                                                        RH DOOR COVERING
                                                                        from £500.10
                                                                        from £500.10
                                                                        # 002
                                                                        MPN: 62524700
                                                                        LH DOOR COVERING
                                                                        from £500.10
                                                                        from £500.10
                                                                        # 003
                                                                        MPN: 60635100
                                                                        FRONT RUN CHANNEL
                                                                        from £47.90
                                                                        from £47.90
                                                                        # 004
                                                                        MPN: 61219900
                                                                        RH MOLDING
                                                                        from £164.33
                                                                        from £164.33
                                                                        # 004
                                                                        MPN: 61220000
                                                                        LH MOLDING
                                                                        from £51.01
                                                                        from £51.01
                                                                        # 005
                                                                        MPN: 60635900
                                                                        GASKET
                                                                        from £24.85
                                                                        from £24.85
                                                                        This part replaces part number 60635900/K - and 1 more. Click to view details
                                                                        # 006
                                                                        MPN: 4211210
                                                                        SPRING
                                                                        from £4.46
                                                                        from £4.46
                                                                        This part replaces part number 253-42-588-00 - and 1 more. Click to view details
                                                                        # 007
                                                                        MPN: 61220500
                                                                        GASKET
                                                                        from £52.54
                                                                        from £52.54
                                                                        This part replaces part number 60343100
                                                                        # 008
                                                                        MPN: 60725100
                                                                        UNDERDOOR GASKET
                                                                        Supersession
                                                                        Supersession
                                                                        # 009
                                                                        MPN: 60725000
                                                                        SUPPORT FOR GASKET
                                                                        from £20.99
                                                                        from £20.99
                                                                        # 010
                                                                        MPN: 12838850
                                                                        RIVET
                                                                        from £0.71
                                                                        from £0.71
                                                                        # 011
                                                                        MPN: 60842000
                                                                        DOOR LAMP BOX
                                                                        from £2.42
                                                                        from £2.42
                                                                        This part replaces part number 63871300 - and 1 more. Click to view details
                                                                        # 012
                                                                        MPN: 65088400
                                                                        COURTESY LAMP
                                                                        from £70.62
                                                                        from £70.62
                                                                        This part replaces part number 60842100 - and 5 more. Click to view details
                                                                        # 012
                                                                        MPN: 65088400
                                                                        ROOF LAMP
                                                                        - Valid after stock exhaustion of 60842100
                                                                        from £70.62
                                                                        from £70.62
                                                                        This part replaces part number 60842100 - and 5 more. Click to view details
                                                                        # 013
                                                                        MPN: 61220600
                                                                        RH FRONT MOLDING
                                                                        from £20.76
                                                                        from £20.76
                                                                        # 013
                                                                        MPN: 61220700
                                                                        LH FRONT MOLDING
                                                                        from £20.76
                                                                        from £20.76
                                                                        # 014
                                                                        MPN: 61425600
                                                                        RH REAR MOLDING
                                                                        from £18.02
                                                                        from £18.02
                                                                        This part replaces part number 61256500
                                                                        # 014
                                                                        MPN: 61425700
                                                                        LH REAR MOLDING
                                                                        from £21.69
                                                                        from £21.69
                                                                        This part replaces part number 61256600
                                                                        # 015
                                                                        MPN: 15908507
                                                                        SCREW
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 016
                                                                        MPN: 61757700
                                                                        RH TERMINAL
                                                                        from £43.13
                                                                        from £43.13
                                                                        # 016
                                                                        MPN: 61757800
                                                                        LH TERMINAL
                                                                        from £43.13
                                                                        from £43.13
                                                                        # 017
                                                                        MPN: 141894
                                                                        SWITCH TO SIGNAL. OPEN DOOR
                                                                        - For USA-SA and J: Q.ty 3
                                                                        from £14.55
                                                                        from £14.55
                                                                        This part replaces part number 61503300 - and 13 more. Click to view details
                                                                        # 018
                                                                        MPN: 15690678
                                                                        SCREW
                                                                        - For USA-SA and J: Q.ty 3
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 019
                                                                        MPN: 61063200
                                                                        SWITCH FOR OUTER MIRRORS
                                                                        from £126.59
                                                                        from £126.59
                                                                        This part replaces part number 257-80-834-00 - and 1 more. Click to view details
                                                                        # 020
                                                                        MPN: 137496
                                                                        LH GLASS LIFTING SWITCH
                                                                        - Without lighting - For GD: Q.ty 2
                                                                        from £42.29
                                                                        from £42.29
                                                                        # 020
                                                                        MPN: 144797
                                                                        LH GLASS LIFTING SWITCH
                                                                        - With lighting - For GD: Q.ty 2
                                                                        from £88.26
                                                                        from £88.26
                                                                        # 021
                                                                        MPN: 137497
                                                                        RH GLASS LIFTING SWITCH
                                                                        - Without lighting - For GD: Q.ty 1
                                                                        from £48.98
                                                                        from £48.98
                                                                        # 021
                                                                        MPN: 144798
                                                                        RH GLASS LIFTING SWITCH
                                                                        - With lighting - For GD: Q.ty 1
                                                                        from £60.00
                                                                        from £60.00
                                                                        # 022
                                                                        MPN: 61835200
                                                                        WOOFER LOUDSPEAKER - DOOR LIGHT
                                                                        from £73.84
                                                                        from £73.84
                                                                        # 023
                                                                        MPN: 60788100
                                                                        OPEN
                                                                        Supersession
                                                                        Supersession
                                                                        # 024
                                                                        MPN: 101525
                                                                        BULB
                                                                        from £2.08
                                                                        from £2.08
                                                                        This part replaces part number 101528
                                                                        # 025
                                                                        MPN: 60101201
                                                                        PROTECTION CAP
                                                                        from £16.61
                                                                        from £16.61
                                                                        This part replaces part number 65910600
                                                                        # 026
                                                                        MPN: 15901370
                                                                        NUT
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 027
                                                                        MPN: 60637900
                                                                        BELLOWS FOR ELECTRIC CABLES
                                                                        from £13.65
                                                                        from £13.65
                                                                        # 028
                                                                        MPN: 62302700
                                                                        RUBBER
                                                                        from £9.15
                                                                        from £9.15
                                                                        # 029
                                                                        MPN: 10725914
                                                                        SCREW
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 10725911 - and 1 more. Click to view details
                                                                        # 030
                                                                        MPN: 61361500
                                                                        BRACKET
                                                                        from £11.76
                                                                        from £11.76
                                                                        # 031
                                                                        MPN: 61813500
                                                                        BUSH
                                                                        from £0.66
                                                                        from £0.66
                                                                        # 032
                                                                        MPN: 61805400
                                                                        RH INNER HANDLE
                                                                        from £63.85
                                                                        from £63.85
                                                                        # 032
                                                                        MPN: 61805500
                                                                        LH INNER HANDLE
                                                                        from £57.19
                                                                        from £57.19
                                                                        # 033
                                                                        MPN: 61805600
                                                                        MOLDING
                                                                        from £0.71
                                                                        from £0.71
                                                                        # 034
                                                                        MPN: 61696500
                                                                        COVERING FOR RH UPPER PANEL
                                                                        from £36.24
                                                                        from £36.24
                                                                        This part replaces part number 60624400 - and 2 more. Click to view details
                                                                        # 034
                                                                        MPN: 61696600
                                                                        COVERING FOR LH UPPER PANEL
                                                                        from £18.02
                                                                        from £18.02
                                                                        This part replaces part number 60624500 - and 2 more. Click to view details
                                                                        # 034
                                                                        MPN: 61780400
                                                                        RH DOOR UPPER PANEL ASSY WITH COVERING
                                                                        from £544.58
                                                                        from £544.58
                                                                        # 034
                                                                        MPN: 61780500
                                                                        LH DOOR UPPER PANEL ASSY WITH COVERING
                                                                        from £364.14
                                                                        from £364.14
                                                                        # 035
                                                                        MPN: 61811100
                                                                        GASKET
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 60136207 - and 2 more. Click to view details
                                                                        # 036
                                                                        MPN: 60624600
                                                                        AIR EXIT PLATE
                                                                        from £12.49
                                                                        from £12.49
                                                                        # 037
                                                                        MPN: 61339000
                                                                        AIR DUCT
                                                                        from £14.49
                                                                        from £14.49
                                                                        # 038
                                                                        MPN: 608966..
                                                                        RH DOOR MOQUETTE
                                                                        Supersession
                                                                        Supersession
                                                                        # 038
                                                                        MPN: 608967..
                                                                        LH DOOR MOQUETTE
                                                                        Supersession
                                                                        Supersession
                                                                        # 039
                                                                        MPN: 613643..
                                                                        RH POCKET
                                                                        Supersession
                                                                        Supersession
                                                                        # 039
                                                                        MPN: 613644..
                                                                        LH POCKET
                                                                        Supersession
                                                                        Supersession
                                                                        # 040
                                                                        MPN: 613953..
                                                                        COVERING FOR RH CENTRAL PANEL
                                                                        Supersession
                                                                        Supersession
                                                                        # 040
                                                                        MPN: 617812..
                                                                        CENTRAL PANEL ASSY WITH COVERING FOR LH DOOR
                                                                        - Not for GD
                                                                        Supersession
                                                                        Supersession
                                                                        # 040
                                                                        MPN: 617823..
                                                                        CENTRAL PANEL ASSY WITH COVERING FOR RH DOOR
                                                                        - Not for GD
                                                                        Supersession
                                                                        Supersession
                                                                        # 040
                                                                        MPN: 619147..
                                                                        CENTRAL PANEL ASSY WITH COVERING FOR RH DOOR
                                                                        - Valid for GD
                                                                        Supersession
                                                                        Supersession
                                                                        # 040
                                                                        MPN: 619148..
                                                                        CENTRAL PANEL ASSY WITH COVERING FOR LH DOOR
                                                                        - Valid for GD
                                                                        Supersession
                                                                        Supersession
                                                                        # 040
                                                                        MPN: 619676..
                                                                        COVERING FOR LH CENTRAL PANEL
                                                                        Supersession
                                                                        Supersession
                                                                        # 041
                                                                        MPN: 626762..
                                                                        FRONT PANEL WITH COVERING FOR RH DOOR
                                                                        - Not for GD
                                                                        Supersession
                                                                        Supersession
                                                                        # 041
                                                                        MPN: 626763..
                                                                        FRONT PANEL WITH COVERING FOR LH DOOR
                                                                        - Not for GD
                                                                        Supersession
                                                                        Supersession
                                                                        # 041
                                                                        MPN: 626772..
                                                                        COVERING FOR RH FRONT PANEL
                                                                        Supersession
                                                                        Supersession
                                                                        # 041
                                                                        MPN: 626773..
                                                                        COVERING FOR LH FRONT PANEL
                                                                        Supersession
                                                                        Supersession
                                                                        # 041
                                                                        MPN: 628200..
                                                                        FRONT PANEL WITH COVERING FOR RH DOOR
                                                                        - Valid for GD
                                                                        Supersession
                                                                        Supersession
                                                                        # 041
                                                                        MPN: 628201..
                                                                        FRONT PANEL WITH COVERING FOR LH DOOR
                                                                        - Valid for GD
                                                                        from £367.50
                                                                        from £367.50
                                                                        # 042
                                                                        MPN: 12611642
                                                                        WASHER
                                                                        from £0.47
                                                                        from £0.47
                                                                        # 043
                                                                        MPN: 15908602
                                                                        SCREW
                                                                        Supersession
                                                                        Supersession
