115B - Fixed Lighting Devices

Ferrari Mondial 3.4 t Coupe/Cabrio Fixed Lighting Devices Parts Diagram

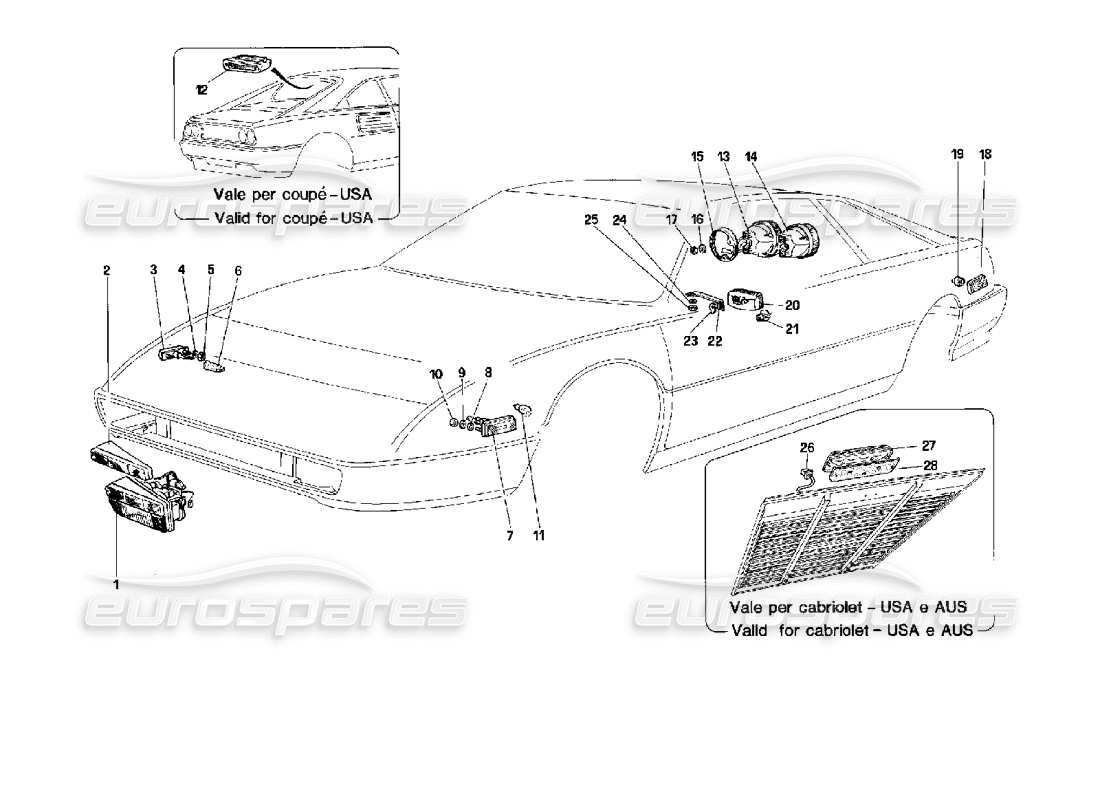

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 61732700

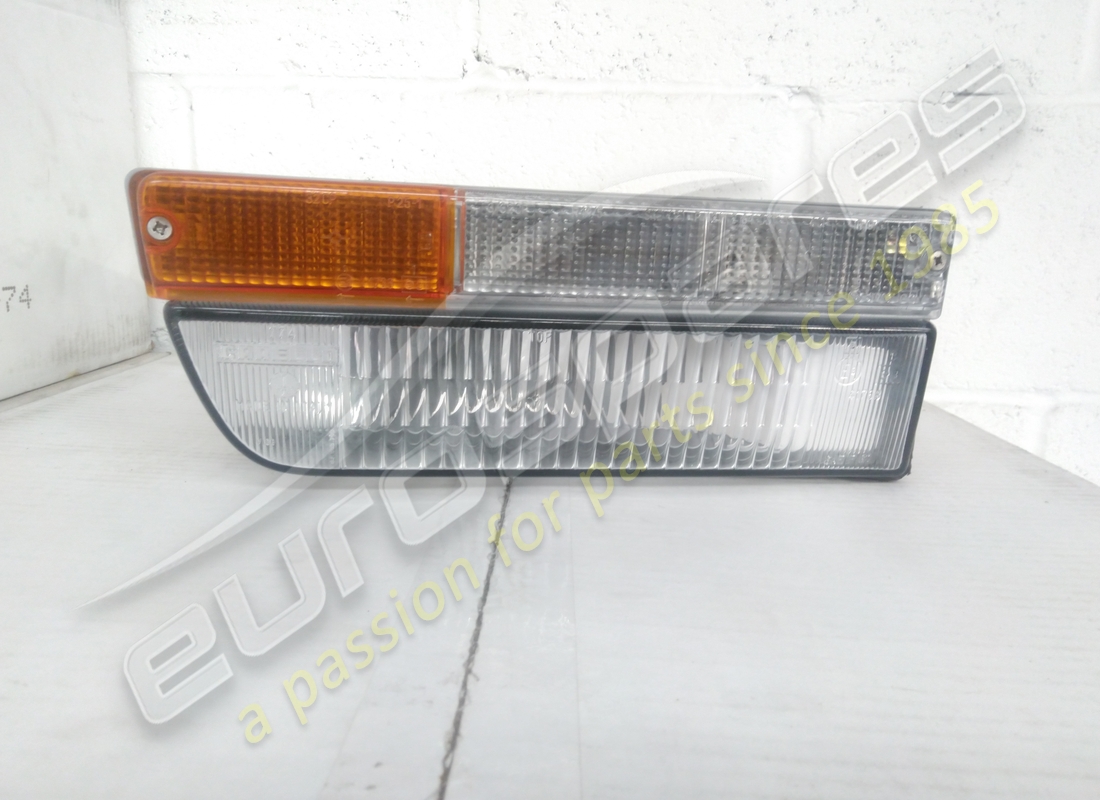

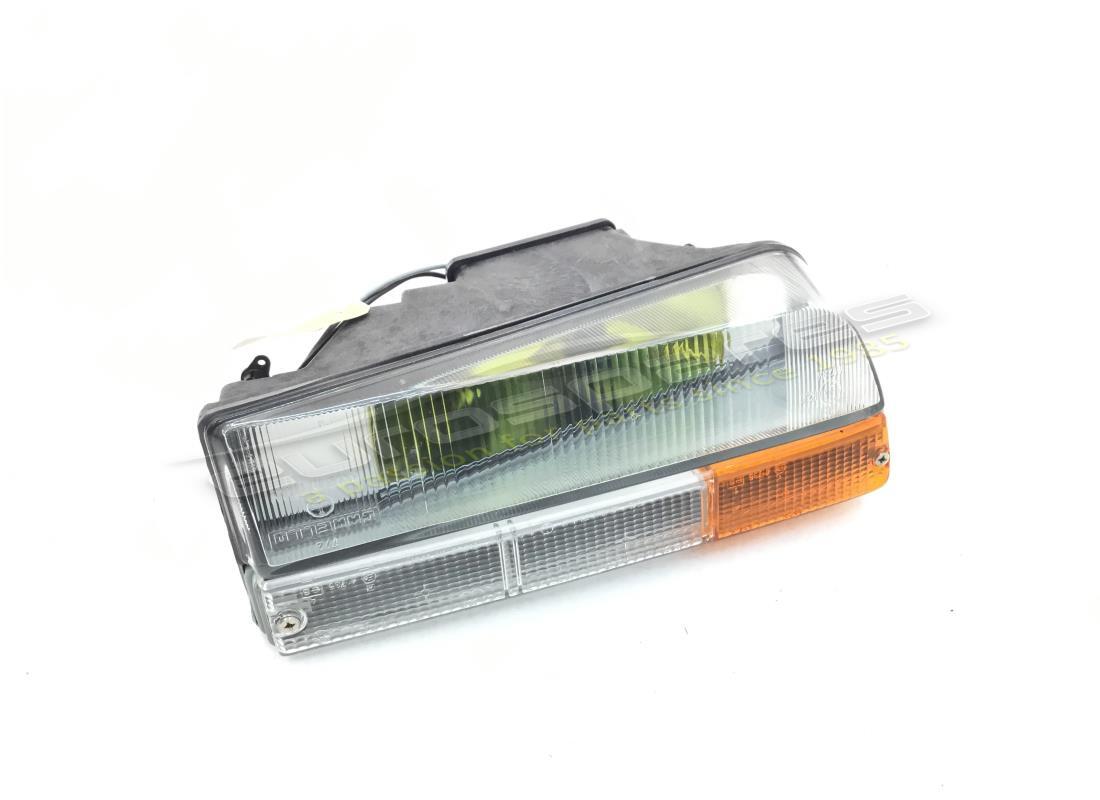

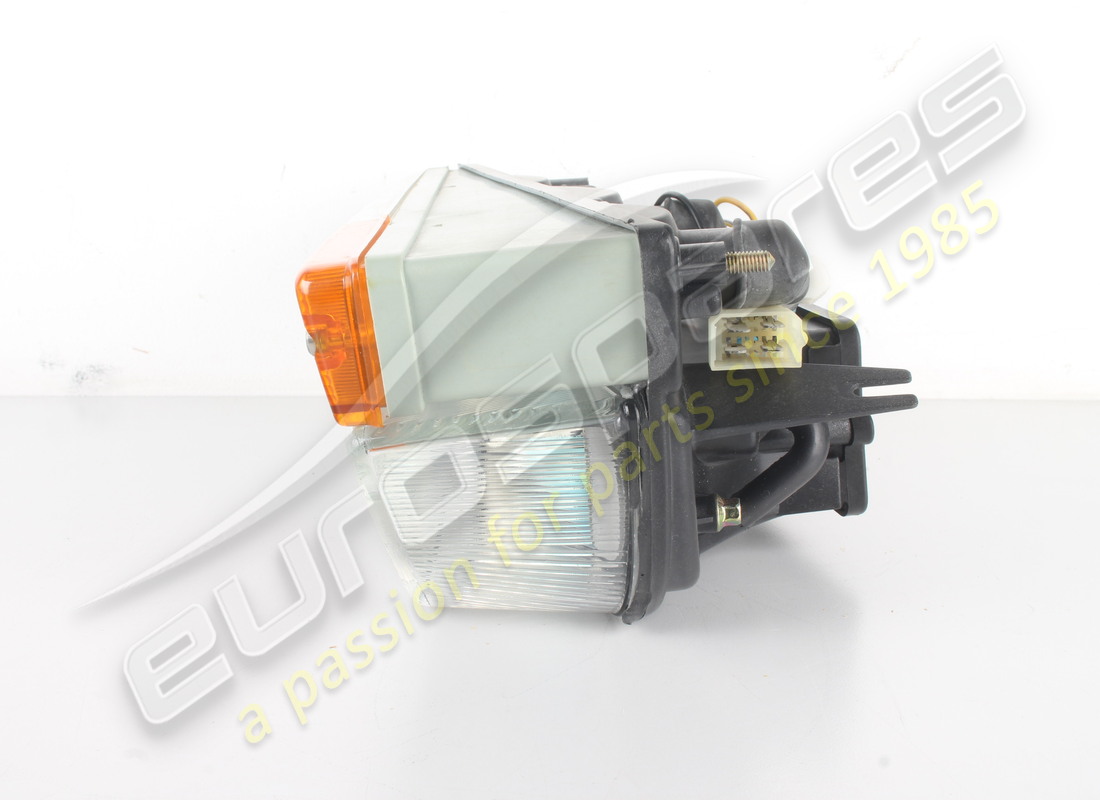

                        RH FRONT LIGHT
                        - Not for USA-F-GD and J
                        from £834.00
                        from £834.00
                        # 001
                        MPN: 61732800
                        LH FRONT LIGHT
                        - Not for USA-F-GD and J
                        from £1,746.14
                        from £1,746.14
                        # 001
                        MPN: 61797900
                        RH FRONT LIGHT
                        - Valid for USA
                        from £622.81
                        from £622.81
                        # 001
                        MPN: 61798000
                        LH FRONT LIGHT
                        - Valid for USA
                        from £691.49
                        from £691.49
                        # 001
                        MPN: 61879900
                        RH FRONT LIGHT
                        - Valid for GD and J
                        from £940.07
                        from £940.07
                        This part replaces part number 61779900
                        # 001
                        MPN: 61902100
                        RH FRONT LIGHT
                        - Valid for F
                        from £529.20
                        from £529.20
                        # 002
                        MPN: 61942900

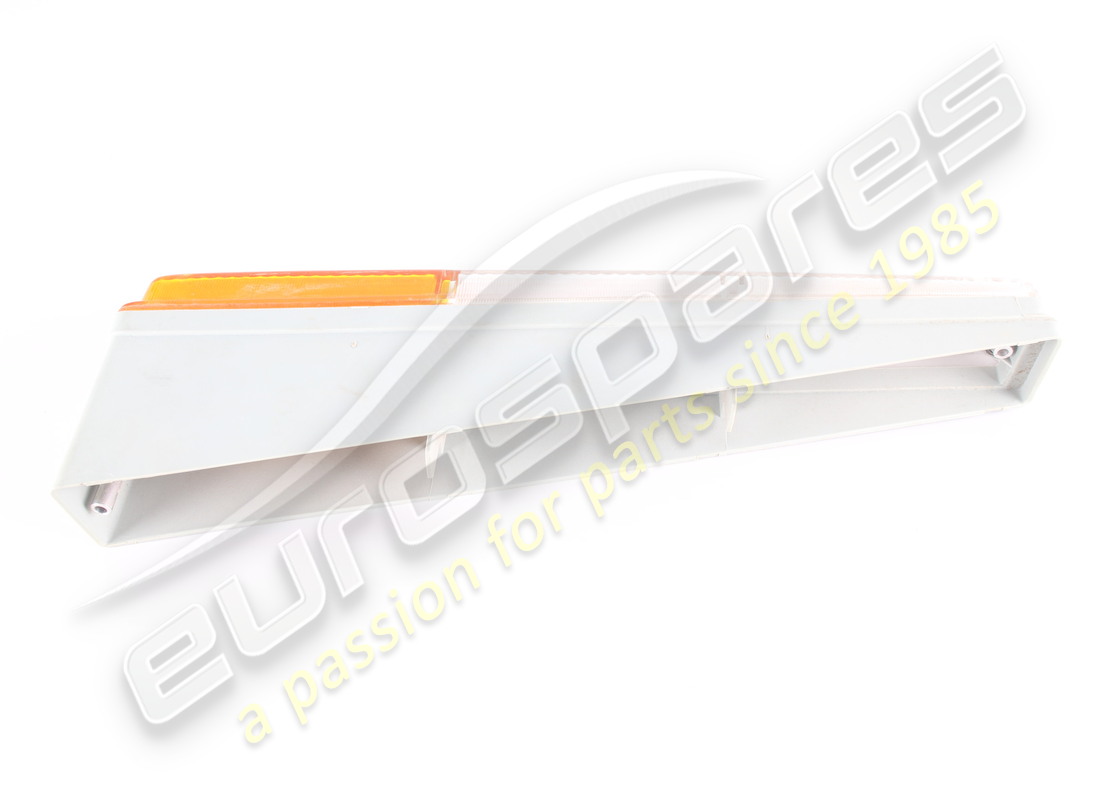

                        RH LENS FOR DIRECTION LIGHT
                        - Not for USA
                        from £968.87
                        from £968.87
                        # 002
                        MPN: 61943000

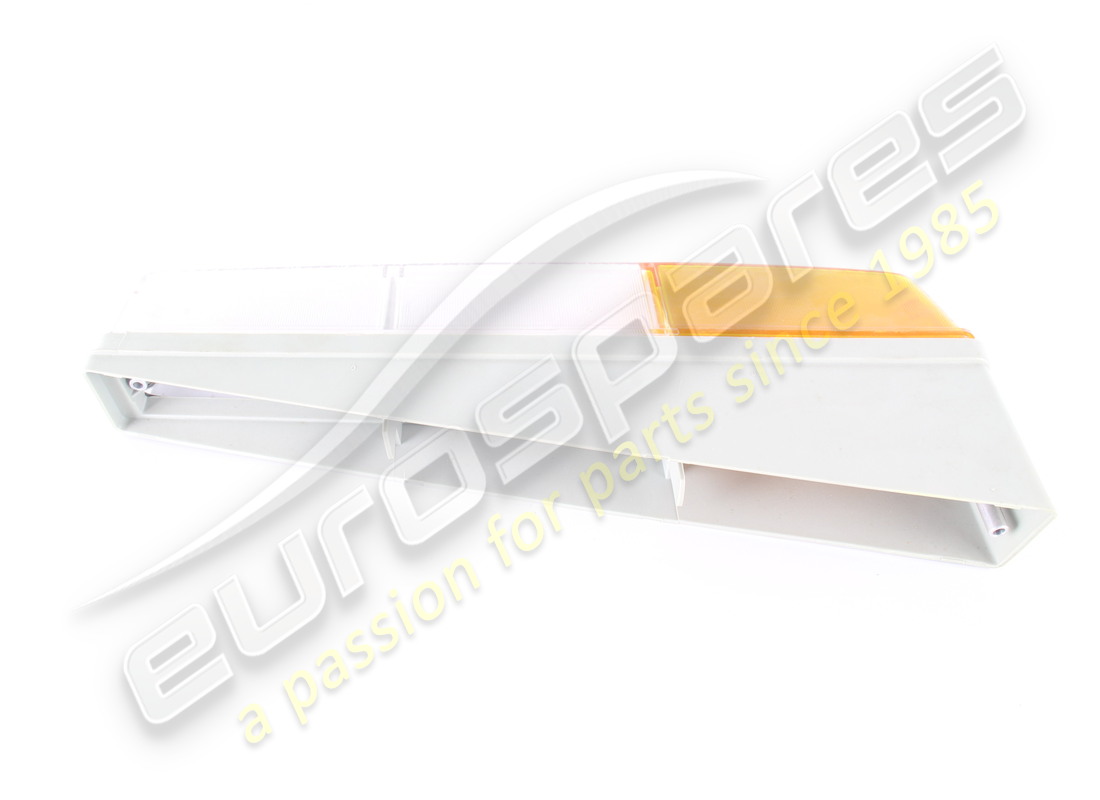

                        LH LENS FOR DIRECTION LIGHT
                        - Not for USA
                        from £807.14
                        from £807.14
                        # 002
                        MPN: 61943100
                        RH LENS FOR DIRECTION LIGHT
                        - Valid for USA
                        from £70.35
                        from £70.35
                        # 002
                        MPN: 61943200
                        LH LENS FOR DIRECTION LIGHT
                        - Valid for USA
                        from £35.76
                        from £35.76
                        # 003
                        MPN: 60669900
                        SIDE REPEATER LIGHT
                        - Not for USA
                        from £67.54
                        from £67.54
                        # 004
                        MPN: 12642801

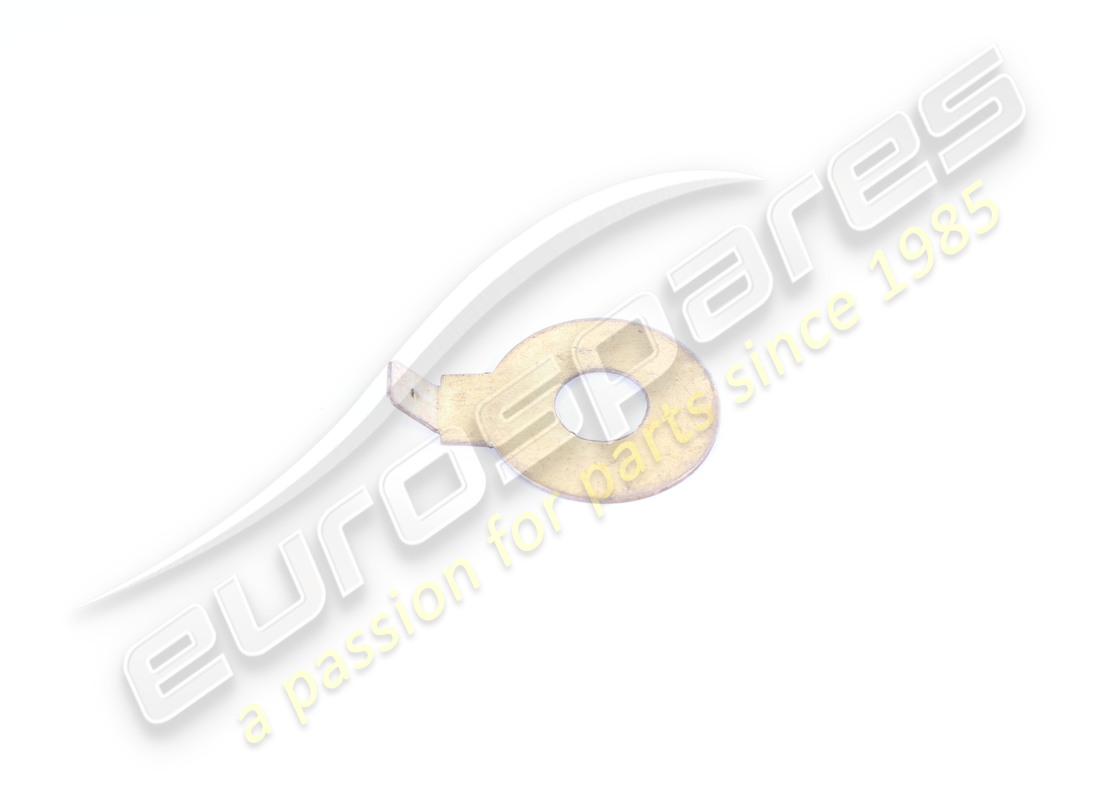

                        WASHER
                        - Not for USA - Not for USA
                        from £0.47
                        from £0.47
                        This part replaces part number 12642824
                        # 005
                        MPN: 10794011
                        NUT
                        from £0.26
                        from £0.26
                        # 006
                        MPN: 60101201
                        PROTECTION CAP
                        from £16.61
                        from £16.61
                        This part replaces part number 65910600
                        # 007
                        MPN: 60780300

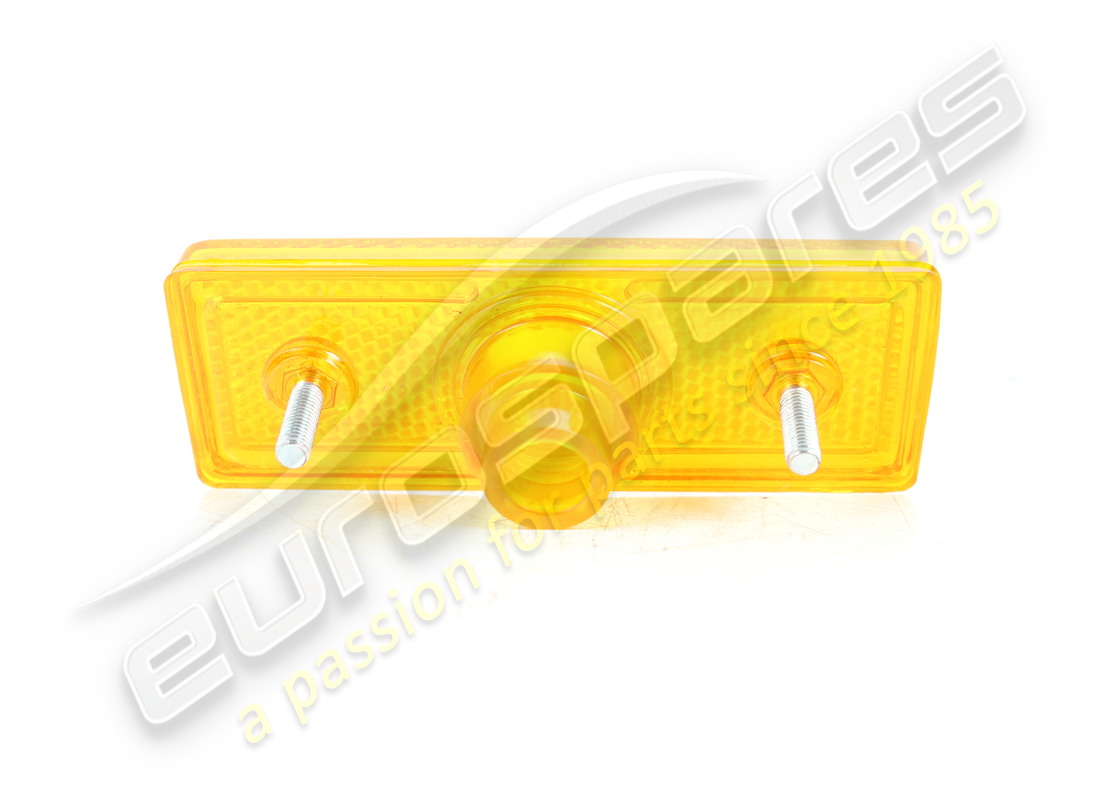

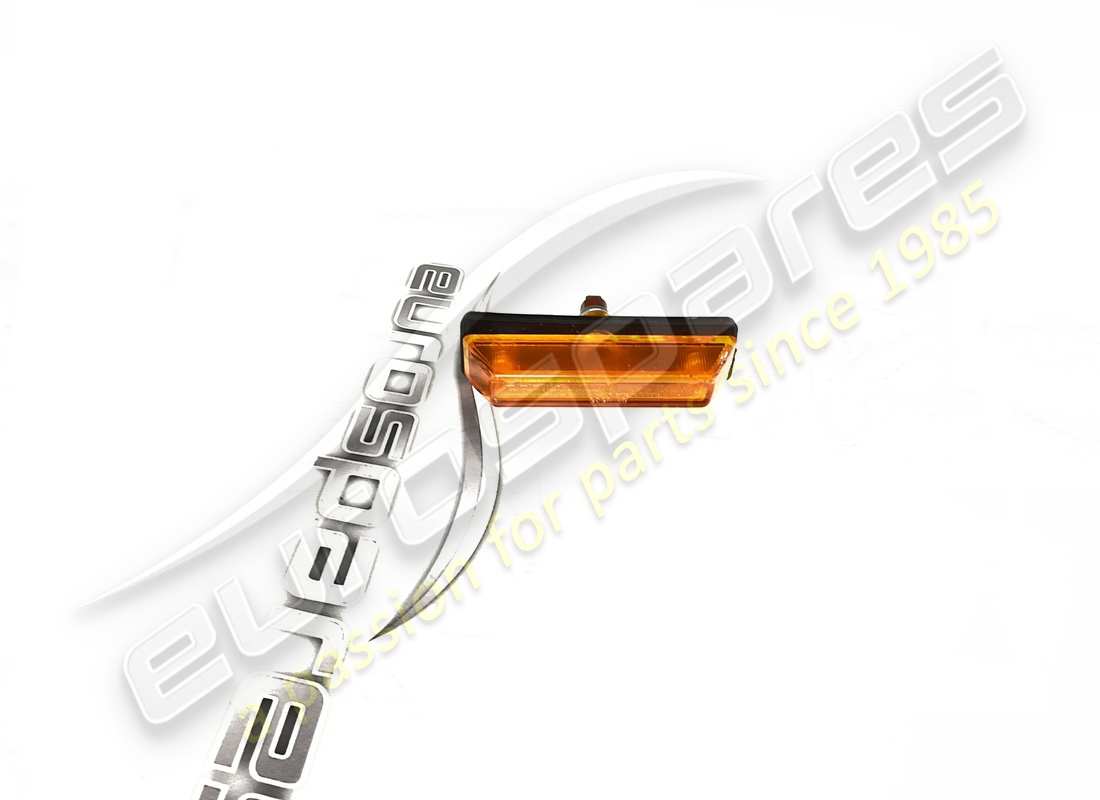

                        FRONT SIDE MARKER
                        - Valid for USA
                        from £52.96
                        from £52.96
                        This part replaces part number 60192705 - and 1 more. Click to view details
                        # 008
                        MPN: 12638101
                        WASHER TO FIXING FRONT AND REAR SIDE MARKER
                        - Valid for USA
                        from £0.71
                        from £0.71
                        # 009
                        MPN: 149951
                        WASHER TO FIXING FRONT AND REAR SIDE MARKER
                        - Valid for USA
                        from £0.47
                        from £0.47
                        This part replaces part number 10615301 - and 4 more. Click to view details
                        # 010
                        MPN: 15896470
                        NUT TO FIXING FRONT AND REAR SIDE MARKER
                        - Valid for USA - (minimum order quantity = 20)
                        from £0.78
                        from £0.78
                        This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                        # 011
                        MPN: 14145890
                        LAMP FOR FRONT AND REAR SIDE MARKER
                        - Valid for USA
                        from £0.47
                        from £0.47
                        # 012
                        MPN: 61880300
                        STOP ADDITIONAL LIGHT - COUPÉ
                        - Valid for USA
                        from £61.02
                        from £61.02
                        # 013
                        MPN: 60170206

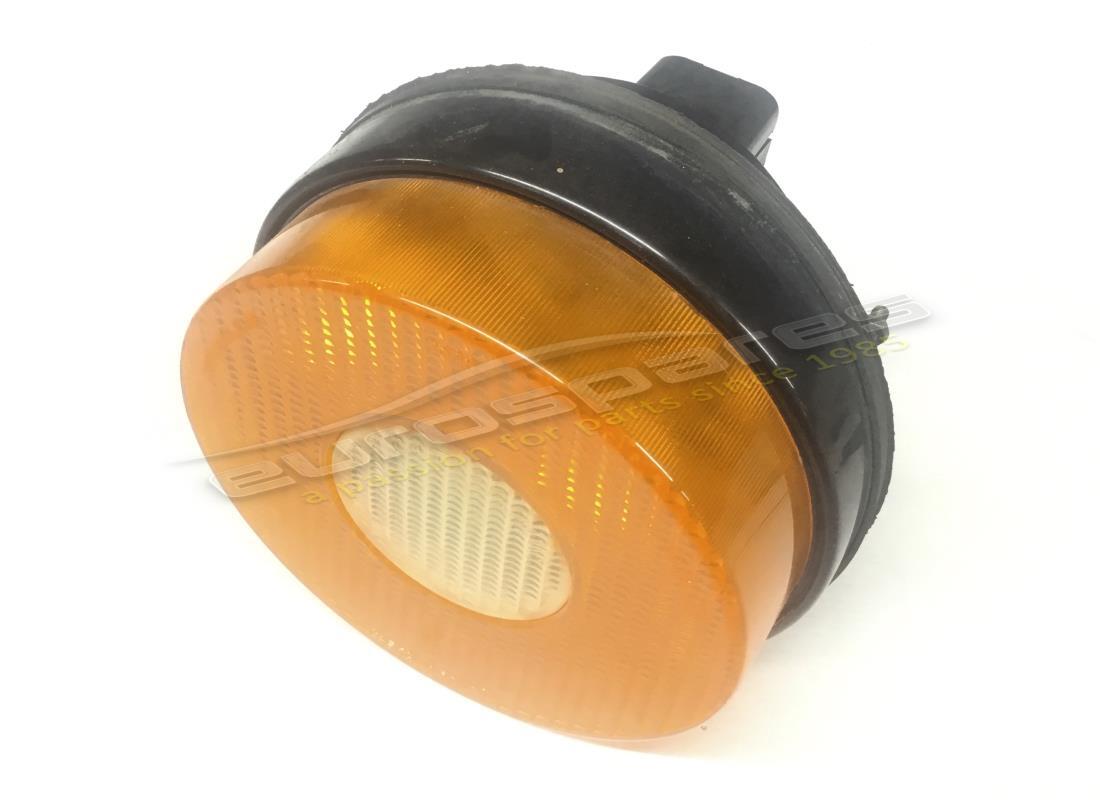

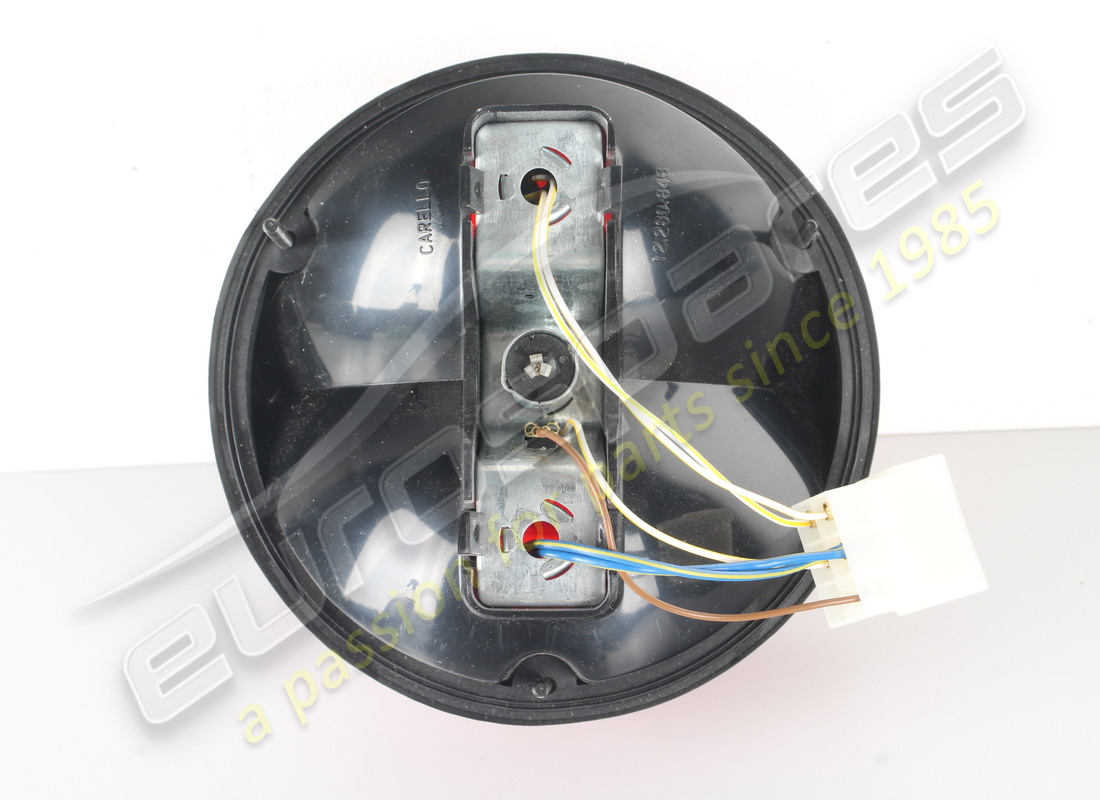

                        REAR INDICATOR & REVERSE LAMP
                        from £154.62
                        from £154.62
                        This part replaces part number 109645 - and 1 more. Click to view details
                        # 013
                        MPN: 60170404
                        REAR DIRECTION/RM LIGHT
                        - Valid for USA
                        from £364.13
                        from £364.13
                        # 014
                        MPN: 60170305
                        REAR STOP LAMP
                        from £159.78
                        from £159.78
                        This part replaces part number 109644 - and 11 more. Click to view details
                        # 014
                        MPN: 60868500
                        REAR POSITION/STOP LIGHT
                        - Valid for USA
                        from £85.78
                        from £85.78
                        # 015
                        MPN: 60592100
                        GASKET
                        from £29.93
                        from £29.93
                        # 016
                        MPN: 10615279
                        WASHER
                        Supersession
                        Supersession
                        # 017
                        MPN: 10794011
                        NUT
                        from £0.26
                        from £0.26
                        # 018
                        MPN: 60780400
                        REAR SIDE MARKER - CABRIOLET
                        - Valid for USA
                        from £72.46
                        from £72.46
                        This part replaces part number 60192804
                        # 019
                        MPN: 108333
                        CAP
                        - Valid for USA
                        from £11.62
                        from £11.62
                        This part replaces part number 61605900
                        # 020
                        MPN: 60670000
                        BACK FOG LIGHT
                        from £437.55
                        from £437.55
                        # 021
                        MPN: 101522
                        BULB, 12V- 21W
                        Supersession
                        Supersession
                        This part replaces part number 20083200
                        # 022
                        MPN: 61722400
                        BRACKET
                        from £10.87
                        from £10.87
                        # 023
                        MPN: 60919900
                        NEGATIVE TERMINAL
                        from £3.60
                        from £3.60
                        # 025
                        MPN: 102948
                        NUT
                        from £0.47
                        from £0.47
                        This part replaces part number 12574211 - and 4 more. Click to view details
                        # 026
                        MPN: 129052
                        ADDITIONAL CABLE LIGHTS - CABRIOLET
                        - Valid for USA and AUS
                        from £19.66
                        from £19.66
                        # 027
                        MPN: 61892900
                        ADDITIONAL STOP LIGHTS - CABRIOLET
                        - Valid for USA and AUS
                        from £323.76
                        from £323.76
                        # 028
                        MPN: 61895400
                        GASKET - CABRIOLET
                        - Valid for USA and AUS
                        from £13.47
                        from £13.47
