ferrari mondial 3.4 t coupe/cabrio glasses and external finishing parts diagram

116 - Glasses and External Finishing

Ferrari Mondial 3.4 t Coupe/Cabrio Glasses and External Finishing Parts Diagram

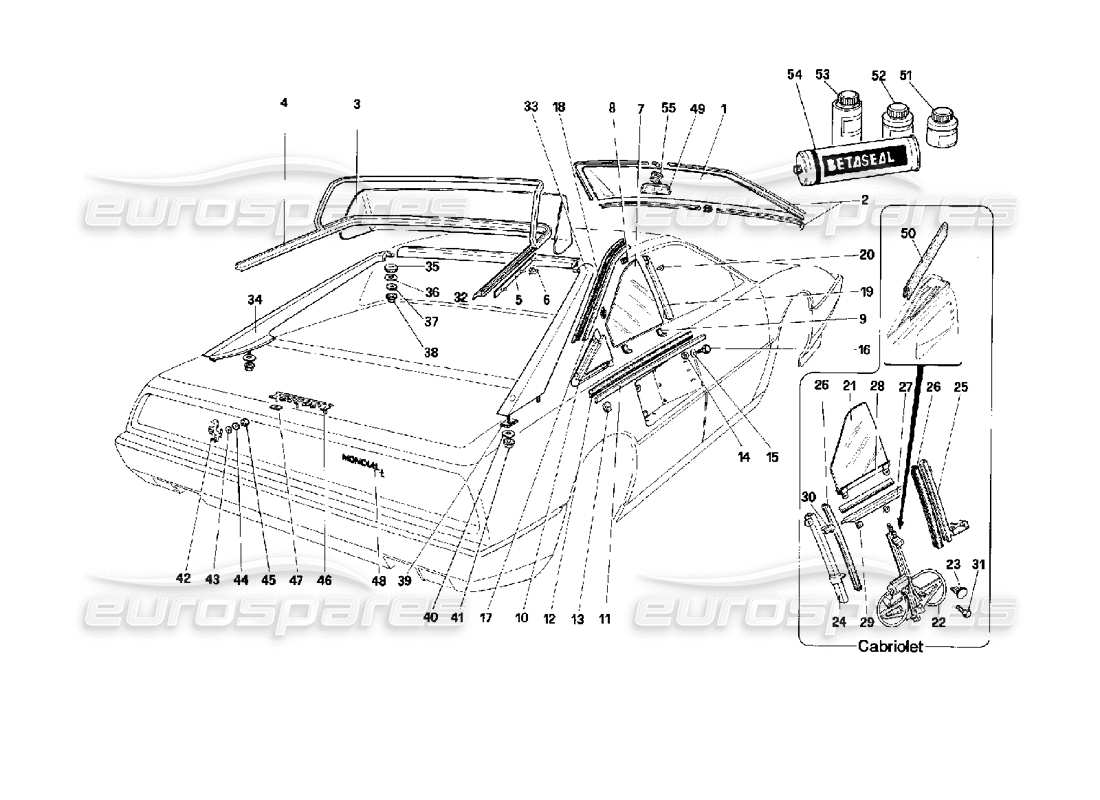

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Price
                                                                                                          # 002
                                                                                                          MPN: 60998800
                                                                                                          MOLDING ASSY FOR WINDSHIELD
                                                                                                          from £834.75
                                                                                                          from £834.75
                                                                                                          This part replaces part number 60647100 - and 17 more. Click to view details
                                                                                                          # 003
                                                                                                          MPN: 61896400
                                                                                                          REAR WINDOW - COUPÉ
                                                                                                          from £1,171.14
                                                                                                          from £1,171.14
                                                                                                          This part replaces part number 60695000 - and 1 more. Click to view details

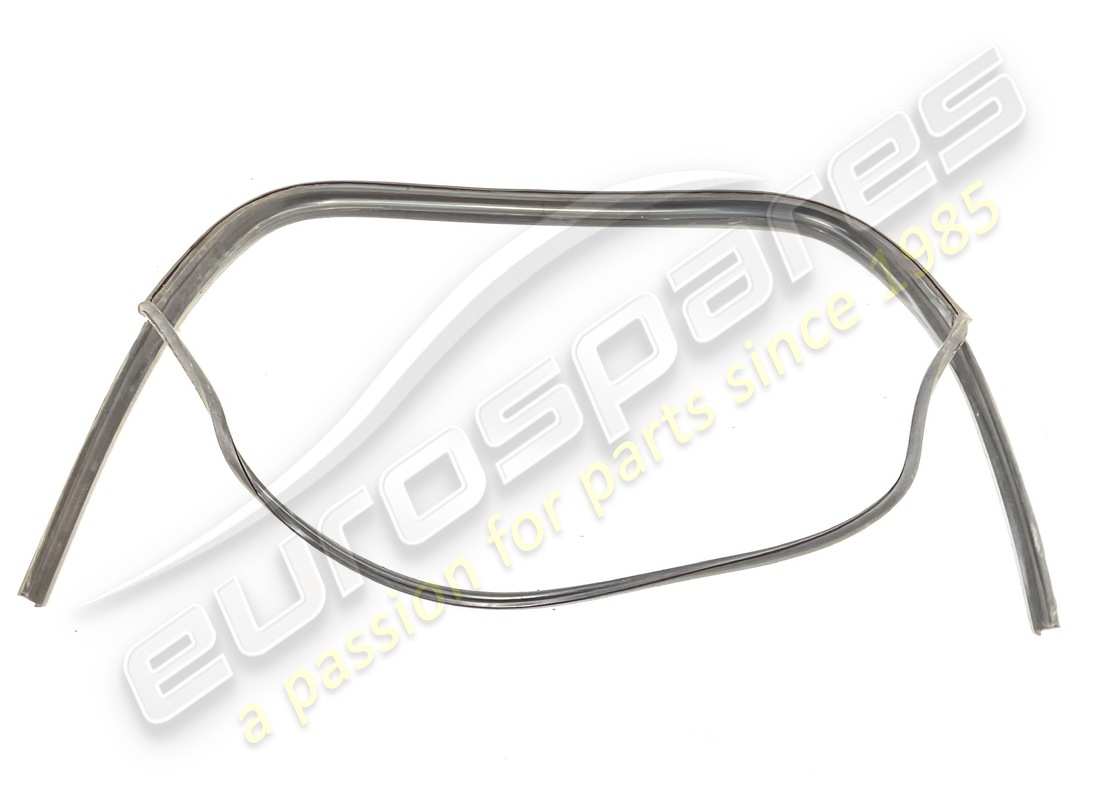

                                                                                                          # 004
                                                                                                          MPN: 60854400
                                                                                                          WINDOW GASKET - COUPÉ
                                                                                                          from £262.50
                                                                                                          from £262.50
                                                                                                          This part replaces part number 60638300 - and 1 more. Click to view details
                                                                                                          # 005
                                                                                                          MPN: 60846900
                                                                                                          MOLDING TO FIX. WINDOW GASKET - COUPÉ
                                                                                                          from £42.41
                                                                                                          from £42.41
                                                                                                          # 006
                                                                                                          MPN: 60109907
                                                                                                          SPRING - COUPÉ
                                                                                                          from £1.74
                                                                                                          from £1.74
                                                                                                          This part replaces part number 60846800
                                                                                                          # 007
                                                                                                          MPN: 60637500
                                                                                                          RH GLASS - COUPÉ
                                                                                                          from £141.75
                                                                                                          from £141.75
                                                                                                          # 007
                                                                                                          MPN: 60637600
                                                                                                          LH GLASS - COUPÉ
                                                                                                          from £241.78
                                                                                                          from £241.78
                                                                                                          # 008
                                                                                                          MPN: 60743800
                                                                                                          UPPER GROMMET - COUPÉ
                                                                                                          from £1.07
                                                                                                          from £1.07
                                                                                                          # 009
                                                                                                          MPN: 60743700
                                                                                                          LOWER GROMMET - COUPÉ
                                                                                                          from £1.19
                                                                                                          from £1.19
                                                                                                          # 010
                                                                                                          MPN: 61944900
                                                                                                          LH FLAP - COUPÉ
                                                                                                          from £142.65
                                                                                                          from £142.65
                                                                                                          # 010
                                                                                                          MPN: 61947500
                                                                                                          RH FLAP - COUPÉ
                                                                                                          from £142.64
                                                                                                          from £142.64

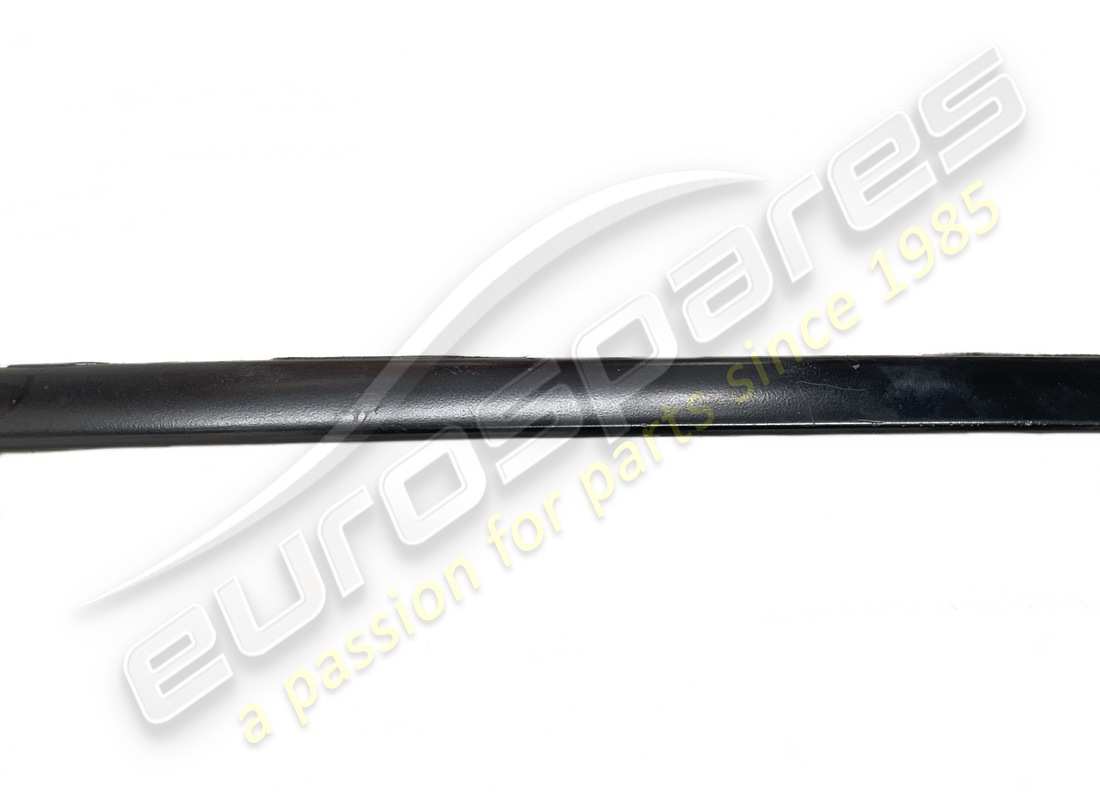

                                                                                                          # 011
                                                                                                          MPN: 62469700
                                                                                                          RH LOWER MOLDING - COUPÉ
                                                                                                          from £92.25
                                                                                                          from £92.25
                                                                                                          # 011
                                                                                                          MPN: 62469800
                                                                                                          LH LOWER MOLDING - COUPÉ
                                                                                                          from £92.14
                                                                                                          from £92.14
                                                                                                          # 012
                                                                                                          MPN: 60664800
                                                                                                          LOWER GASKET - COUPÉ
                                                                                                          from £14.99
                                                                                                          from £14.99
                                                                                                          # 013
                                                                                                          MPN: 4211210
                                                                                                          CLIP - COUPÉ
                                                                                                          from £4.46
                                                                                                          from £4.46
                                                                                                          This part replaces part number 253-42-588-00 - and 1 more. Click to view details
                                                                                                          # 014
                                                                                                          MPN: 12574011
                                                                                                          NUT - COUPÉ
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          # 015
                                                                                                          MPN: 10519201
                                                                                                          WASHER - COUPÉ
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 10519281
                                                                                                          # 016
                                                                                                          MPN: 62470100
                                                                                                          SCREW - COUPÉ
                                                                                                          from £1.85
                                                                                                          from £1.85
                                                                                                          # 017
                                                                                                          MPN: 60665100
                                                                                                          RH UPPER MOLDING - COUPÉ
                                                                                                          from £24.07
                                                                                                          from £24.07
                                                                                                          # 017
                                                                                                          MPN: 60665200
                                                                                                          LH UPPER MOLDING - COUPÉ
                                                                                                          from £23.49
                                                                                                          from £23.49
                                                                                                          # 018
                                                                                                          MPN: 60970600
                                                                                                          UPPER GASKET - COUPÉ
                                                                                                          from £3.35
                                                                                                          from £3.35
                                                                                                          This part replaces part number 60664700
                                                                                                          # 019
                                                                                                          MPN: 60671600
                                                                                                          MOLDING FOR RH POST. - COUPÉ
                                                                                                          from £40.83
                                                                                                          from £40.83
                                                                                                          # 019
                                                                                                          MPN: 60671700
                                                                                                          MOLDING FOR LH POST. - COUPÉ
                                                                                                          from £71.75
                                                                                                          from £71.75
                                                                                                          # 020
                                                                                                          MPN: 15692178
                                                                                                          SCREW - COUPÉ
                                                                                                          from £0.47
                                                                                                          from £0.47

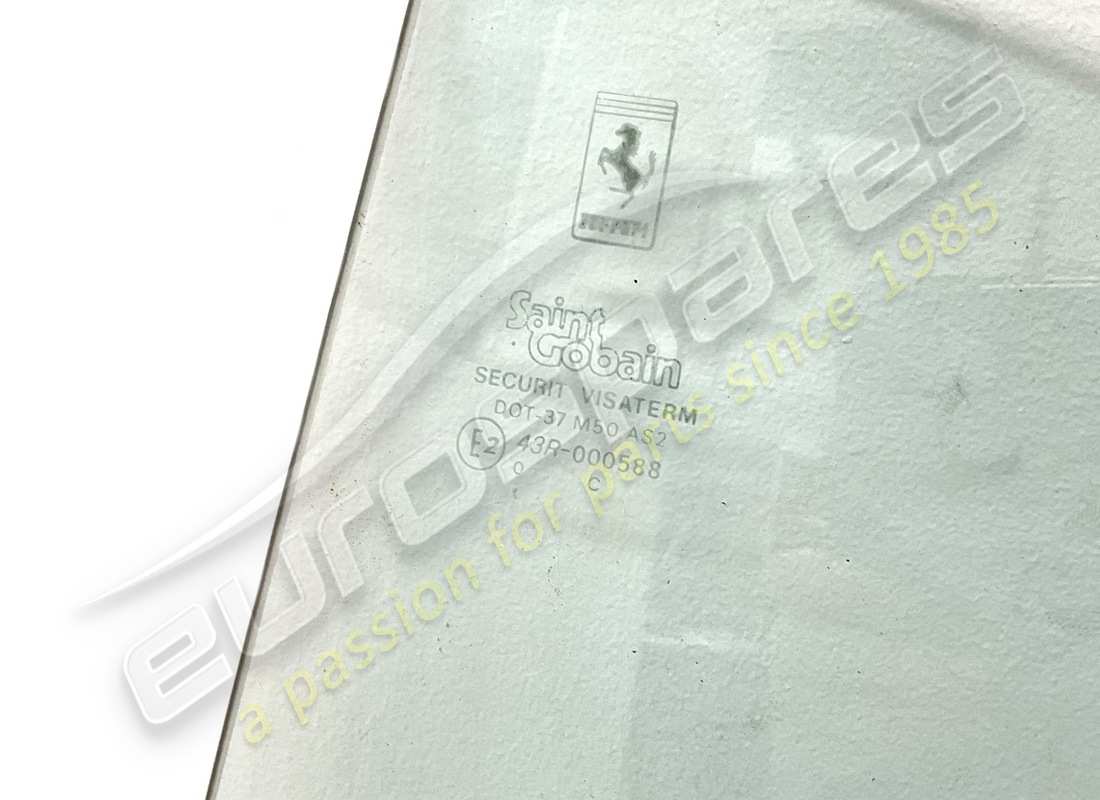

                                                                                                          # 021
                                                                                                          MPN: 61703200
                                                                                                          RH GLASS
                                                                                                          Cabriolét - after exhaustion of 61757200
                                                                                                          from £84.00
                                                                                                          from £84.00
                                                                                                          This part replaces part number 61757200 which we have in stock - and 1 more. Click to view details

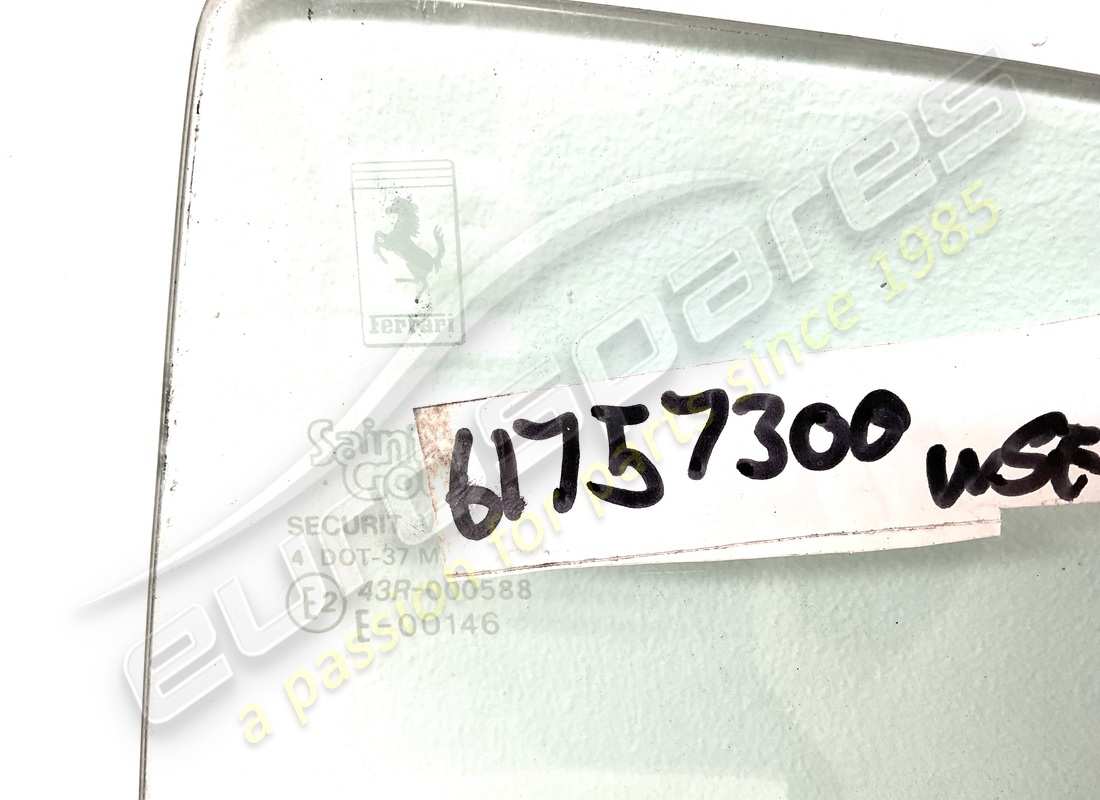

                                                                                                          # 021
                                                                                                          MPN: 61757200
                                                                                                          RH GLASS
                                                                                                          Cabriolét - use 61757200
                                                                                                          from £71.80
                                                                                                          from £71.80
                                                                                                          # 022
                                                                                                          MPN: 61703000
                                                                                                          RH WINDOW MOTOR - CABRIOLET
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 022
                                                                                                          MPN: 61703100
                                                                                                          LH WINDOW MOTOR - CABRIOLET
                                                                                                          from £3,086.30
                                                                                                          from £3,086.30
                                                                                                          This part replaces part number 70000532
                                                                                                          # 023
                                                                                                          MPN: 61726000
                                                                                                          PIN - CABRIOLET
                                                                                                          from £8.91
                                                                                                          from £8.91
                                                                                                          # 024
                                                                                                          MPN: 61294200
                                                                                                          RH REAR GUIDE - CABRIOLET
                                                                                                          from £29.05
                                                                                                          from £29.05
                                                                                                          # 024
                                                                                                          MPN: 61294300
                                                                                                          LH REAR GUIDE - CABRIOLET
                                                                                                          from £177.20
                                                                                                          from £177.20
                                                                                                          # 025
                                                                                                          MPN: 61294000
                                                                                                          RH FRONT GUIDE - CABRIOLET
                                                                                                          from £279.06
                                                                                                          from £279.06
                                                                                                          # 025
                                                                                                          MPN: 61294100
                                                                                                          LH FRONT GUIDE - CABRIOLET
                                                                                                          from £154.49
                                                                                                          from £154.49
                                                                                                          # 026
                                                                                                          MPN: 61295000
                                                                                                          GASKET - CABRIOLET
                                                                                                          from £5.09
                                                                                                          from £5.09
                                                                                                          This part replaces part number 61295100
                                                                                                          # 027
                                                                                                          MPN: 61297700
                                                                                                          RH MOLDING - CABRIOLET
                                                                                                          from £64.70
                                                                                                          from £64.70
                                                                                                          # 027
                                                                                                          MPN: 61297800
                                                                                                          LH MOLDING - CABRIOLET
                                                                                                          from £46.87
                                                                                                          from £46.87
                                                                                                          # 028
                                                                                                          MPN: 62506300
                                                                                                          GASKET - CABRIOLET
                                                                                                          from £3.85
                                                                                                          from £3.85
                                                                                                          # 029
                                                                                                          MPN: 4211210
                                                                                                          SPRING - CABRIOLET
                                                                                                          from £4.46
                                                                                                          from £4.46
                                                                                                          This part replaces part number 253-42-588-00 - and 1 more. Click to view details
                                                                                                          # 030
                                                                                                          MPN: 61424800
                                                                                                          TERMINAL RH MOLDING - CABRIOLET
                                                                                                          from £1.37
                                                                                                          from £1.37
                                                                                                          # 030
                                                                                                          MPN: 61424900
                                                                                                          TERMINAL LH MOLDING - CABRIOLET
                                                                                                          from £4.44
                                                                                                          from £4.44
                                                                                                          # 031
                                                                                                          MPN: 13835871
                                                                                                          SCREW TO FIX. WINDOW MOTOR - CABRIOLET
                                                                                                          from £1.37
                                                                                                          from £1.37
                                                                                                          # 032
                                                                                                          MPN: 60578100
                                                                                                          REAR RUBBER FOR ROOF - CABRIOLET
                                                                                                          from £648.27
                                                                                                          from £648.27
                                                                                                          # 033
                                                                                                          MPN: 60578200
                                                                                                          RUBBER FOR RH FINS - COUPÉ
                                                                                                          from £204.75
                                                                                                          from £204.75
                                                                                                          # 034
                                                                                                          MPN: 60578300
                                                                                                          RUBBER FOR LH FINS - COUPÉ
                                                                                                          from £861.10
                                                                                                          from £861.10

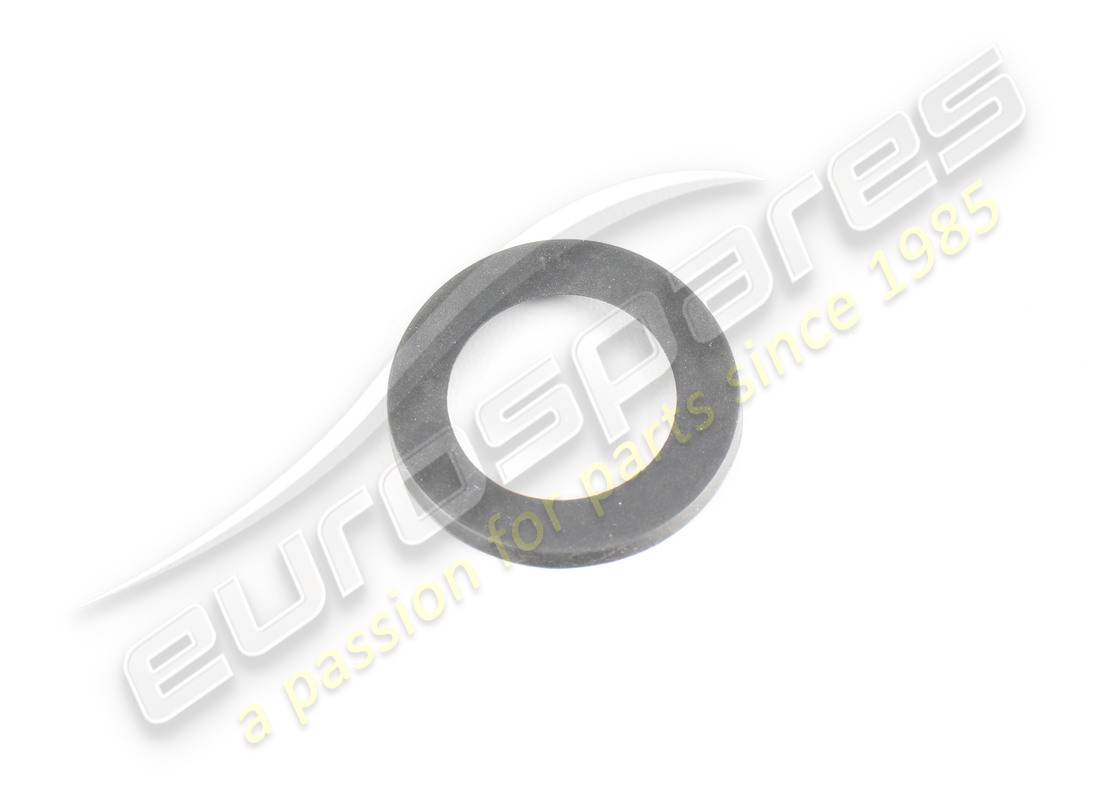

                                                                                                          # 035
                                                                                                          MPN: 60920000
                                                                                                          RUBBER WASHER - COUPÉ
                                                                                                          from £3.72
                                                                                                          from £3.72
                                                                                                          # 036
                                                                                                          MPN: 60580900
                                                                                                          RUBBER WASHER - COUPÉ
                                                                                                          from £1.37
                                                                                                          from £1.37
                                                                                                          # 037
                                                                                                          MPN: 12643701
                                                                                                          WASHER - COUPÉ
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                          # 038
                                                                                                          MPN: 13832101
                                                                                                          NUT - COUPÉ
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          # 039
                                                                                                          MPN: 60995400
                                                                                                          GASKET - COUPÉ
                                                                                                          from £9.76
                                                                                                          from £9.76
                                                                                                          # 040
                                                                                                          MPN: 12643701
                                                                                                          WASHER - COUPÉ
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                          # 041
                                                                                                          MPN: 13832101
                                                                                                          NUT - COUPÉ
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          # 042
                                                                                                          MPN: 60032109
                                                                                                          REAR HORSE- COUPÉ
                                                                                                          (75mm x 50mm)
                                                                                                          from £22.19
                                                                                                          from £22.19
                                                                                                          This part replaces part number 253-44-302-02 which we have in stock - and 7 more. Click to view details
                                                                                                          # 043
                                                                                                          MPN: 60995100
                                                                                                          GASKET
                                                                                                          from £1.43
                                                                                                          from £1.43
                                                                                                          # 044
                                                                                                          MPN: 12639401
                                                                                                          WASHER
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          # 046
                                                                                                          MPN: 60307006
                                                                                                          Ferrari SCRIPT
                                                                                                          3 PIN
                                                                                                          from £110.09
                                                                                                          from £110.09
                                                                                                          # 046
                                                                                                          MPN: 61025000
                                                                                                          Ferrari NAME
                                                                                                          (2 Pin)
                                                                                                          from £57.17
                                                                                                          from £57.17
                                                                                                          This part replaces part number 30028500 which we have in stock - and 1 more. Click to view details
                                                                                                          # 047
                                                                                                          MPN: 60324506
                                                                                                          CLIP
                                                                                                          from £1.54
                                                                                                          from £1.54
                                                                                                          This part replaces part number 62773000
                                                                                                          # 048
                                                                                                          MPN: 62656400
                                                                                                          ADHESIVE MONDIAL T NAME
                                                                                                          from £50.65
                                                                                                          from £50.65
                                                                                                          # 049
                                                                                                          MPN: 62876100
                                                                                                          MIRROR
                                                                                                          from £76.69
                                                                                                          from £76.69
                                                                                                          This part replaces part number 60715300
                                                                                                          # 050
                                                                                                          MPN: 61440000
                                                                                                          GLASS PROTECTION FLAT BAND
                                                                                                          from £7.44
                                                                                                          from £7.44
                                                                                                          # 051
                                                                                                          MPN: 81636600
                                                                                                          PRIMER FOR GLASS
                                                                                                          from £44.28
                                                                                                          from £44.28
                                                                                                          This part replaces part number 62864800
                                                                                                          # 052
                                                                                                          MPN: 62864900
                                                                                                          BLACK PRIMER FOR PAINT
                                                                                                          from £41.52
                                                                                                          from £41.52
                                                                                                          This part replaces part number 60676600
                                                                                                          # 053
                                                                                                          MPN: 62864700
                                                                                                          DEGREASE PRIMER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 054
                                                                                                          MPN: 63301500
                                                                                                          HV3 BETASEAL ADHESIVE
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 65732700
                                                                                                          # 055
                                                                                                          MPN: 63012600
                                                                                                          GASKET
                                                                                                          from £20.49
                                                                                                          from £20.49
                                                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
