ferrari mondial 3.4 t coupe/cabrio air intake - grills and frameworks parts diagram

116A - Air Intake - Grills and Frameworks

Ferrari Mondial 3.4 t Coupe/Cabrio Air Intake - Grills and Frameworks Parts Diagram

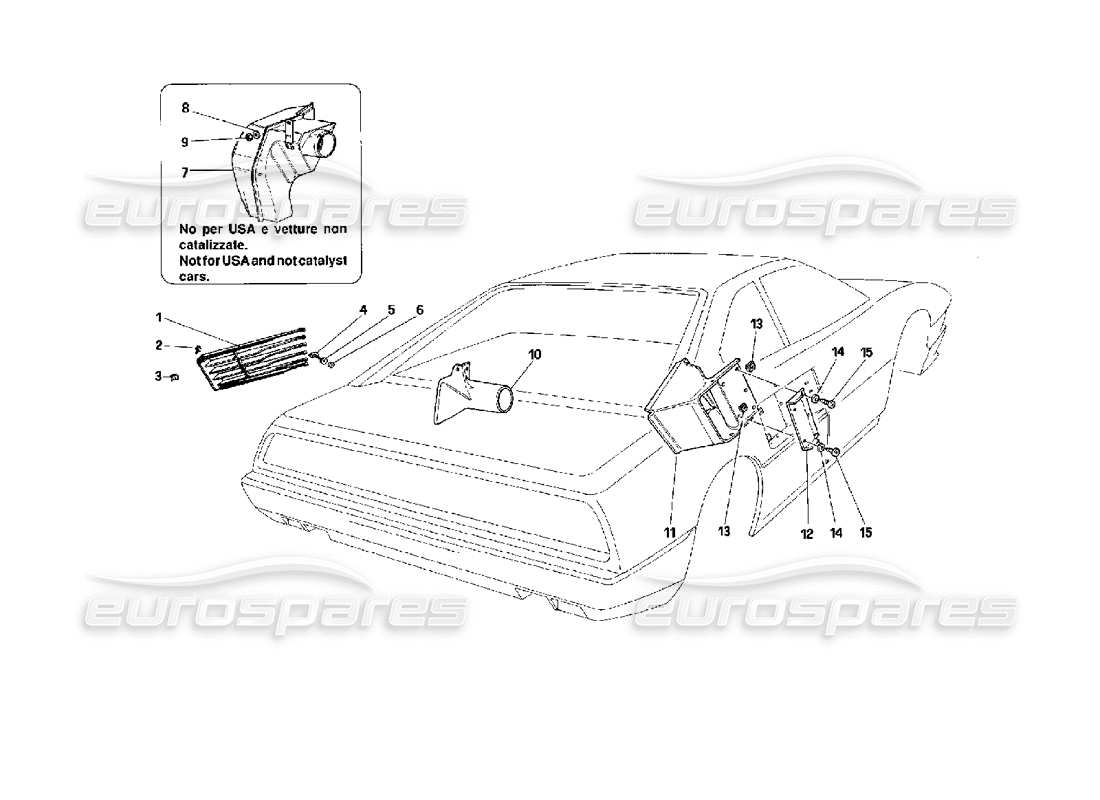

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 62529610

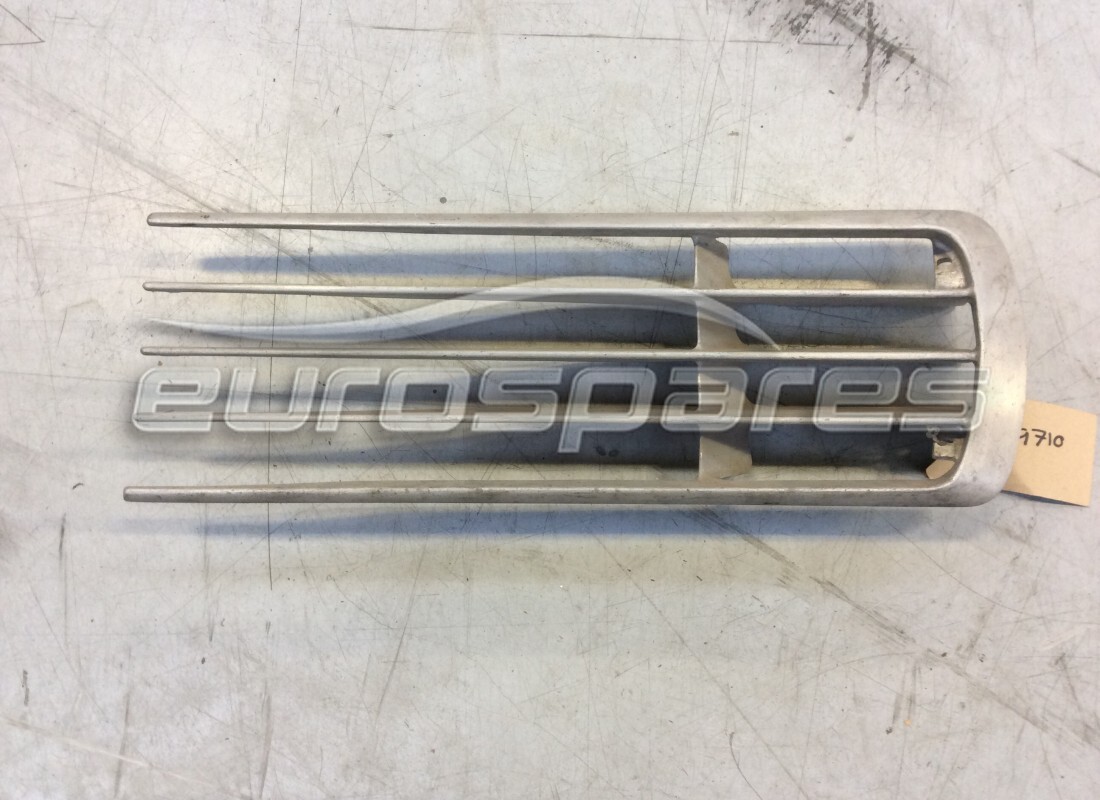

                            RH GRILL
                            from £729.75
                            from £729.75
                            # 001
                            MPN: 62529710
                            LH GRILL
                            from £1,979.25
                            from £1,979.25
                            # 002
                            MPN: 15903378
                            SCREW
                            from £1.14
                            from £1.14
                            # 003
                            MPN: 60644500
                            SPRING
                            from £0.47
                            from £0.47
                            # 004
                            MPN: 60904900
                            PLATE
                            from £5.94
                            from £5.94
                            # 005
                            MPN: 10615271
                            WASHER
                            Supersession
                            Supersession
                            # 006
                            MPN: 10794011
                            NUT
                            from £0.26
                            from £0.26
                            # 007
                            MPN: 62821400
                            INTAKE RESONATOR - COUPE'
                            - Valid for catalyst cars and 77DB - Not for USA
                            from £501.57
                            from £501.57
                            # 007
                            MPN: 62885900
                            INTAKE RESONATOR - CABRIOLET
                            - Valid for catalyst cars and 77DB - Not for USA
                            from £253.86
                            from £253.86
                            # 008
                            MPN: 12643724
                            WASHER
                            from £0.47
                            from £0.47
                            This part replaces part number 109684 - and 4 more. Click to view details
                            # 009
                            MPN: 102948
                            NUT
                            from £0.47
                            from £0.47
                            This part replaces part number 12574211 - and 4 more. Click to view details
                            # 010
                            MPN: 62613100
                            LH AIR INTAKE - COUPÉ
                            - Valid for USA and not catalyst cars
                            from £122.99
                            from £122.99
                            # 010
                            MPN: 62645100
                            LH AIR INTAKE - CABRIOLET
                            - Valid for USA and not catalyst cars
                            from £186.96
                            from £186.96
                            # 011
                            MPN: 62613000
                            RH AIR INTAKE - COUPÉ
                            from £66.50
                            from £66.50
                            # 011
                            MPN: 62645000
                            RH AIR INTAKE - CABRIOLET
                            from £92.31
                            from £92.31
                            # 012
                            MPN: 62668700
                            INSERT FOR RH AIR INTAKE - CABRIOLET
                            from £12.37
                            from £12.37
                            # 012
                            MPN: 62668800
                            INSERT FOR LH AIR INTAKE - CABRIOLET
                            from £18.49
                            from £18.49
                            # 013
                            MPN: 60674700
                            SPRING
                            from £0.47
                            from £0.47
                            # 014
                            MPN: 61195300
                            WASHER
                            from £0.71
                            from £0.71
                            # 015
                            MPN: 15688306
                            SCREW - COUPÉ
                            from £0.47
                            from £0.47
                            # 015
                            MPN: 20297800
                            SCREW - CABRIOLET
                            from £0.70
                            from £0.70
