119A - Front Seats - Valid for Passive Belts

Ferrari Mondial 3.4 t Coupe/Cabrio Front Seats - Valid for Passive Belts Parts Diagram

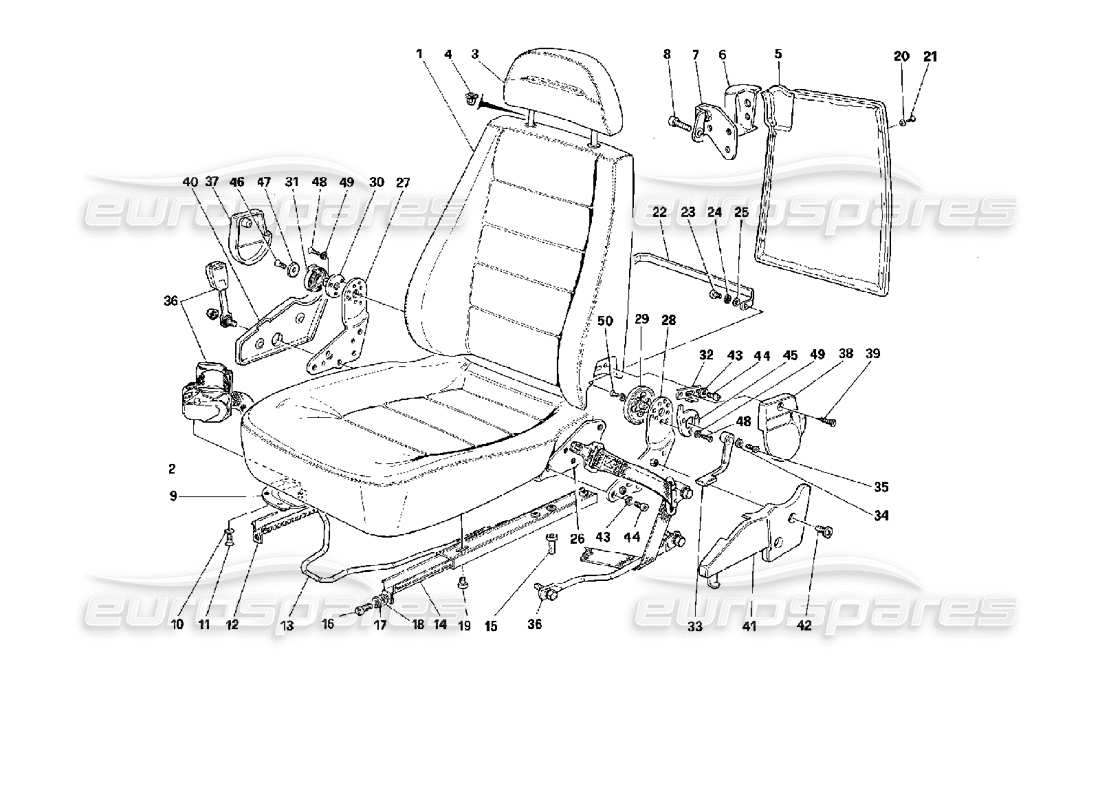

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 000
                                                                                                      MPN: FINT002
                                                                                                      COMPLETE CREAM INTERIOR
                                                                                                      Valid For GD (RHD)
                                                                                                      # 001
                                                                                                      MPN: 626962..
                                                                                                      SEAT BACK LINING
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 001
                                                                                                      MPN: 627774..
                                                                                                      FRONT RH COMPLETE SEAT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 001
                                                                                                      MPN: 627775..
                                                                                                      FRONT LH COMPLETE SEAT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 001
                                                                                                      MPN: 627780..
                                                                                                      FRONT RH LINED BACK SEAT
                                                                                                      # 001
                                                                                                      MPN: 627781..
                                                                                                      FRONT LH LINED BACK SEAT
                                                                                                      # 002
                                                                                                      MPN: 629801..
                                                                                                      CUSHION LINING
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 002
                                                                                                      MPN: 629829..
                                                                                                      FRONT LINED PILLOW
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 003
                                                                                                      MPN: 626972..
                                                                                                      HEAD REST LINING
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 003
                                                                                                      MPN: 628313..
                                                                                                      LINED HEAD REST
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 004
                                                                                                      MPN: 20058905
                                                                                                      HEADREST PLASTIC INSERT
                                                                                                      from £19.41
                                                                                                      from £19.41
                                                                                                      # 005
                                                                                                      MPN: 627758..
                                                                                                      RH SHIELD PANEL FOR BACK SEAT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 005
                                                                                                      MPN: 627767..
                                                                                                      LH SHIELD PANEL FOR BACK SEAT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 006
                                                                                                      MPN: 627770..
                                                                                                      LINED RH STRUCTURE
                                                                                                      # 006
                                                                                                      MPN: 627771..
                                                                                                      LINED LH STRUCTURE
                                                                                                      # 007
                                                                                                      MPN: 62775100
                                                                                                      RH BRACKET
                                                                                                      from £15.07
                                                                                                      from £15.07
                                                                                                      # 007
                                                                                                      MPN: 62775200
                                                                                                      LH BRACKET
                                                                                                      from £15.07
                                                                                                      from £15.07
                                                                                                      # 008
                                                                                                      MPN: 14306521
                                                                                                      SCREW
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 14306426
                                                                                                      # 009
                                                                                                      MPN: 62592800
                                                                                                      RH BRACKET TO ROLLING DEVICE FIX.
                                                                                                      from £11.76
                                                                                                      from £11.76
                                                                                                      # 009
                                                                                                      MPN: 62778200
                                                                                                      LH BRACKET TO ROLLING DEVICE FIX.
                                                                                                      from £11.20
                                                                                                      from £11.20
                                                                                                      # 010
                                                                                                      MPN: 12606876
                                                                                                      WASHER
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 011
                                                                                                      MPN: 14441327
                                                                                                      SCREW
                                                                                                      from £0.87
                                                                                                      from £0.87
                                                                                                      # 012
                                                                                                      MPN: 62597600
                                                                                                      RH GUIDE FOR SEAT
                                                                                                      from £28.84
                                                                                                      from £28.84
                                                                                                      # 013
                                                                                                      MPN: 62779700
                                                                                                      CONTROL FORK FOR RH SEAT GUIDES
                                                                                                      from £36.30
                                                                                                      from £36.30
                                                                                                      # 013
                                                                                                      MPN: 62779800
                                                                                                      CONTROL FORK FOR LH SEAT GUIDES
                                                                                                      from £75.23
                                                                                                      from £75.23
                                                                                                      # 014
                                                                                                      MPN: 62597700
                                                                                                      LH GUIDE FOR SEAT
                                                                                                      from £27.91
                                                                                                      from £27.91
                                                                                                      # 015
                                                                                                      MPN: 40294308
                                                                                                      REAR SCREW TO FIX. FRAME-SEAT
                                                                                                      from £2.74
                                                                                                      from £2.74
                                                                                                      This part replaces part number 20293306 which we have in stock
                                                                                                      # 016
                                                                                                      MPN: 14306326
                                                                                                      FRONT SCREW TO FIX. FRAME-SEAT
                                                                                                      from £1.11
                                                                                                      from £1.11
                                                                                                      # 017
                                                                                                      MPN: 12601374
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                      # 018
                                                                                                      MPN: 14496506
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 019
                                                                                                      MPN: 40294308
                                                                                                      SEAT GUIDES SCREW
                                                                                                      from £2.52
                                                                                                      from £2.52
                                                                                                      This part replaces part number 20293306 which we have in stock
                                                                                                      # 020
                                                                                                      MPN: 62823200
                                                                                                      WASHER
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 021
                                                                                                      MPN: 15908878
                                                                                                      SCREW
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      This part replaces part number 15908806
                                                                                                      # 022
                                                                                                      MPN: 62651800
                                                                                                      JOINT CONNECTION
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 023
                                                                                                      MPN: 14302931
                                                                                                      SCREW
                                                                                                      from £0.55
                                                                                                      from £0.55
                                                                                                      # 024
                                                                                                      MPN: 10615279
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 025
                                                                                                      MPN: 12642801
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 12642824
                                                                                                      # 026
                                                                                                      MPN: 62593300
                                                                                                      LH PLATE FOR SEAT
                                                                                                      from £28.29
                                                                                                      from £28.29
                                                                                                      This part replaces part number 62593100
                                                                                                      # 026
                                                                                                      MPN: 62593500
                                                                                                      RH PLATE FOR SEAT
                                                                                                      from £35.70
                                                                                                      from £35.70
                                                                                                      This part replaces part number 62592900
                                                                                                      # 027
                                                                                                      MPN: 62595000
                                                                                                      RH JOINT PLATE
                                                                                                      from £28.66
                                                                                                      from £28.66
                                                                                                      # 028
                                                                                                      MPN: 62594900
                                                                                                      LH JOINT PLATE
                                                                                                      from £27.29
                                                                                                      from £27.29
                                                                                                      # 029
                                                                                                      MPN: 62739100
                                                                                                      BACK SEAT REGULATOR FOR RH HAND
                                                                                                      from £106.08
                                                                                                      from £106.08
                                                                                                      # 029
                                                                                                      MPN: 62739200
                                                                                                      BACK SEAT REGULATOR FOR LH HAND
                                                                                                      from £145.68
                                                                                                      from £145.68
                                                                                                      # 030
                                                                                                      MPN: 62652000
                                                                                                      BUSH FOR SPRING
                                                                                                      from £12.28
                                                                                                      from £12.28
                                                                                                      # 031
                                                                                                      MPN: 62651900
                                                                                                      SPRING FOR REAR SEAT
                                                                                                      from £10.61
                                                                                                      from £10.61
                                                                                                      # 032
                                                                                                      MPN: 62887300
                                                                                                      PLATE TO STOP SPRING AT THE BACK SEAT
                                                                                                      from £14.58
                                                                                                      from £14.58
                                                                                                      # 033
                                                                                                      MPN: 62866800
                                                                                                      RH SEAT RELEASE HANDLE
                                                                                                      from £143.25
                                                                                                      from £143.25
                                                                                                      # 033
                                                                                                      MPN: 62866900
                                                                                                      LH SEAT RELEASE HANDLE
                                                                                                      from £143.25
                                                                                                      from £143.25
                                                                                                      # 034
                                                                                                      MPN: 12606776
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 035
                                                                                                      MPN: 14440737
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 036
                                                                                                      MPN: 62741800
                                                                                                      LH ABDOMINAL BELT WITH SLIDE BAR
                                                                                                      from £198.07
                                                                                                      from £198.07
                                                                                                      # 036
                                                                                                      MPN: 62894800
                                                                                                      RH ABDOMINAL BELT WITH SLIDE BAR
                                                                                                      from £196.09
                                                                                                      from £196.09
                                                                                                      # 037
                                                                                                      MPN: 629524..
                                                                                                      RH UPPER JOINT COVER FOR RH SEAT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 037
                                                                                                      MPN: 629530..
                                                                                                      RH UPPER JOINT COVER FOR LH SEAT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 038
                                                                                                      MPN: 629527..
                                                                                                      LH UPPER JOINT COVER FOR RH SEAT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 038
                                                                                                      MPN: 629532..
                                                                                                      LH UPPER JOINT COVER FOR LH SEAT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 039
                                                                                                      MPN: 14441037
                                                                                                      SCREW
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      # 040
                                                                                                      MPN: 627759..
                                                                                                      RH LOWER JOINT COVER FOR LH SEAT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 040
                                                                                                      MPN: 627761..
                                                                                                      RH LOWER JOINT COVER FOR RH SEAT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 041
                                                                                                      MPN: 627763..
                                                                                                      LH LOWER JOINT COVER FOR RH SEAT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 041
                                                                                                      MPN: 627765..
                                                                                                      LH LOWER JOINT COVER FOR LH SEAT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 042
                                                                                                      MPN: 20297602
                                                                                                      SCREW
                                                                                                      from £5.65
                                                                                                      from £5.65
                                                                                                      # 043
                                                                                                      MPN: 12601374
                                                                                                      WASHER
                                                                                                      from £0.50
                                                                                                      from £0.50
                                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                      # 044
                                                                                                      MPN: 40294308
                                                                                                      SCREW
                                                                                                      from £2.56
                                                                                                      from £2.56
                                                                                                      This part replaces part number 20293306 which we have in stock
                                                                                                      # 045
                                                                                                      MPN: 62955700
                                                                                                      BACK SEAT FASTENING FOR RH SEAT
                                                                                                      from £6.02
                                                                                                      from £6.02
                                                                                                      # 045
                                                                                                      MPN: 62955800
                                                                                                      BACK SEAT FASTENING FOR LH SEAT
                                                                                                      from £23.97
                                                                                                      from £23.97
                                                                                                      # 046
                                                                                                      MPN: 14441227
                                                                                                      SCREW
                                                                                                      from £1.08
                                                                                                      from £1.08
                                                                                                      # 047
                                                                                                      MPN: 12624177
                                                                                                      WASHER FOR SPRING
                                                                                                      from £1.39
                                                                                                      from £1.39
                                                                                                      # 048
                                                                                                      MPN: 14441227
                                                                                                      SCREW
                                                                                                      from £1.08
                                                                                                      from £1.08
                                                                                                      # 049
                                                                                                      MPN: 12606876
                                                                                                      WASHER
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 050
                                                                                                      MPN: 14441127
                                                                                                      SCREW
                                                                                                      from £0.54
                                                                                                      from £0.54
