120 - ROOF

Ferrari Mondial 3.4 t Coupe/Cabrio Roof Parts Diagram

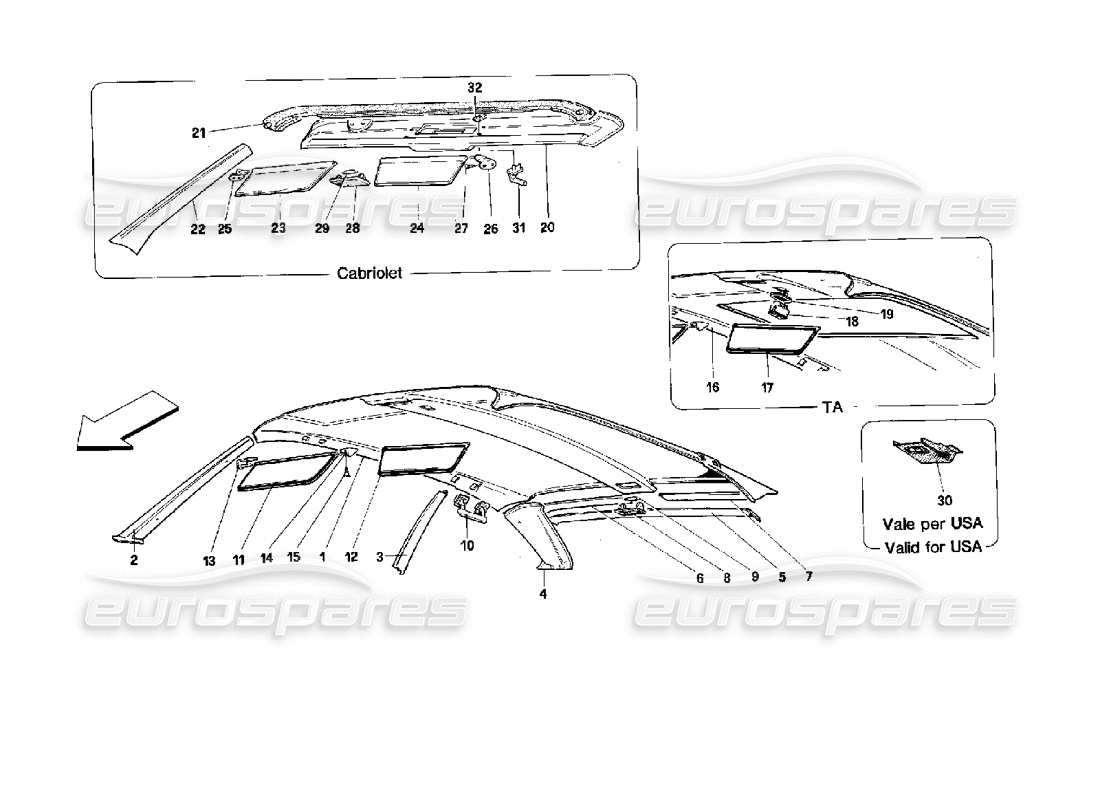

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price

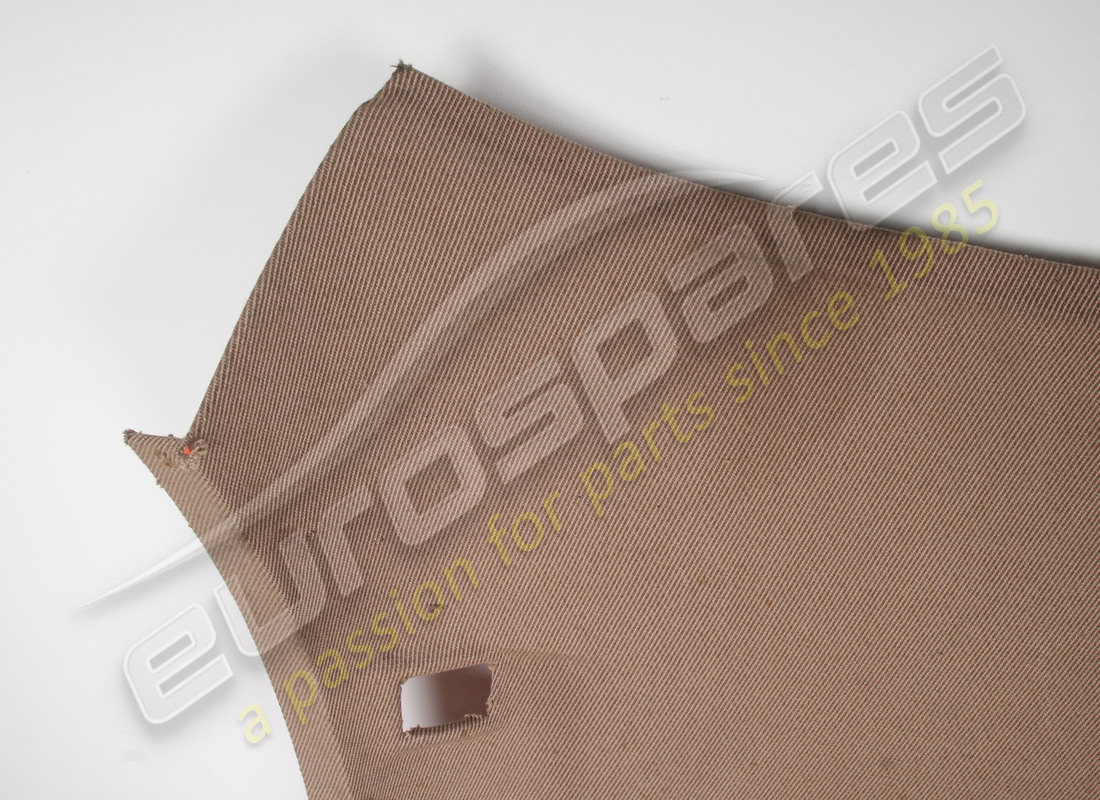

                                      # 001
                                      MPN: 61168500
                                      LINED TOP
                                      - Valid for GS - Not for TA
                                      from £568.77
                                      from £568.77
                                      # 001
                                      MPN: 61168700
                                      TOP LINING
                                      - Not for TA
                                      from £252.27
                                      from £252.27
                                      # 001
                                      MPN: 61168800
                                      LINED TOP
                                      - Valid for GD - Not for TA
                                      from £472.50
                                      from £472.50
                                      This part replaces part number 61125200 - and 2 more. Click to view details
                                      # 002
                                      MPN: 60685000
                                      LH MOLDING FOR WINDSHIELD - COUPÉ
                                      from £49.06
                                      from £49.06
                                      # 002
                                      MPN: 60685300
                                      RH MOLDING FOR WINDSHIELD - COUPÉ
                                      from £46.72
                                      from £46.72
                                      # 003
                                      MPN: 62582600
                                      LH CENTRAL MOLDING FOR VERTICAL ROD
                                      from £34.72
                                      from £34.72
                                      # 003
                                      MPN: 62582900
                                      RH CENTRAL MOLDING FOR VERTICAL ROD
                                      from £27.66
                                      from £27.66
                                      # 004
                                      MPN: 62583200
                                      RH REAR MOLDING FOR VERTICAL ROD
                                      from £218.56
                                      from £218.56
                                      # 004
                                      MPN: 62583500
                                      LH REAR MOLDING FOR VERTICAL ROD
                                      from £218.56
                                      from £218.56
                                      # 005
                                      MPN: 61092200
                                      REAR TOP LINED BAND
                                      - Not for TA
                                      from £112.45
                                      from £112.45

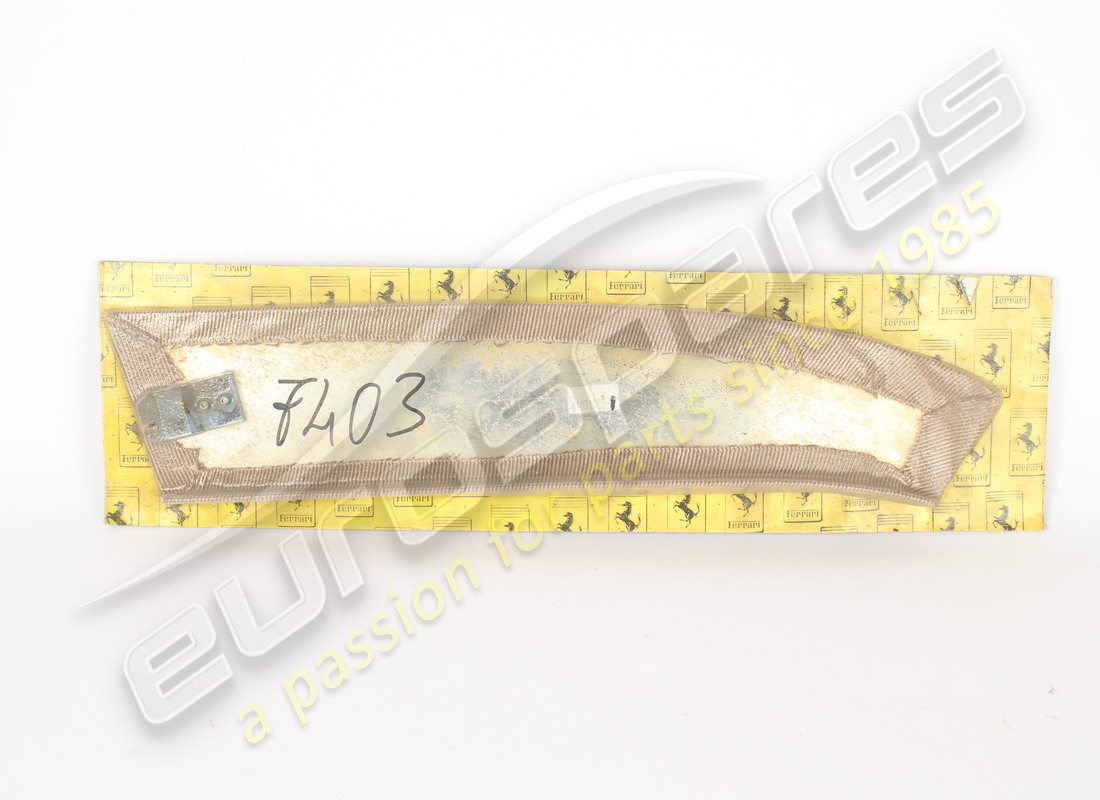

                                      # 006
                                      MPN: 61267300
                                      RH REAR TOP LINED BAND
                                      - Valid for TA - Not for USA
                                      from £72.52
                                      from £72.52
                                      # 006
                                      MPN: 61871700
                                      RH REAR TOP LINED BAND
                                      - Valid for TA - Valid for USA
                                      from £90.03
                                      from £90.03

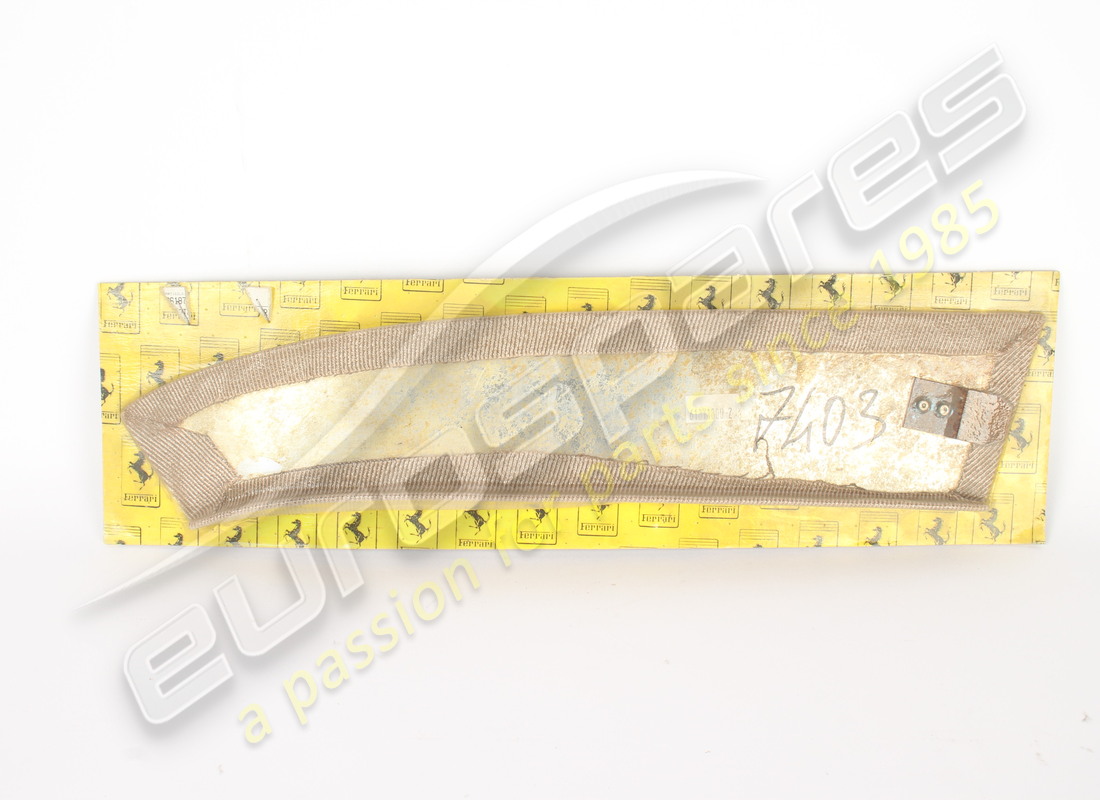

                                      # 007
                                      MPN: 61267400
                                      LH REAR TOP LINED BAND
                                      - Valid for TA - Not for USA
                                      from £76.69
                                      from £76.69
                                      # 007
                                      MPN: 61871800
                                      LH REAR TOP LINED BAND
                                      - Valid for TA - Valid for USA
                                      from £90.03
                                      from £90.03
                                      # 008
                                      MPN: 60326709
                                      LAMP
                                      from £80.82
                                      from £80.82
                                      This part replaces part number 60839400
                                      # 009
                                      MPN: 50100205
                                      BULB
                                      from £1.04
                                      from £1.04
                                      # 010
                                      MPN: 61119600
                                      HANDLE
                                      from £255.79
                                      from £255.79
                                      This part replaces part number 60699700

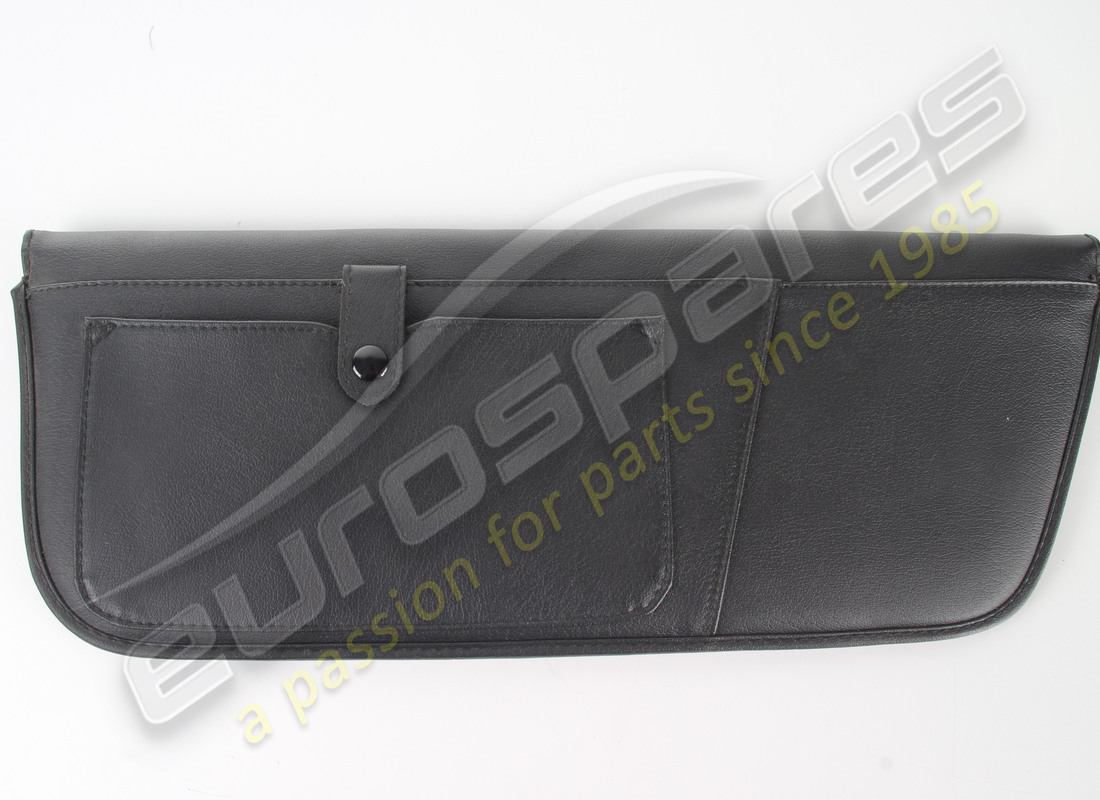

                                      # 011
                                      MPN: 61002300
                                      RH SUN VISOR
                                      - Valid for GD - Not for TA
                                      from £75.39
                                      from £75.39
                                      # 011
                                      MPN: 61169400
                                      RH SUN VISOR
                                      - Valid for GS - Not for TA
                                      from £73.02
                                      from £73.02
                                      # 012
                                      MPN: 61002500
                                      LH SUN VISOR
                                      - Valid for GS - Not for TA
                                      from £188.33
                                      from £188.33
                                      # 012
                                      MPN: 61169700
                                      LH SUN VISOR
                                      - Valid for GD - Not for TA
                                      from £72.34
                                      from £72.34
                                      # 013
                                      MPN: 61003200
                                      RH BRACKET SUN VISOR - COUPÉ
                                      from £46.73
                                      from £46.73
                                      # 014
                                      MPN: 61003300
                                      LH BRACKET SUN VISOR - COUPÉ
                                      from £46.73
                                      from £46.73
                                      # 015
                                      MPN: 15908578
                                      SCREW
                                      from £0.70
                                      from £0.70
                                      # 016
                                      MPN: 61266200
                                      LINED TOP
                                      - Valid for GS - Valid for TA - Not for USA
                                      from £984.88
                                      from £984.88
                                      # 016
                                      MPN: 61266400
                                      TOP LINING
                                      - Valid for TA - Not for USA
                                      from £408.71
                                      from £408.71
                                      # 016
                                      MPN: 61269000
                                      LINED TOP
                                      - Valid for GD - Valid for TA - Not for USA
                                      from £494.14
                                      from £494.14
                                      # 016
                                      MPN: 61870800
                                      LINED TOP
                                      - Valid for TA - Valid for USA
                                      from £899.53
                                      from £899.53
                                      # 016
                                      MPN: 61871000
                                      TOP LINING
                                      - Valid for TA - Valid for USA
                                      from £395.73
                                      from £395.73
                                      # 017
                                      MPN: 61004300
                                      LH SUN VISOR
                                      - Valid for GS - Valid for TA
                                      from £100.77
                                      from £100.77
                                      # 017
                                      MPN: 61171700
                                      RH SUN VISOR
                                      - Valid for GS - Valid for TA
                                      from £124.11
                                      from £124.11
                                      # 017
                                      MPN: 61179900
                                      RH SUN VISOR
                                      - Valid for GD - Valid for TA
                                      from £104.86
                                      from £104.86
                                      # 017
                                      MPN: 61180100
                                      LH SUN VISOR
                                      - Valid for GD - Valid for TA
                                      from £108.07
                                      from £108.07
                                      # 018
                                      MPN: 137492
                                      SWITCH FOR SUN ROOF
                                      from £73.59
                                      from £73.59
                                      This part replaces part number 114635
                                      # 019
                                      MPN: 60922500
                                      SWITCH FRAME
                                      from £13.91
                                      from £13.91
                                      # 020
                                      MPN: 61698200
                                      UPPER STRUCTURE FOR WINDSHIELD - CABRIOLET
                                      - Not for USA 4P
                                      from £390.22
                                      from £390.22
                                      This part replaces part number 61236300 which we have in stock
                                      # 020
                                      MPN: 62775300
                                      UPPER STRUCTURE FOR WINDSHIELD - CABRIOLET
                                      - Valid for USA 4P
                                      from £421.55
                                      from £421.55
                                      # 021
                                      MPN: 61322600
                                      GASKET
                                      from £413.48
                                      from £413.48
                                      # 022
                                      MPN: 62690500
                                      LH MOLDING FOR WINDSHIELD - CABRIOLET
                                      from £90.10
                                      from £90.10
                                      # 022
                                      MPN: 62690600
                                      RH MOLDING FOR WINDSHIELD - CABRIOLET
                                      from £71.76
                                      from £71.76
                                      # 023
                                      MPN: 61317500
                                      RH SUN VISOR - CABRIOLET
                                      - Valid for GS
                                      from £116.66
                                      from £116.66
                                      # 023
                                      MPN: 61606100
                                      RH SUN VISOR - CABRIOLET
                                      - Valid for GD
                                      from £125.41
                                      from £125.41
                                      # 024
                                      MPN: 61317700
                                      LH SUN VISOR - CABRIOLET
                                      - Valid for GS
                                      from £102.44
                                      from £102.44
                                      # 024
                                      MPN: 61606300
                                      LH SUN VISOR - CABRIOLET
                                      - Valid for GD
                                      from £125.41
                                      from £125.41
                                      # 025
                                      MPN: 61603700
                                      RH BRACKET SUN VISOR - CABRIOLET
                                      from £128.44
                                      from £128.44
                                      This part replaces part number 61245000
                                      # 026
                                      MPN: 61603800
                                      LH BRACKET SUN VISOR - CABRIOLET
                                      from £128.44
                                      from £128.44
                                      This part replaces part number 61245100
                                      # 027
                                      MPN: 15908578
                                      SCREW
                                      from £0.70
                                      from £0.70
                                      # 028
                                      MPN: 60326709
                                      LAMP
                                      from £80.82
                                      from £80.82
                                      This part replaces part number 60839400
                                      # 029
                                      MPN: 50100205
                                      BULB
                                      from £1.04
                                      from £1.04
                                      # 030
                                      MPN: 61872000
                                      STOP LAMP SUPPORT - COUPÉ
                                      - Valid for USA
                                      from £161.71
                                      from £161.71
                                      # 031
                                      MPN: 62744000
                                      COURTESY HOOKS SERIES
                                      - Valid for cars with passive belts
                                      from £4.35
                                      from £4.35
                                      # 032
                                      MPN: 14183471
                                      PLATE WITH PASSIVE BELTS
                                      - Valid for cars
                                      from £0.47
                                      from £0.47
