ferrari mondial 3.4 t coupe/cabrio tunnel - framework and linings - cabriolet parts diagram

121 - Tunnel - Framework and Linings - Cabriolet

Ferrari Mondial 3.4 t Coupe/Cabrio Tunnel - Framework and Linings - Cabriolet Parts Diagram

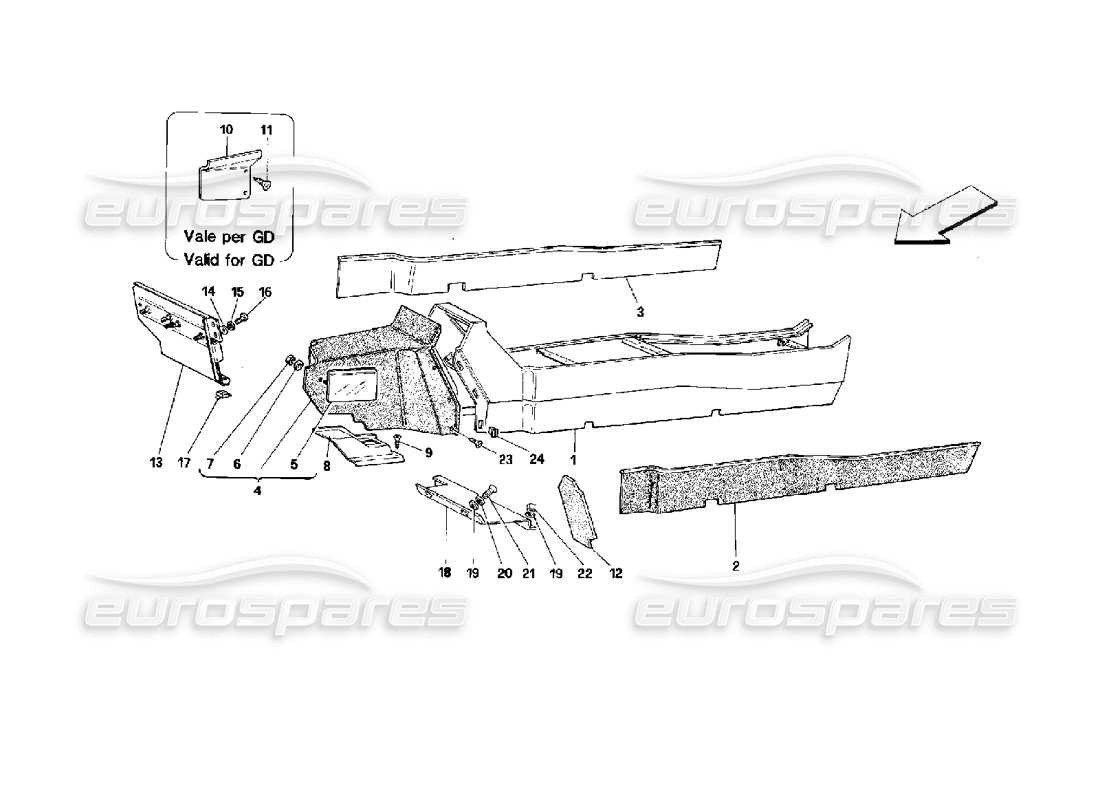

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 626650..
                                  LINED TUNNEL
                                  - Valid for GS - Not for USA and J
                                  Supersession
                                  Supersession
                                  # 001
                                  MPN: 626895..
                                  LINED TUNNEL
                                  - Valid for GS - Valid for USA and J
                                  Supersession
                                  Supersession
                                  # 001
                                  MPN: 628204..
                                  LINED TUNNEL
                                  - Valid for GD
                                  Supersession
                                  Supersession
                                  # 001
                                  MPN: 628640..
                                  LH SIDE LININGS
                                  Supersession
                                  Supersession
                                  # 001
                                  MPN: 628641..
                                  RH SIDE LININGS
                                  Supersession
                                  Supersession
                                  # 002
                                  MPN: 626454..
                                  LH CARPET TUNNEL
                                  Supersession
                                  Supersession
                                  # 003
                                  MPN: 626457..
                                  RH CARPET TUNNEL
                                  Supersession
                                  Supersession
                                  # 004
                                  MPN: 625231..
                                  FRONT TUNNEL LINING
                                  - Valid for GS
                                  Supersession
                                  Supersession
                                  # 004
                                  MPN: 625681..
                                  LINED FRONT TUNNEL
                                  - Valid for GS - Not for USA 4P and J
                                  Supersession
                                  Supersession
                                  # 004
                                  MPN: 628103..
                                  LINED FRONT TUNNEL
                                  - Valid for GD
                                  Supersession
                                  Supersession
                                  # 004
                                  MPN: 628131..
                                  FRONT TUNNEL LINING
                                  - Valid for GD
                                  Supersession
                                  Supersession
                                  # 004
                                  MPN: 629138..
                                  LINED FRONT TUNNEL
                                  - Valid for GS - Valid for USA 4P and J
                                  # 005
                                  MPN: 61120800
                                  FRONT TUNNEL PROTECTION
                                  - Valid for GS
                                  from £3.72
                                  from £3.72
                                  # 005
                                  MPN: 61124100
                                  FRONT TUNNEL PROTECTION
                                  - Valid for GD
                                  from £29.28
                                  from £29.28
                                  # 006
                                  MPN: 12638101
                                  WASHER
                                  from £0.47
                                  from £0.47
                                  # 007
                                  MPN: 12577811
                                  NUT
                                  Supersession
                                  Supersession
                                  # 008
                                  MPN: 61066900
                                  ACCELERATOR PEDAL COVER
                                  - Valid for GS
                                  from £22.07
                                  from £22.07
                                  # 008
                                  MPN: 61112800
                                  ACCELERATOR PEDAL COVER
                                  - Valid for GD
                                  from £64.66
                                  from £64.66
                                  # 009
                                  MPN: 15902678
                                  SCREW
                                  from £0.47
                                  from £0.47
                                  # 010
                                  MPN: 62858900
                                  ACCELERATOR SIDE PROTECTION
                                  - Valid for GD
                                  from £36.31
                                  from £36.31
                                  # 011
                                  MPN: 15671402
                                  SCREW
                                  from £0.47
                                  from £0.47
                                  # 012
                                  MPN: 62661900
                                  FOOT REST PROTECTION
                                  - Valid for GS
                                  from £28.33
                                  from £28.33
                                  This part replaces part number 62619000
                                  # 012
                                  MPN: 62840600
                                  FOOT REST PROTECTION
                                  - Valid for GD
                                  from £7.46
                                  from £7.46
                                  # 013
                                  MPN: 62532500
                                  FOOT REST PASSENGER SIDE
                                  - Valid for GS
                                  from £32.87
                                  from £32.87
                                  # 013
                                  MPN: 62802700
                                  FOOT REST PASSENGER SIDE
                                  - Valid for GD
                                  from £33.99
                                  from £33.99
                                  # 014
                                  MPN: 12643724
                                  WASHER
                                  from £0.47
                                  from £0.47
                                  This part replaces part number 109684 - and 3 more. Click to view details
                                  # 015
                                  MPN: 10615471
                                  WASHER
                                  Supersession
                                  Supersession
                                  # 016
                                  MPN: 62926700
                                  SCREW
                                  from £0.47
                                  from £0.47
                                  This part replaces part number 13276470 which we have in stock - and 1 more. Click to view details
                                  # 017
                                  MPN: 60659100
                                  NUT
                                  from £0.56
                                  from £0.56
                                  This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                  # 018
                                  MPN: 61151600
                                  FOOT REST DRIVER SIDE
                                  - Valid for GD
                                  from £17.12
                                  from £17.12
                                  # 019
                                  MPN: 10519401
                                  WASHER
                                  from £0.71
                                  from £0.71
                                  # 020
                                  MPN: 10615471
                                  WASHER
                                  Supersession
                                  Supersession
                                  # 021
                                  MPN: 10902011
                                  SCREW
                                  from £1.08
                                  from £1.08
                                  This part replaces part number 10902411
                                  # 022
                                  MPN: 102948
                                  NUT
                                  from £0.47
                                  from £0.47
                                  This part replaces part number 12574211 - and 3 more. Click to view details
                                  # 023
                                  MPN: 15687378
                                  SCREW
                                  Supersession
                                  Supersession
                                  This part replaces part number 15782701 which we have in stock
                                  # 024
                                  MPN: 62551200
                                  BLOCK
                                  from £0.47
                                  from £0.47
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
