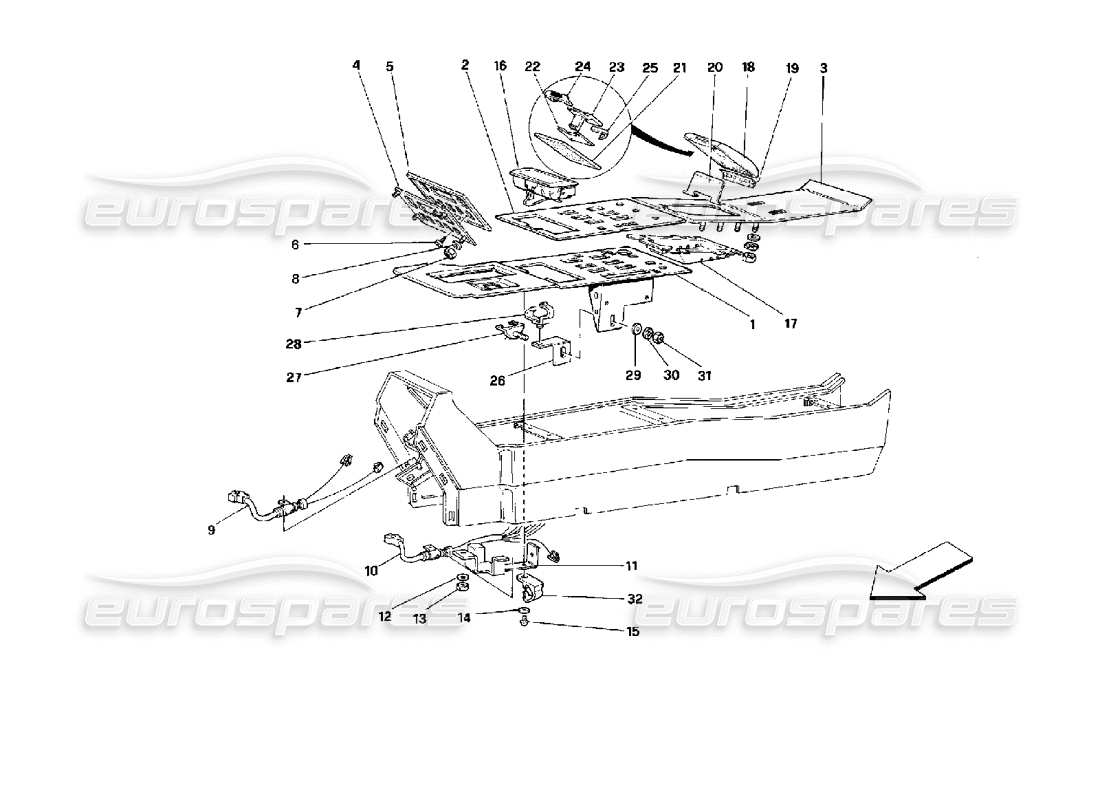

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 625240..
                                                            FRONT PLATE LINED OF TUNNEL
                                                            - Valid for GS
                                                            Supersession
                                                            Supersession
                                                            # 001
                                                            MPN: 628107..
                                                            FRONT PLATE LINED OF TUNNEL
                                                            - Valid for GD
                                                            Supersession
                                                            Supersession
                                                            # 001
                                                            MPN: 628626..
                                                            FRONT PLATE LINING
                                                            Supersession
                                                            Supersession
                                                            # 002
                                                            MPN: 62676000
                                                            UPPER FRONT PLATE
                                                            - Valid for GS - Not for USA and J
                                                            from £317.69
                                                            from £317.69
                                                            # 002
                                                            MPN: 62690200
                                                            UPPER FRONT PLATE
                                                            - Valid for GS - Valid for USA and J
                                                            from £532.14
                                                            from £532.14
                                                            # 002
                                                            MPN: 62821000
                                                            UPPER FRONT PLATE
                                                            - Valid for GD
                                                            from £62.91
                                                            from £62.91
                                                            # 003
                                                            MPN: 626471..
                                                            REAR PLATE LINING
                                                            Supersession
                                                            Supersession
                                                            # 003
                                                            MPN: 626827..
                                                            REAR PLATE LINED OF TUNNEL
                                                            from £147.00
                                                            from £147.00
                                                            # 004
                                                            MPN: 62566100
                                                            PLATE
                                                            from £2.71
                                                            from £2.71
                                                            # 005
                                                            MPN: 62530700
                                                            INSTRUMENT PANEL FOR CONSOLE DASHBOARD DRAWER
                                                            - Valid for cars with
                                                            from £91.24
                                                            from £91.24
                                                            # 005
                                                            MPN: 62825700
                                                            INSTRUMENT PANEL FOR CONSOLE DASHBOARD DRAWER
                                                            - Valid for cars without
                                                            from £53.17
                                                            from £53.17
                                                            # 006
                                                            MPN: 15660301
                                                            SCREW
                                                            from £0.47
                                                            from £0.47
                                                            # 007
                                                            MPN: 10794011
                                                            NUT
                                                            from £0.26
                                                            from £0.26
                                                            # 008
                                                            MPN: 14496204
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 14496201
                                                            # 009
                                                            MPN: 62584700
                                                            CONSOLE LIGHTING CABLES
                                                            from £10.16
                                                            from £10.16
                                                            # 010
                                                            MPN: 62584800
                                                            TUNNEL LIGHTING CABLES
                                                            from £180.60
                                                            from £180.60
                                                            # 011
                                                            MPN: 62510200
                                                            BRACKET
                                                            from £6.01
                                                            from £6.01
                                                            # 012
                                                            MPN: 14496101
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            # 013
                                                            MPN: 16101711
                                                            NUT
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 16101715
                                                            # 014
                                                            MPN: 14496204
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 14496201
                                                            # 015
                                                            MPN: 15687270
                                                            SCREW
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 15642670
                                                            # 016
                                                            MPN: 61058900
                                                            ASHTRAY
                                                            from £68.01
                                                            from £68.01
                                                            # 017
                                                            MPN: 61059000
                                                            CASSETTE BOX
                                                            from £8.29
                                                            from £8.29
                                                            # 018
                                                            MPN: 610594..
                                                            Lined door
                                                            Supersession
                                                            Supersession
                                                            # 018
                                                            MPN: 610595..
                                                            LINING DOOR
                                                            Supersession
                                                            Supersession
                                                            # 019
                                                            MPN: 61059200
                                                            HINGE DOOR
                                                            from £14.51
                                                            from £14.51
                                                            # 020
                                                            MPN: 61059100
                                                            CASSETTE BOX PANEL
                                                            from £1.15
                                                            from £1.15
                                                            # 021
                                                            MPN: 61060000
                                                            INNER DOOR LINING
                                                            from £2.88
                                                            from £2.88
                                                            # 022
                                                            MPN: 61059800
                                                            SPRING COVER
                                                            from £1.58
                                                            from £1.58
                                                            # 023
                                                            MPN: 61059600
                                                            DOOR BUTTON
                                                            from £2.23
                                                            from £2.23
                                                            # 024
                                                            MPN: 61059900
                                                            BUTTON LINING
                                                            from £6.05
                                                            from £6.05
                                                            # 025
                                                            MPN: 61059700
                                                            BUTTON SPRING
                                                            from £0.87
                                                            from £0.87
                                                            # 026
                                                            MPN: 61727800
                                                            BRACKET
                                                            from £2.55
                                                            from £2.55
                                                            # 027
                                                            MPN: 61079900
                                                            BRACKET
                                                            from £7.89
                                                            from £7.89
                                                            # 028
                                                            MPN: 61681600
                                                            SPRING
                                                            from £0.47
                                                            from £0.47
                                                            # 029
                                                            MPN: 12643724
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 109684 - and 3 more. Click to view details
                                                            # 030
                                                            MPN: 10615471
                                                            WASHER
                                                            Supersession
                                                            Supersession
                                                            # 031
                                                            MPN: 15896211
                                                            NUT
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 15896210 which we have in stock
                                                            # 032
                                                            MPN: 129544
                                                            SPRING
                                                            from £1.15
                                                            from £1.15
