ferrari mondial 3.4 t coupe/cabrio windshield wiper and horns parts diagram

125 - Windshield Wiper and Horns

Ferrari Mondial 3.4 t Coupe/Cabrio Windshield Wiper and Horns Parts Diagram

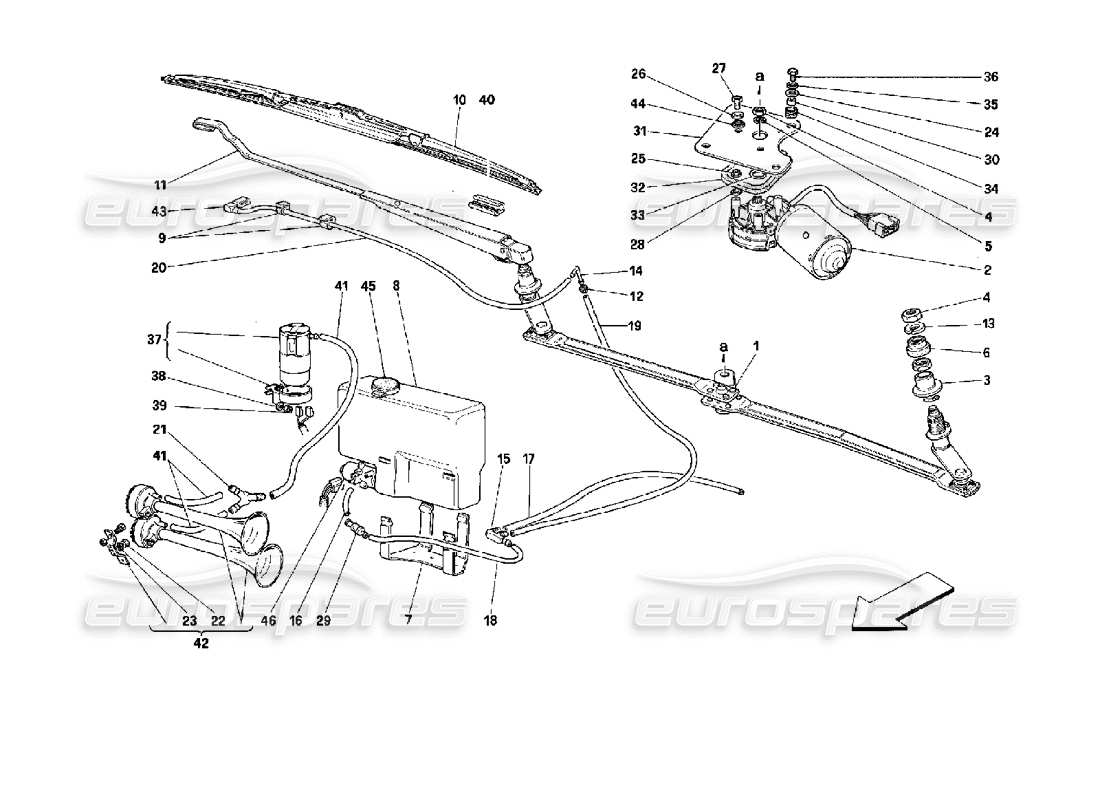

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 62387700
                                                                                  WINDSHIELD WIPER LEVERAGE
                                                                                  from £99.30
                                                                                  from £99.30
                                                                                  This part replaces part number 60659200 - and 1 more. Click to view details
                                                                                  # 002
                                                                                  MPN: 61528100
                                                                                  WINDSHIELD WIPER MOTOR
                                                                                  from £413.59
                                                                                  from £413.59
                                                                                  This part replaces part number 144491 - and 8 more. Click to view details
                                                                                  # 003
                                                                                  MPN: 60671400
                                                                                  SPACER
                                                                                  from £3.79
                                                                                  from £3.79
                                                                                  # 004
                                                                                  MPN: 16102311
                                                                                  NUT
                                                                                  from £0.43
                                                                                  from £0.43
                                                                                  This part replaces part number 16102315
                                                                                  # 005
                                                                                  MPN: 127496
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                  # 006
                                                                                  MPN: 60701200
                                                                                  GASKET
                                                                                  from £14.97
                                                                                  from £14.97
                                                                                  # 007
                                                                                  MPN: 60630000
                                                                                  CHECK SPRING FOR WINDSHIELD WASHER BAG
                                                                                  from £19.18
                                                                                  from £19.18
                                                                                  # 008
                                                                                  MPN: 61647900
                                                                                  WINDSHIELD-WASHER BAG
                                                                                  from £521.95
                                                                                  from £521.95
                                                                                  # 009
                                                                                  MPN: 61559400
                                                                                  SPRING FOR ARM PIPE FASTENING
                                                                                  from £1.27
                                                                                  from £1.27
                                                                                  # 010
                                                                                  MPN: 62461700
                                                                                  WINDSHIELD WIPER BRUSH
                                                                                  - Valid for GS - USE 65661700
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 010
                                                                                  MPN: 65661700
                                                                                  WINDSHIELD WIPER (PAIR)
                                                                                  from £29.52
                                                                                  from £29.52
                                                                                  This part replaces part number 62461700 - and 3 more. Click to view details
                                                                                  # 011
                                                                                  MPN: 61725600
                                                                                  WINDSHIELD WIPER ARM
                                                                                  - Valid for GD
                                                                                  from £126.13
                                                                                  from £126.13
                                                                                  # 011
                                                                                  MPN: 62519100
                                                                                  WINDSHIELD WIPER ARM
                                                                                  - Valid for GS
                                                                                  from £57.29
                                                                                  from £57.29
                                                                                  # 012
                                                                                  MPN: 61444900
                                                                                  BUSH
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 013
                                                                                  MPN: 127496
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                  # 014
                                                                                  MPN: 62564500
                                                                                  90° UNION
                                                                                  from £1.09
                                                                                  from £1.09
                                                                                  # 015
                                                                                  MPN: 50103100
                                                                                  3-WAY UNION
                                                                                  from £8.93
                                                                                  from £8.93
                                                                                  This part replaces part number 40103100 which we have in stock

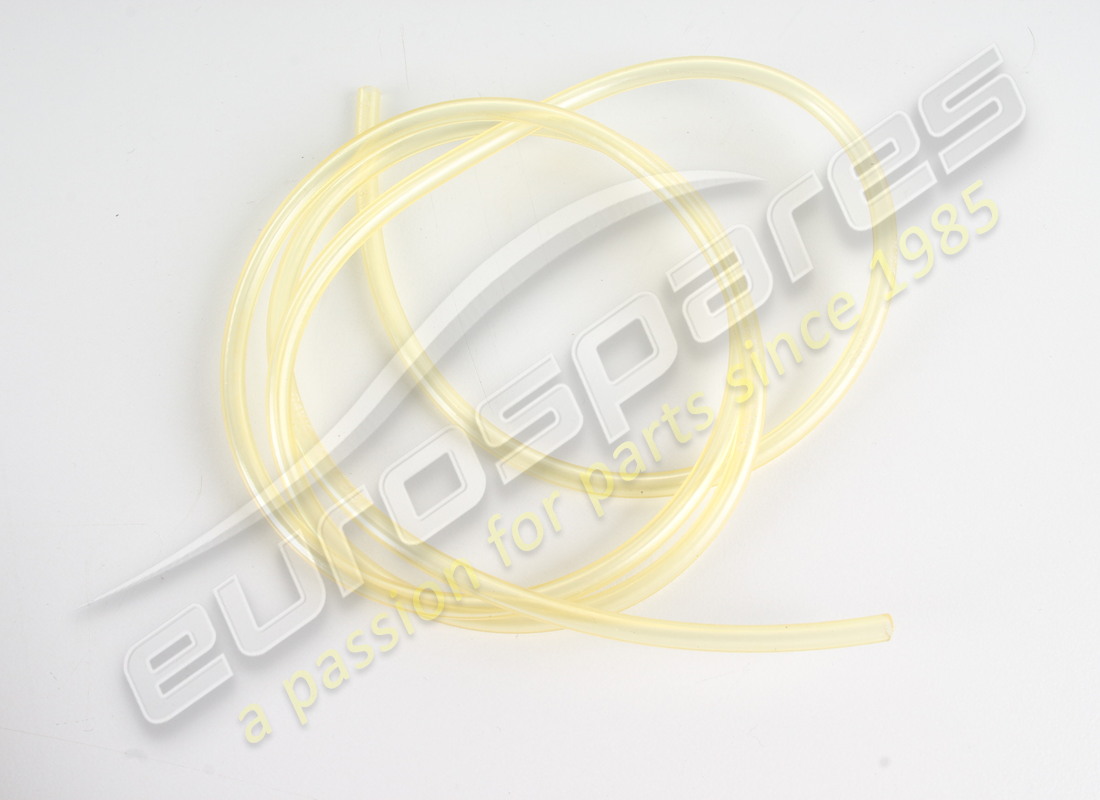

                                                                                  # 016
                                                                                  MPN: 62829000
                                                                                  PIPE FROM PUMP TO VALVE
                                                                                  from £1.54
                                                                                  from £1.54

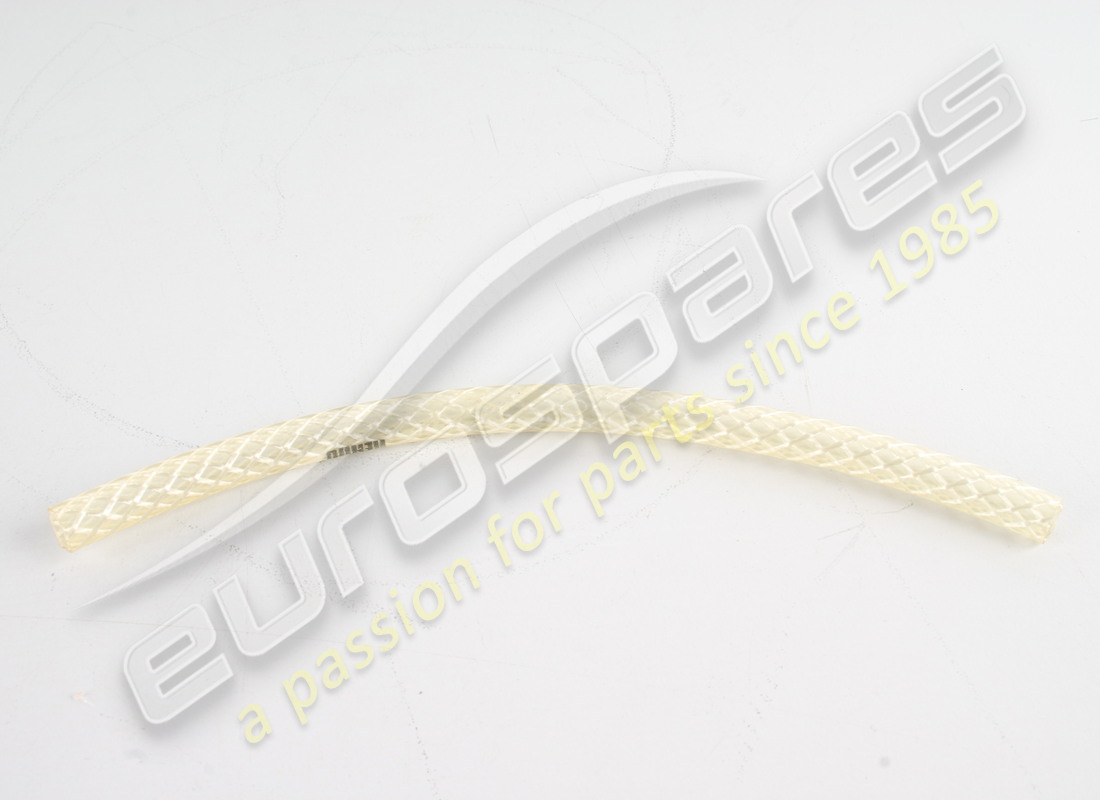

                                                                                  # 017
                                                                                  MPN: 62585000
                                                                                  PIPE FROM UNION TO LH ARM
                                                                                  from £0.81
                                                                                  from £0.81
                                                                                  # 018
                                                                                  MPN: 62519200
                                                                                  PIPE FROM VALVE TO UNION
                                                                                  - Valid for GS
                                                                                  from £8.59
                                                                                  from £8.59
                                                                                  # 018
                                                                                  MPN: 62829100
                                                                                  PIPE FROM VALVE TO UNION
                                                                                  - Valid for GD
                                                                                  from £5.59
                                                                                  from £5.59
                                                                                  # 019
                                                                                  MPN: 62585100
                                                                                  PIPE FROM UNION TO RH ARM
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 020
                                                                                  MPN: 62488800
                                                                                  PIPE ON ARM
                                                                                  from £11.64
                                                                                  from £11.64
                                                                                  # 021
                                                                                  MPN: 60741100
                                                                                  3 WAYS UNION
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 61741100
                                                                                  # 022
                                                                                  MPN: 16100824
                                                                                  NUT
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                  # 023
                                                                                  MPN: 10615679
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 024
                                                                                  MPN: 12643724
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                                                  # 025
                                                                                  MPN: 40222408
                                                                                  RUBBER PAD
                                                                                  from £1.49
                                                                                  from £1.49
                                                                                  # 027
                                                                                  MPN: 10902111
                                                                                  SCREW
                                                                                  from £1.10
                                                                                  from £1.10
                                                                                  # 028
                                                                                  MPN: 40222705
                                                                                  WASHER
                                                                                  from £11.44
                                                                                  from £11.44
                                                                                  # 029
                                                                                  MPN: 50332402
                                                                                  CHECK VALVE
                                                                                  from £36.99
                                                                                  from £36.99
                                                                                  # 030
                                                                                  MPN: 103550
                                                                                  SPACER
                                                                                  from £1.89
                                                                                  from £1.89
                                                                                  This part replaces part number 4130913
                                                                                  # 031
                                                                                  MPN: 62369500
                                                                                  WINDSHIELD WIPER MOTOR FASTENING BRACKET
                                                                                  - Valid for GS
                                                                                  from £2.74
                                                                                  from £2.74
                                                                                  # 031
                                                                                  MPN: 62378000
                                                                                  WINDSHIELD WIPER MOTOR FASTENING BRACKET
                                                                                  - Valid for GD
                                                                                  from £2.99
                                                                                  from £2.99
                                                                                  # 032
                                                                                  MPN: 62369600
                                                                                  GASKET
                                                                                  from £1.37
                                                                                  from £1.37
                                                                                  # 033
                                                                                  MPN: 20181103
                                                                                  O.R. GASKET
                                                                                  from £3.40
                                                                                  from £3.40
                                                                                  # 034
                                                                                  MPN: 103549
                                                                                  RUBBER BUSH
                                                                                  from £0.70
                                                                                  from £0.70
                                                                                  # 035
                                                                                  MPN: 10615471
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 036
                                                                                  MPN: 10902621
                                                                                  SCREW
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 10902611
                                                                                  # 037
                                                                                  MPN: 225757
                                                                                  COMPRESSOR COMPLETE WITH BRACKET
                                                                                  from £138.82
                                                                                  from £138.82
                                                                                  This part replaces part number 139920
                                                                                  # 038
                                                                                  MPN: 10519624
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                  # 039
                                                                                  MPN: 104030
                                                                                  SELF LOCKING NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 16104125
                                                                                  # 040
                                                                                  MPN: 62586200
                                                                                  SPRING
                                                                                  from £6.18
                                                                                  from £6.18

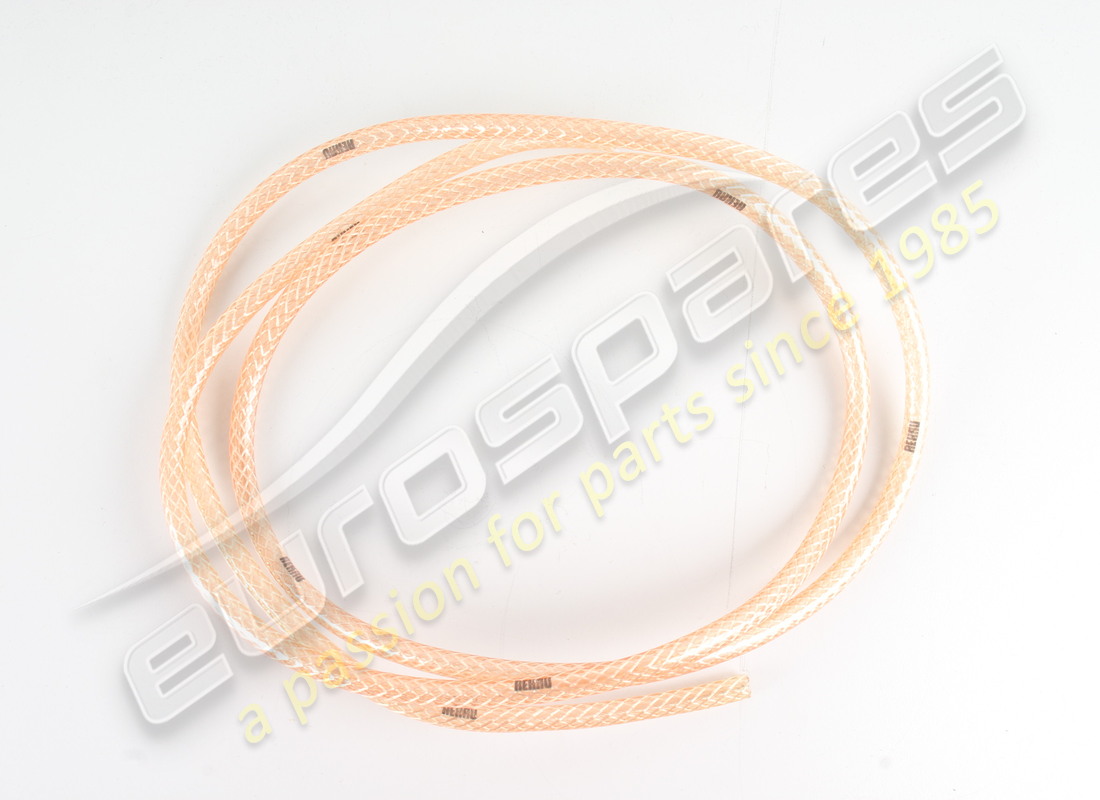

                                                                                  # 041
                                                                                  MPN: 61951500
                                                                                  PIPE FROM COMPRESSOR TO HORNS
                                                                                  from £1.22
                                                                                  from £1.22
                                                                                  # 042
                                                                                  MPN: 60665500
                                                                                  HORNS
                                                                                  - Not for CH
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 042
                                                                                  MPN: 60842900
                                                                                  HORNS - SOLD AS A PAIR
                                                                                  - Valid for CH
                                                                                  from £94.61
                                                                                  from £94.61
                                                                                  # 043
                                                                                  MPN: 61537500
                                                                                  NOZZLE
                                                                                  -Valid for GD-
                                                                                  from £18.56
                                                                                  from £18.56
                                                                                  # 044
                                                                                  MPN: 10615470
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 045
                                                                                  MPN: 61535300
                                                                                  PLUG
                                                                                  from £15.97
                                                                                  from £15.97
                                                                                  # 046
                                                                                  MPN: 61535400
                                                                                  WINDSHIELD-WASHER PUMP
                                                                                  from £80.00
                                                                                  from £80.00
