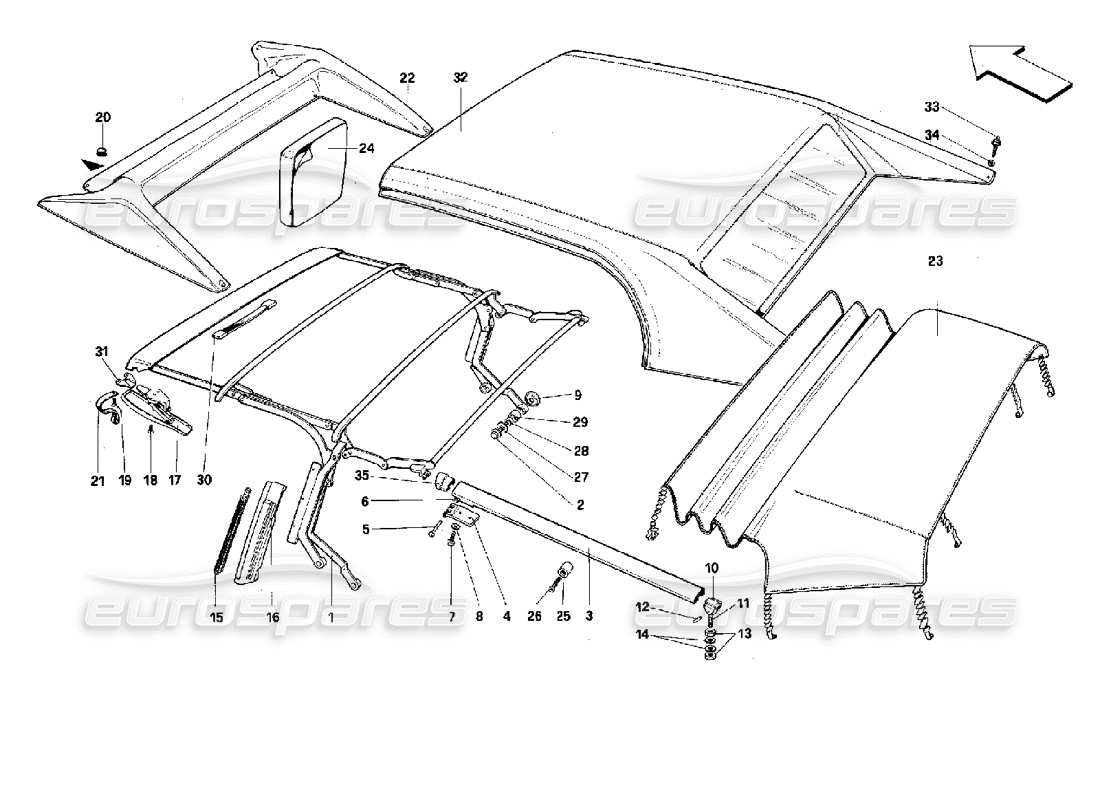

Ferrari Mondial 3.4 t Coupe/Cabrio Top - Cabriolet Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 61712700
                                                                  TOP FRAME WITH BLACK CLOTH
                                                                  from £8,616.17
                                                                  from £8,616.17
                                                                  This part replaces part number 61246900 - and 1 more. Click to view details
                                                                  # 001
                                                                  MPN: 61712700/A
                                                                  ROOF FRAME
                                                                  FRAME ONLY
                                                                  # 001
                                                                  MPN: 61827200
                                                                  TOP FRAME WITH BLUE CLOTH
                                                                  from £4,011.00
                                                                  from £4,011.00
                                                                  This part replaces part number 61826100 - and 1 more. Click to view details
                                                                  # 001
                                                                  MPN: 70000779
                                                                  PINS SET TO TOP FIXING
                                                                  from £187.68
                                                                  from £187.68
                                                                  # 002
                                                                  MPN: 61424100
                                                                  SCREW
                                                                  from £1.60
                                                                  from £1.60
                                                                  # 003
                                                                  MPN: 61298100
                                                                  RH FINS TENSIONER (COMPLETE WITH PART. 35)
                                                                  from £105.33
                                                                  from £105.33
                                                                  # 003
                                                                  MPN: 61298200
                                                                  LH FINS TENSIONER (COMPLETE WITH PART. 35)
                                                                  from £127.00
                                                                  from £127.00
                                                                  # 004
                                                                  MPN: 61305800
                                                                  LH HINGE
                                                                  from £11.86
                                                                  from £11.86
                                                                  # 004
                                                                  MPN: 61333800
                                                                  RH HINGE
                                                                  from £11.86
                                                                  from £11.86
                                                                  # 005
                                                                  MPN: 40028904
                                                                  PIN
                                                                  from £5.68
                                                                  from £5.68
                                                                  # 006
                                                                  MPN: 11065476
                                                                  SEEGER RING
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 11065470
                                                                  # 007
                                                                  MPN: 60801600
                                                                  SCREW
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 008
                                                                  MPN: 106850
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 10516473 - and 1 more. Click to view details
                                                                  # 009
                                                                  MPN: 61425200
                                                                  GASKET
                                                                  from £41.14
                                                                  from £41.14
                                                                  # 010
                                                                  MPN: 61306600
                                                                  SLIDE
                                                                  from £8.78
                                                                  from £8.78
                                                                  # 011
                                                                  MPN: 61306700
                                                                  UNIBALL
                                                                  from £91.99
                                                                  from £91.99
                                                                  # 012
                                                                  MPN: 61306800
                                                                  PIN
                                                                  from £7.19
                                                                  from £7.19
                                                                  # 013
                                                                  MPN: 10788511
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 014
                                                                  MPN: 12642024
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 12642020 - and 1 more. Click to view details
                                                                  # 015
                                                                  MPN: 61411300
                                                                  GASKET
                                                                  from £430.22
                                                                  from £430.22
                                                                  # 016
                                                                  MPN: 61720300
                                                                  RH PILLAR
                                                                  from £316.53
                                                                  from £316.53
                                                                  This part replaces part number 61250200 - and 3 more. Click to view details
                                                                  # 016
                                                                  MPN: 61720400
                                                                  LH PILLAR
                                                                  from £307.57
                                                                  from £307.57
                                                                  This part replaces part number 61372200 - and 2 more. Click to view details
                                                                  # 017
                                                                  MPN: 61758500
                                                                  HOOK FOR TOP CLOSING
                                                                  from £404.94
                                                                  from £404.94
                                                                  This part replaces part number 61252000 - and 1 more. Click to view details
                                                                  # 018
                                                                  MPN: 13301417
                                                                  SCREW
                                                                  from £3.35
                                                                  from £3.35
                                                                  # 019
                                                                  MPN: 13299517
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 020
                                                                  MPN: 61251300
                                                                  CLIP
                                                                  from £19.66
                                                                  from £19.66

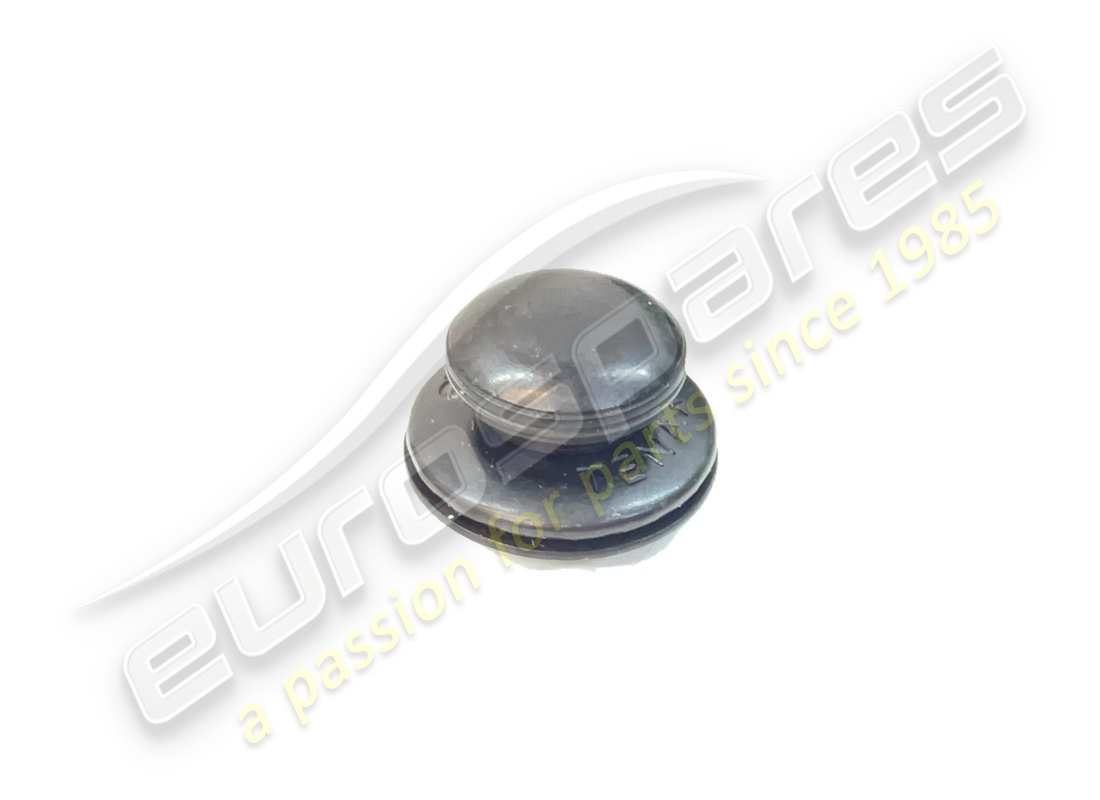

                                                                  # 020
                                                                  MPN: 65257700
                                                                  FEMALE CHROMED BUTTON
                                                                  Supersession
                                                                  Supersession
                                                                  # 021
                                                                  MPN: 61759000
                                                                  BELT
                                                                  from £64.50
                                                                  from £64.50
                                                                  # 022
                                                                  MPN: 61251200
                                                                  CLOTH TOP COVER - BLACK
                                                                  from £2,292.71
                                                                  from £2,292.71
                                                                  # 022
                                                                  MPN: 617113..
                                                                  SKIN TOP COVER
                                                                  - optional
                                                                  Supersession
                                                                  Supersession
                                                                  # 022
                                                                  MPN: 61826300
                                                                  CLOTH TOP COVER - BLEU
                                                                  from £2,200.35
                                                                  from £2,200.35
                                                                  # 023
                                                                  MPN: 61251400
                                                                  TONNEAU COVER - BLACK
                                                                  - Valid for USA and J
                                                                  from £1,975.00
                                                                  from £1,975.00
                                                                  # 023
                                                                  MPN: 61826500
                                                                  TONNEAU COVER - BLEU
                                                                  - Valid for USA and J
                                                                  from £1,350.23
                                                                  from £1,350.23
                                                                  # 024
                                                                  MPN: 613686..
                                                                  BAG FOR TOP COVER
                                                                  Supersession
                                                                  Supersession
                                                                  # 025
                                                                  MPN: 61302600
                                                                  ROLLER
                                                                  from £14.98
                                                                  from £14.98
                                                                  # 026
                                                                  MPN: 61402100
                                                                  SCREW
                                                                  from £1.37
                                                                  from £1.37
                                                                  # 027
                                                                  MPN: 12642078
                                                                  WASHER
                                                                  from £0.50
                                                                  from £0.50
                                                                  This part replaces part number 12642006 which we have in stock
                                                                  # 028
                                                                  MPN: 61758900
                                                                  SPACER
                                                                  from £1.85
                                                                  from £1.85
                                                                  # 029
                                                                  MPN: 101677
                                                                  ROLLER BEARING
                                                                  from £2.05
                                                                  from £2.05
                                                                  # 030
                                                                  MPN: 61758400
                                                                  HANDLE
                                                                  from £43.65
                                                                  from £43.65
                                                                  # 031
                                                                  MPN: 61758600
                                                                  BLOCK
                                                                  Supersession
                                                                  Supersession
                                                                  # 032
                                                                  MPN: 61250700
                                                                  BLACK CLOTH FOR CLOTH TOP COVER
                                                                  Supersession
                                                                  Supersession
                                                                  # 032
                                                                  MPN: 61250701
                                                                  BLEU CLOTH FOR CLOTH TOP COVER
                                                                  Supersession
                                                                  Supersession
                                                                  # 032
                                                                  MPN: 61711200
                                                                  BLACK CLOTH FOR SKIN TOP COVER
                                                                  from £2,615.90
                                                                  from £2,615.90
                                                                  This part replaces part number 61250700
                                                                  # 032
                                                                  MPN: 61711201
                                                                  BLEU CLOTH FOR SKIN TOP COVER
                                                                  from £3,049.49
                                                                  from £3,049.49
                                                                  This part replaces part number 61250701
                                                                  # 033
                                                                  MPN: 60271806
                                                                  PIN
                                                                  from £10.84
                                                                  from £10.84
                                                                  This part replaces part number 61632100
                                                                  # 034
                                                                  MPN: 61195300
                                                                  WASHER
                                                                  from £0.71
                                                                  from £0.71
                                                                  # 035
                                                                  MPN: 61306500
                                                                  RH FRONT END FOR FINS TENSIONER
                                                                  from £15.47
                                                                  from £15.47
                                                                  # 035
                                                                  MPN: 61359200
                                                                  LH FRONT END FOR FINS TENSIONER
                                                                  from £15.47
                                                                  from £15.47
