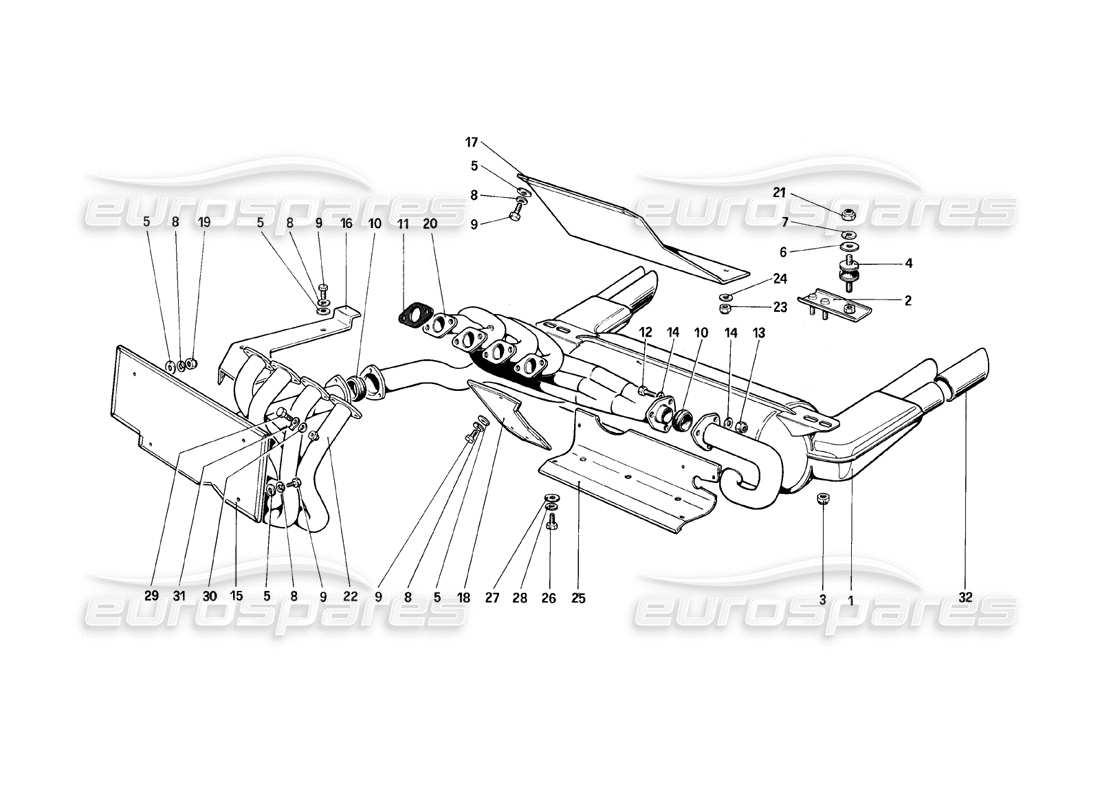

013 - Exhaust System
Ferrari Mondial 8 (1981) Exhaust System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 113251
COMPLETE EXHAUST MUFFLER
from £3,797.19
from £3,797.19

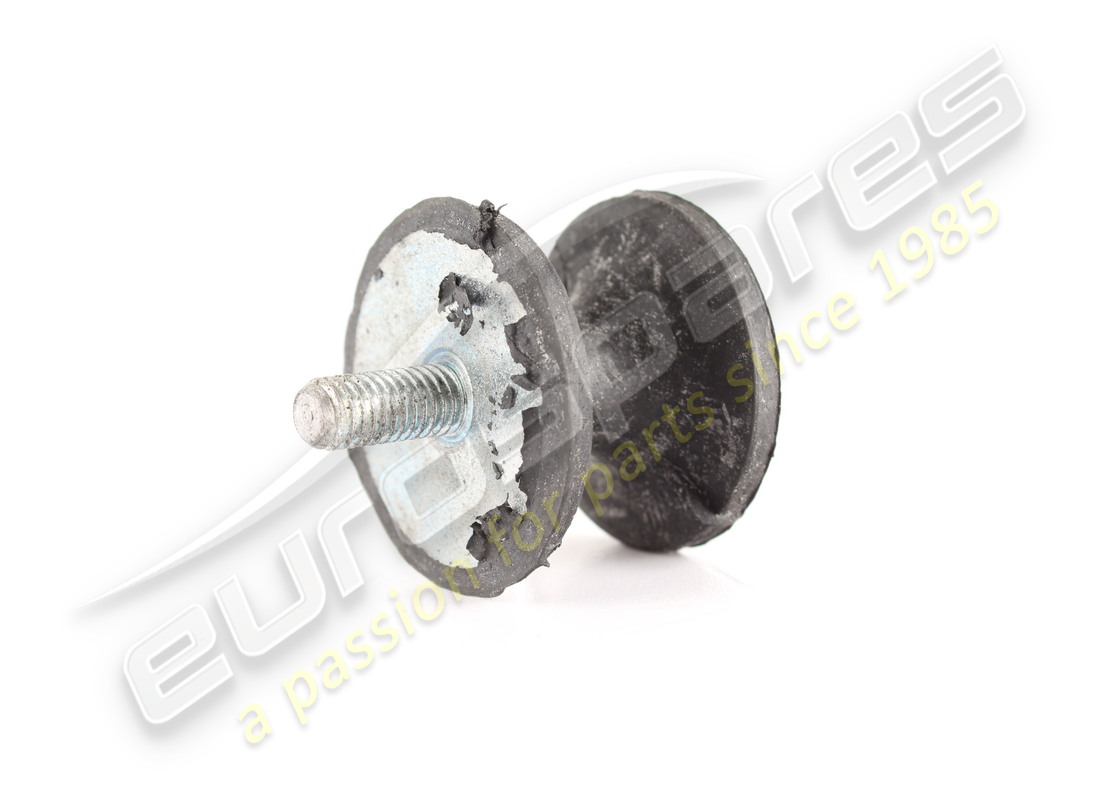

# 002
MPN: 116349
BRACKET / SUPPORT
from £226.97
from £226.97
This part replaces part number 109442
# 003
MPN: 114748
SELF LOCKING NUT
from £8.91
from £8.91

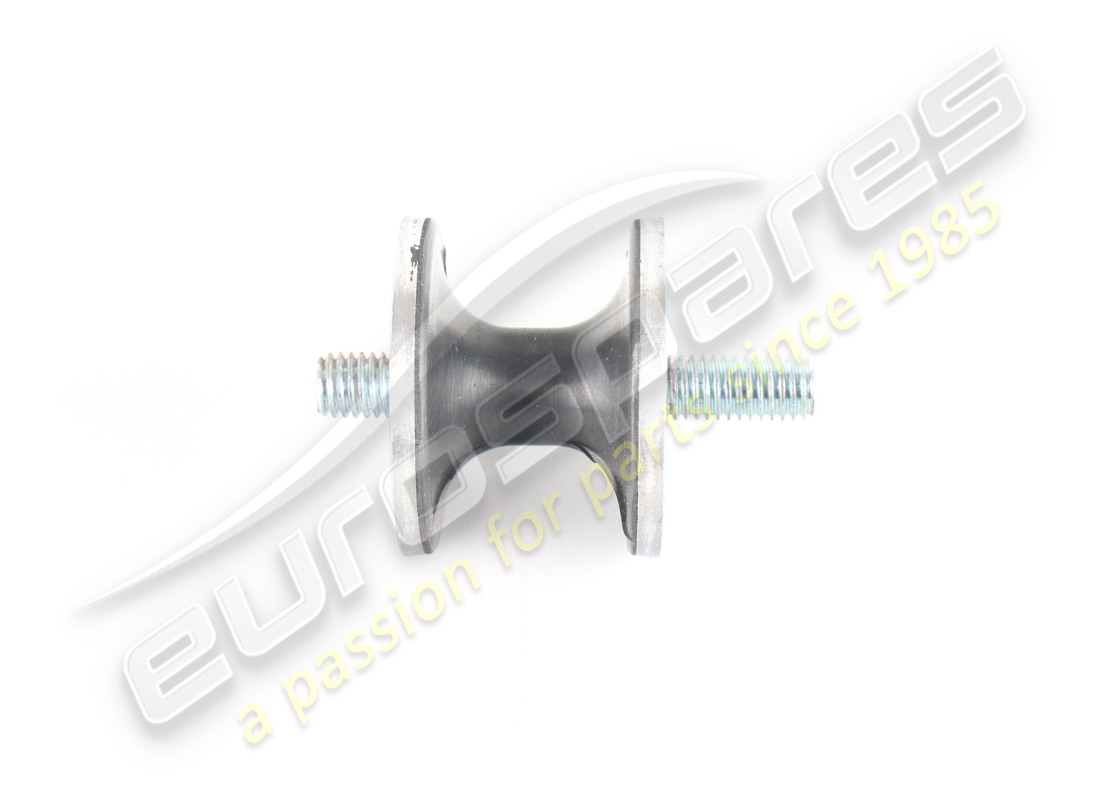

# 004
MPN: 116351
SUPPORT
from £29.94
from £29.94
# 005
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 006
MPN: 12646701
WASHER
from £0.53
from £0.53
# 007
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 008
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 009
MPN: 10902121
SCREW
from £0.71
from £0.71
This part replaces part number 20146601

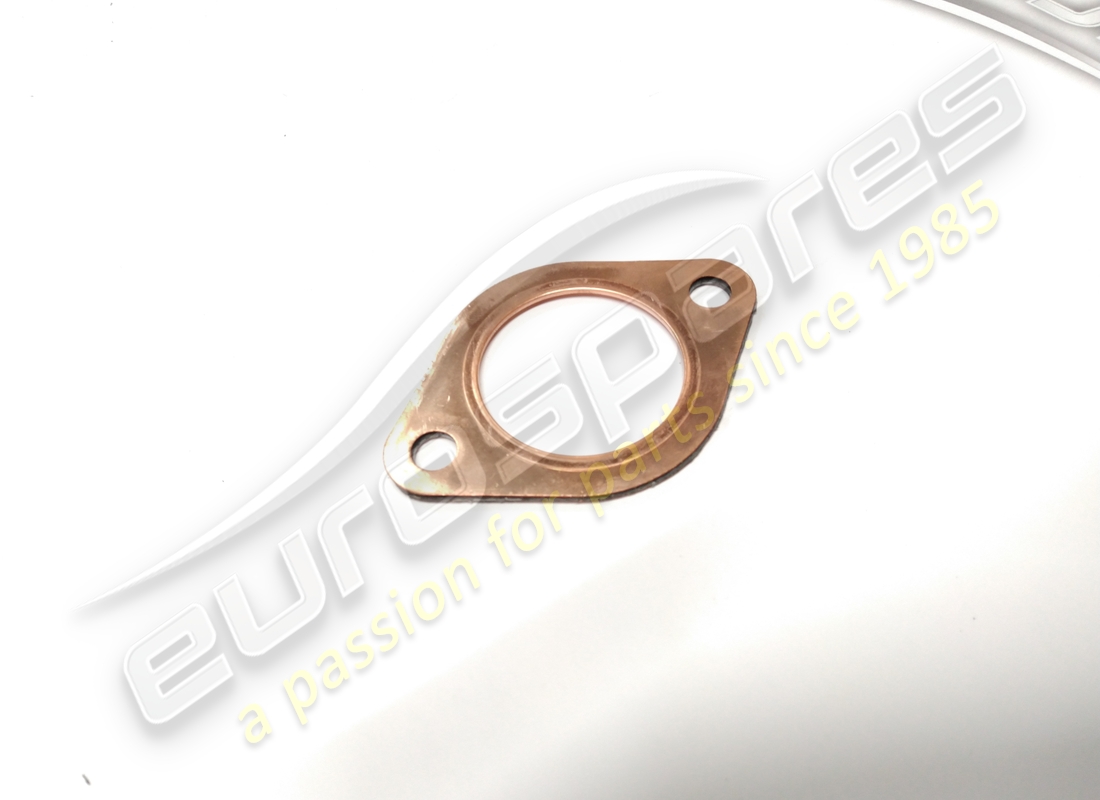

# 010
MPN: 146698
GASKET
Alternative use :154984
from £10.03
from £10.03
This part replaces part number 103377 - and 1 more. Click to view details

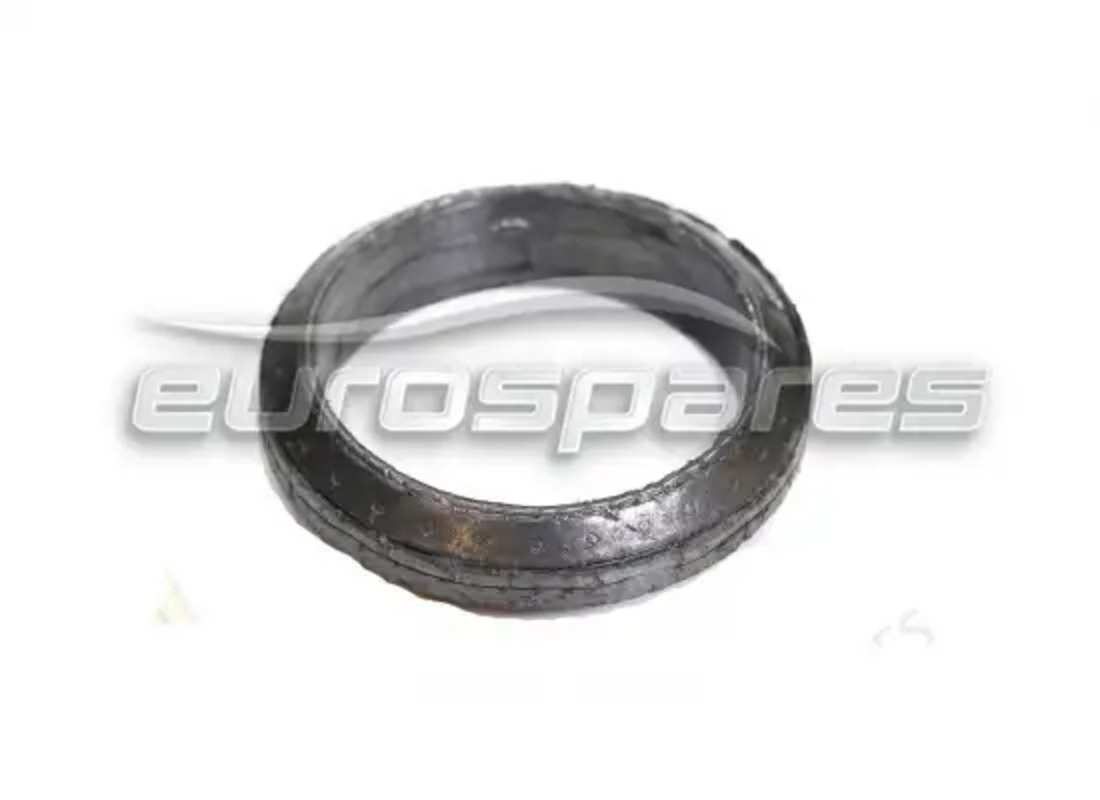

# 011
MPN: 106125
GASKET OR SEAL
from £7.60
from £7.60
This part replaces part number 105942 - and 1 more. Click to view details
# 012
MPN: 16044021
SCREW
from £1.70
from £1.70
This part replaces part number 119631 which we have in stock
# 013
MPN: 144748
SELF LOCKING NUT
from £21.77
from £21.77
# 014
MPN: 10519624
WASHER
from £0.52
from £0.52
This part replaces part number 10519601 - and 3 more. Click to view details
# 015
MPN: 116582
TANK PROTECTION BULKHEAD
from £177.19
from £177.19
# 016
MPN: 116583
PARATIA PROTEZIONE ALTERNATORE
from £327.80
from £327.80
This part replaces part number 107207
# 017
MPN: 116584
PARATIA PROTEZIONE BAULE
from £155.30
from £155.30
# 018
MPN: 116312
PARATIA PROTEZIONE SEMIASSE
from £289.91
from £289.91
# 019
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 020
MPN: 116318
REAR EXHAUST MANIFOLD
from £1,369.06
from £1,369.06
# 020
MPN: 116318/S
REAR EXHAUST MANIFOLD
(stainless steel)
# 021
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 022
MPN: 116317
COLLETTORE DI SCARICO ANTERIORE
from £676.37
from £676.37
# 023
MPN: 116416
SELF LOCKING NUT
from £9.27
from £9.27
# 024
MPN: 146712
WASHER
from £1.66
from £1.66
This part replaces part number 105924
# 025
MPN: 116581
LOWER AIR CONVEYOR FOR REAR MANIFOLD
Per GD vale n. 114084
Supersession
Supersession
# 026
MPN: 10902021
SCREW
from £1.16
from £1.16
This part replaces part number 10902020
# 027
MPN: 106744
WASHER
from £5.40
from £5.40
# 028
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 029
MPN: 110860
PLUG
from £7.73
from £7.73
This part replaces part number 11903240
# 030
MPN: 10298460
WASHER
from £0.47
from £0.47
This part replaces part number 93353
# 031
MPN: 14198901
PLATE
from £4.72
from £4.72
# 032
MPN: 113248
TERMINALE PER MARMITTA
from £16.48
from £16.48
