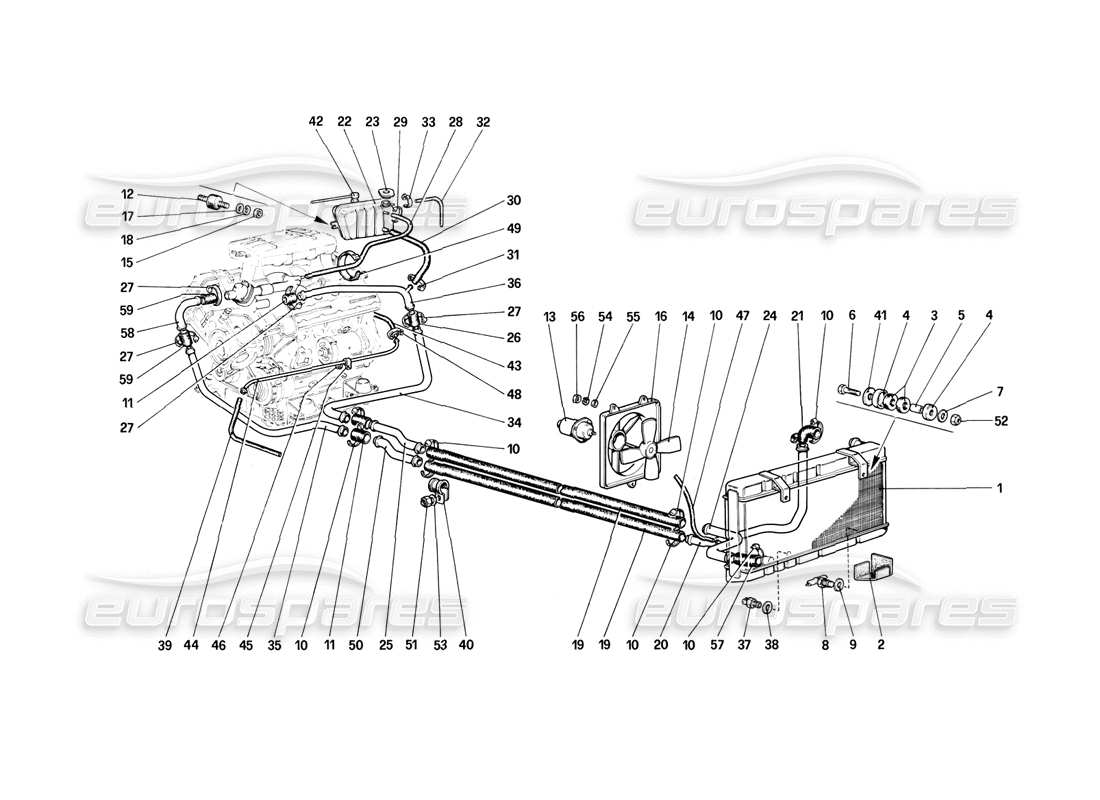

Ferrari Mondial 8 (1981) Cooling System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 116287
RADIATORE ACQUA
from £1,760.79
from £1,760.79
This part replaces part number 115570
# 002
MPN: 107782
RUBBER GASKET
from £35.85
from £35.85
# 003
MPN: 107978

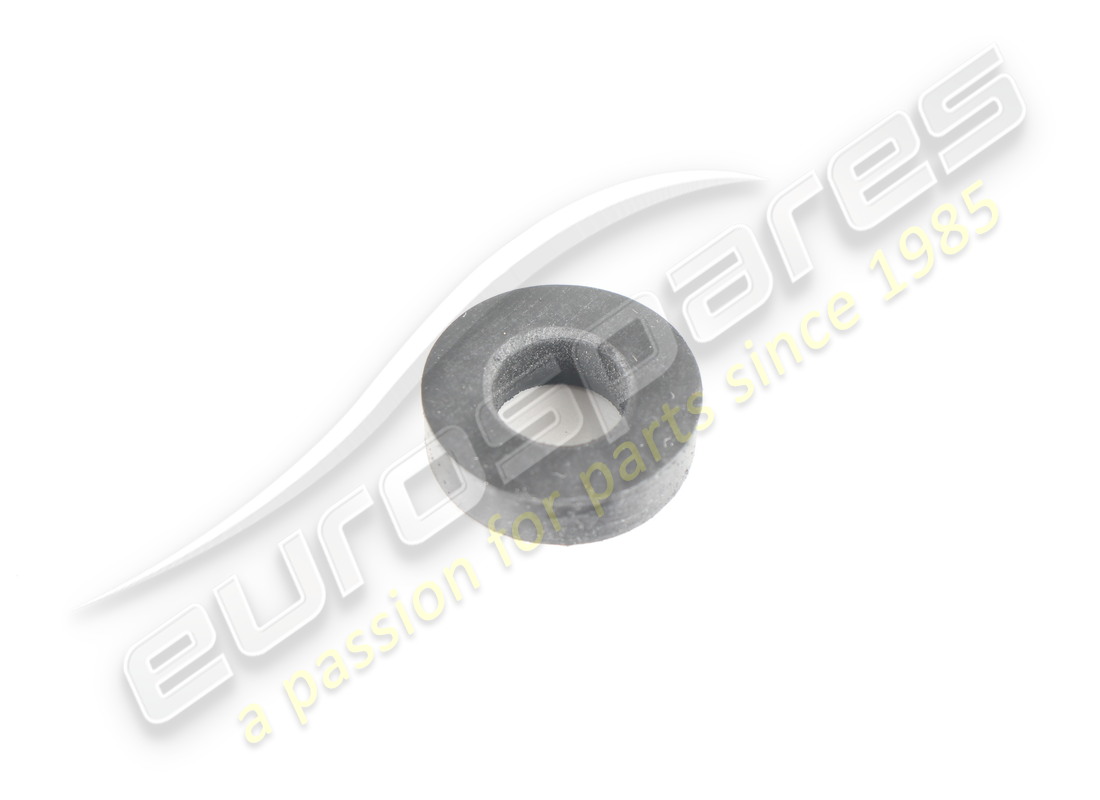

PAD
from £1.10
from £1.10
# 004
MPN: 107979
CAP
from £1.11
from £1.11

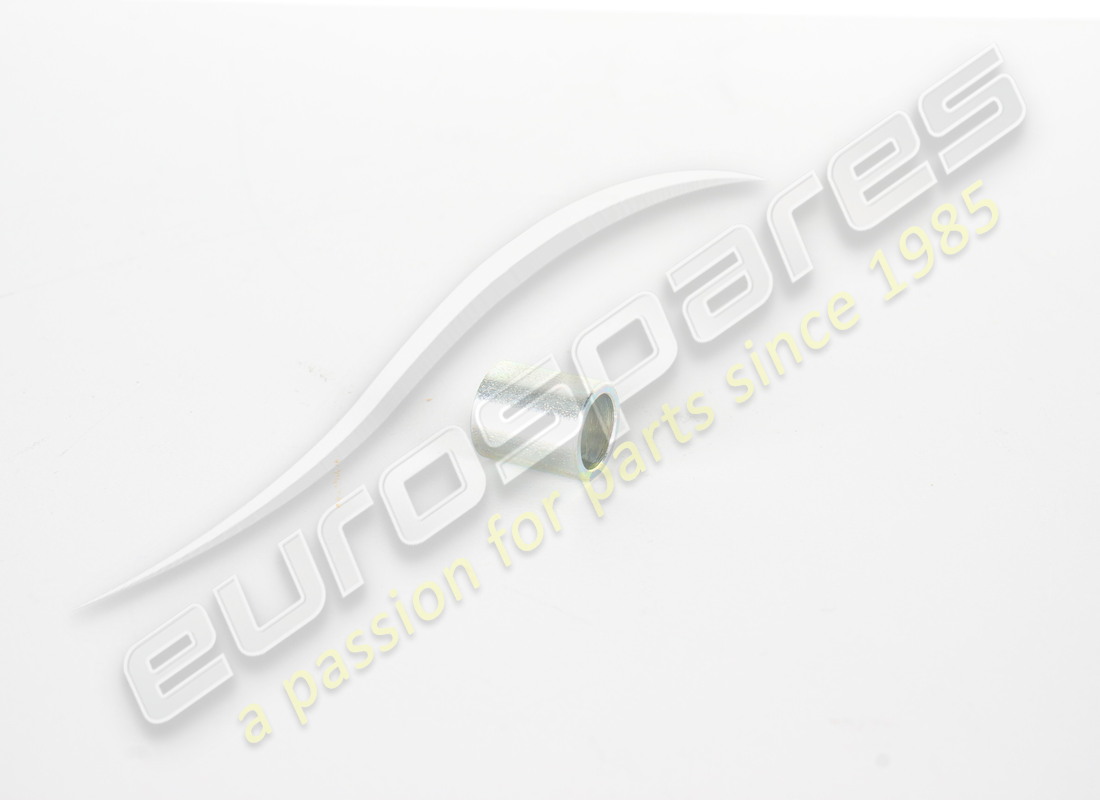

# 005
MPN: 107980
SPACER
from £1.59
from £1.59
# 006
MPN: 16043821
BOLT
from £0.71
from £0.71
# 007
MPN: 128010
WASHER
from £2.16
from £2.16

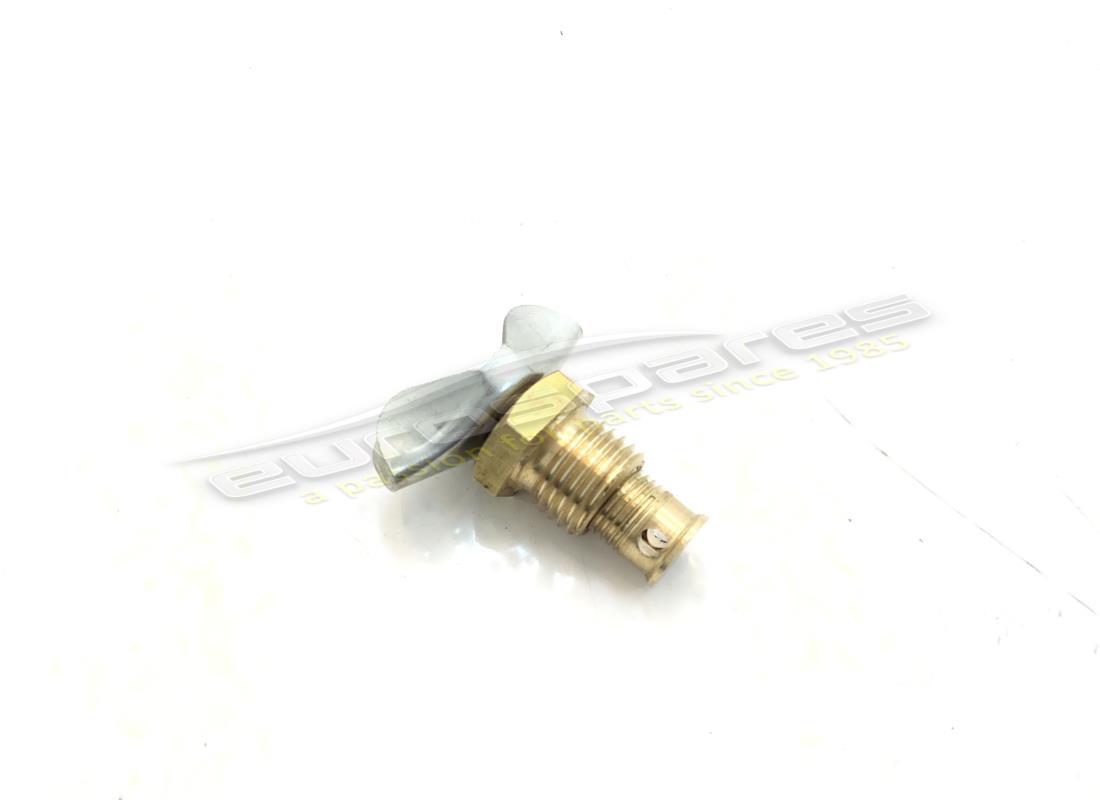

# 008
MPN: 101488
RADIATOR DRAIN TAP
from £123.28
from £123.28
# 009
MPN: 101496
GASKET
from £3.20
from £3.20
# 010
MPN: 12180090
JUBILEE CLIP
Supersession
Supersession
This part replaces part number 102958

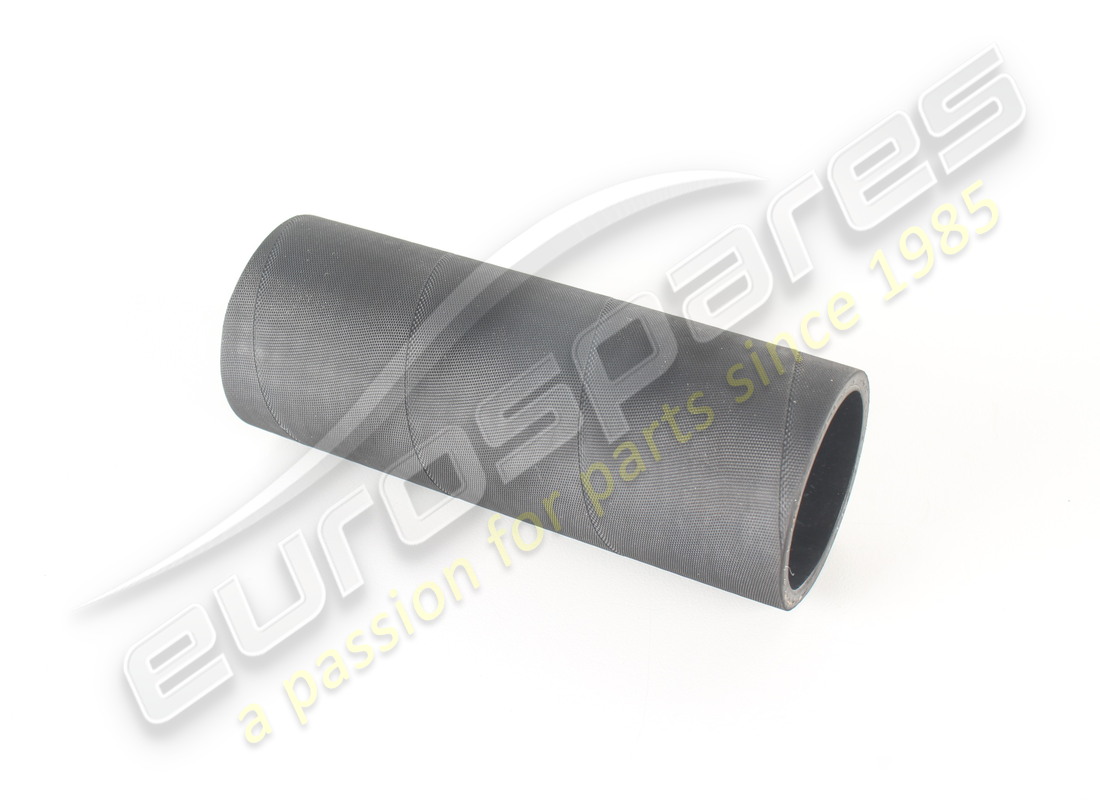

# 011
MPN: 121258
SLEEVE
from £19.23
from £19.23
This part replaces part number 10147087 - and 4 more. Click to view details
# 012
MPN: 102947
SUPPORT
from £6.17
from £6.17
This part replaces part number 102007 - and 14 more. Click to view details
# 013
MPN: 117546
MOTORINO PER ELETTROVENTILATORE
from £309.08
from £309.08
# 014
MPN: 117547
MOTOR FAN
from £47.94
from £47.94
# 015
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210
# 016
MPN: 117648
Convogliatore per elettroventilatore
# 017
MPN: 106744
WASHER
from £4.91
from £4.91
# 018
MPN: 10516477
WASHER
Supersession
Supersession
# 019
MPN: 116443
CENTRAL DELIVERY AND RETURN PIPE
from £193.02
from £193.02
# 020
MPN: 122853
PIPE
Per GD vale n. 117291
from £89.71
from £89.71
# 021
MPN: 164417
SLEEVE
from £43.10
from £43.10
This part replaces part number 158165
# 022
MPN: 112951
NOURRICE PER RADIATORE
from £389.97
from £389.97
# 023
MPN: 101499

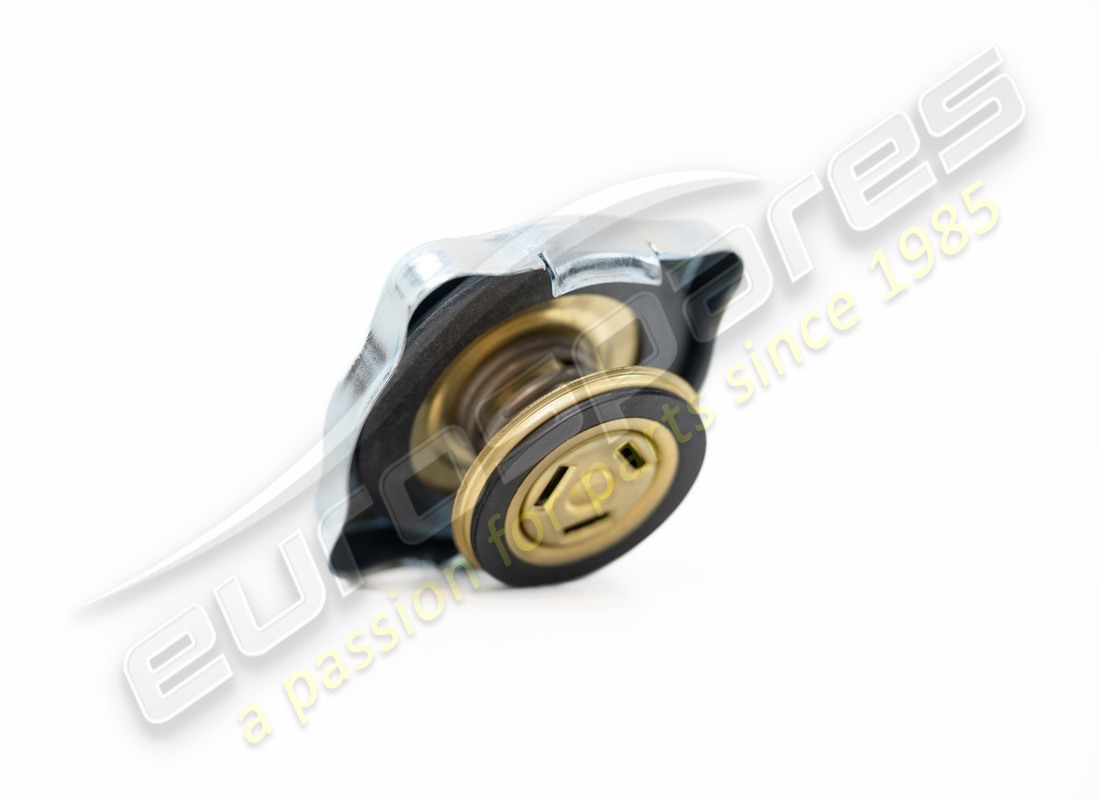

RADIATOR PRESSURE CAP
Round cap 0.9 Bar
Supersession
Supersession
This part replaces part number 149165

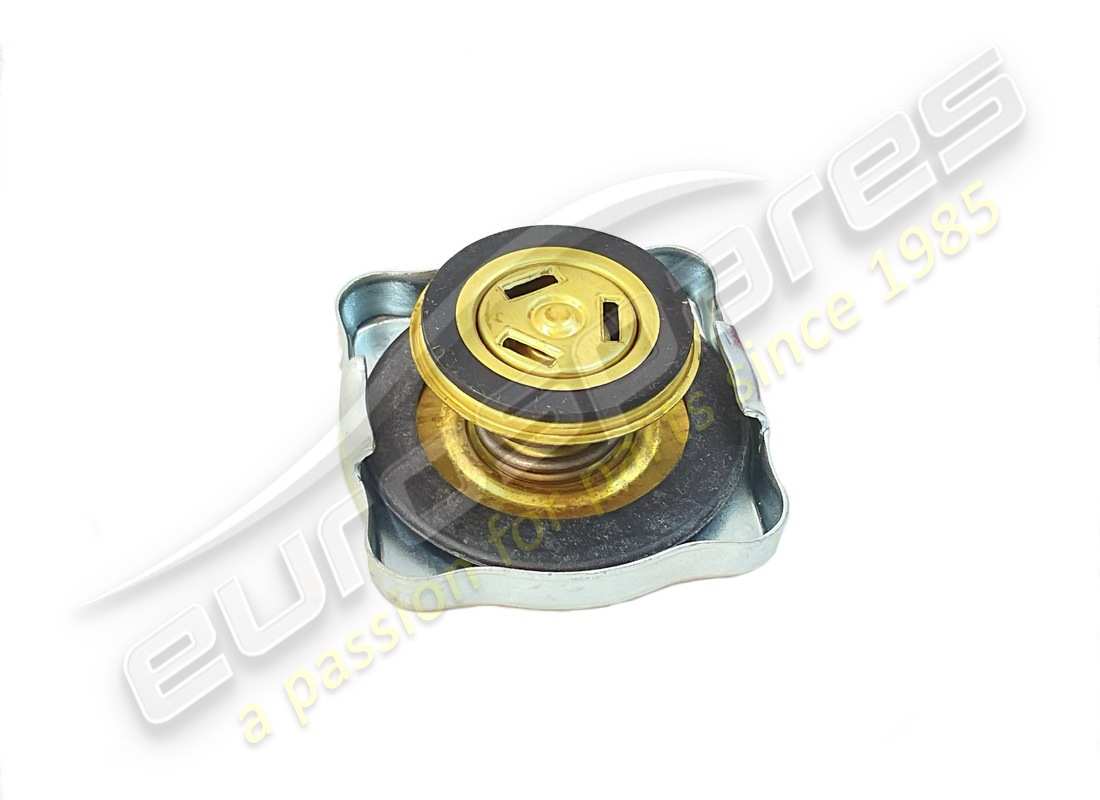

# 023
MPN: 101499/C
RADIATOR PRESSURE CAP
Square Radiator cap (0.9 BAR)
from £12.00
from £12.00
# 024
MPN: 113549
TUBO ANTERIORE PER RITORNO
Per GD vale n. 117292
from £157.83
from £157.83
# 025
MPN: 116444
RETURN HOSE
from £37.05
from £37.05
# 026
MPN: 115936
SLEEVE
from £26.88
from £26.88
# 027
MPN: 12174090
JUBILEE CLIP
Supersession
Supersession
This part replaces part number 105303 - and 1 more. Click to view details

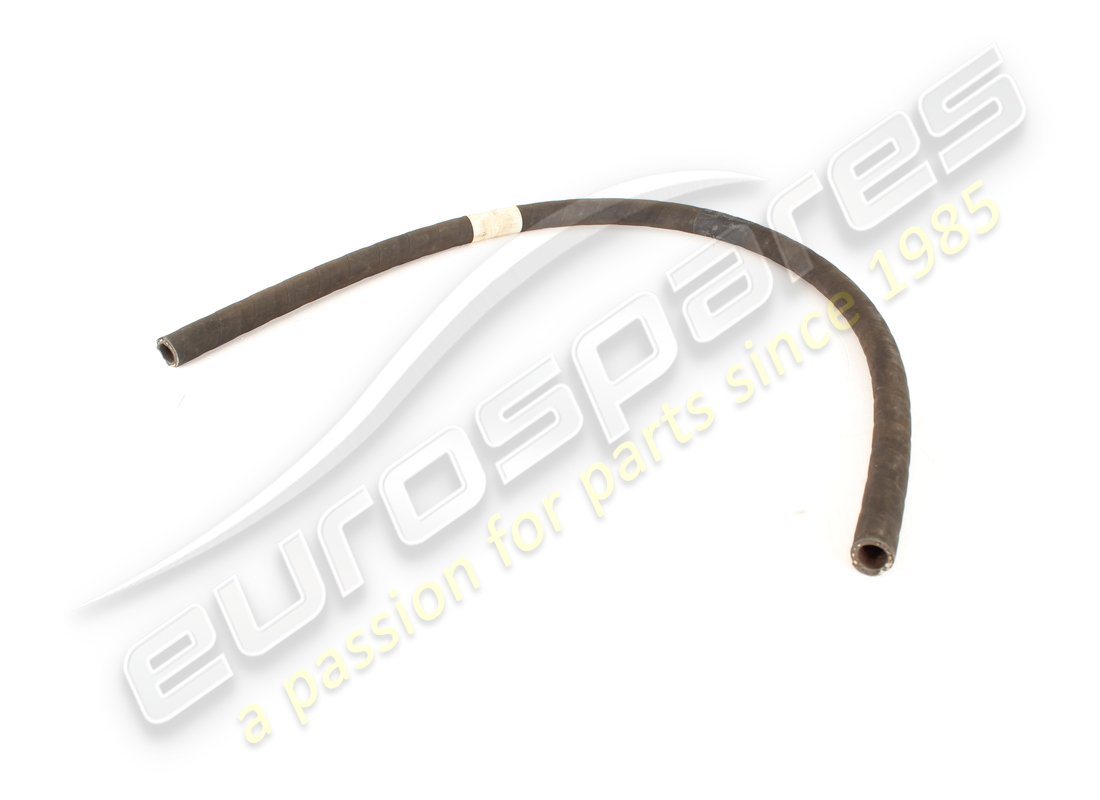

# 028
MPN: 116453
TUBO SFIATO COLLEGAMENTO MOTORE -NOURRICE
Supersession
Supersession
# 029
MPN: 104879
JUBILEE CLIP
Supersession
Supersession
# 030
MPN: 125088
TUBO DALLA NOURICE AL MOTORE
from £45.31
from £45.31
This part replaces part number 109355 - and 2 more. Click to view details
# 031
MPN: 105622
JUBILEE CLIP
Supersession
Supersession

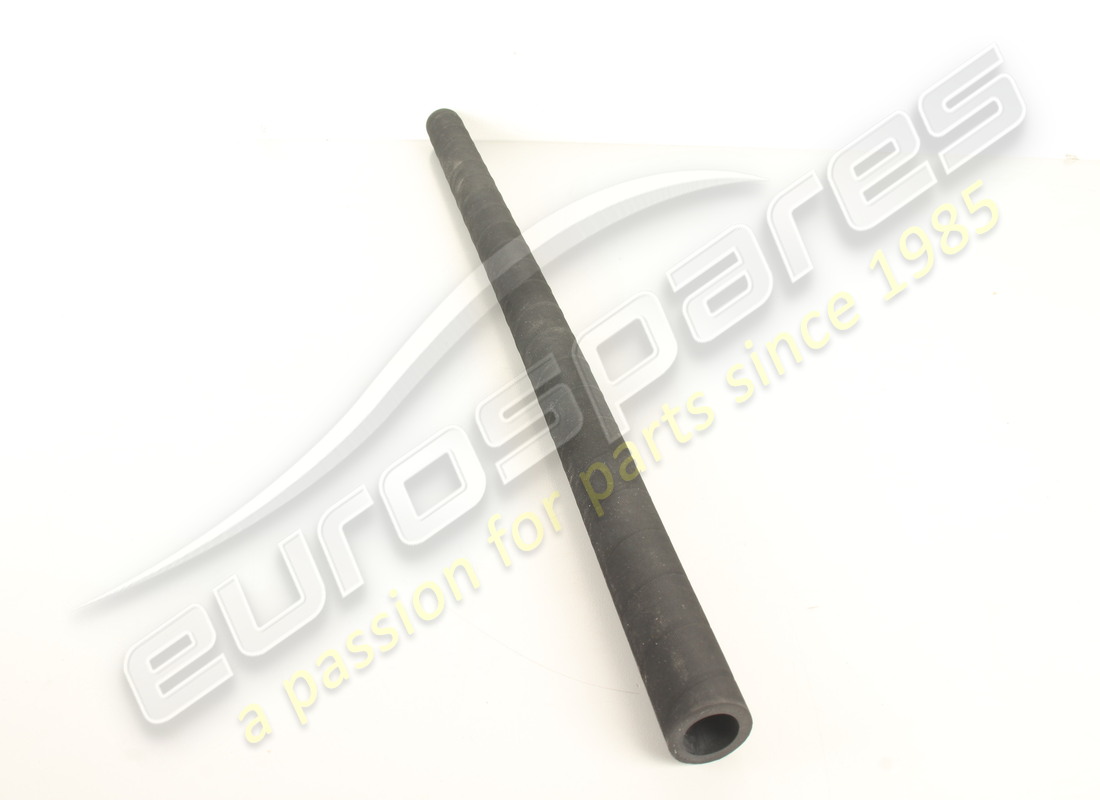

# 032
MPN: 106666
OVERFLOW TUBE
from £1.37
from £1.37
# 033
MPN: 101296
JUBILEE CLIP
# 034
MPN: 113550
TUBO POSTERIORE SX.
from £76.09
from £76.09
# 035
MPN: 117174
TUBO POSTERIORE DX.
from £77.39
from £77.39
# 036
MPN: 122857
TUBO FRA LE TESTE
from £133.50
from £133.50

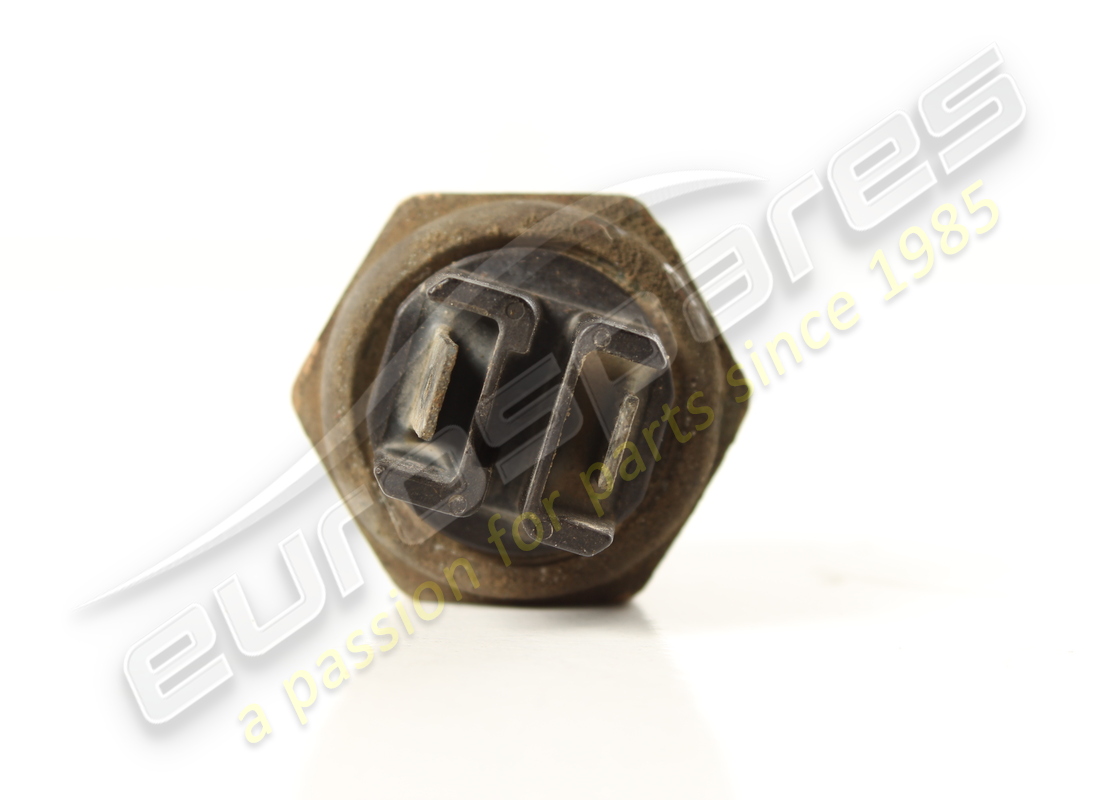

# 037
MPN: 168008

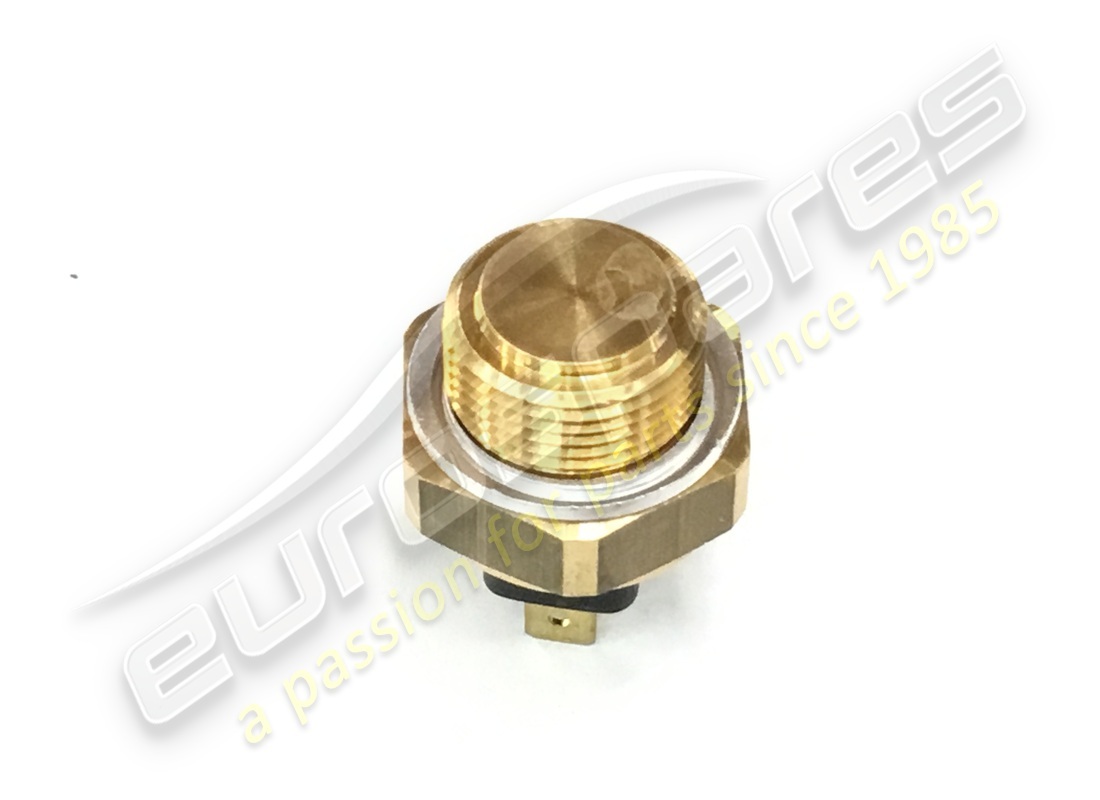

TERMOCONTATTO
from £28.44
from £28.44
This part replaces part number 101507 - and 1 more. Click to view details
# 038
MPN: 101508
GASKET
from £0.69
from £0.69
This part replaces part number 94706
# 039
MPN: 60814500
PIPE TO HEATING TAP
from £199.92
from £199.92
# 040
MPN: 107002
JUBILEE CLIP
from £7.32
from £7.32
# 041
MPN: 108292
WASHER
from £5.03
from £5.03
# 042
MPN: 117222
COOLANT LEVEL SIGNALING DEVICES
from £625.26
from £625.26
# 043
MPN: 60814400
PIPE FROM ENGINE TO ALUMINUM PIPE
from £58.64
from £58.64
# 044
MPN: 60748600
TUBE ON THE BACKREST
from £18.17
from £18.17
# 045
MPN: 10441590
FASCETTA SOSTEGNO TUBO
from £0.47
from £0.47
This part replaces part number 10113600
# 046
MPN: 12574211
NUT
from £0.71
from £0.71
# 047
MPN: 60814600
RETURN HOSE
from £35.91
from £35.91
# 048
MPN: 13000390
JUBILEE CLIP
from £0.47
from £0.47
This part replaces part number 12179590 - and 1 more. Click to view details
# 049
MPN: 105550
HOSE SEAL CLAMP
from £1.28
from £1.28
# 050
MPN: 116442
INTERMEDIATE PIPE FOR DELIVERY
from £24.49
from £24.49
# 051
MPN: 16104411
NUT
from £0.47
from £0.47
# 052
MPN: 16104411
NUT
from £0.47
from £0.47
# 053
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 054
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 055
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 056
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 057
MPN: 121258
SLEEVE
from £19.23
from £19.23
This part replaces part number 10147087 - and 4 more. Click to view details
# 058
MPN: 117173
HOSE ON THE DELIVERY PUMP
from £27.71
from £27.71
# 059
MPN: 105190
SLEEVE
from £16.64
from £16.64
This part replaces part number 106364
